Applications
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
|
Advantages of Hydraulic Winch with Clutch
Hydraulic System:
Utilizes hydraulic fluid pressure to operate, providing strong pulling force and efficient operation.
Capable of handling heavy loads, making it suitable for demanding applications.
Clutch Mechanism:
Allows the operator to engage or disengage the winch from the load easily.
Helps control the movement of the load more precisely, enabling smoother starts and stops.
Variable Speed Control:
Many hydraulic winches with clutches offer variable speed options, allowing for fine-tuning of the pulling speed and power.
Durability:
Typically constructed from high-strength materials designed for durability under heavy loads and harsh conditions.
Safety Features:
May include automatic brake systems and overload protection to enhance safety during operation.
| How Does a Clutch Work on a Winch?
The clutch mechanism on a winch plays a crucial role in controlling the engagement and disengagement of the winch drum from the drive system, allowing the operator to manage the movement of the load more precisely. Here’s how it works:
Operation of a Winch Clutch
Engagement and Disengagement:
The clutch can be engaged or disengaged manually or automatically depending on the design.
Engaged: When the clutch is engaged, the winch drum is connected to the hydraulic motor or gearbox, allowing the winch to lift or pull the load.
Disengaged: When disengaged, the winch drum is free-spinning, allowing the operator to spool out or rewind cable without engaging the hydraulic system.
Control Mechanism:
The clutch is typically activated through a lever or switch. The operator can control the operation either directly or through a hydraulic control system.
Some advanced winches offer remote-control capabilities for ease of use in challenging situations.

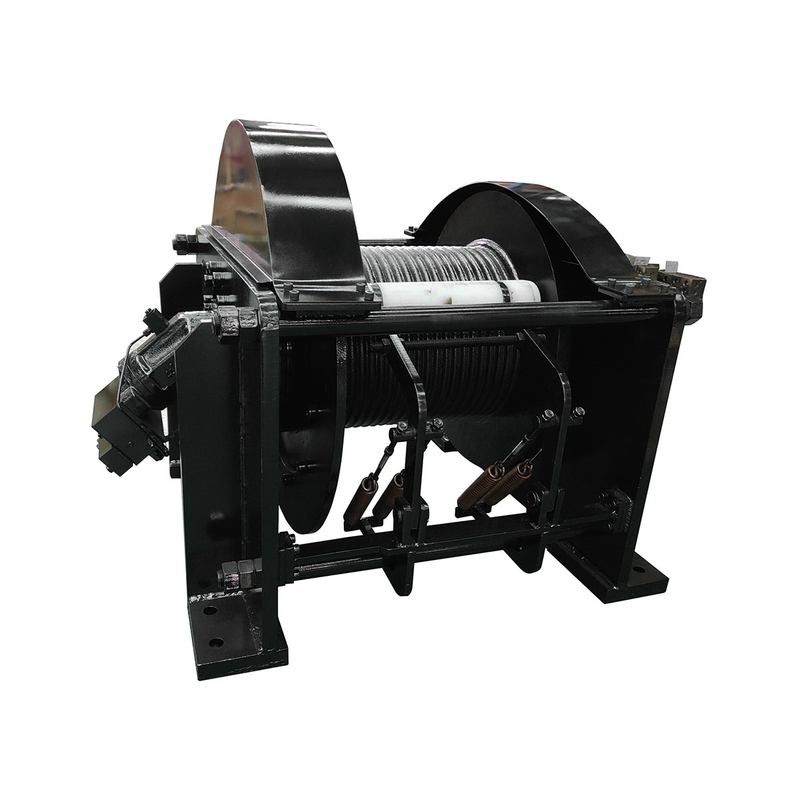

| Hydraulic Winch with Clutch
Model |
GWL |
Load capacity |
5-12 ton |
Rope capacity |
20~200 m |
Working speed |
0~50 m/min |
Hydraulic motor |
NAM |
Warranty |
12 months free |

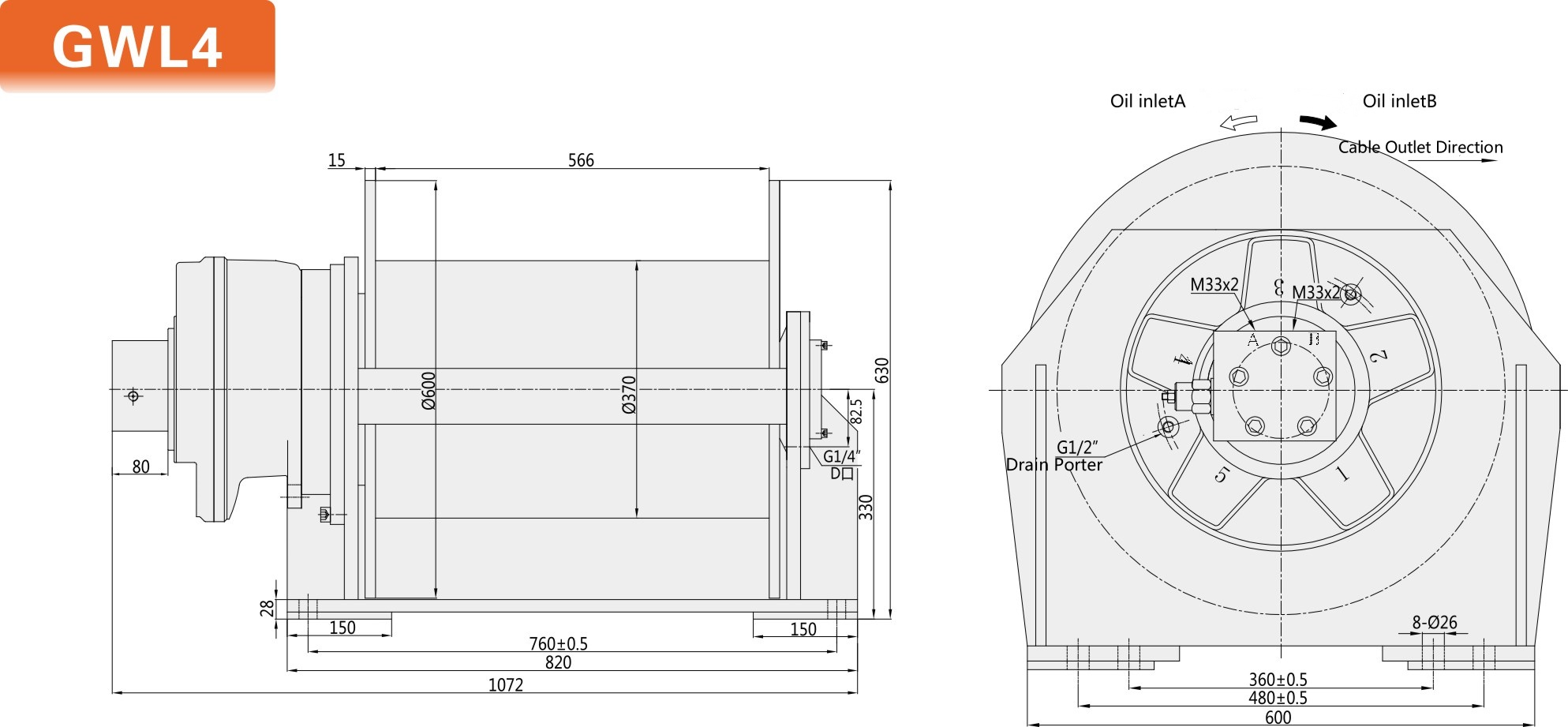

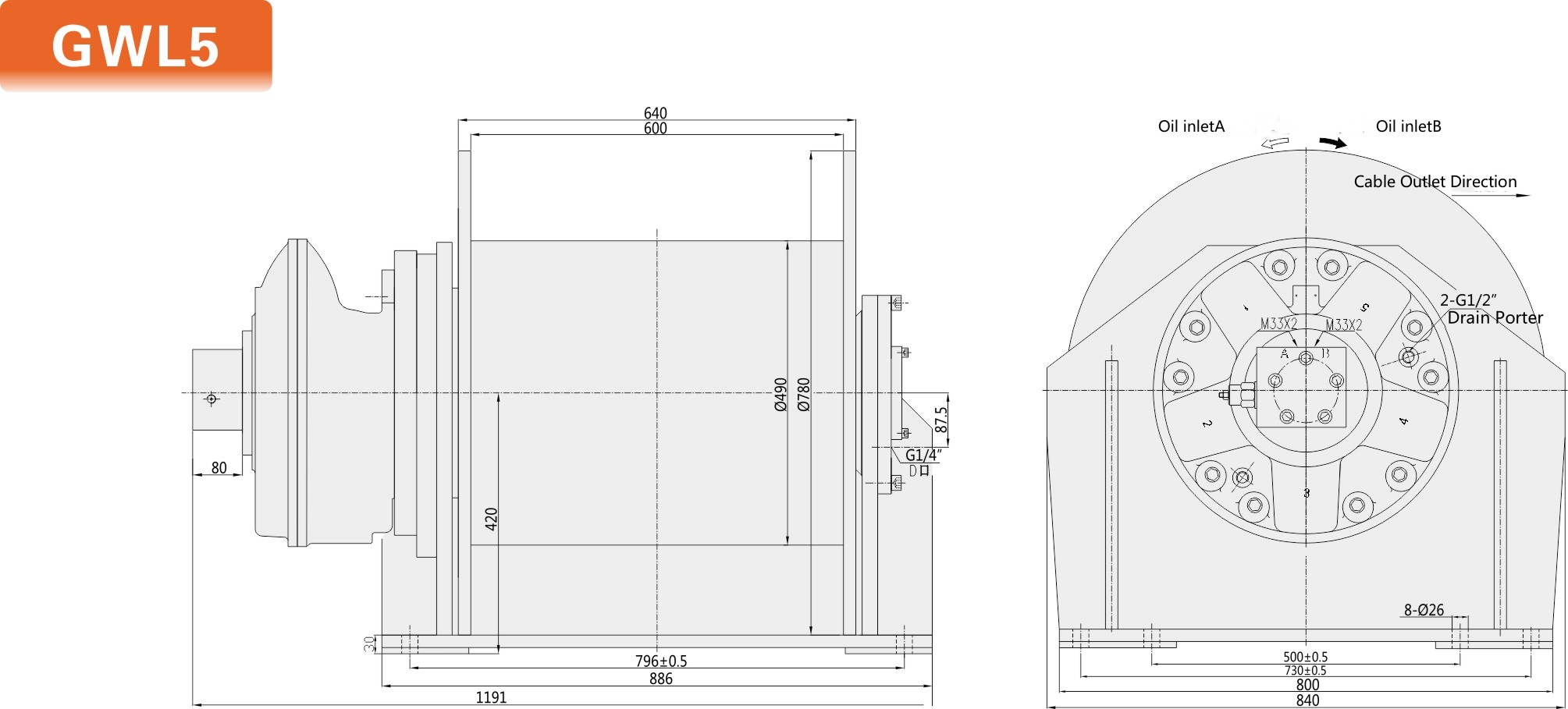

| Technical Parameters
Model |
The 1st layer |
Total displacement （ml/r） |
Working pressure diff.(MPa) |
Rope diameter (mm) |
Wire rope Capacity(m) |
Hydraulic motor |
Model of planetary reducer |
|
Pull (kN) |
Rope speed（m/min） |
|||||||
GWL4-50-100-20-ZP |
50 |
0-40 |
4961 |
13.6 |
20 |
100 |
NAM11-1000D240101 |
C4A |
GWL4-60-90-21.5-ZP |
60 |
0-40 |
6138 |
14.2 |
21.5 |
90 |
NAM11-1100D240101 |
C4D |
GWL5-80-120-24-ZP |
50 |
0-40 |
9977 |
14.8 |
24 |
120 |
NAM16-1800D240101 |
C5D |
GWL5-100-100-28-ZP |
100 |
0-40 |
12468 |
14.2 |
28 |
100 |
NAM16-2400D240101 |
C5D |
|

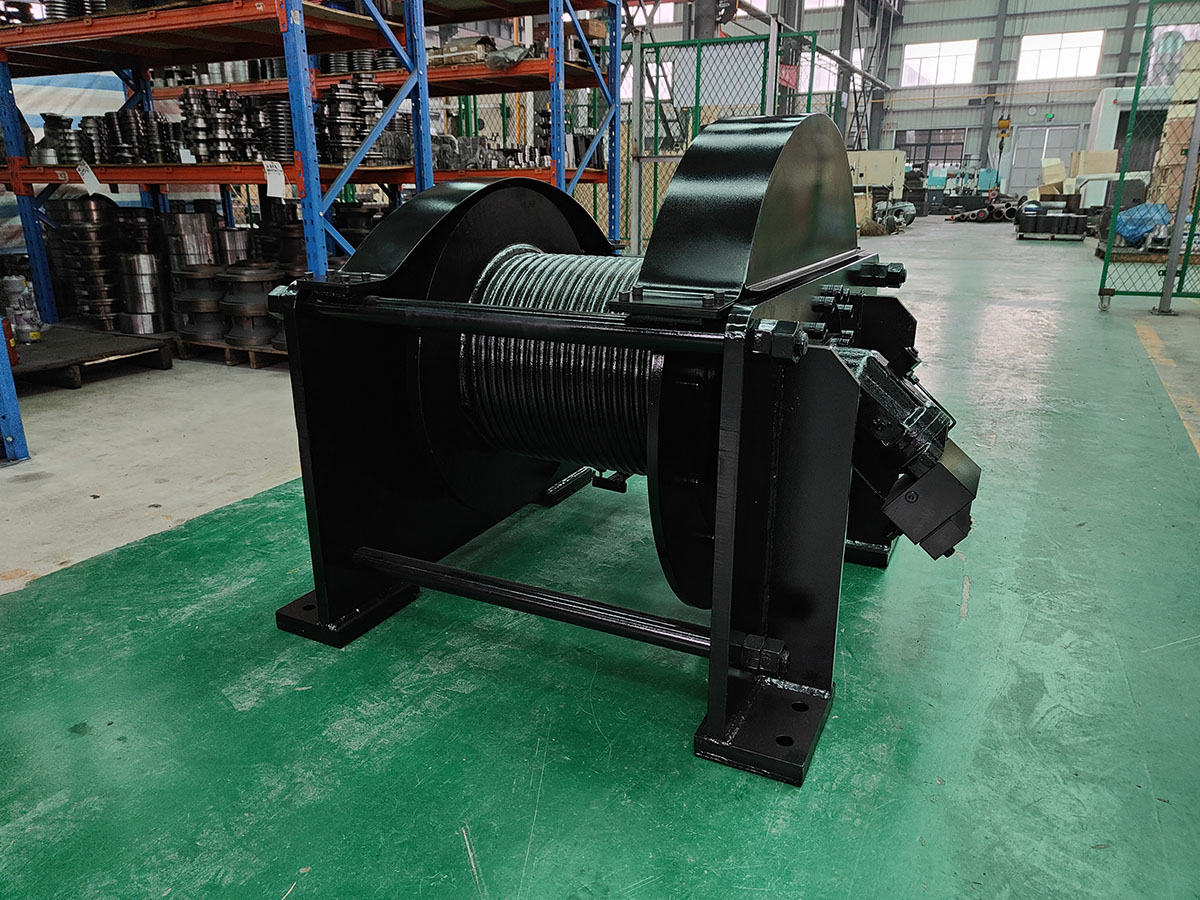

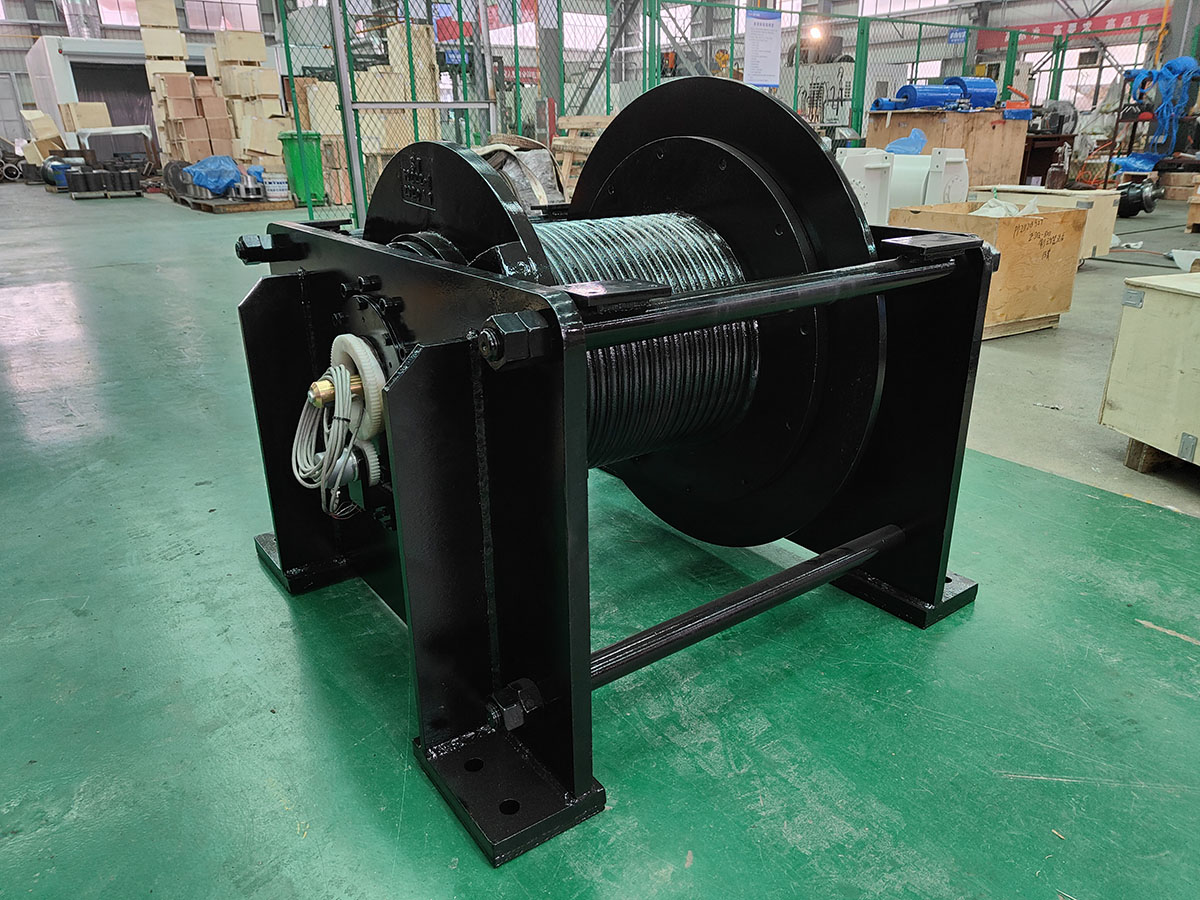

Hydraulic Winch with Clutch Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q1: What is your terms of packing?
A: Generally under Peka Brand, We offer standardized wooden box. You can
stick distributing information on the blank area.
Q2: What is your terms of delivery?
A:EXW FOB CFR, CIF,DDU.
Q3: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The
specific delivery time depends on the items and the quantity of your order.
Q4: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings, We can build the
molds and fixtures.
Q5: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have
to pay the sample cost and the courier cost.
Q6: Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and
make friends with them, no matter where they come from.
