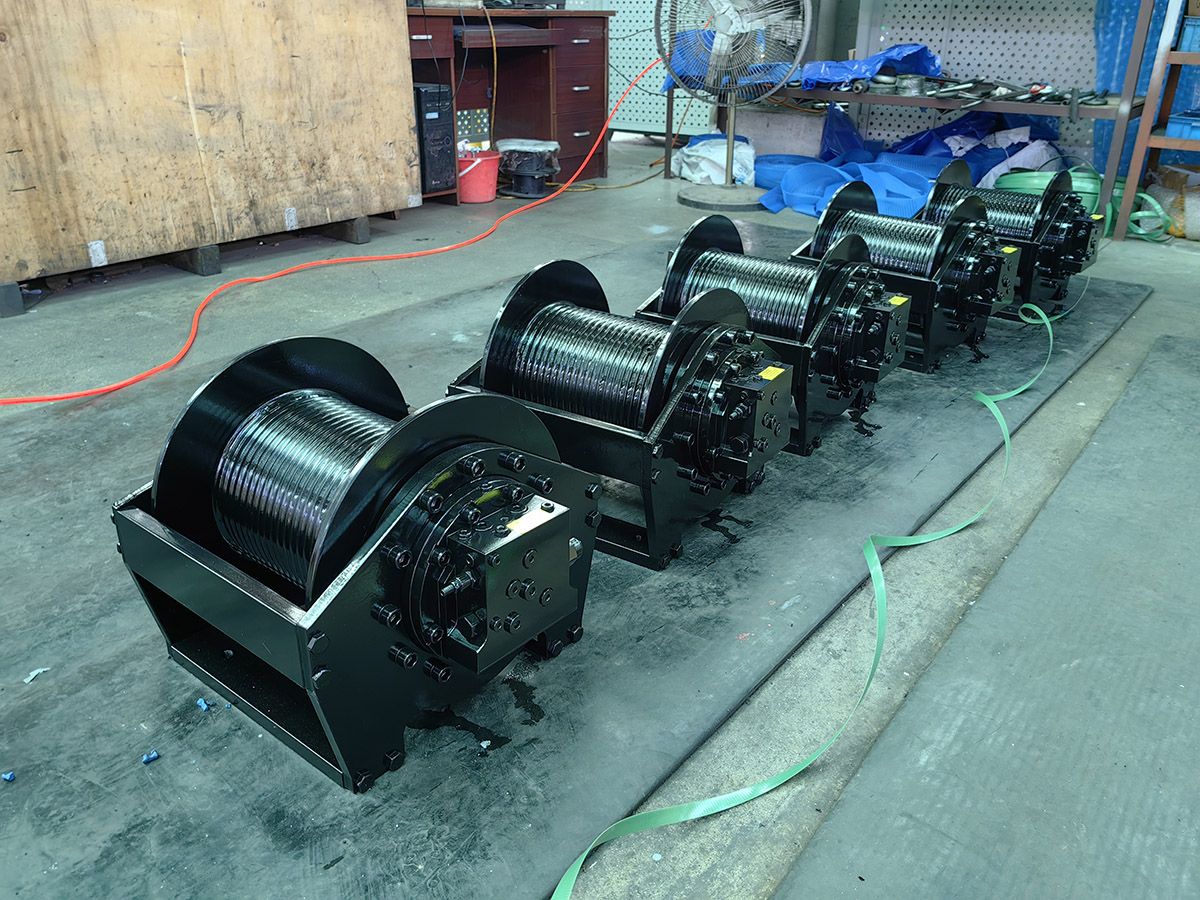

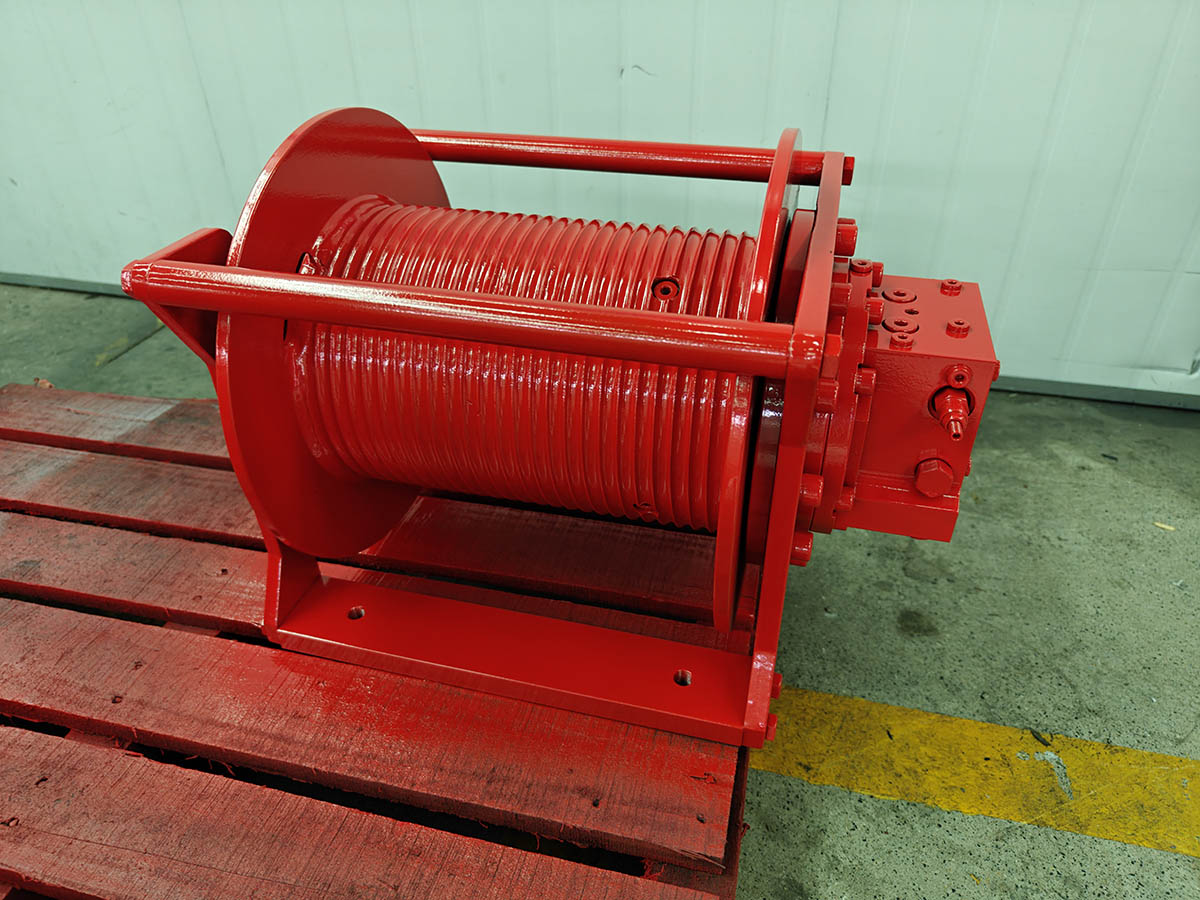

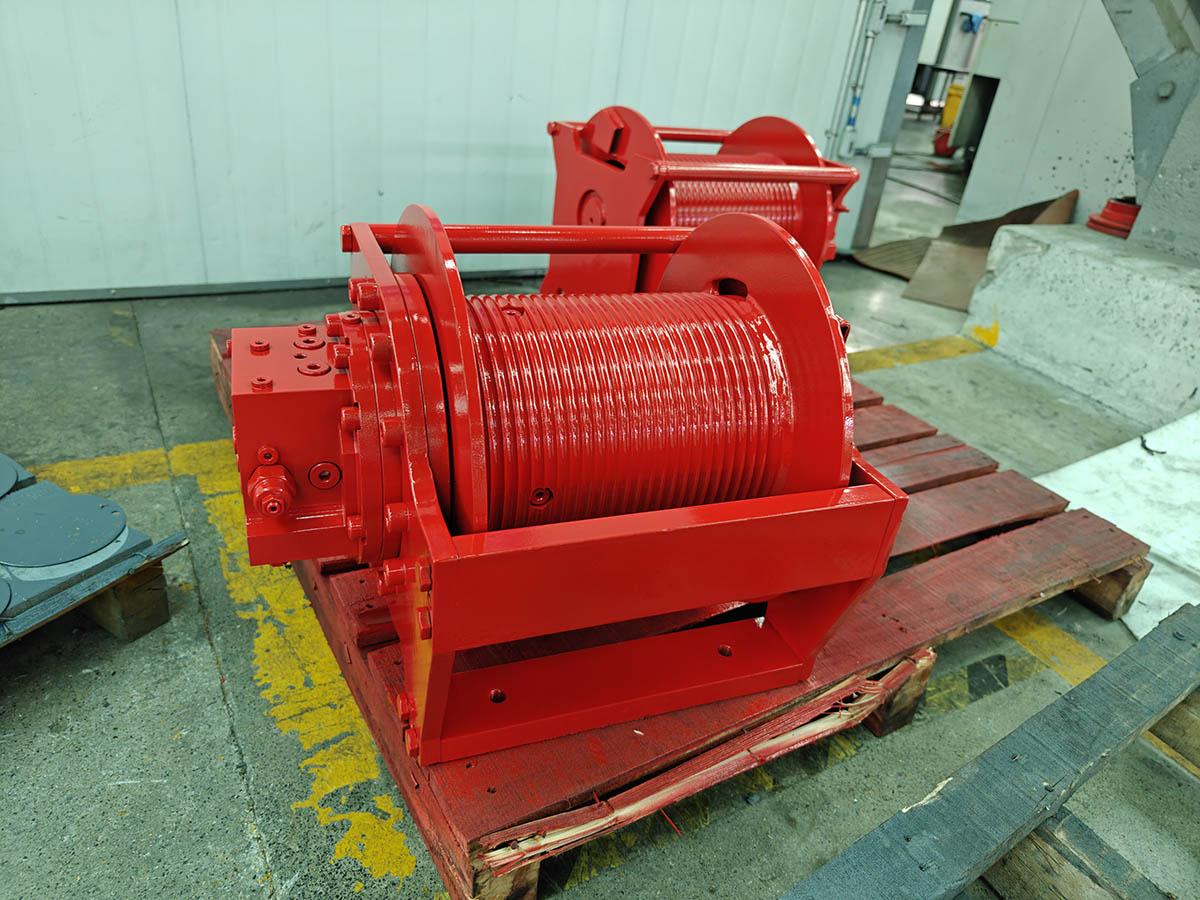

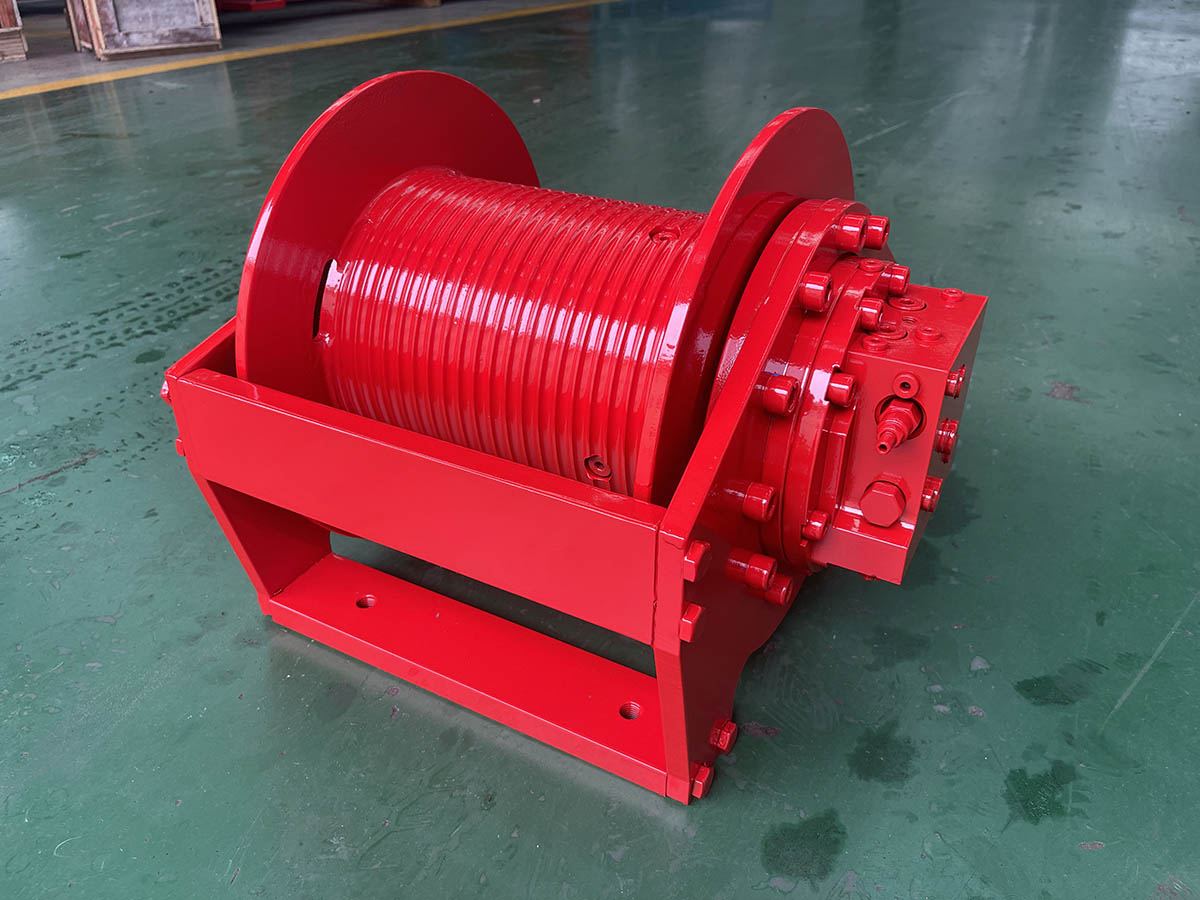

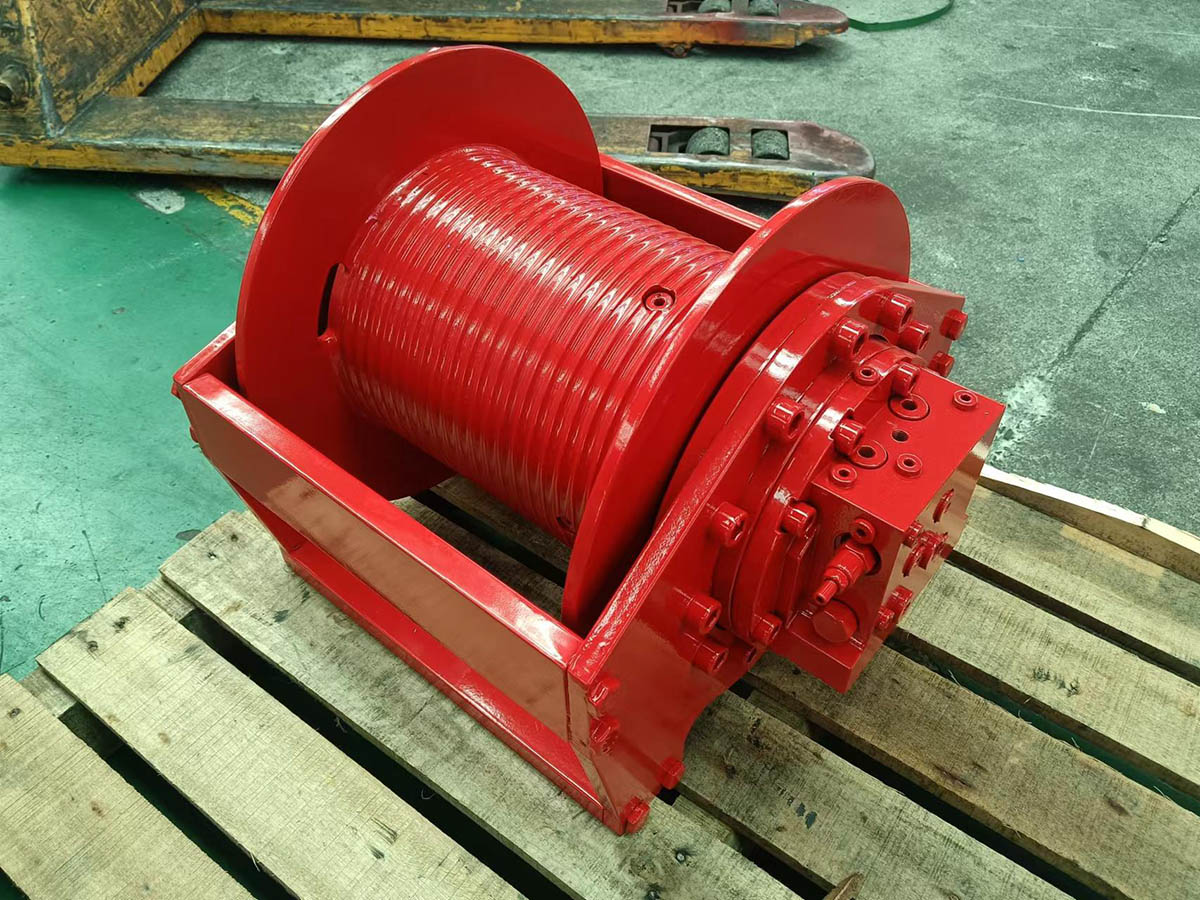

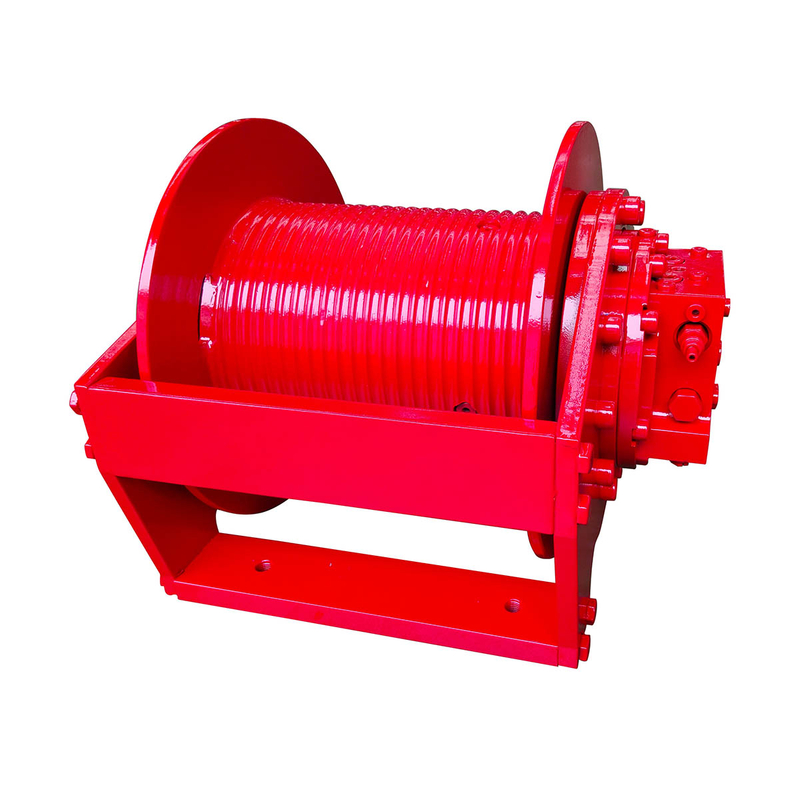

The PYJ2.52.5 industrial hydraulic cable winch is designed for lifting, pulling and wire rope handling applications in industrial and mobile equipment. Its hydraulic drive system is suitable for machinery where controlled line pull, adjustable rope speed and compact winch installation are required.
The PYJ2.52.5 configuration range covers approximately 1.5–3 ton capacity, with wire rope capacities of 60–100 m depending on the selected configuration. Different hydraulic motor options, line pulls and rope diameters can be matched to the machine hydraulic system and operating requirements.
For OEM equipment and replacement projects, the winch configuration should be selected according to required line pull, rope speed, rope capacity, hydraulic pressure, hydraulic flow, mounting dimensions and operating duty.
The winch uses a hydraulic motor and planetary reduction gearbox to transmit power to the drum. The hydraulic configuration can be matched to the available pressure and oil flow of the host machine.
The detailed configurations provide first-layer line pulls from 15 to 30 kN. This allows the winch to be selected according to the required pulling or lifting conditions.
The listed first-layer rope speeds range from 32 to 36 m/min depending on the selected model and hydraulic motor configuration.
The available configurations support rope diameters of 10 mm and 12 mm, with wire rope capacity ranging from 60 to 100 m depending on the drum configuration.
The winch is configured with KC2.52.5-B planetary gearbox arrangements with the listed ratio of i=32.48. The gearbox configuration is matched to the hydraulic motor and required winch performance.
Hydraulic cable winches can be integrated into equipment where controlled lifting, pulling or wire rope positioning is required. Typical applications include:
Industrial lifting equipment
Construction machinery
Oil and gas equipment
Marine and deck machinery
Mining and material-handling equipment
Truck-mounted and mobile equipment
Special-purpose engineering machinery
| Parameter | Specification |
|---|---|
| Model | PYJ2.52.5 |
| Load Capacity | 1.5–3 ton |
| Rope Capacity | 20–100 m |
| Working Speed | 15–36 m/min |
| Hydraulic Motor | PM44 |
| Warranty | 12 months |
| Model | 1st Layer Line Pull (kN) | 1st Layer Rope Speed (m/min) | Total Displacement (mL/r) | Working Pressure Differential (MPa) | Oil Flow Supply (L/min) | Rope Diameter (mm) | Layers | Wire Rope Capacity (m) | Hydraulic Motor | Gearbox Model and Ratio |
|---|---|---|---|---|---|---|---|---|---|---|
| PYJ2.52.5-15-100-12-ZP | 15 | 36 | 1136.8 | 15 | 60 | 10 | 5 | 100 | PM35 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-18-100-12-ZP | 18 | 36 | 1136.8 | 17 | 60 | 10 | 5 | 100 | PM35 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-20-100-12-ZP | 20 | 32 | 1429.1 | 16 | 70 | 12 | 4 | 90 | PM44 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-25-100-12-ZP | 25 | 32 | 1429.1 | 19 | 70 | 12 | 4 | 90 | PM44 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-30-160-12-ZP | 30 | 32 | 1429.1 | 23 | 70 | 12 | 4 | 90 | PM44 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-15-100-10-ZP | 15 | 36 | 1136.8 | 15 | 60 | 12 | 5 | 100 | PM30 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-18-100-10-ZP | 18 | 36 | 1136.8 | 17 | 60 | 12 | 5 | 100 | PM30 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-20-100-12-ZP | 20 | 32 | 1429.1 | 16 | 70 | 12 | 5 | 100 | PM44 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-25-100-12-ZP | 25 | 32 | 1429.1 | 19 | 70 | 12 | 5 | 100 | PM44 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-30-100-12-ZP | 30 | 32 | 1429.1 | 23 | 70 | 12 | 5 | 100 | PM44 | KC2.52.5-B (i=32.48) |
Kemer provides hydraulic winch configurations for OEM equipment manufacturers, machinery builders and replacement applications. The winch can be evaluated according to line pull, rope speed, rope capacity, hydraulic motor, pressure, oil flow and installation requirements.
Custom requirements may include drum dimensions, wire rope diameter, rope length, hydraulic motor configuration, gearbox ratio, mounting arrangement and control or braking components.
Required line pull or lifting requirement
Required rope speed
Drum capacity and rope length
Wire rope diameter
Required brake configuration
Host machine type
Hydraulic system pressure and pump flow
Installation dimensions and available drawings
Other application-specific requirements
Payment: 30% deposit and 70% before shipment. Payment terms can be negotiated, generally by T/T.
Delivery: Delivery time should be confirmed according to the final configuration and order quantity.
Service: 24-hour online service and overseas technical support.
Warranty: 12 months.
Packaging and shipping arrangements can be selected according to the winch dimensions, weight, order quantity, destination and transportation requirements.
An industrial hydraulic cable winch is a hydraulically driven wire rope winch used for lifting, pulling, positioning or handling loads in industrial and mobile equipment.
The listed PYJ2.52.5 product range covers approximately 1.5–3 ton capacity, depending on the selected configuration.
The detailed configurations listed on this page provide first-layer line pulls of 15, 18, 20, 25 and 30 kN.
The listed configurations use 10 mm and 12 mm wire rope diameters.
The detailed configurations include PM30, PM35 and PM44 hydraulic motors. The final motor should be selected according to the required line pull, hydraulic pressure, oil flow and machine interface.
The listed configuration uses a KC2.52.5-B gearbox with a ratio of i=32.48.
Yes. Custom configurations can be evaluated according to the required line pull, rope capacity, rope speed, hydraulic parameters, mounting dimensions and equipment application.
Please provide the required line pull, rope speed, rope length, rope diameter, brake requirement, host machine type, hydraulic pressure and flow, installation dimensions and any special requirements.
Send us your required line pull, rope specifications, hydraulic pressure and flow, installation dimensions and host machine information. Kemer can evaluate the application and provide a suitable hydraulic cable winch configuration.
