The AF36 hydraulic winch series is designed for compatible industrial pulling and lifting equipment. The supplied product data lists first-layer pulling forces of 100–120 kN, with different rope capacities, line speeds, hydraulic motor configurations and GFT36W3 planetary gearbox ratios available across the listed models.
The five configurations shown below are intended for model-specific selection. Confirm the required pulling force, working pressure differential, rope diameter, rope capacity, mounting dimensions and braking arrangement before ordering.
Important: First-layer pulling force is not the same as certified safe working load. For lifting applications, verify the rated load, rope-layer limitations, braking arrangement and applicable equipment requirements using the approved technical documentation.
First-layer pulling force: 100–120 kN across the listed configurations.
Line speed: Up to 40 m/min for the configurations shown, depending on model and operating conditions.
Rope capacity: 100 m or 550 m, depending on the selected model.
Hydraulic motor options: A2FE56, A2FE80 and A2FE90 in the supplied configurations.
Planetary gearbox: GFT36W3 with listed reduction ratios of 99.10 or 100.
Configuration selection: Multiple combinations of pull, speed, rope diameter and rope storage capacity.
The table below consolidates the five configurations supplied for the AF36 series. All values are reproduced from the original model data and should be confirmed against the final technical drawing before purchase.
| Model | First-Layer Pull (kN) | Rope Speed (m/min) | Total Displacement (mL/rev) | Working Pressure Differential (MPa) | Rope Diameter (mm) | Rope Capacity (m) | Hydraulic Motor | Planetary Gearbox |
|---|---|---|---|---|---|---|---|---|
| AF36-100-100-24-ZP | 100 | 0–29 | 7,281 | 24 | 24 | 100 | A2FE56 | GFT36W3, i = 99.10 |
| AF36-110-100-24-ZP | 110 | 0–29 | 7,281 | 26.5 | 24 | 100 | A2FE56 | GFT36W3, i = 99.10 |
| AF36-120-100-24-ZP | 120 | 0–29 | 7,281 | 28.6 | 24 | 100 | A2FE56 | GFT36W3, i = 99.10 |
| AF36-100-550-20-ZP | 100 | 0–40 | 8,040 | 23 | 20 | 550 | A2FE80 | GFT36W3, i = 100 |
| AF36-120-550-22-ZP | 120 | 0–40 | 9,000 | 24 | 22 | 550 | A2FE90 | GFT36W3, i = 100 |
Technical note: Confirm whether the stated working pressure differential and displacement apply to the exact motor and gearbox configuration being quoted. Maximum rope speed and first-layer pulling force should be evaluated under the specified hydraulic conditions.
The AF36 series may be evaluated for compatible equipment requiring hydraulic winch drive. Application suitability depends on the required pulling force, rope arrangement, duty cycle, hydraulic supply and mounting configuration.
Rotary drilling rigs and core drilling equipment.
Construction machinery and truck-mounted cranes.
Mining and geological exploration equipment.
Marine deck equipment and ship cranes.
Port and material-handling machinery.
Other industrial pulling or hoisting applications with verified system compatibility.
These are potential application categories, not confirmation that every AF36 configuration is suitable for every machine in each category. Any required lifting certification should be verified for the complete equipment system.

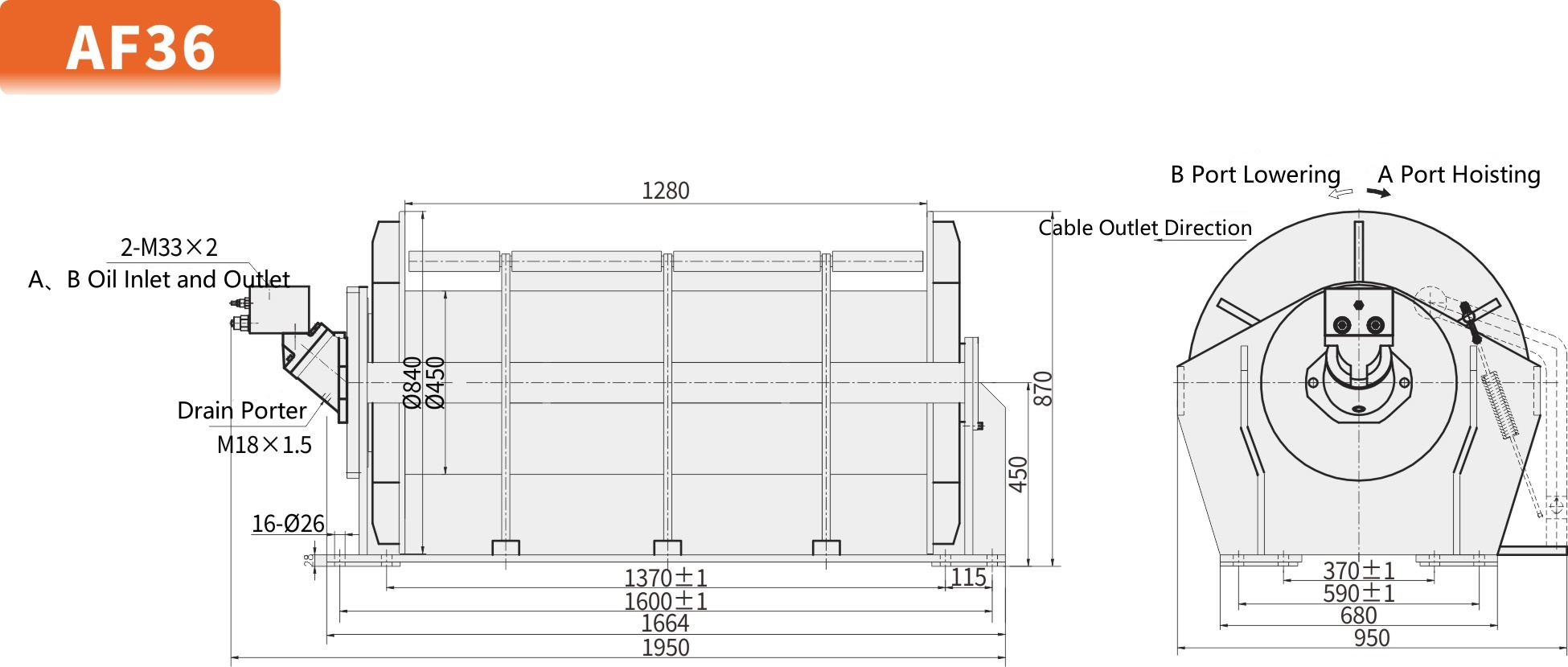

The drum stores the wire rope. Drum dimensions, rope diameter and winding arrangement affect the available rope capacity and line speed at different rope layers. Select the correct rope specification for the winch and intended application.
The listed AF36 configurations use A2FE56, A2FE80 or A2FE90 hydraulic motors. Confirm the exact motor model, hydraulic supply conditions and interface requirements before ordering.
The listed configurations use GFT36W3 planetary gearboxes with reduction ratios of 99.10 or 100. The selected gearbox ratio must match the intended operating speed and torque requirements.
Confirm the winch braking arrangement and load-holding requirements for the intended operation. Do not assume that a particular brake type or certified safe working load is included unless it is specified in the final technical documentation.
Rated capacity: Operate only within the approved load limits for the complete winch system, following the manufacturer's instructions and applicable requirements.
Wire rope and rigging: Verify rope condition, rope rating, hooks, slings, anchors and connecting components before operation.
Brake and hydraulic system: Confirm the brake function, hydraulic operating conditions and load-holding arrangements before use.
Operator training: Only trained and authorized personnel should operate the equipment.
Work area: Keep personnel clear of suspended loads, tensioned wire ropes and other hazardous areas.
Inspection and maintenance: Follow the manufacturer's inspection schedule and remove damaged or defective equipment from service.
For lifting applications, use the approved rated capacity of the complete equipment system. First-layer pulling force alone does not establish a safe working load.

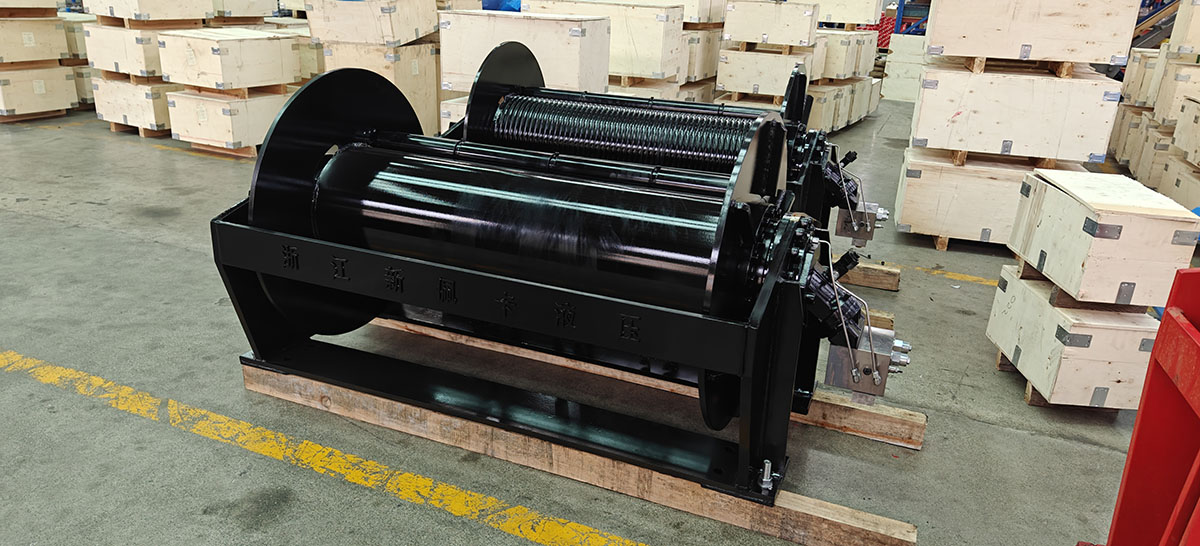

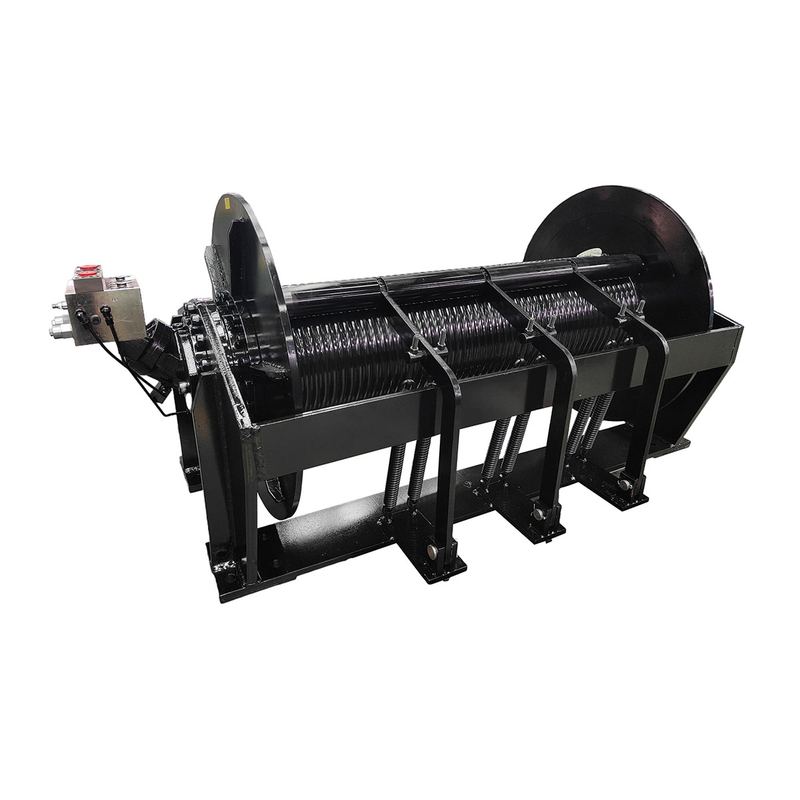

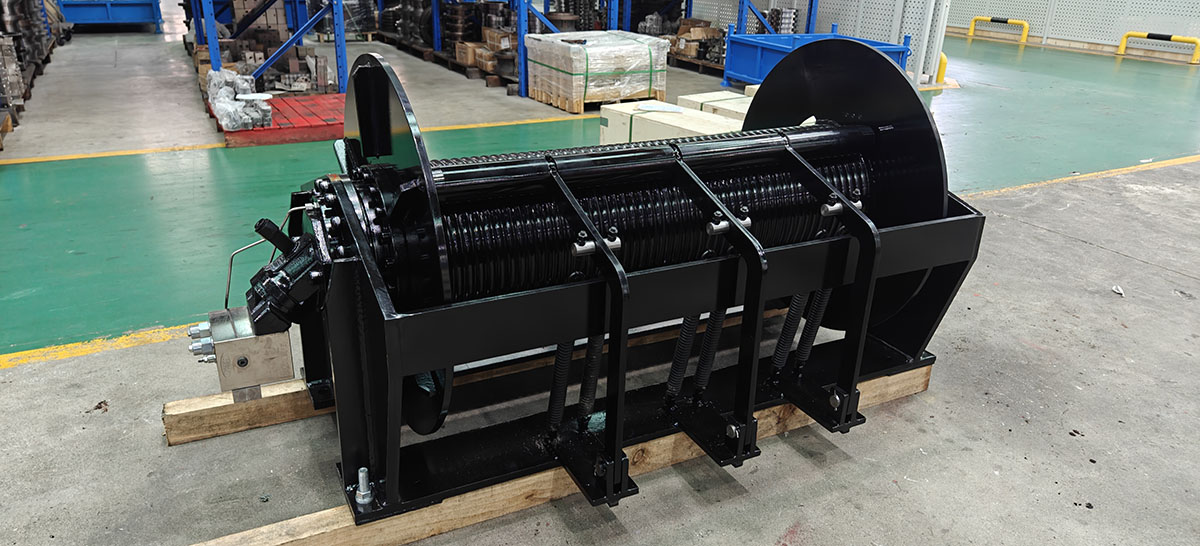

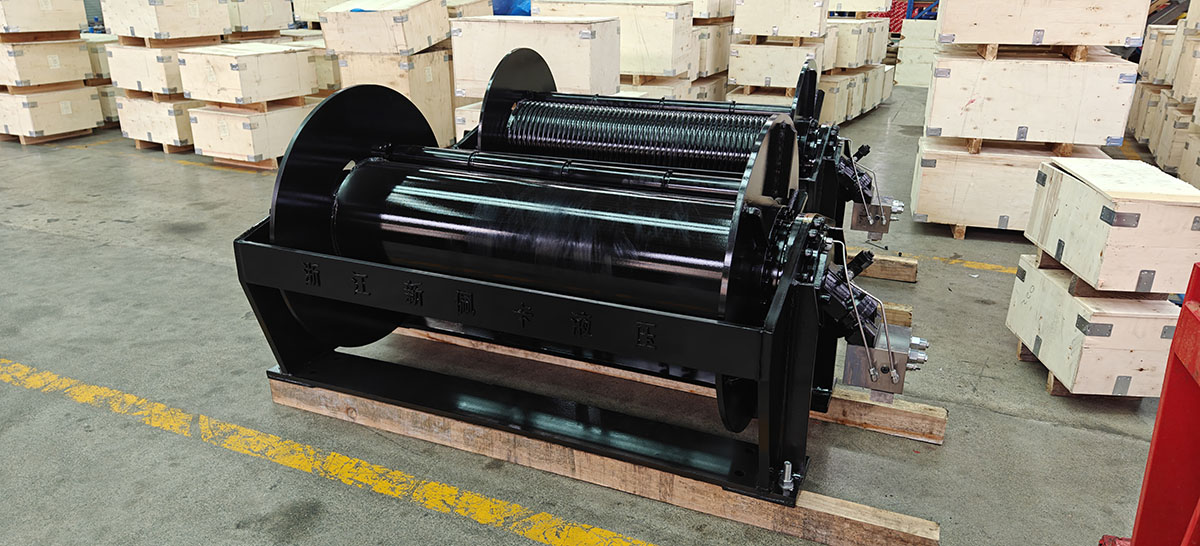

The following original product images are retained as visual references. Confirm that each image matches the actual model and configuration offered for your order.
Payment: The supplied terms are a 30% deposit and a 70% balance before shipment, generally by T/T. Final terms should be confirmed in the order agreement.
Lead time: The product information states approximately 35–40 days after receipt of payment. Confirm the schedule for the selected configuration before ordering.
Technical support: Online service and overseas technical support are listed as available. Confirm the scope of support required for your project.
Warranty: The stated warranty is 12 months, subject to the agreed warranty terms.
Confirm the packing dimensions, gross weight, shipping method and loading arrangements with the supplier before dispatch.
The supplied configurations list first-layer pulling forces of 100 kN, 110 kN and 120 kN. The specified value depends on the selected model and must not be interpreted as a certified safe working load without the applicable equipment rating.
The supplied table lists configurations with 100 m and 550 m wire rope capacities. Rope diameter and other specifications vary by model.
The configurations with 100 m rope capacity list speeds up to 29 m/min, while the 550 m configurations list speeds up to 40 m/min. Confirm actual performance under the specified hydraulic operating conditions.
The listed configurations use A2FE56, A2FE80 or A2FE90 motors with GFT36W3 planetary gearboxes. Confirm the motor and gearbox configuration for the exact model being ordered.
Discuss the required pulling force, line speed, rope diameter and capacity, hydraulic parameters, installation dimensions and operating conditions with the supplier to confirm available configurations.
The original product information states a minimum order quantity of one set. Confirm current availability and final order terms with the supplier.
The product information states approximately 35–40 days after receipt of payment. Confirm the actual production and delivery schedule in the quotation.
Please provide the intended application, required first-layer pulling force, target line speed, rope diameter and capacity, hydraulic supply information, mounting dimensions and any available equipment drawings.
