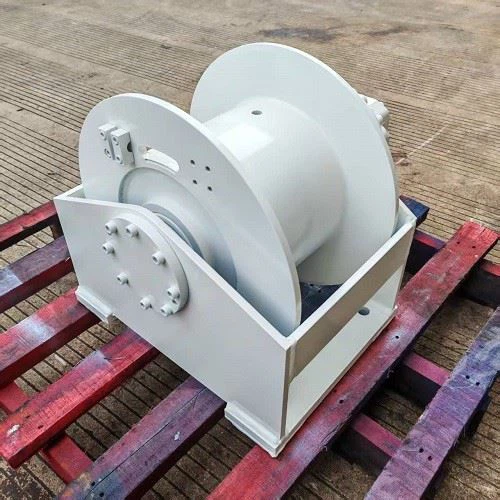

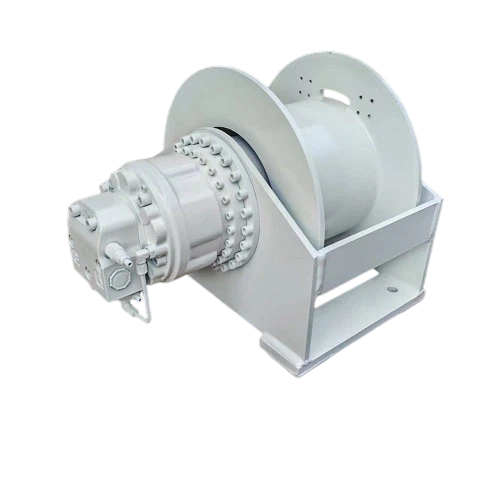

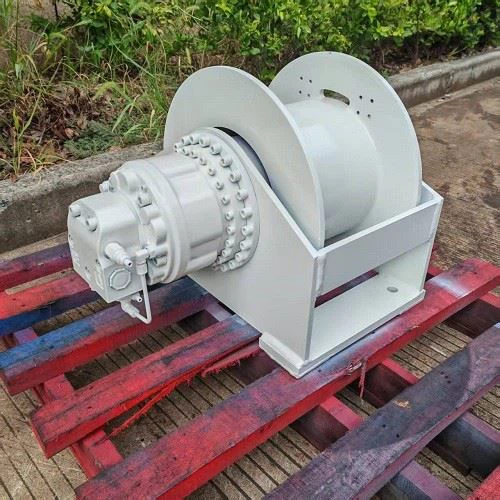

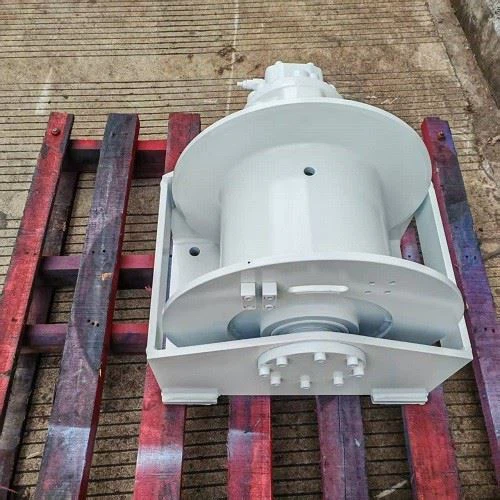

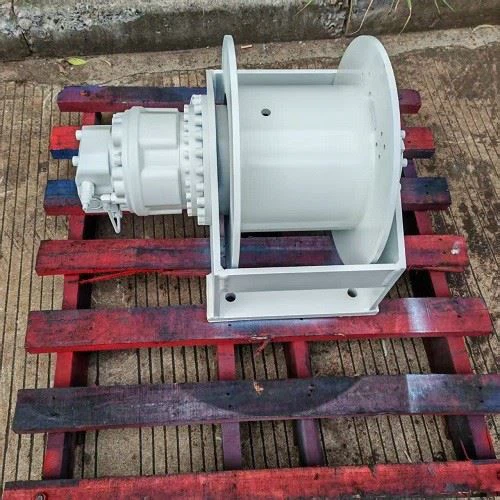

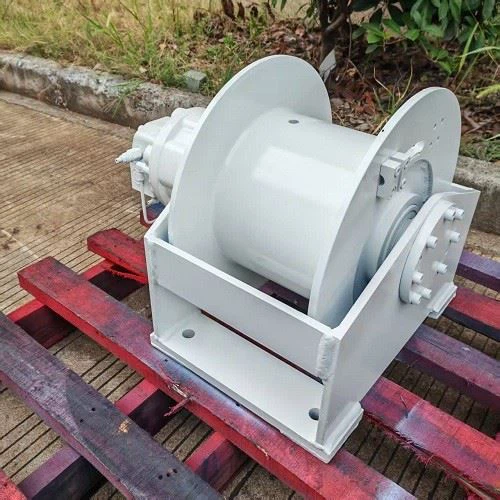

Hydraulic Winch With 1T On The 4th Layer (GW2.5 Series)
Product Positioning
This hydraulic winch is strategically designed for user groups requiring stable and medium-tension equipment. It avoids unnecessary complexity and overly specialized features, focusing instead on fulfilling essential tension requirements. The goal is to provide users with practical equipment at an affordable price. For small businesses, the ability to operate without specialized personnel helps lower labor costs. Individual operators benefit from its versatile usage, which caters to various operational needs and prevents waste from unnecessary features. Additionally, it can be quickly deployed for temporary tension tasks, effectively addressing diverse requirements and offering cost-effective, user-friendly tension solutions.
Product Design
The design philosophy of this hydraulic winch emphasizes simplicity and practicality, with every aspect centered around actual user needs. Its overall appearance features smooth lines, and the surface is meticulously finished to eliminate sharp edges and protrusions. This design not only enhances aesthetic appeal but also minimizes the risk of injury from accidental bumps during handling and operation. The structural layout has been optimized to concentrate core components efficiently, avoiding unnecessary complexity. This reduces the overall weight of the equipment and simplifies daily cleaning and maintenance. For instance, users can easily wipe down the exterior and check key connection points without disassembling multiple parts, saving valuable maintenance time.
Operation indicators are clearly marked with bright colors and simple graphics near control areas. Even first-time users can quickly learn the operation process by consulting the manual or receiving brief guidance. Furthermore, the equipment is constructed from high-strength, corrosion-resistant materials, capable of withstanding external impacts, wear, and harsh environmental conditions like moisture and dust, extending its lifespan and minimizing material-related failures.
Drawing and Technical Parameters
| Model | The 4th layer | Total displacement (ml/r) | Working pressure diff. (MPa) | Rope diameter (mm) | Wire rope Capacity (m) | Layer | |
|---|---|---|---|---|---|---|---|
| Pull (kN) | Rope speed (m/min) | ||||||
| GW2.5-10-70-13-ZP | 10 | 30 | 913 | 17 | 13 | 70 | 4 |
Core Advantages
01. Stable and Reliable:
Throughout research and development, core transmission components and tension control systems underwent extensive optimization and testing. This ensures consistent tension output during operation, eliminating fluctuations during prolonged continuous traction or intermittent tasks.
02. User-Friendly Operation:
No extensive operational experience or technical expertise is required. Users can easily start, stop, and adjust tension through straightforward manual controls, lowering the barrier to entry and reducing training costs for enterprises.
03. Exceptional Durability:
Crafted from high-quality, high-strength alloy materials offering excellent resistance to compression, impact, and chemical corrosion, backed by rigorous quality inspections at every stage of production.
04. Easy Maintenance:
Key maintenance components feature open or easily disassembled designs for quick access without specialized tools. Compatible with common spare parts and accompanied by a comprehensive maintenance manual.
Versatile Adaptability
The design of this hydraulic winch takes into account its adaptability to various equipment and operating conditions. It seamlessly integrates into different operational systems with standardized connection interfaces for common accessories like fixed brackets and traction ropes. Whether used alongside small lifting devices or independently, it connects quickly and operates reliably.
Additionally, its compact design allows for flexible placement in confined spaces, and it maintains stability on flat concrete or slightly inclined surfaces through simple securing methods without requiring worksite modifications.
FAQ
Q: What does "1T tension on the 4th layer" mean for this hydraulic winch?
A: This refers to the winch rope being wound around the drum in layers. "1T tension on the 4th layer" indicates that when the rope is wrapped to the fourth layer, it can reliably pull objects weighing 1 ton (10 kN), which is sufficient for most heavy lifting tasks in everyday use.
Q: How does a hydraulic winch differ from a standard winch?
A: Hydraulic winches utilize hydraulic power, providing smoother pulling with stable force, avoiding sudden jerks or power loss. Their simpler structure also makes them less prone to breakdowns during regular use.
Q: Do you offer other winch models besides this 1T version?
A: Yes, we have a range of hydraulic winches with varying tension capacities and specifications to suit different needs. Please share your requirements for customized recommendations.
Q: Can you manufacture hydraulic winches with different specifications?
A: Absolutely. We can customize winches based on your specific needs, including load weight, required pulling force, and usage environment.
Q: What steps do I need to follow to order a winch? Is it complicated?
A: The ordering process consists of four straightforward steps: 1. Share your requirements. 2. We provide a proposal and quote. 3. Pay a deposit to begin production. 4. Inspect the winch, pay the balance, and arrange shipping.
