Applications
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
|
Advantages of 1 Ton Hydraulic Winch
1.Hydraulic Operation: Brevini winches use hydraulic power to provide high pulling force while requiring less manual effort, making them efficient for heavy-duty applications.
2.Variety of Models: They come in various models, each designed for specific tasks and load capacities. This allows users to select a winch that best suits their needs.
3.Durable Construction: Built to withstand harsh conditions, Brevini hydraulic winches are made from high-quality materials to ensure longevity and reliability.
4.Controlled Speed: Hydraulic winches provide smooth and controlled speed during operation, allowing for precise handling of loads.
5.Safety Features: Many models are equipped with safety features, such as overload protection and emergency stops, ensuring safe operation.
| Why Hydraulic Winch More Reliable Than Electric Winches?
1. Power and Torque Output
Consistent Torque: Hydraulic winches provide consistent torque across a wide range of speeds and loads. They can handle heavy loads without significant loss in power.
High Load Capacity: Hydraulic systems are capable of generating much higher pulling forces, making them ideal for demanding applications.
2. Durability in Harsh Conditions
Resistance to Environmental Factors: Hydraulic winches are generally more resistant to harsh environments (such as extreme temperatures, moisture, and dust) compared to electric winches, which can be affected by these conditions.
Fewer Electrical Components: The absence of electrical components means reduced risk of failure due to electrical malfunctions, corrosion, or short-circuits.
3. Less Mechanical Complexity
Simplicity of Operation: Hydraulic systems often feature simpler machinery and fewer parts that can wear out or fail compared to the more complex electrical systems.
Robustness: Hydraulic components tend to be built for heavy-duty use, making them less prone to failure under constant heavy load conditions.
4. No Overheating Issues
Heat Dissipation: Hydraulic systems typically manage heat better than electric motors, which can overheat during prolonged use, especially under high loads. Hydraulic fluid can dissipate heat more effectively.
5. Greater Control and Precision
Fine Control: Hydraulic winches provide better control over load movements and are capable of performing delicate maneuvers with a higher degree of precision.
Instantaneous Response: They respond quickly to changes in load and operational demands, allowing for swift adjustments during lifting or pulling.
6. Maintenance and Repair
Ease of Maintenance: Hydraulic systems can be easier to maintain, as issues are often more straightforward to diagnose (e.g., checking fluid levels and seals).
Long Service Life: With proper maintenance, hydraulic systems can have a much longer lifespan over electric systems, especially when used in heavy-duty applications.
7. Adaptability
Versatility: Hydraulic winches can be adapted for various applications through different hydraulic circuits and attachments, making them more versatile in their use compared to electric winches.
| 1 Ton Hydraulic Winch
Model | GW2.5 |
Load capacity | 1-2 ton |
Rope capacity | 20~150 m |
Working speed | 20~50 m/min |
Hydraulic motor | GN05 |
Warranty | 12 months free |

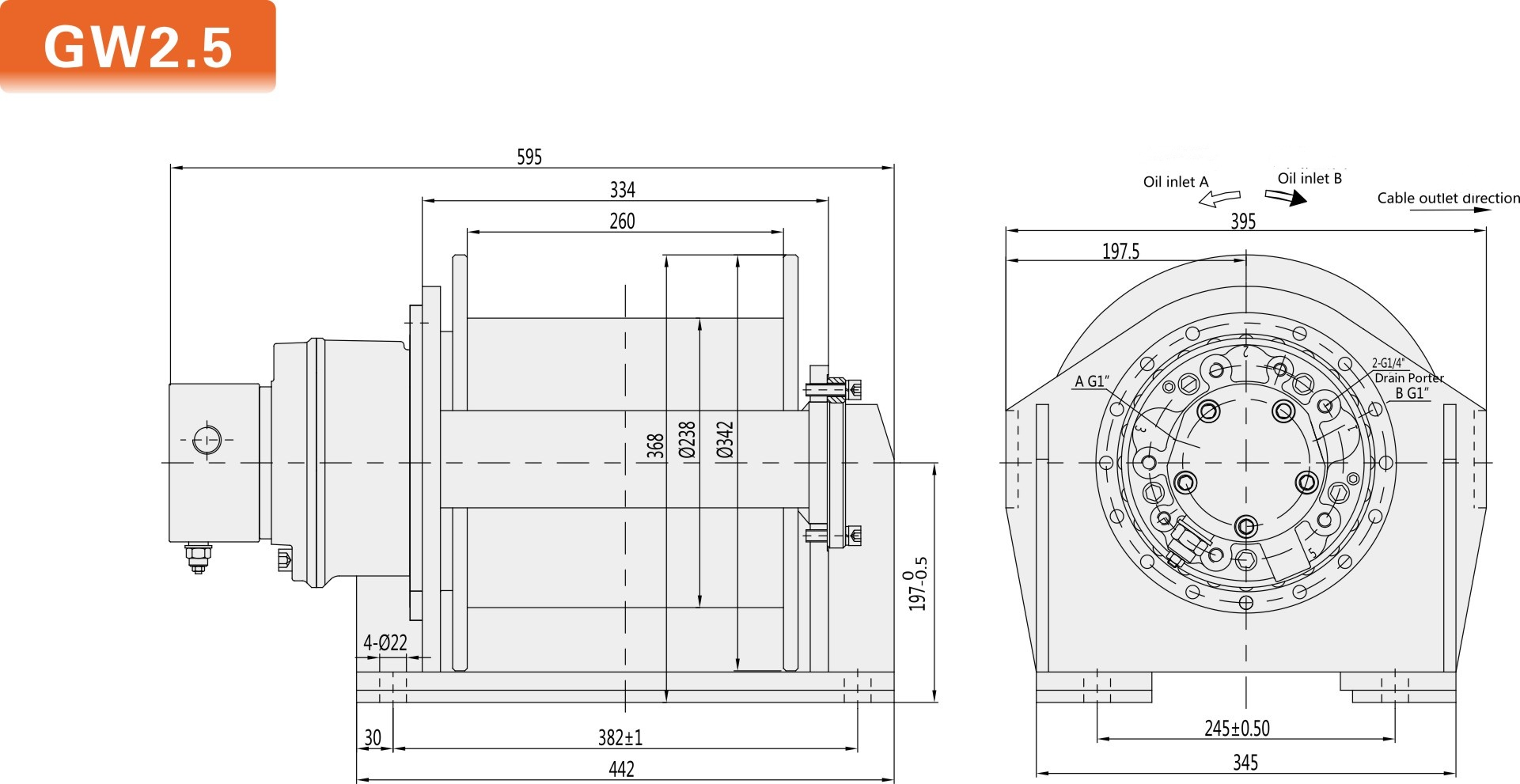

| Technical Parameters
Model | The 1st layer | Reel bottom diameter(mm) | Total displacement （ml/r） | Working pressure diff.(MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Hydraulic motor | Model of planetary reducer | |
Pull (kN) | Rope speed（m/min） | ||||||||
GW2.5-10-60-10-ZP | 10 | 0-30 | 238 | 575 | 15 | 10 | 60 | GN05-110D51 | C2.5-5 |
GW2.5-20-50-12-ZP | 20 | 0-30 | 238 | 1050 | 17 | 12 | 50 | GN05-200D51 | C2.5-5.5 |
|

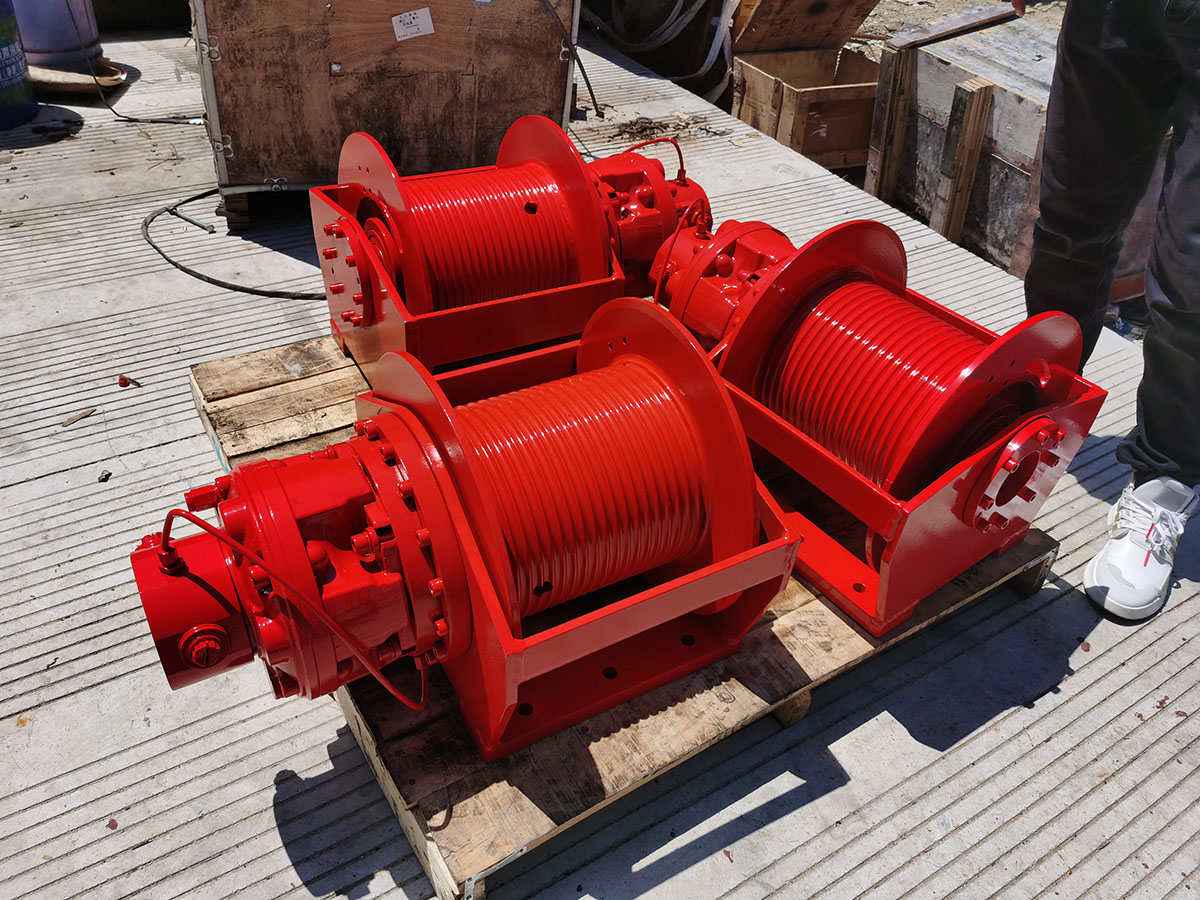

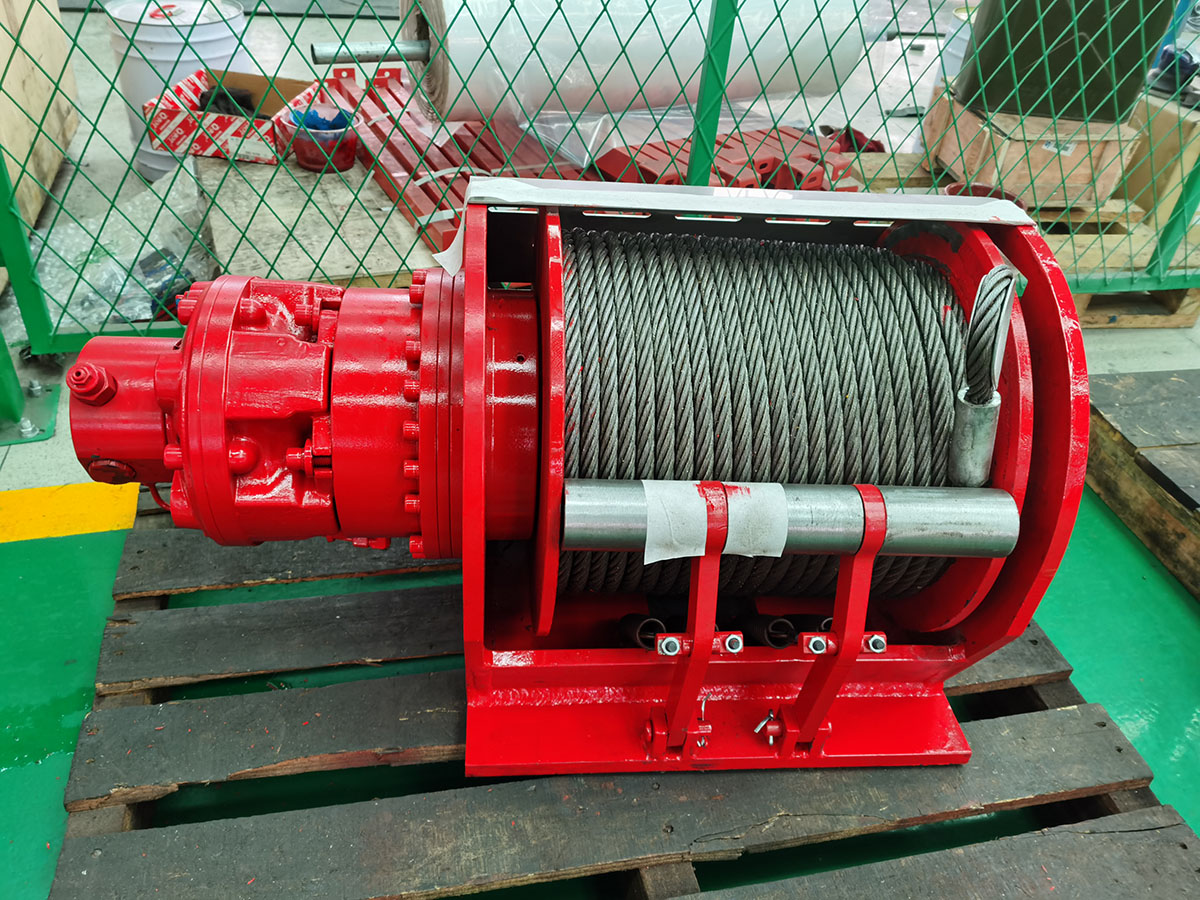

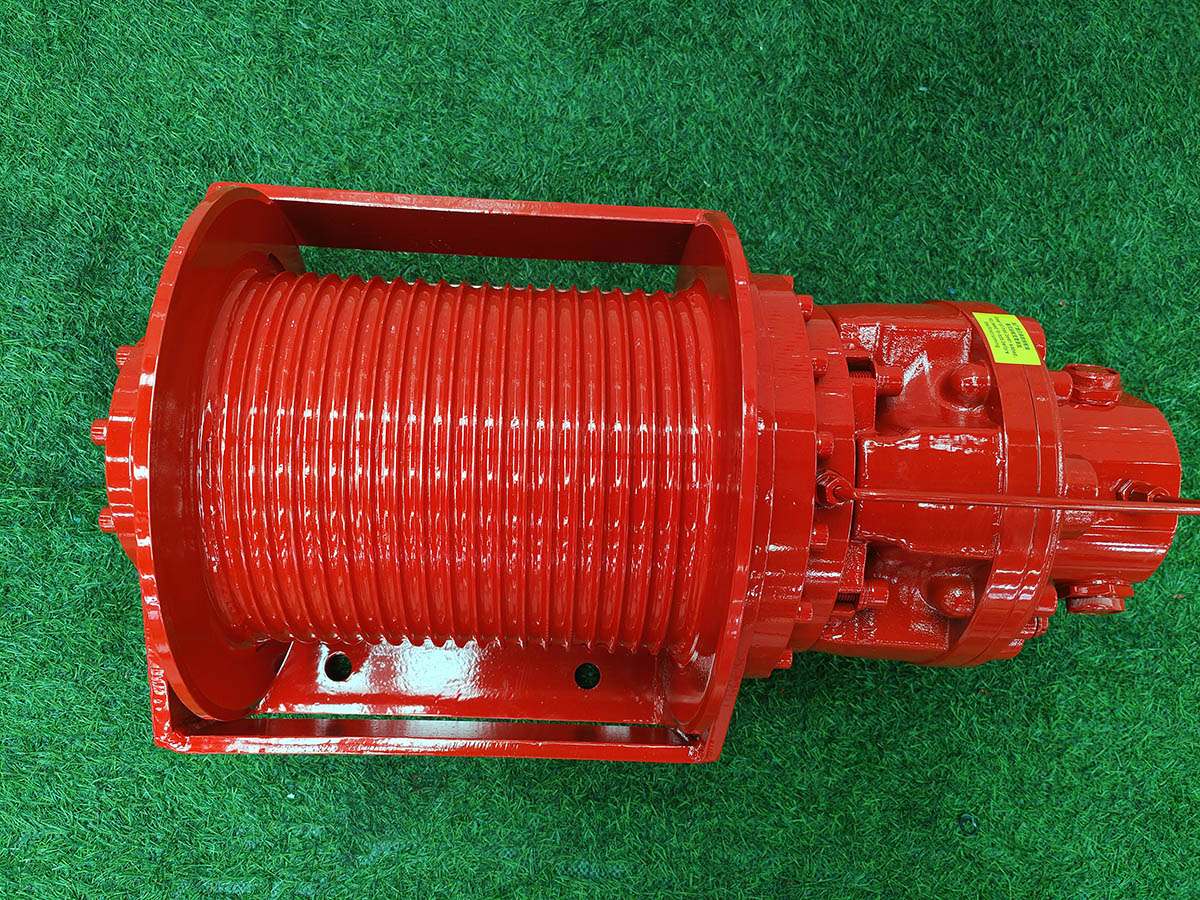

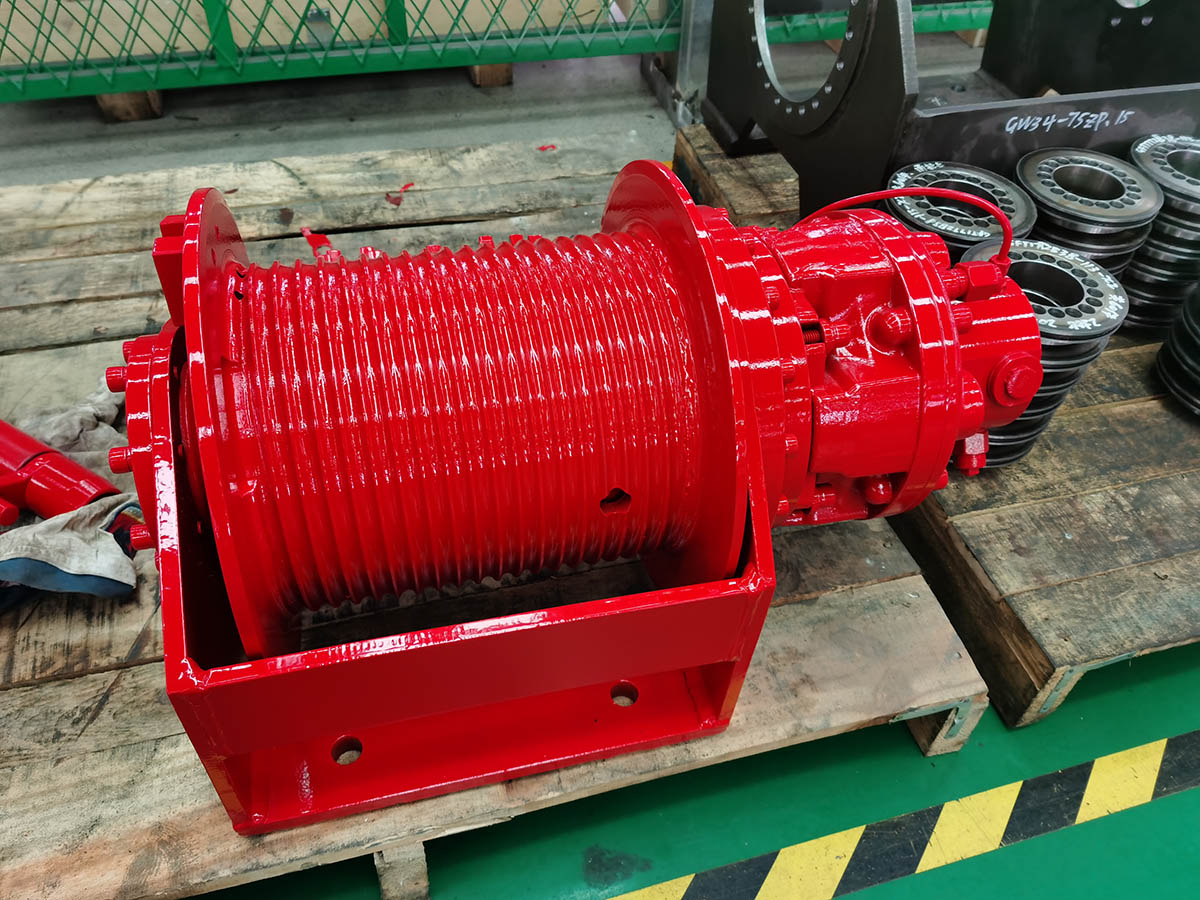

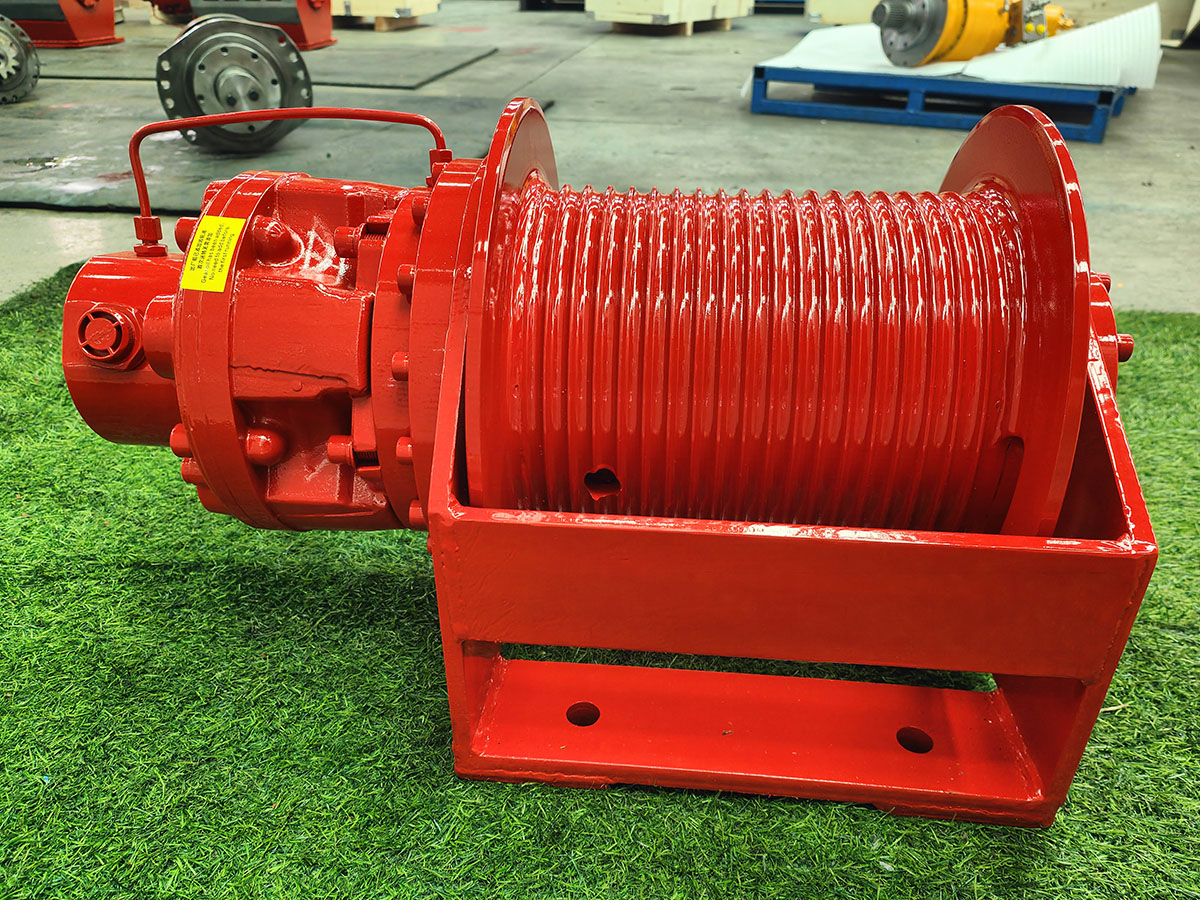

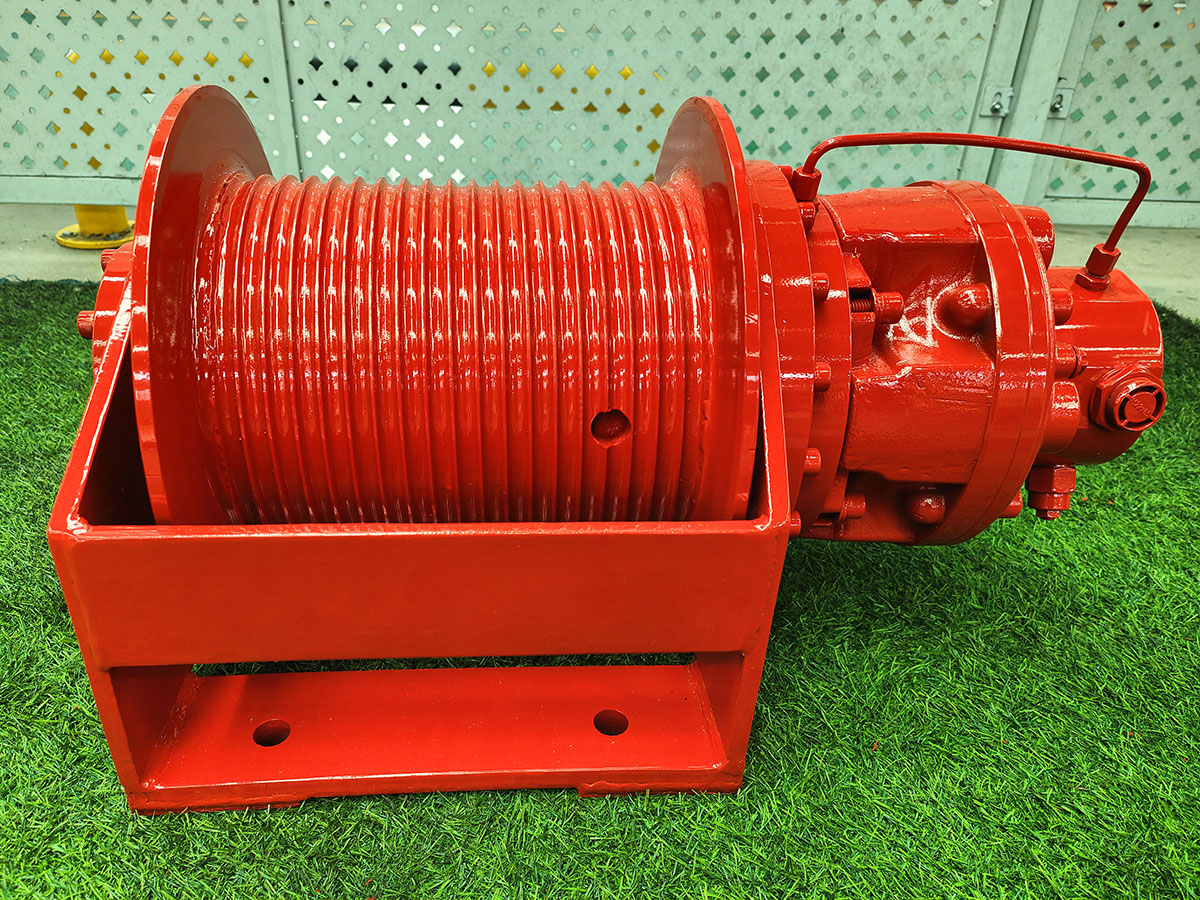

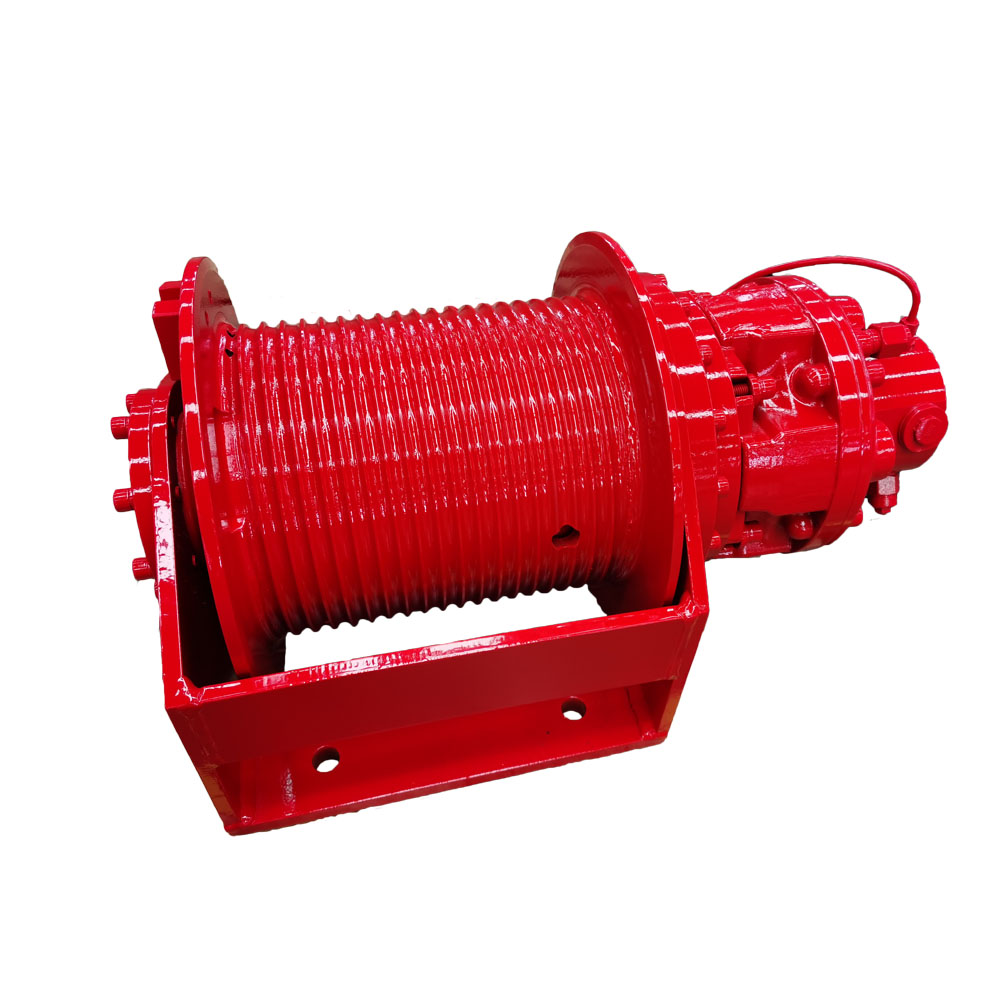

1 Ton Hydraulic Winch Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in track undercarriage. And we trade our products with our clients directly.
Q: How many square meters of your factory?
A:More than 16000 square meter.
Q: How many workers in your factory?
A:100 workers.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: What’s your MOQ?
A:Usually 1set. If special types, we can discuss the MOQ according to customer’s exact situation.
Q: How long is your delivery time?
A: The general delivery time is 30-40 days after receiving your order confirmation. Another, if we have the goods in stock, it will only take 5-7 days.
Q: Which certificate do you have?
A: CE, ISO9001,ISO14001,ISO45001.
Q: What should I supply to get a suitable model of hydraulic winch and quotation?
A: In order to recommend a most suitable model of hydraulic winch we should to know:
1.Line pull(t)
2.Line Speed(m/min)
3.Drum capacity/Rope Length(m)
4.Rope Diameter(if have)
5.With brake or not
6.Which kind of machine does the hydraulic used on?
7.Hydraulic system pressure and pump flow(if have)
8.Other special requirements
