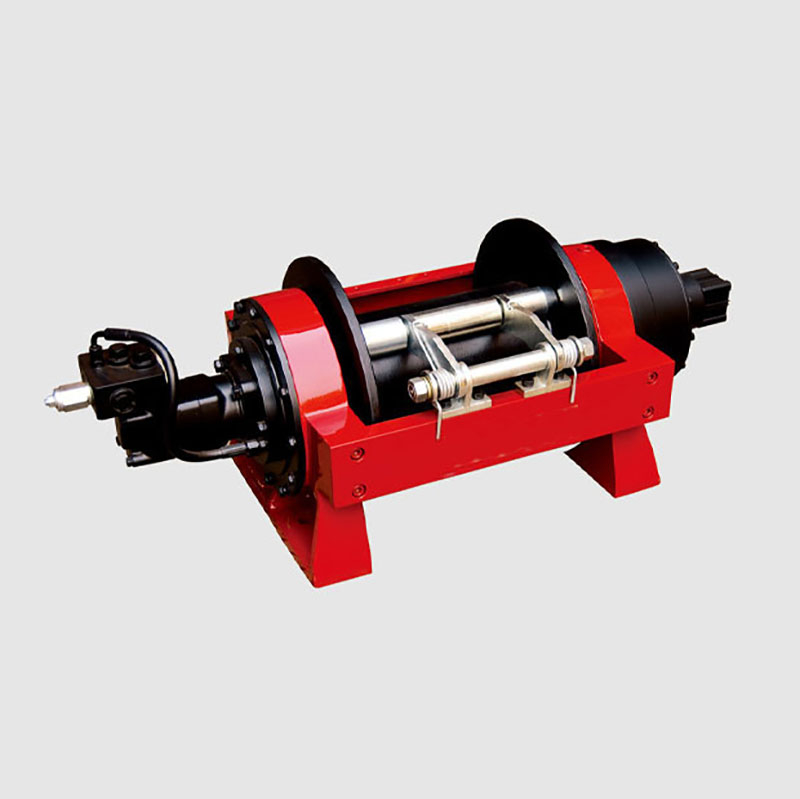

The PYJP100 is a 10 ton hydraulic tow truck winch designed for vehicle recovery, towing and heavy-duty pulling applications. The winch combines a planetary gear reducer, hydraulic motor and normally closed multi-disc brake in a compact hydraulic drive system.
With a rated first-layer rope pull of 98 kN and a rope speed of 7 m/min, the PYJP100 is designed for recovery and pulling operations where controlled line pull and reliable braking are required. Installation brackets and selected hydraulic control components can be configured according to the host vehicle and application requirements.
Full-floating planetary gearbox: The planetary gear reducer is designed for stable power transmission and a compact drivetrain layout.
Normally closed multi-disc brake: The integrated brake provides controlled holding and braking during winch operation.
Compact hydraulic configuration: The gearbox, hydraulic motor and brake are integrated into a space-efficient winch assembly.
Free spooling function: Allows the wire rope to be released manually when the winch configuration and application require free spooling.
Hydraulic motor drive: The winch is powered by a hydraulic motor for integration with hydraulic vehicle and equipment systems.
Custom mounting bracket: The installation bracket can be manufactured according to the customer's mounting and vehicle requirements.
Hydraulic control options: Balance valves and shuttle valves can be configured according to system requirements.
Clutch options: Manual or pneumatic clutch configurations are available according to the winch application.
Standard-based manufacturing: The product can be manufactured according to the customer's specified technical standard and project requirements, including GJB82-86 where applicable.
The PYJP100 is suitable for vehicle recovery and pulling applications where a hydraulic winch is required. Typical applications include:
Tow Trucks: Used for vehicle recovery and pulling operations on light- and heavy-duty recovery vehicles.
Construction Equipment: Suitable for controlled pulling and positioning of heavy loads where the hydraulic system can provide the required flow and pressure.
Emergency Recovery: Can be integrated into recovery equipment used to reposition immobilized vehicles and equipment.
Hydraulic drive: Suitable for vehicles and mobile equipment that already use a hydraulic power system.
Integrated braking: The normally closed brake is designed to maintain the winch in a controlled condition when hydraulic actuation is not applied.
Configuration flexibility: Mounting brackets, clutch arrangements and hydraulic control components can be adapted to project requirements.
Multiple application environments: The same basic winch concept can be configured for towing, recovery and industrial pulling applications.
The winch can pull immobilized vehicles onto a recovery truck or toward a suitable recovery position, subject to the rated line pull, rope configuration and operating conditions.
A hydraulic tow truck winch can provide controlled pulling force during vehicle recovery and positioning operations when used with an appropriate recovery system.
Hydraulic drive allows the winch operating speed to be controlled through the hydraulic system. The integrated braking system supports controlled stopping and holding of the winch.
| Parameter | PYJP100 |
|---|---|
| Model | PYJP100 |
| Rated Load Capacity | 10 ton |
| Rope Capacity | 20–100 m |
| Working Speed | 0–50 m/min |
| Warranty | 12 months |

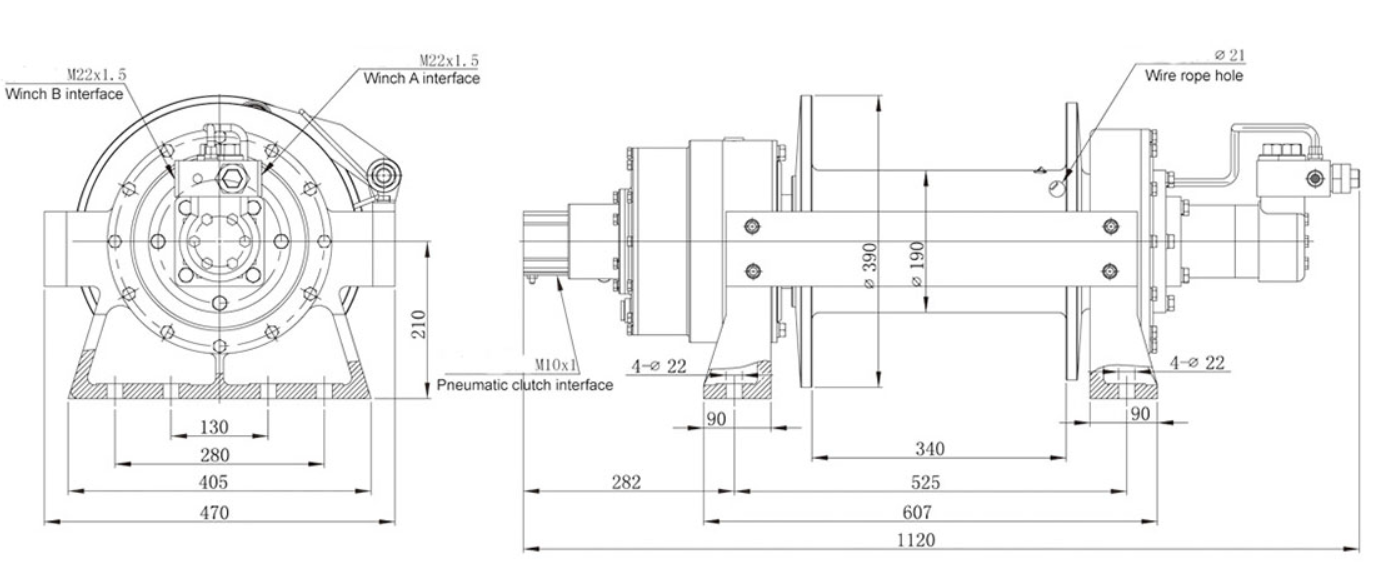

| Model | First-Layer Performance | Brake Response Pressure (MPa) | Oil Pressure (MPa) | Oil Flow (L/min) | Drum Diameter × Bottom Diameter × Internal Length (mm) | Drum Capacity (m) | Recommended High-Strength Wire Rope Diameter (mm) | Net Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated Rope Pull (kN) | Rope Speed (m/min) | ||||||||
| PYJP100 | 98 | 7 | 2.5 | 17 | 60 | 390 × 190 × 340 | 59 | 18 | 262 |
Payment: 30% deposit and 70% balance before shipment. Payment terms can be negotiated, generally by T/T.
Delivery: 35–40 days after receipt of payment.
Service: 24-hour online service and technical support are available according to project requirements.
The hydraulic winch is prepared for shipment using suitable export packing and handling procedures according to the product configuration and shipping requirements.
We mainly manufacture hydraulic and planetary transmission products, including hoisting equipment, planetary gearboxes, hydraulic winches and related components.
Sample orders are accepted. Please provide the required quantity, winch capacity and other specifications. If a suitable sample is in stock, shipment can be arranged more quickly. If production is required, the lead time will depend on the configuration. Sample and express charges are normally paid by the customer unless otherwise agreed.
Please send your purchase order by email or contact our sales team for a formal quotation and proforma invoice.
Payment terms can be discussed according to the order and project requirements. Common methods include T/T, D/P, D/A and L/C where applicable.
Yes. The mounting bracket, clutch configuration and selected hydraulic control components can be customized according to the vehicle, hydraulic system and installation requirements.
To recommend a suitable hydraulic tow truck winch, please provide the required pulling force or vehicle recovery requirement, rope diameter and length, desired rope speed, available hydraulic pressure and flow, mounting dimensions and the intended vehicle or equipment type.
Kemer supports OEM hydraulic winch projects by reviewing the required line pull, rope capacity, operating speed, hydraulic supply, mounting interface and vehicle installation conditions.
For the PYJP100, customers can provide the host vehicle specifications and operating requirements so that the winch configuration can be evaluated before quotation and production.
Contact Kemer for technical specifications, configuration confirmation and an OEM hydraulic tow truck winch quotation.
