Types of Hydraulic Motors Used in Winches
Gear Motors – Economical, simple design, suitable for medium-duty applications.
Piston Motors (Axial or Radial) – High efficiency, high pressure, and high torque for heavy-duty use.
Vane Motors – Smooth operation, moderate pressure, used in medium-duty winches.
|
What are the advantages of Hydraulic Winch Motors?
No risk of short electrical circuits (ideal for wet/marine environments).
Can operate continuously without overheating (unlike some electric motors).
Better performance at extreme temperatures.
Compatible with existing hydraulic systems (e.g., in tractors, cranes, or trucks).
|
Key Features of Hydraulic Winch Drive Motors
High Torque Output – Hydraulic motors provide strong starting torque, making them ideal for heavy lifting and pulling.
Variable Speed Control – Flow control valves adjust hydraulic fluid flow, allowing precise speed regulation.
Durability – Designed to withstand high pressure, shock loads, and harsh environments.
Compact & Lightweight – Compared to electric motors of similar power, hydraulic motors are often more compact.
Overload Protection – Hydraulic systems can handle temporary overloads without damage.
|

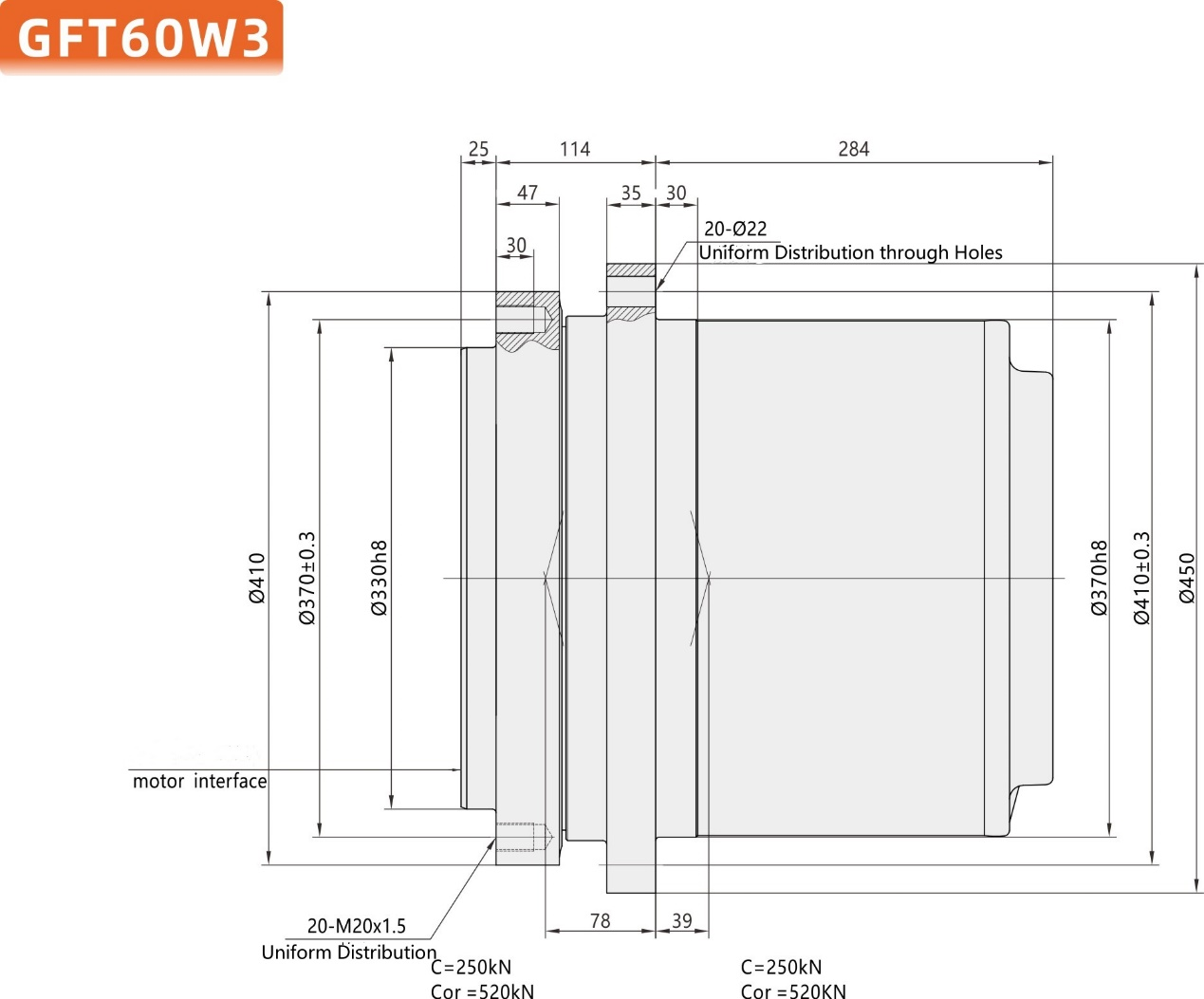

The Drawing and Technical Parameters
Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT60W3 | 42500 | 86 | A2FE80 | A6VE80 A6VE107 | 3500 | 800 | 1.8-5 | 242 |
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T .
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
|
FAQ
Q: Can you supply technical support?
A: Sure, we can. We have installation guide, if you can’t understand it, then you can send us the video call, we can video guide for you.
Q: How long is the lifespan of the GFT60W3 Winch Drive?
A: With normal use and regular maintenance, the GFT60W3 Winch Drive can last for several years, depending on the working environment and intensity of use.
Q: What are the technical specifications of the GFT60W3 Winch Drive?
A: Rated torque, Maximum speed, Weight, Suitable equipment weight range.
Q: Is your brand can be perfectly replaced and interchanged?
A: Yes, our models are the same as REXROTH GFT series.
Q: What's your MOQ?
A: 1 set.
