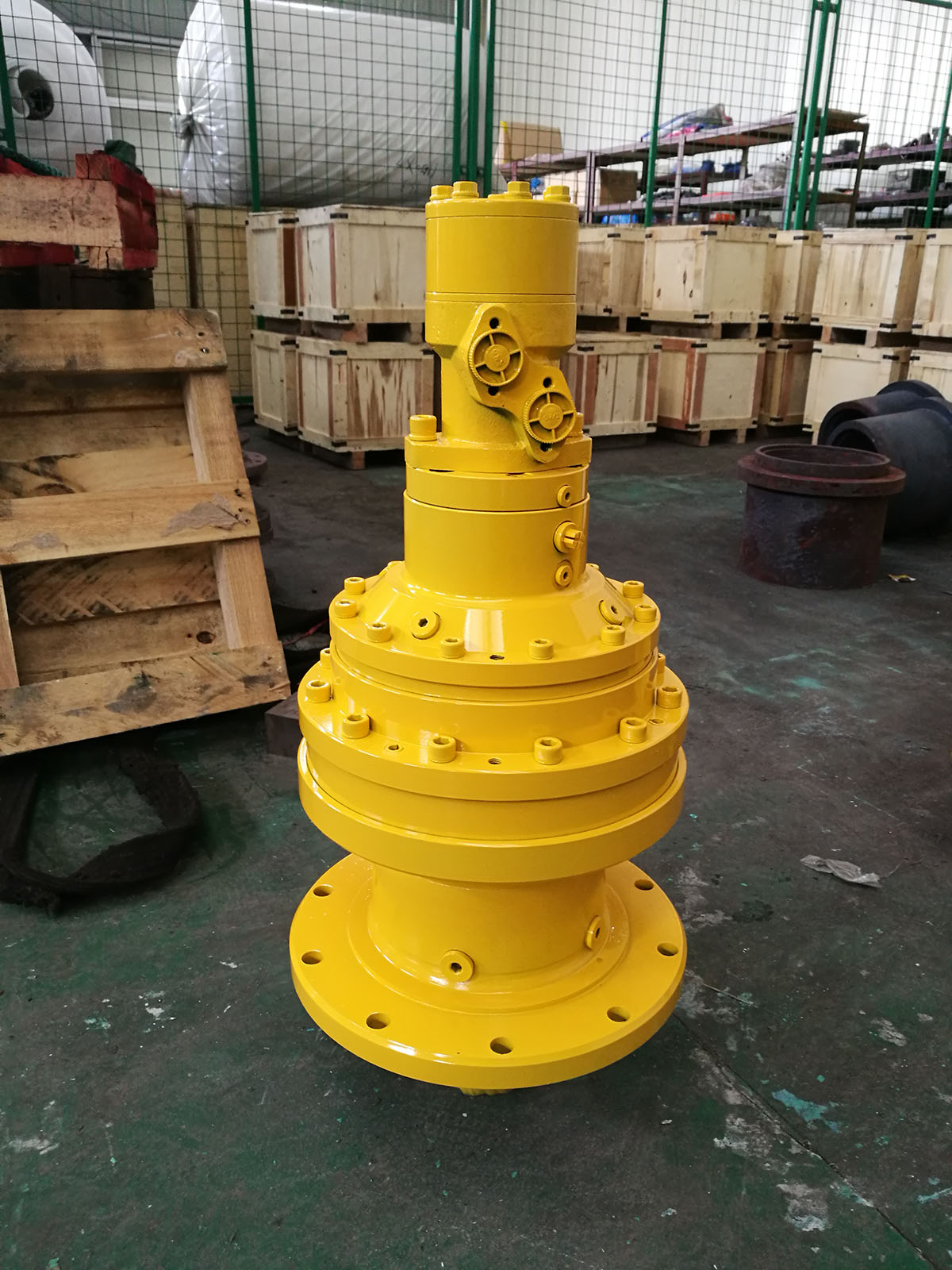

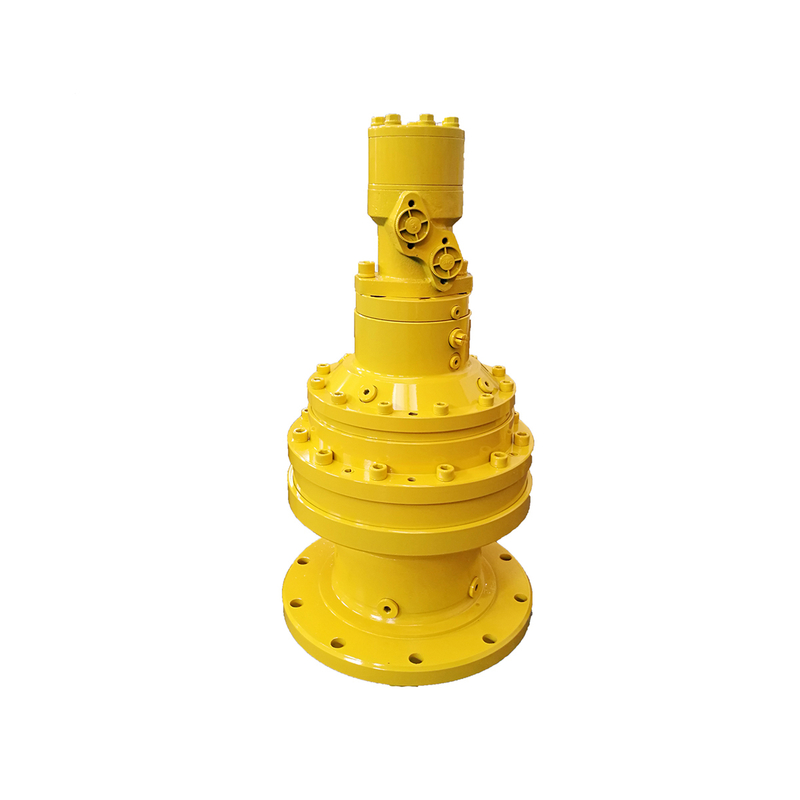

The RE1022 Hydraulic Gearbox is a compact hydraulic reduction drive designed for applications requiring controlled output speed and high torque transmission. The listed RE1022 configuration provides 9,000 Nm rated output torque and up to 10,000 Nm maximum output torque.
The RE1022 is specified with a 36.1 reduction ratio, a listed working pressure of 12.5 MPa, a speed range of 0.5–20 r/min and a maximum brake torque of 650 Nm. Multiple hydraulic motor options are available according to the listed configuration.
| Parameter | RE1022 |
|---|---|
| Rated Output Torque | 9,000 Nm |
| Maximum Output Torque | 10,000 Nm |
| Reduction Ratio | 36.1 |
| Displacement | 2,838 ml/r |
| Working Pressure | 12.5 MPa |
| Speed Range | 0.5–20 r/min |
| Brake Release Pressure | 2.5–3 MPa |
| Maximum Brake Torque | 650 Nm |
| Weight | 92 kg |
The RE1022 provides 9,000 Nm rated output torque and 10,000 Nm maximum output torque for hydraulic drive applications requiring high torque transmission in a compact configuration.
The listed RE1022 configuration uses a 36.1 reduction ratio, providing the speed reduction required between the hydraulic motor and driven equipment.
The listed hydraulic motor options include:
OMP160
OMP200
OMP250
OMS160
OMS200
OMS250
The RE1022 is specified with a maximum brake torque of 650 Nm and a brake release pressure of 2.5–3 MPa.
With a listed weight of 92 kg, the RE1022 provides a compact hydraulic reduction solution for machinery where torque transmission and installation requirements need to be considered together.
The RE1022 can be considered for hydraulic power transmission applications requiring controlled speed reduction and high output torque, including:
Industrial machinery
Material handling equipment
Agricultural machinery
Mobile hydraulic equipment
Specialized drive systems
| Model | Rated Output Torque (Nm) | Maximum Output Torque (Nm) | Ratio | Hydraulic Motor | Maximum Brake Torque (Nm) |
|---|---|---|---|---|---|
| RE1022 | 9,000 | 10,000 | 36.1 | OMP160 / OMP200 / OMP250 OMS160 / OMS200 / OMS250 | 650 |
The RE1022 can be evaluated for replacement applications involving compatible hydraulic reduction gearboxes. Before replacement, the mounting dimensions, hydraulic motor connection, reduction ratio, brake configuration, output torque and operating conditions should be checked against the existing unit.
The listed reference models include Dinamic Oil RE1022, Brevini ED2090 and COMER PG1002. Compatibility should be confirmed based on the actual technical drawings and machine interface rather than model name alone.
Selecting the correct hydraulic gearbox requires matching the gearbox specifications with the machine's hydraulic system and driven load.
Output torque: Confirm the required rated and maximum torque.
Reduction ratio: Match the ratio with the required output speed.
Hydraulic motor: Confirm motor type, displacement and connection interface.
Brake: Verify brake torque and brake release pressure.

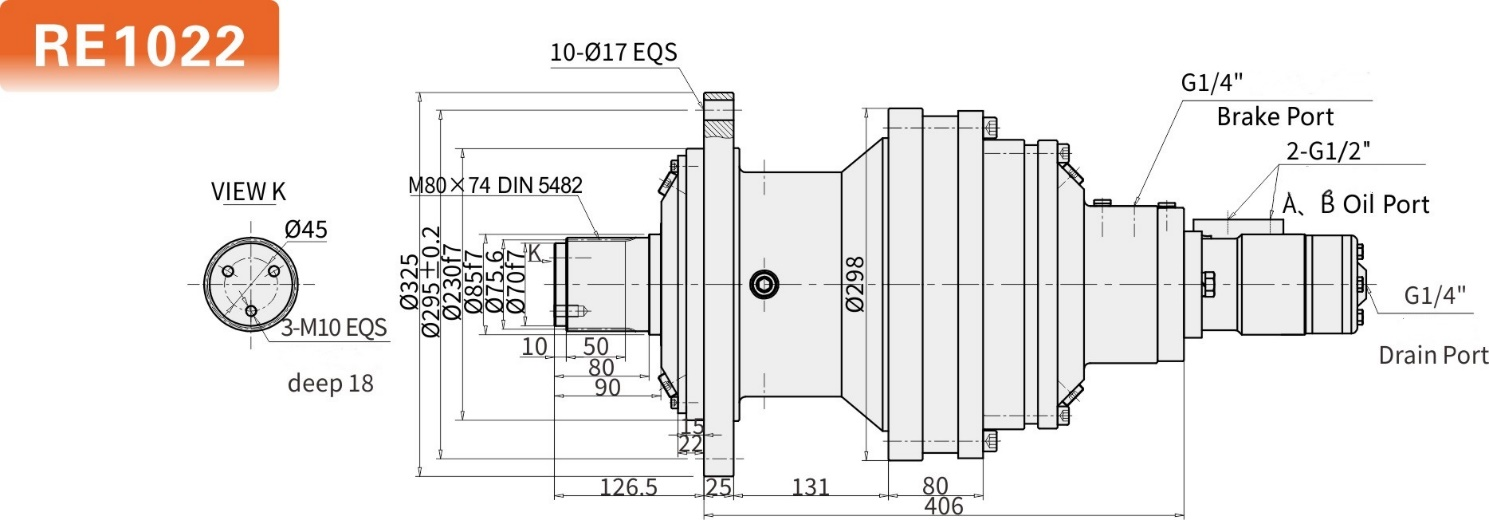

Installation: Confirm mounting dimensions and available installation space.
Payment: Payment terms can be negotiated according to the order.
Delivery: Delivery time depends on product configuration and order quantity.
Service: Technical support is available for product selection, configuration and replacement applications.
The listed rated output torque is 9,000 Nm, with a maximum output torque of 10,000 Nm.
The listed reduction ratio is 36.1.
The listed motor options include OMP160, OMP200, OMP250, OMS160, OMS200 and OMS250.
The listed maximum brake torque is 650 Nm.
It can be evaluated for compatible replacement applications. Mounting dimensions, motor interface, ratio, brake configuration and torque requirements should be verified before ordering.
The listed working pressure is 12.5 MPa.
