GFT travel drives are planetary final drive units designed for tracked and off-highway machinery. The integrated hydraulic motor, planetary gearbox and hydraulic braking system provide a compact solution for transmitting torque to crawler or track systems.
The GFT series can be configured for excavators, mining equipment, construction machinery, material handling equipment and other tracked applications where high torque and compact installation are required.
The GFT travel drive platform is designed for mobile machinery requiring hydraulic travel transmission and planetary torque reduction.
Tracked construction equipment
Excavators and crawler machinery
Mining and tunneling equipment
Heavy-duty material handling equipment
Specialized off-highway vehicles
The hydraulic motor converts hydraulic flow and pressure into rotational torque for the travel drive. Different hydraulic motor configurations can be selected according to the machine and operating requirements.
Axial piston motor configurations
Variable displacement options
High starting torque configurations
The planetary reduction unit increases output torque while maintaining a compact transmission layout. Multi-stage planetary gear trains are available for different output torque and speed requirements.
3-stage or 4-stage planetary configurations
Hardened alloy steel gears
Output torque range: up to 60,000 Nm for the specified GFT60T3 configuration
The integrated braking system is designed to hold the travel drive when hydraulic pressure is removed and to provide controlled stopping during machine operation.
Spring-applied and hydraulically released brake
Hydraulic brake release
Parking brake options according to configuration
The planetary gearbox converts hydraulic motor output into high torque at the final drive, making the unit suitable for crawler machines and other tracked equipment.
The integrated motor, gearbox and brake arrangement reduces the number of separate transmission components and supports compact travel drive installation.
Hydraulic drive control allows the machine travel speed and torque characteristics to be matched to the application and operating conditions.
Hardened gears, high-capacity bearings and sealed housing construction are used to support operation in demanding mobile equipment environments.
| Application | Typical Configuration | Application Requirement |
|---|---|---|
| Excavators | GFT13 / GFT22 / GFT40 | Compact installation and high travel torque |
| Mining and Tunneling | Heavy-duty gearbox configuration | High load capacity and demanding working environments |
| Construction Machinery | Hydraulic travel drive | Reliable travel transmission |
| Specialized Off-Highway Equipment | Application-specific configuration | Custom hydraulic and mounting requirements |
GFT13: for approximately 5–8 ton class equipment
GFT22: for approximately 10–15 ton class equipment
GFT40: for approximately 25–35 ton class equipment
The GFT60T3 configuration is designed for high-torque travel applications and is specified with a maximum output torque of 60,000 Nm.

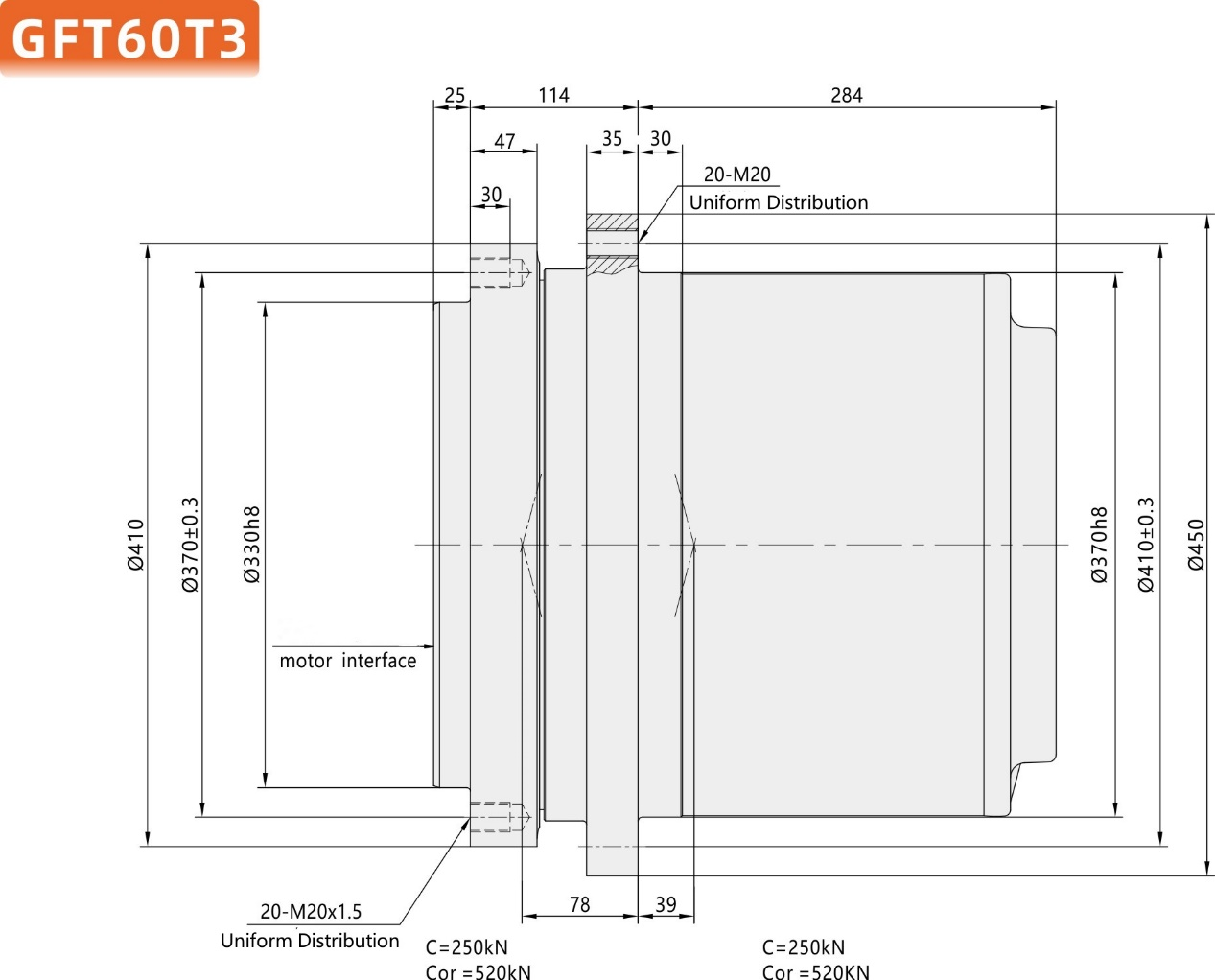

The technical drawing and specifications below show the available GFT60T3 configuration and selected hydraulic motor options.
| Model | Maximum Output Torque (Nm) | Ratio | Hydraulic Motor Options | Maximum Input Speed (r/min) | Maximum Braking Torque (Nm) | Brake Pressure (MPa) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GFT60T3 | 60,000 | 86 / 106 / 120 / 140 / 170 / 248 | A2FE80 A2FE90 A2FE107 A2FE125 A6VE80 A6VE107 | 3,500 | 800 | 1.8–5 | 242 |
Payment: 30% deposit and 70% before shipment. T/T is generally accepted, with other payment terms subject to negotiation.
Delivery: Approximately 20–25 days after receipt of payment, subject to configuration and order quantity.
Service: 24-hour online support and technical overseas service are available.
A GFT travel drive is a compact hydraulic final drive that combines a hydraulic motor, planetary gearbox and braking system for tracked and mobile machinery.
Yes. Configuration can be selected according to the machine's required output torque, reduction ratio, hydraulic motor, mounting arrangement and application conditions.
GFT travel drives are commonly used on excavators, crawler construction machinery, mining equipment, tunneling equipment and other tracked off-highway machines.
The specified GFT60T3 configuration has a maximum output torque of 60,000 Nm.
The standard warranty period is one year after delivery, subject to the applicable sales and warranty terms.
The minimum order quantity is 1 set.
