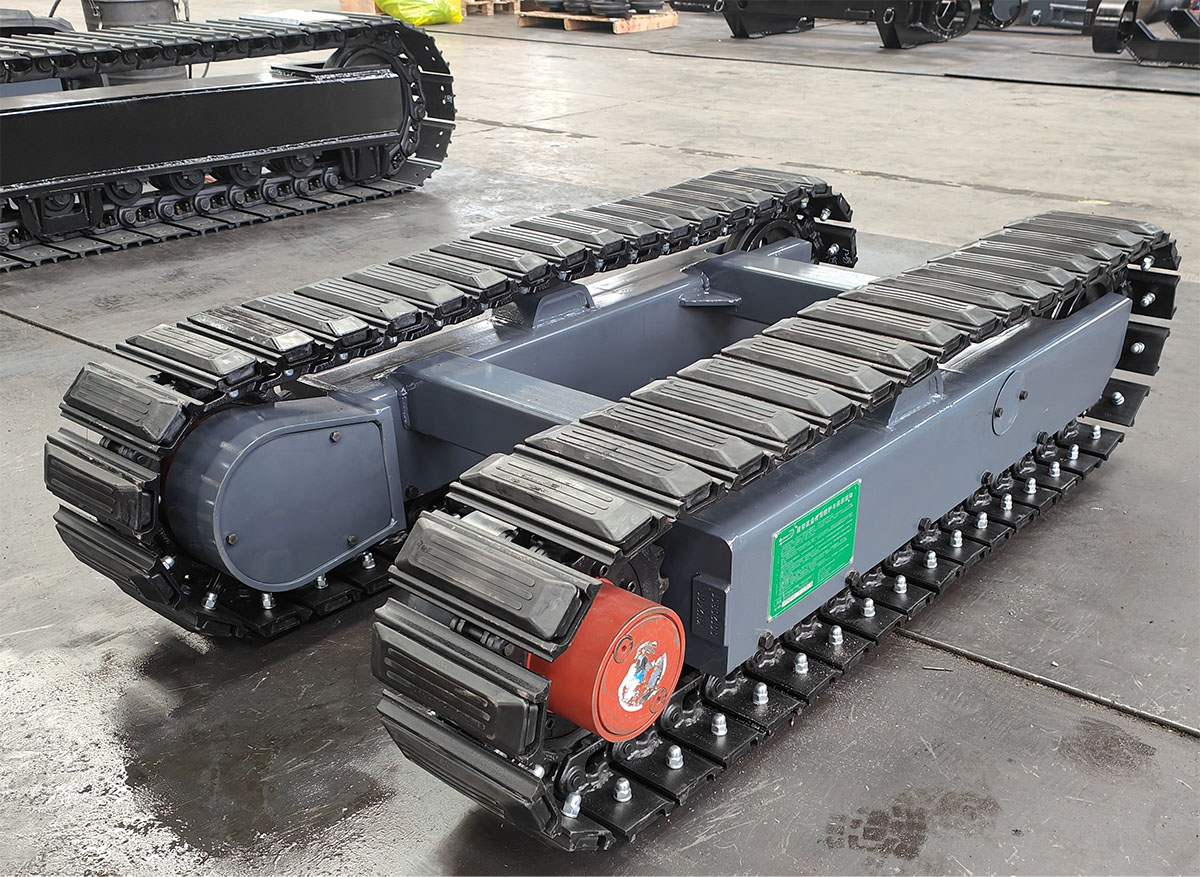

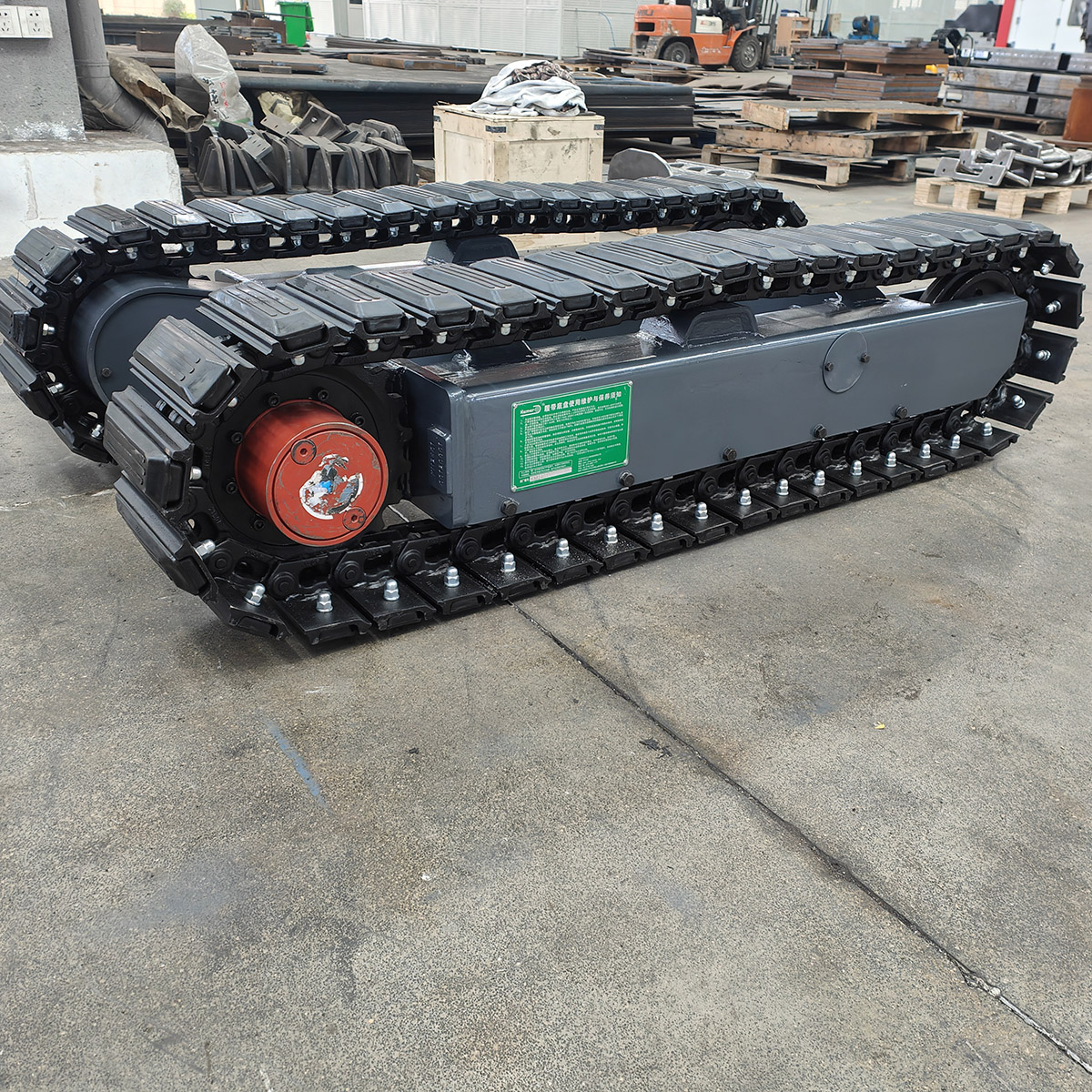

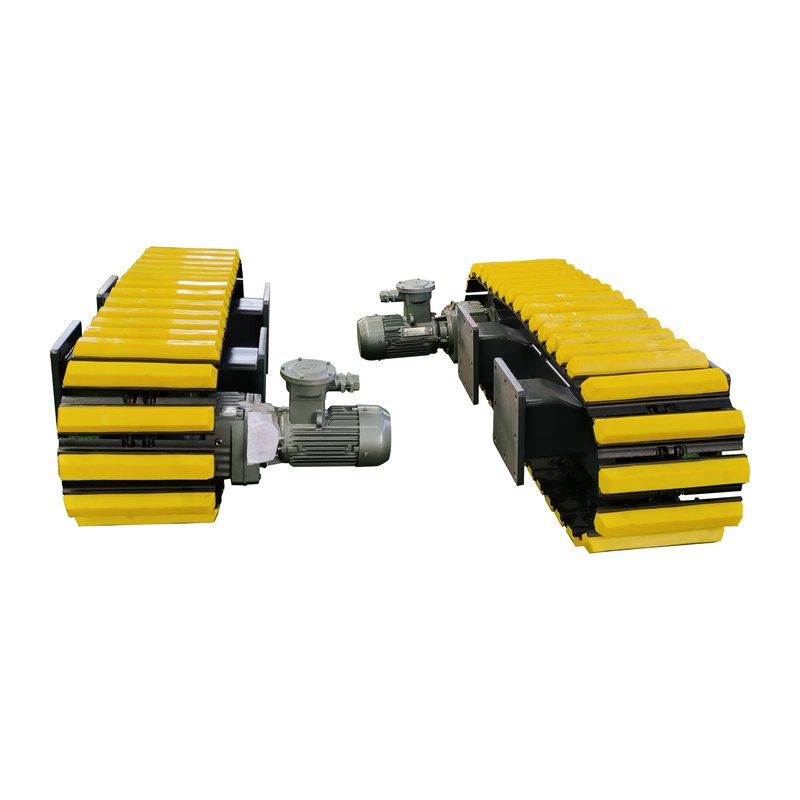

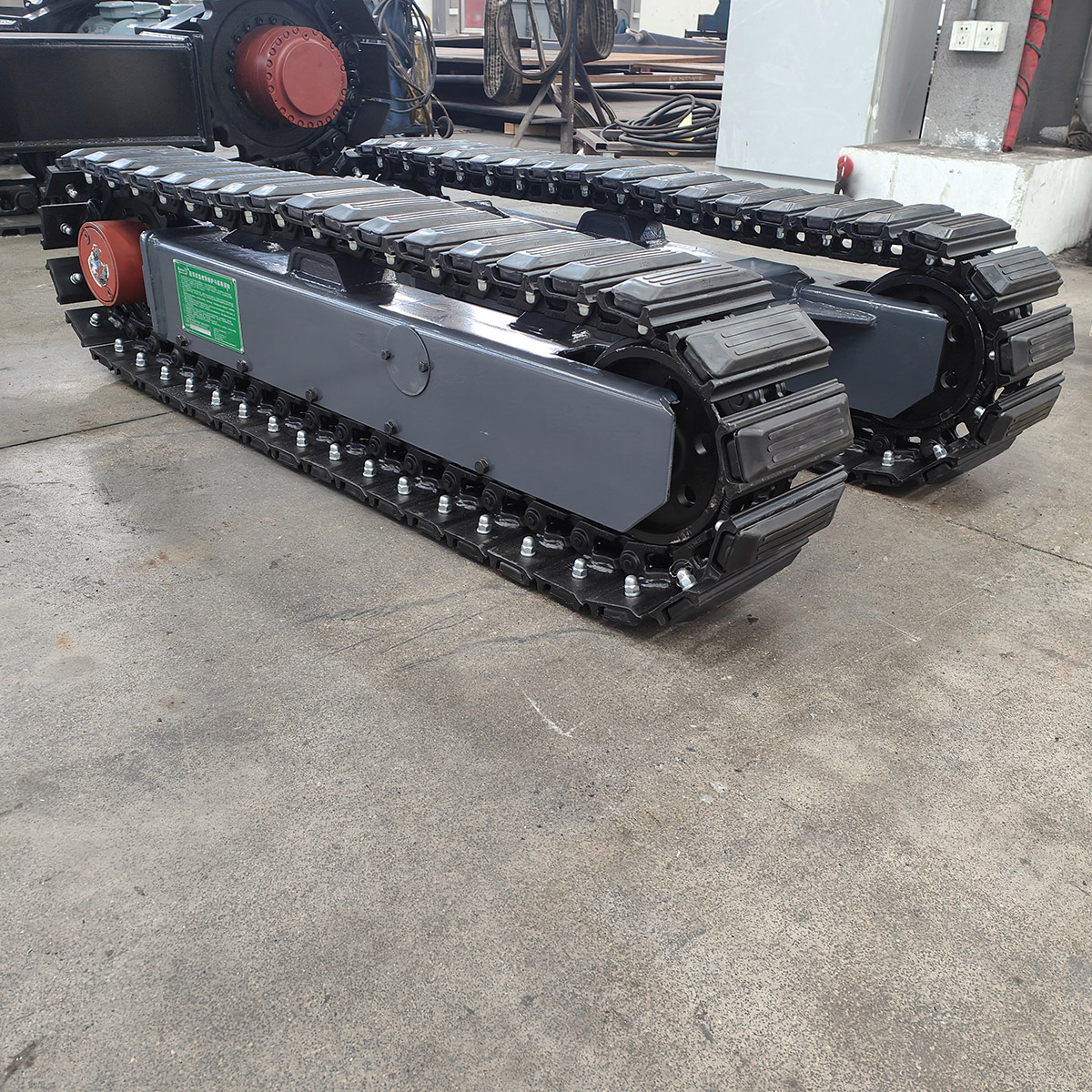

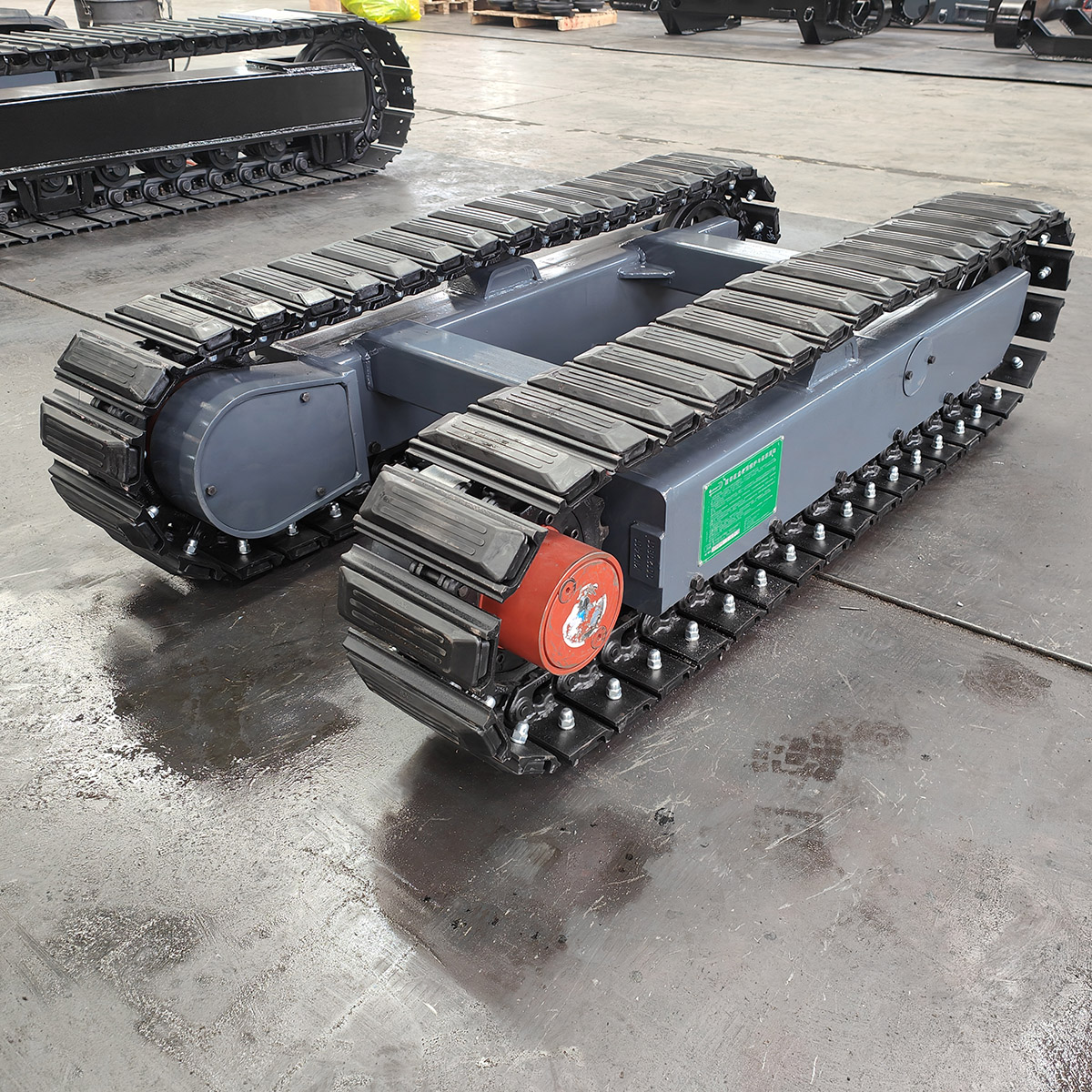

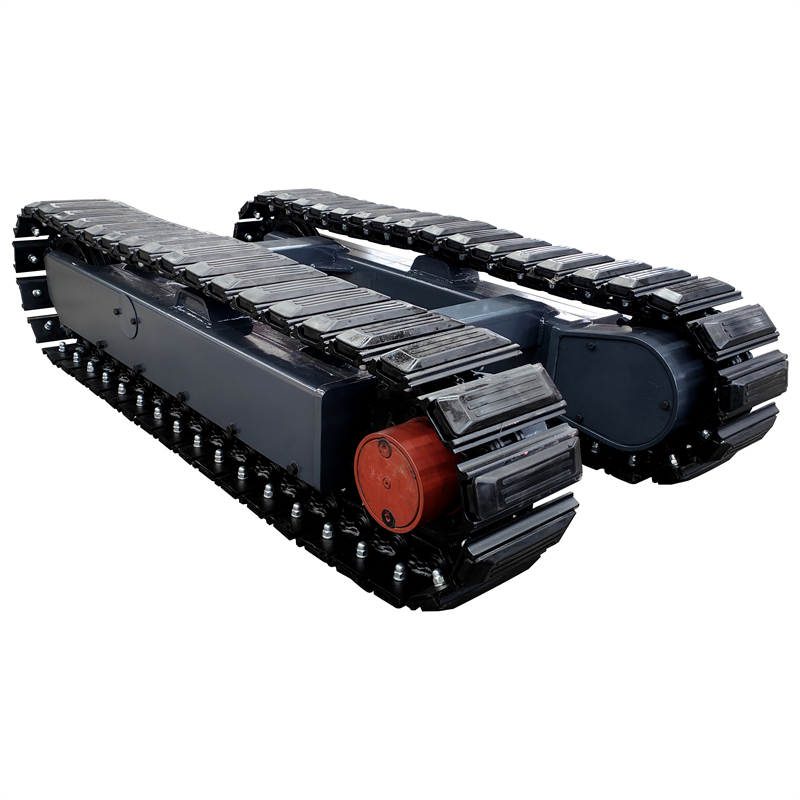

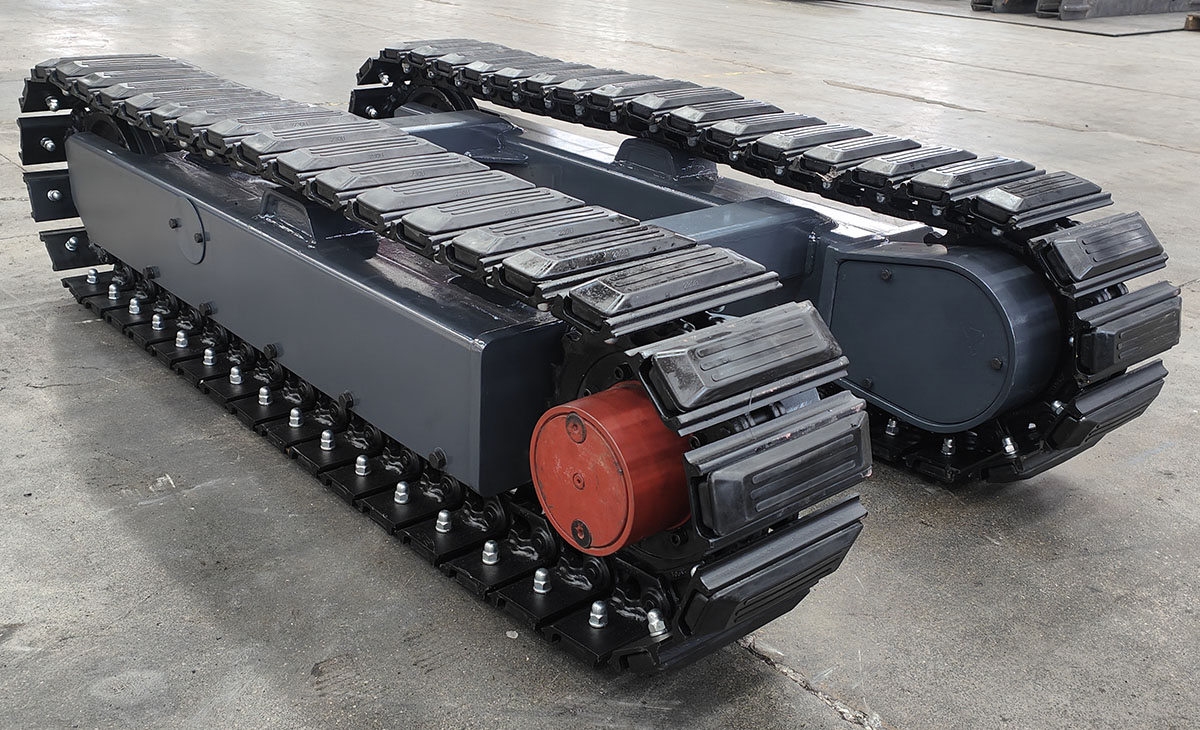

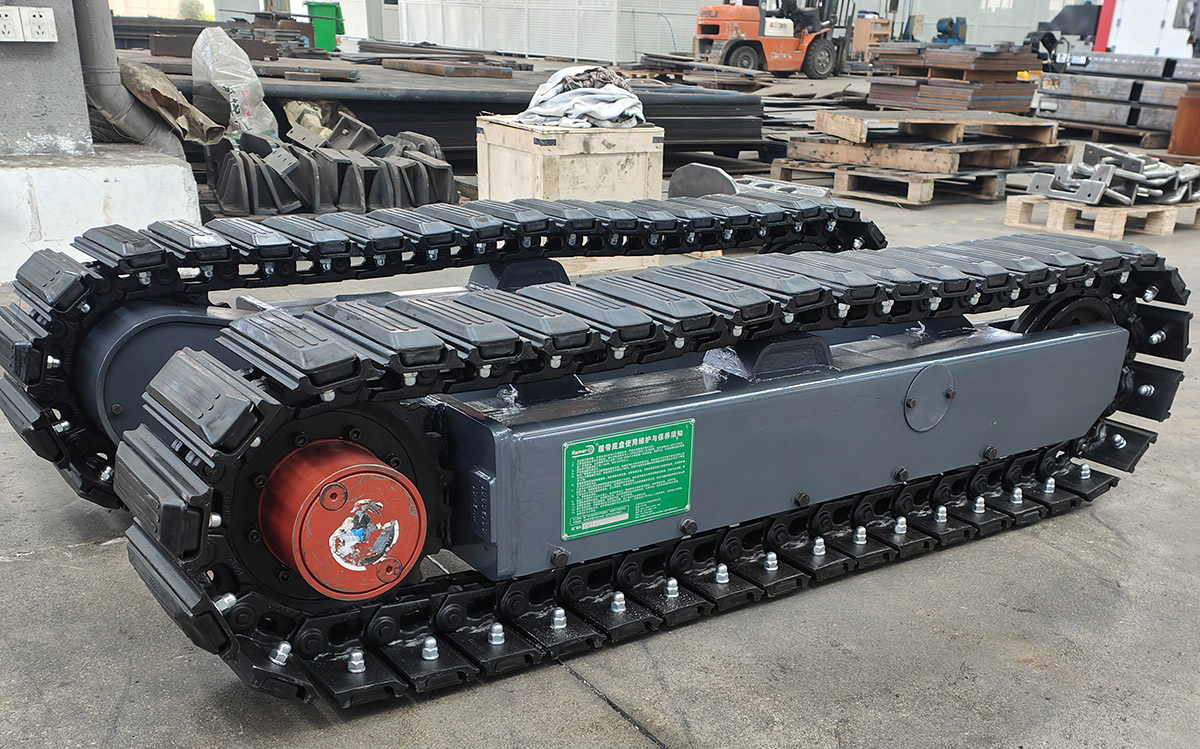

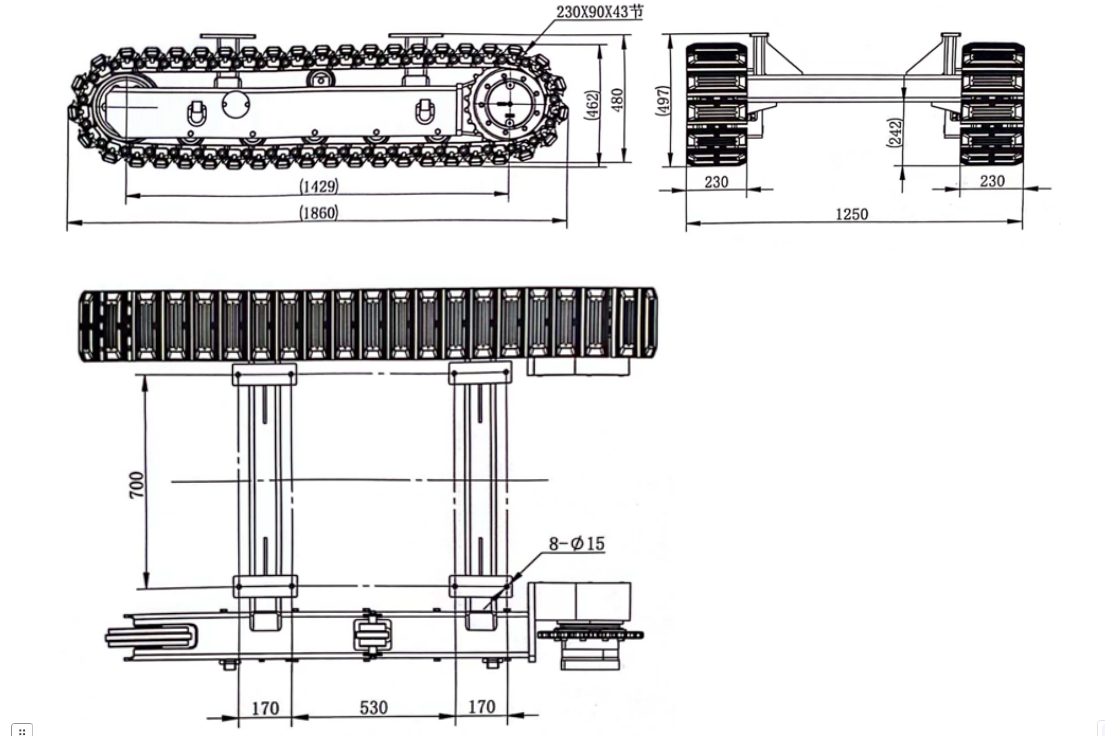

Crawler Undercarriage

|

Advantages of Crawler Undercarriage

The advantages of crawler undercarriage systems can be summarized based on the technical specifications, manufacturing processes, and supplier capabilities highlighted in the search results. Below is a detailed analysis:

1. Versatility Across Tonnage and Applications

Crawler undercarriages are designed to support machinery ranging from 1 ton to 1,200 tons, making them suitable for diverse equipment such as crawler cranes, excavators, drilling rigs, and mobile crushers.

This flexibility ensures compatibility with both light-duty and heavy-duty operations, reducing the need for multiple chassis systems.

2. Durability Through Advanced Manufacturing Processes

The production of crawler undercarriages involves rigorous processes to enhance longevity:

Casting and forging: Includes steps like quenching, tempering, and heat treatment to improve wear resistance

Material choices: Steel and rubber track options cater to different terrains (e.g., rocky surfaces vs. soft soil) .

3. Stability and Load Distribution

Crawler undercarriages excel in distributing weight evenly, minimizing ground pressure.

4. Customization and Technical Support

Suppliers emphasize tailored solutions and expertise:

We can offer custom undercarriages for specialized machinery like tunnel trestles and seawater desilting equipment .

We employs professional technical teams for consultation, ensuring parts match specific operational requirements.

We have ISO 9001, guaranteeing quality control.

5. Cost Efficiency and Long-Term Value

High repeat customer rates ( 90% repeat rate) reflect reliability and reduced replacement costs.

Modular designs allow for easy replacement of individual components (e.g., track rollers, idlers) instead of full systems.

|

What Are Typical Problems With The Crawler Undercarriage?

Typical Problems with Crawler Undercarriage Systems

Crawler undercarriages are critical for heavy machinery stability and mobility, but they face several common issues due to operational stress, environmental factors, and wear. Based on manufacturing processes, technical specifications, and supplier insights from the search results, here are the key challenges:

1. Wear and Tear of Track Components

Track shoes, links, and rollers are prone to accelerated wear, especially in abrasive environments (e.g., rocky terrain or construction sites). For example, steel tracks used in drilling rigs or excavators may degrade faster under heavy loads, leading to frequent replacements .

Heat treatment inconsistencies during manufacturing (e.g., quenching, tempering) can reduce component durability, increasing susceptibility to cracks and fractures .

2. Track Misalignment and Derailment

Poorly aligned tracks or damaged idlers/sprockets can cause derailment, disrupting operations. This is particularly common in undercarriages with load capacities exceeding 60 tons, where improper tensioning exacerbates the issue .

Rubber tracks, while quieter and gentler on surfaces, are more vulnerable to lateral slippage on uneven terrain compared to steel tracks.

3. Component Corrosion and Rust

Steel-based undercarriages exposed to moisture, saltwater, or chemicals (e.g., in marine or agricultural applications) face corrosion. The use of high-grade steel and protective coatings, but long-term exposure still poses risks.

4. Overloading and Structural Stress

Exceeding the load capacity (ranging from 0.5 to 150 tons in most systems) can deform frames or damage crossbeams and hydraulic motors. For instance, undercarriages designed for 20-ton machinery may fail prematurely if used for 50-ton loads.

Repeated stress from heavy lifting or uneven terrain can weaken weld points and structural joints.

5. Maintenance Challenges

Lubrication failures in rollers and final drives lead to friction-induced damage. Rigorous cleaning and greasing protocols, but field conditions often complicate maintenance .

Parts compatibility issues arise when replacing components from different brands affecting performance and safety.
