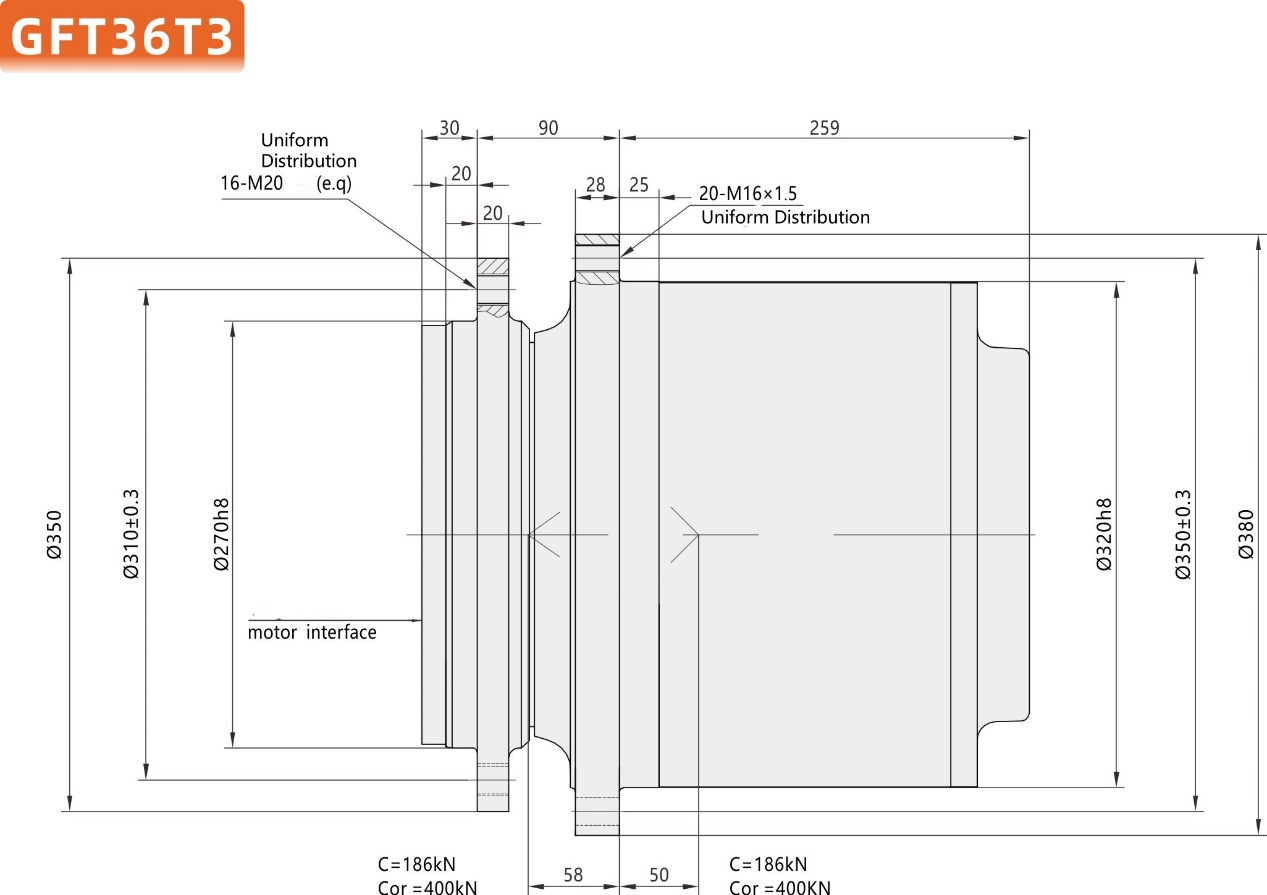

The Drawing and Technical Parameters
Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT36T3 | 36000 | 67 79 100 117 131 139 178 201 233 | A2FE56 A2FE63 A2FE80 A2FE90 | A6VE55 A6VE80 | 3500 | 750 | 1.8-5 | 170 |
| Typical
Application
Excavators
Used in the travel system of excavators, providing powerful driving force and precise control.
Bulldozers
Used in bulldozers for pushing and moving heavy materials.
Crawler Cranes
Provides stable mobility for cranes, suitable for construction sites.
Mining Equipment
Used in mining equipment for movement and operation on complex terrains.
|
Maintenance and Care
Regular Inspections
Inspect seals, lubrication systems, and track conditions regularly.
Cleaning
Clean dust and debris from tracks and drive components.
Replace Worn Parts
Replace worn or damaged parts according to the manufacturer's recommendations.
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T .
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
|
FAQ
Q: Is the GFT36T3 Travel Drive customizable?
A: Yes, the GFT36T3 can be customized to meet the specific needs of different equipment, such as adjusting torque output, size, or mounting methods to suit various applications.
Q: How long is the lifespan of the GFT36T3 Travel Drive?
A: With normal use and regular maintenance, the GFT36T3 can last for several years, depending on the working environment and intensity of use.
Q: What are the technical specifications of the GFT36T3 Travel Drive?
A: Rated torque, Maximum speed, Weight, Suitable equipment weight range.
Q: Is your brand can be perfectly replaced and interchanged?
A: Yes, our models are the same as REXROTH GFT series.
Q: What's your MOQ?
A:1 set
