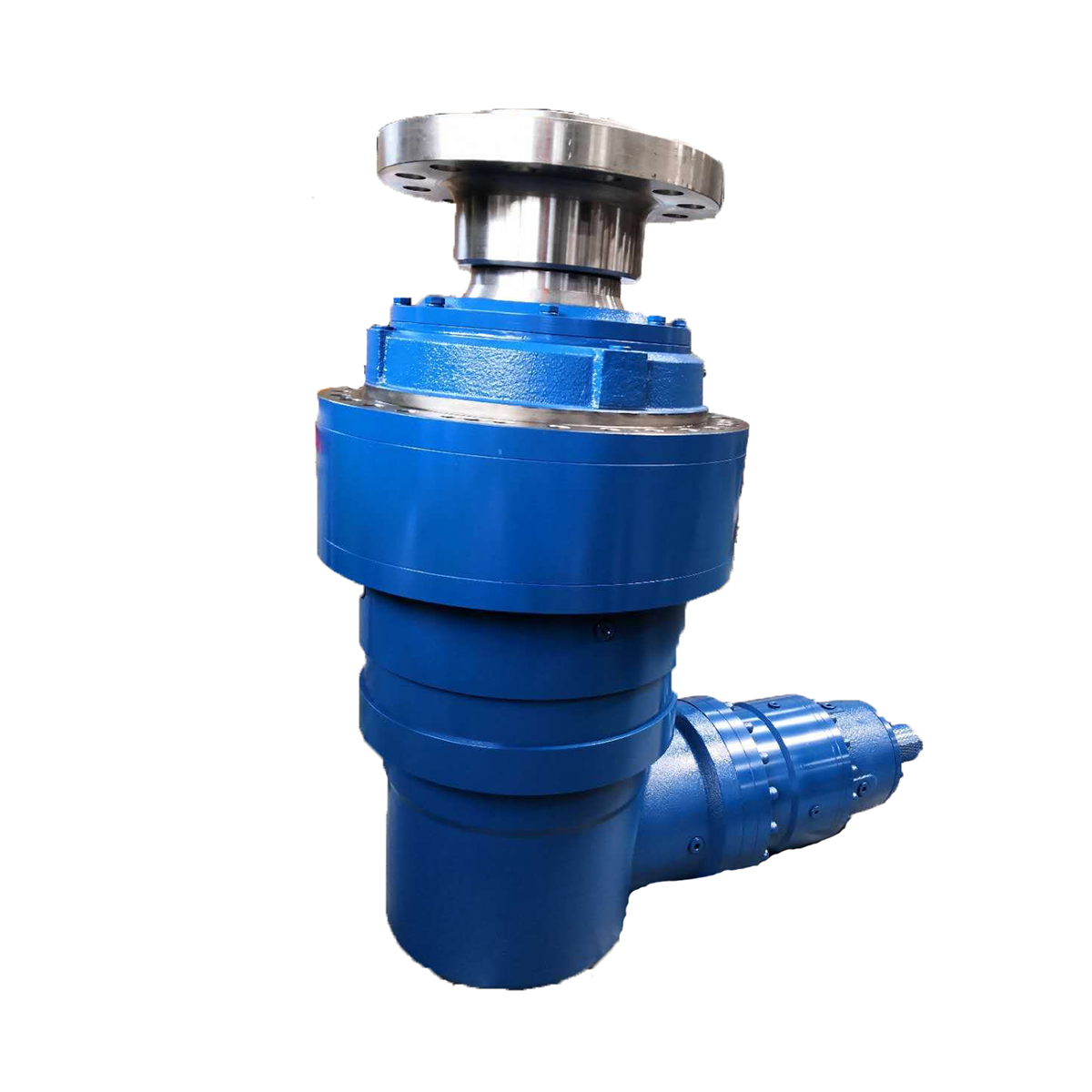

Product Overview
Bonfiglioli final drives represent high-performance planetary reduction systems designed for heavy-duty mobile equipment applications. These kinds of solutions are widely implemented in:
Compact track loaders
Mini/midi excavators (1–15tons class)
Agricultural machinery
Specialized industrial vehicles
|
Product Identification
Model: GFT13T2
Series: Rexroth GFT (Gearbox for Travel drives)
Generation: 2nd gen (T2 suffix)
OEM Applications:
5-8 tons mini excavators (e.g., CAT 307.5, Volvo EC75)
Compact track loaders (e.g., Takeuchi TL8)
|
Hydraulic Interface
Motor Type: Axial piston motor (A2FM series compatible)
Working Pressure:
Continuous: 350 bar (5,076 psi)
Peak: 400 bar (5,802 psi)
Case Drain Line: 1/2" NPT port (max backpressure 2 bar)
|
Performance Data
Mechanical Efficiency: 94% @ rated load
Service Life:
B10: 8,000 hours (standard duty cycle)
B50: 15,000 hours
Temperature Range:
Operating: -30°C to +100°C
Storage: -40°C to +120°C
|

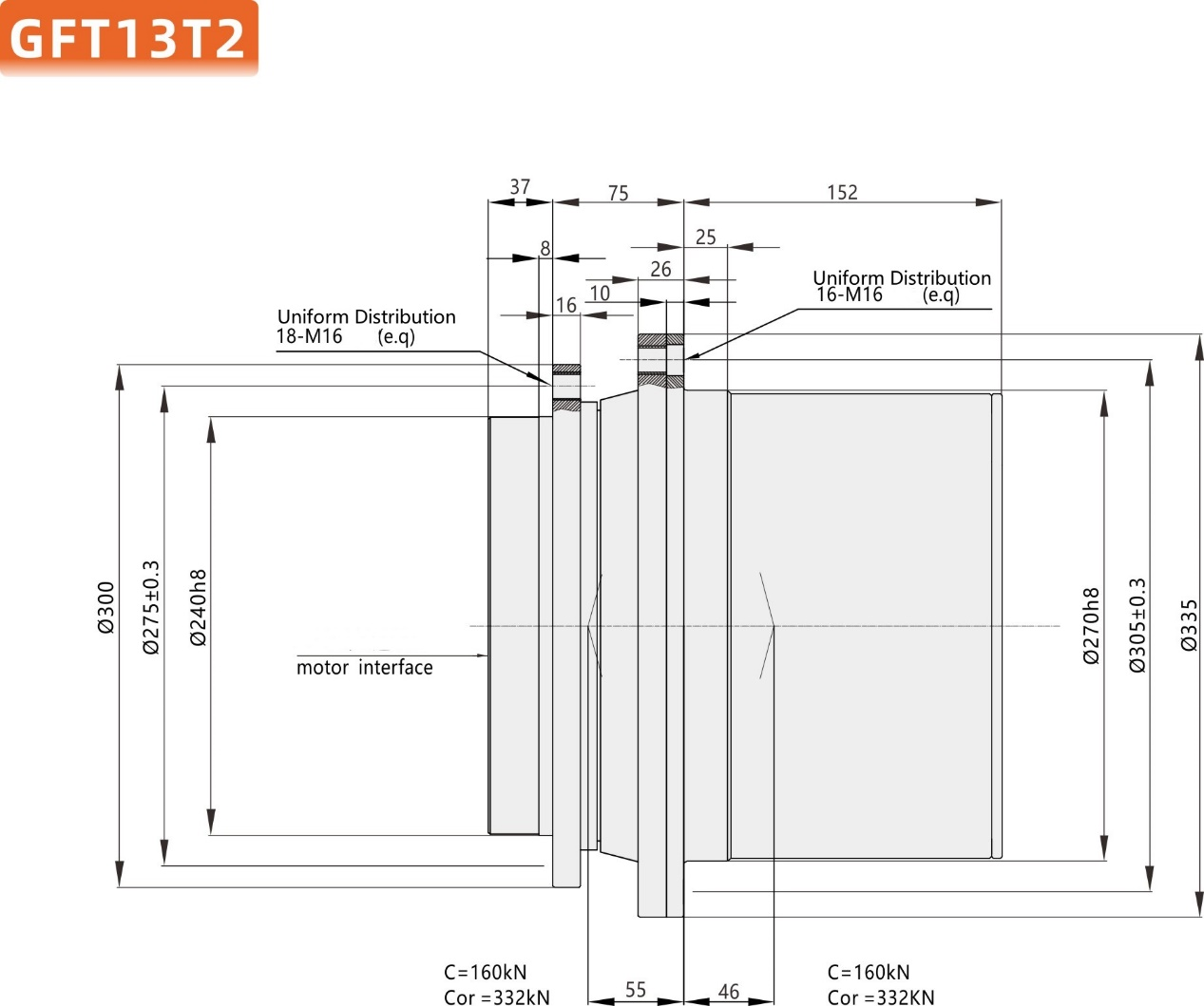

The Drawing and Technical Parameters

Model | Output Torque Max Nm | Ratio | Hydraulic motor | Max input Speed r/min | Braking Torque Max.Nm | Brake Press. Mpa | Weight =kg | |
GFT13T2 | 13000 | 16 | A2FE45 A2FE56 A2FE63 | A6VE55 A10VE45 A10VE63 | 3500 | 450 | 1.8~5 | 86 |
|
How to Judge The Failure Mode
1. Oil Leakage at Shaft Seal
Cause: Seal hardening (typically after 5,000 hrs.)
Solution: Upgrade to Viton seals (p/n 123456-789)
2. Gear Whining Noise
Diagnostic Steps:
Check oil level (must reach inspection window)
Measure backlash (acceptable: 0.08-0.12mm)
3. Reduced Travel Speed
Troubleshooting:
Verify charge pressure (min. 18 bar)
Check motor displacement setting
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T.
Delivery:20-25 days after receipt of your payment.
Service: 24-hour online service, technical overseas service.
|
FAQ
Q: What kind of brand is your company making?
A: We can produce many alternative brands. Such as Bonfiglioli, Brevini, Dinamic, Bosch Rexroth and so on, such as adjusting torque output, size, or mounting methods to suit various applications.
Q: How long is the lifespan of the GFT13T2 Travel Drive?
A: With normal use and regular maintenance, the GFT13T2 Travel Drive can last for several years, depending on the working environment and intensity of use.
Q: How can I order from your company?
A: After you confirm the model and price, then we will make PI, you can send us deposit base on PI. After we get the deposit, we will produce it for you. If the goods are finished, then you can pay us balance payment. Finally, you can arrange the shipment.
Q: How's your warranty period?
A: We can give you one year after sales warranty.
Q What's your MOQ?
A:1 set
