Our Products Are Widely Used in The Following Applications
Drilling Rig: Anchoring drill, water well drilling rig,Core drilling rig,jet drilling rig,down-hole drill,crawler hydraulic drilling rig,For poling Rig,trenchless drill etc.
Mechanical Engineering: Excavator,small pile driver,aerial work platform,small size loader etc.
Coal mine: Slag removing machine,underground drilling rig,Full hydraulic drilling rig,Hydraulic drill carriage and rock loading machine etc.
Mine: movable crusher,heading machine,conveying equipment etc.
Agricultural equipment: cane harvester,lawn mower,Ditching machine,etc.
|
Tracked Undercarriage Systems Advantages
High traction
Tracked systems provide greater traction by increasing the contact area with the ground, making them suitable for traveling on soft, muddy, or uneven terrain.
Low ground pressure
Tracked systems distribute the weight over a larger area, reducing ground pressure and minimizing soil compaction. This makes them ideal for environments where ground protection is important.
Excellent stability
Tracked systems have a lower center of gravity and a larger support area, which helps maintain stability on complex terrain and reduces the risk of tipping over.
Good cross-country mobility
Tracked systems can easily traverse obstacles such as small ditches, rocks, or tree roots, making them well-suited for rough terrain
|
How Does a Tracked Undercarriage System Work?
A tracked undercarriage system, commonly used in heavy machinery such as excavators, bulldozers, and tanks, operates through a combination of mechanical components that work together to provide traction, stability, and mobility. Here’s a breakdown of how it functions:
Track Links: These are the individual segments that form the continuous loop of the track. They are connected by pins and bushings.
Drive Sprocket: This is the toothed wheel at the front or rear of the vehicle that engages with the track links to propel the vehicle forward or backward.
Idler Wheel: Located at the opposite end of the drive sprocket, it helps to maintain track tension and guide the track.
Track roller: These wheels support the track and distribute the vehicle’s weight evenly over the ground.
Tensioning System: This system adjusts the tightness of the track to ensure proper contact with the ground and to prevent excessive wear.
|

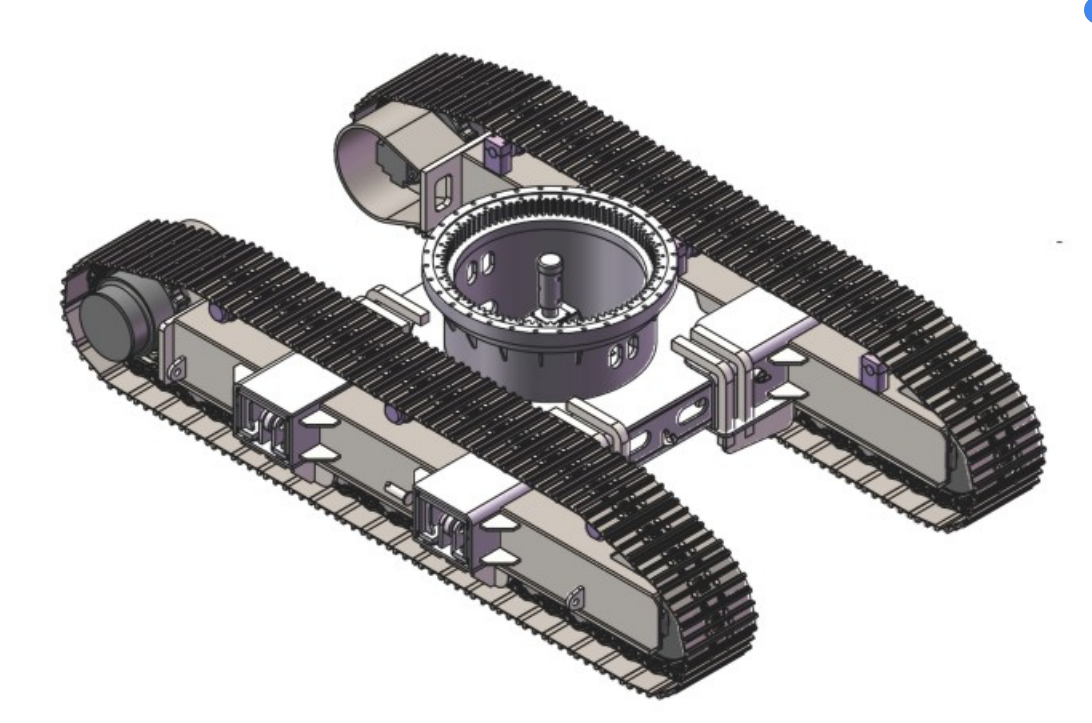

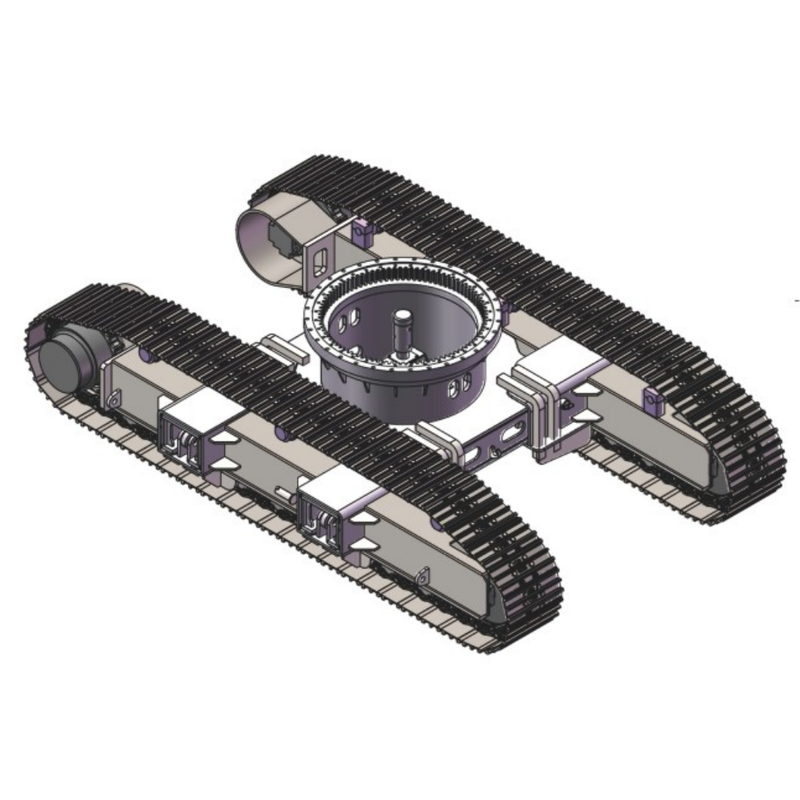

Track System Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 10700kgs
Pallet size: 4610*2800*1060mm
Load capacity: 35tons
|
1.Technical parameters
Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KST35000 | 181/113 | 30 | 352 | 3.2/5.1 | 89 | 18 | 10700 | 35000 |
|
Track System Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
A: In Ningbo city,China.
Q: When did your factory established?
A: Since 2012
Q: How many square meters of your factory?
A: More than 16000 square meter.
Q: How many workers in your factory?
A: 100 workers.
Q: How to place order?
A: In order to recommend a suitable drawing and quotation to you,we need to know:
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
