Rubber Track Assembly Advantages
1.Enhanced Traction and Floatation
2.Surface Preservation
3.Operator Comfort
4.Durability and Maintenance
5.Fuel Efficiency
6.Versatility
7.Environmental Benefits
|
How to Assemble The Rubber Track?
1. Preparation and Safety
Park the machine on a flat, stable surface and engage the parking brake.
Relieve track tension using the tension release valve (if equipped).
Clean the undercarriage to remove debris that could interfere with installation.
2. Remove the Old Track (if replacing)
Use a hydraulic jack to lift the machine slightly, taking weight off the track.
Loosen the track tensioner fully to slacken the track.
Carefully roll or pry the old track off the sprocket, idlers, and rollers.
3. Align the New Track
Check the track direction (marked with arrows on the rubber) to ensure it matches the machine’s drive rotation.
Lay the new track flat in front of the machine, aligning it with the sprocket and rollers.
4. Install the Rubber Track
Thread the track: Start by looping the track around the sprocket at the rear. Use pry bars or a rubber mallet to guide the track onto the idlers and rollers.
Lubricate the track: Apply soapy water or silicone spray to reduce friction and ease installation.
Join the track ends (if split):
For continuous tracks: Carefully stretch the track over the idlers and sprocket.
For split tracks: Align the connecting hinges and secure with bolts or pins as specified.
5. Adjust Track Tension
Use the tensioning system (hydraulic or grease cylinder) to apply tension gradually.
Check the manufacturer’s recommended tension specs (usually measured as sag between top rollers).
Over-tensioning can damage the track; under-tensioning causes slippage.
6. Check Alignment
Rotate the track manually (if possible) to ensure it sits evenly on all rollers and sprockets.
Verify there’s no sideways drift or misalignment.
7. Test Operation
Lower the machine and start the engine.
Move the machine slowly forward/backward to test track movement.
Recheck tension and alignment after initial use.
8. Final Inspection
Look for twists, gaps, or uneven wear.
Ensure all bolts (for split tracks) are tightened to torque specs.

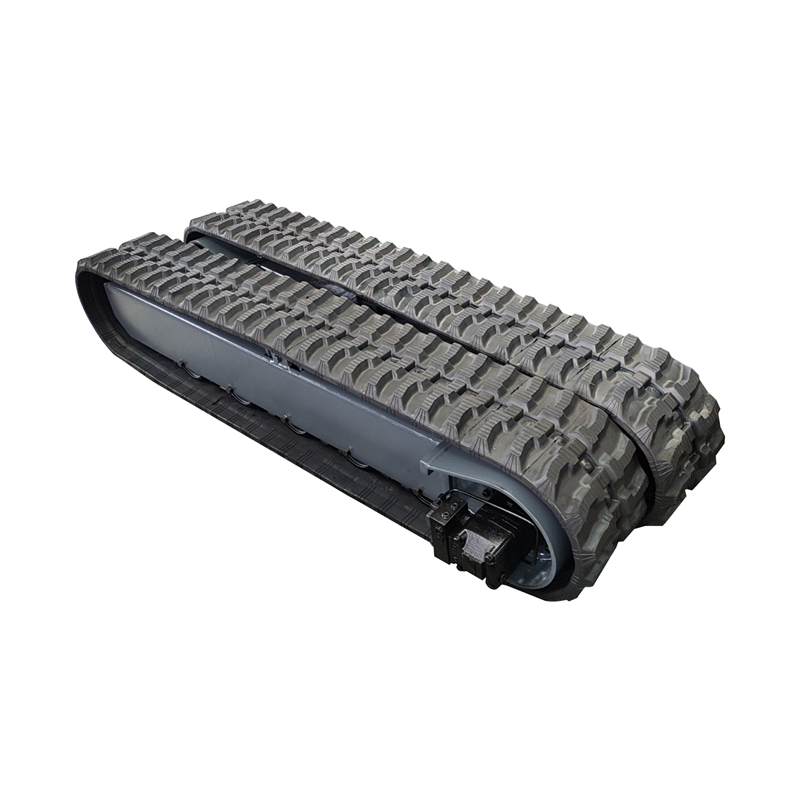

| Rubber Track Assembly Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 450kgs
Pallet size: 1860*700*520mm
Load capacity: 2.5tons
|

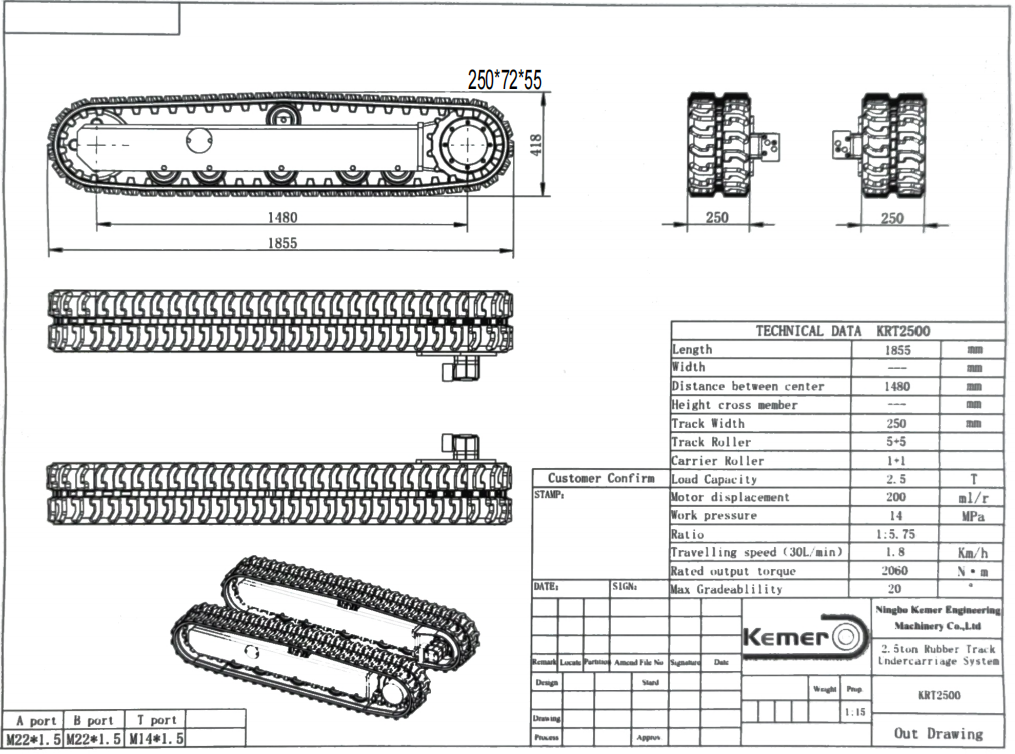

1. Technical Parameters
Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KRT2500 | 200 | 14 | 62 | 1.8 | 34 | 30 | 450 | 2500 |
|

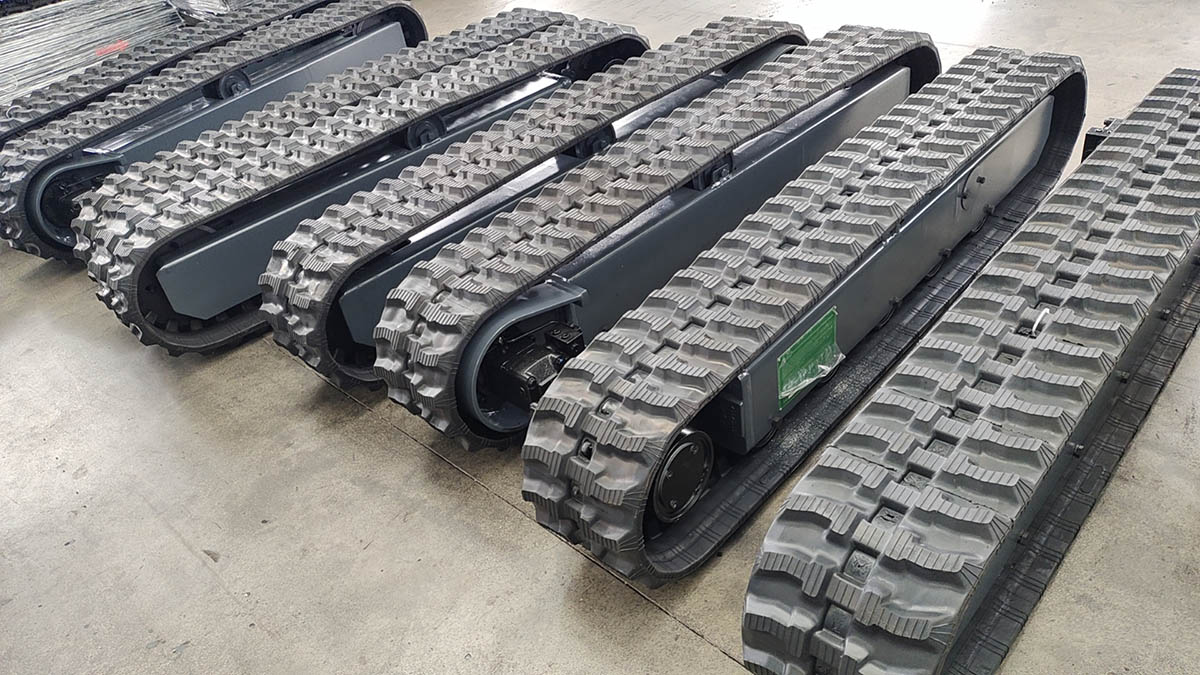

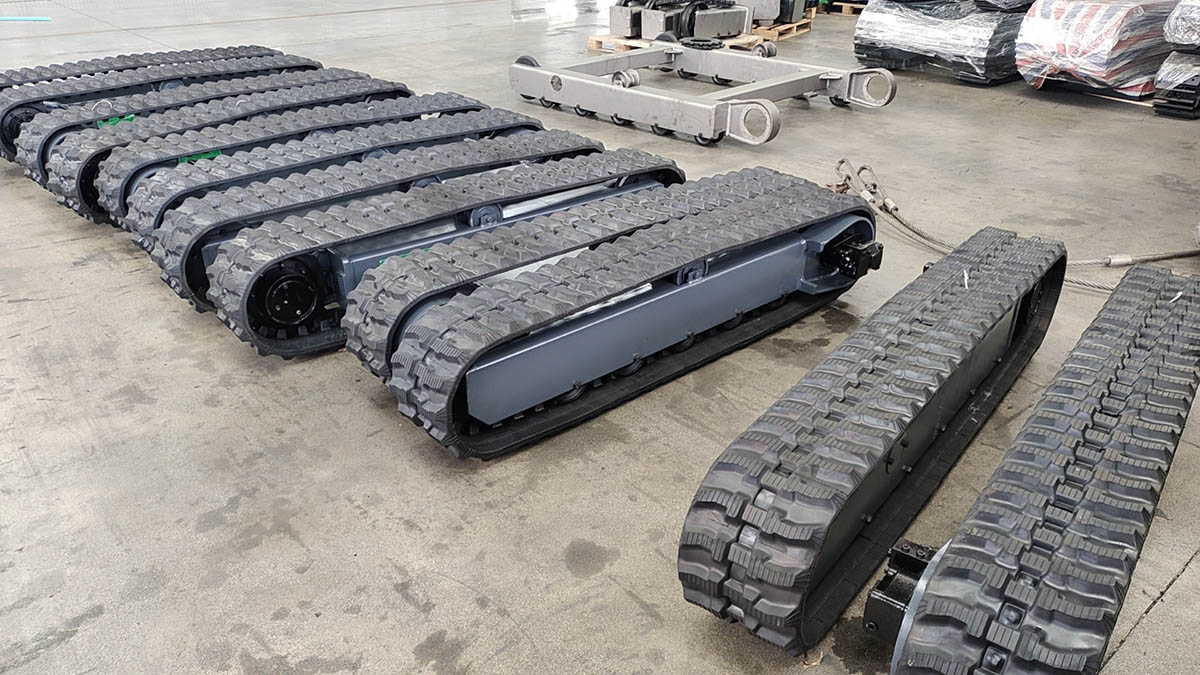

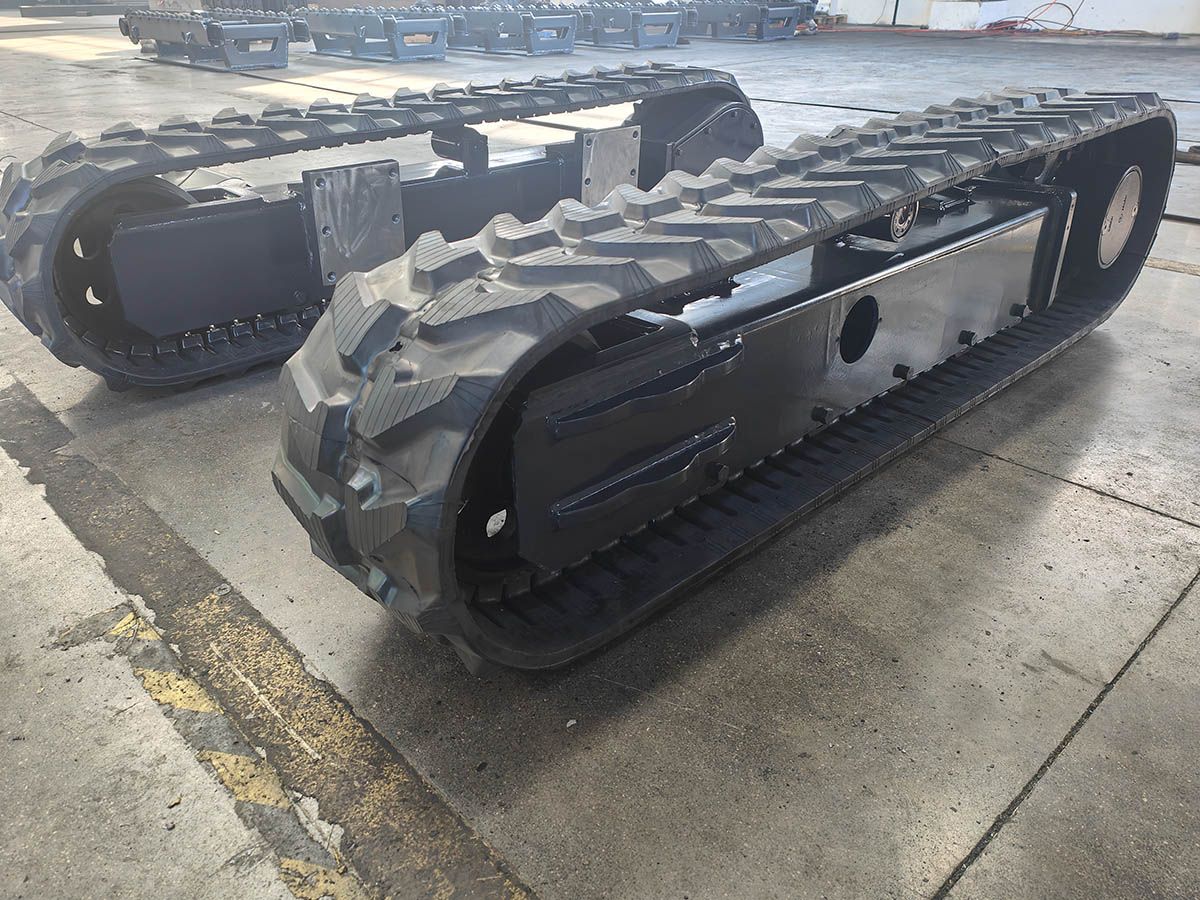

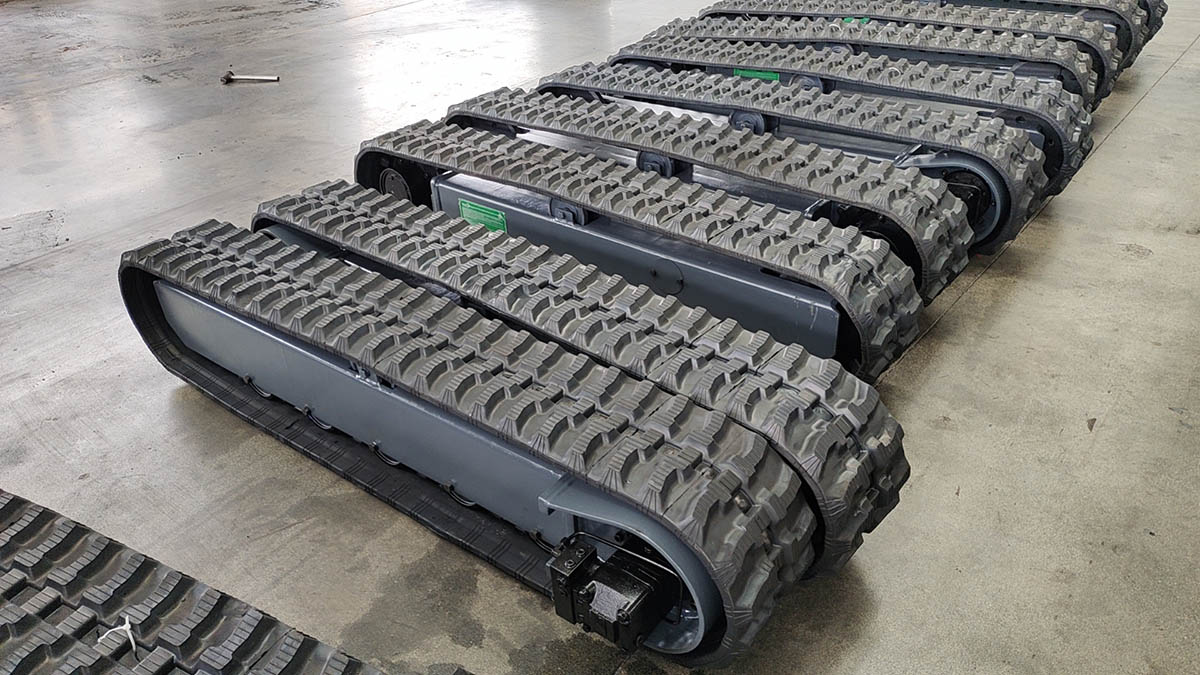

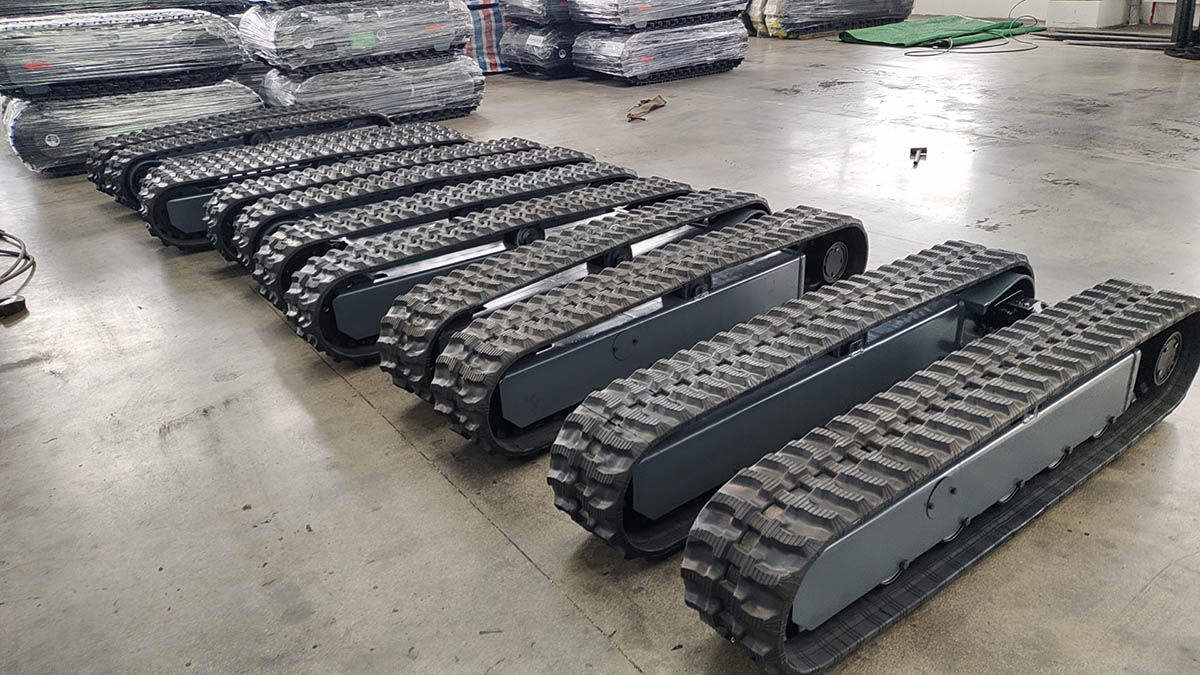

Rubber Track Assembly Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in undercarriage. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable.
Q: Can we use our own logo?
A: Yes, we can use your private logo according to your request.
Q: How can I get a sample to check your quality?
A:After price confirmation, you can purchase one set to check our quality.
Q:.Can you do the design for us?
A:Yes. We have a professional team having rich experience in design and manufacturing.
Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
