Main Functions
Power Transmission
Transfers power from the engine or hydraulic motor to the tracks.
Speed Control
Adjusts the equipment's speed through the gear system.
Load Support
Supports heavy-load operations, ensuring stability under full load conditions.
Terrain Adaptability
Capable of stable operation on rough, slippery, or uneven terrains.
|
The Key Features of Gft80 Final Drive
1. GFT80 final drive
Delivers powerful driving force, suitable for heavy loads and complex terrains.
2. High Durability
Built with high-strength materials and sealed design, capable of long-term operation in harsh environments.
3. Efficient Power Transmission
Optimizes power transmission, reduces energy loss, and improves fuel efficiency.
4. Low Maintenance Requirements
Sealed components and robust construction reduce maintenance frequency and costs.
5. Compact Design
Compact structure, easy to install and integrate into various equipment.
|

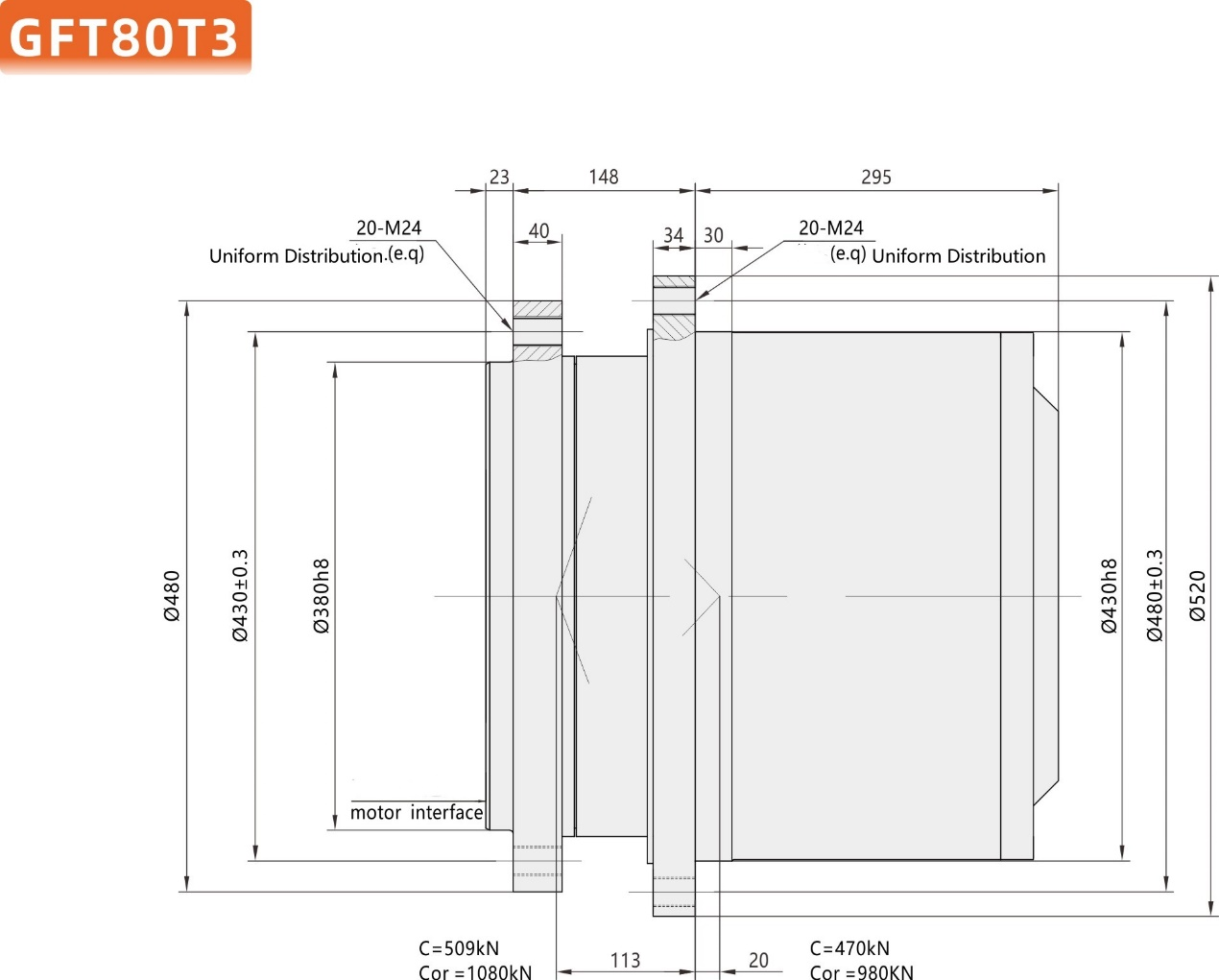

The Drawing and Technical Parameters
Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT80T3 | 80000 | 77 | A2FE107 A2FE125 A2FE160 A2FE180 | A6VE 107 A6VE 160 | 3500 | 1000 | 1.8-5 | 355 |
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T .
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
|
FAQ
Q: ls your company a trader or manufacturer?
A: We are a manufacturer, have more than 20years experience.
Q: Can you supply customized service?
A: Yes, we can customize the gearbox according to your demand and OEM is also available.
Q: Is your brand can be perfectly replaced and interchanged?
A: Yes, our models are the same as REXROTH GFT series.
Q: How's your warranty period?
A: We can give you one year after sales warranty.
Q: What's your ready time?
A: Normally our ready time is 30-60days, it is based on the models and your quantity.
