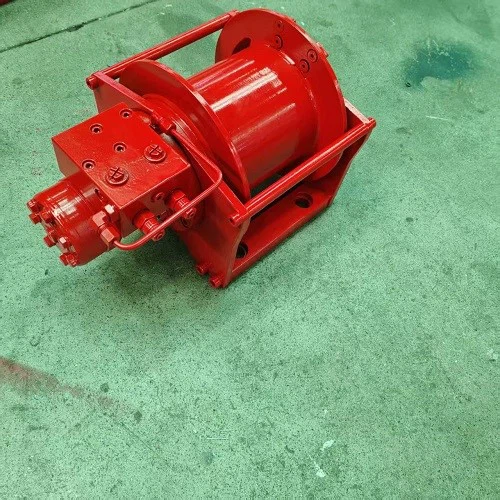

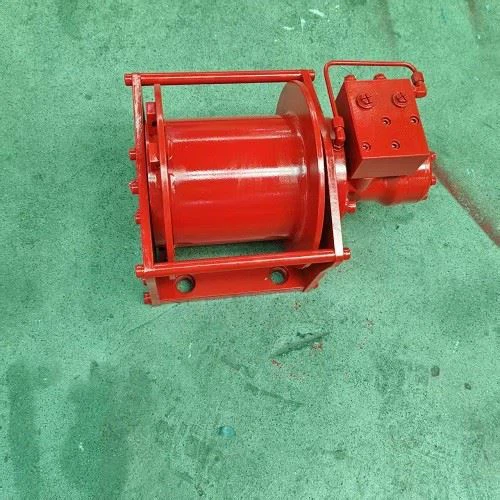

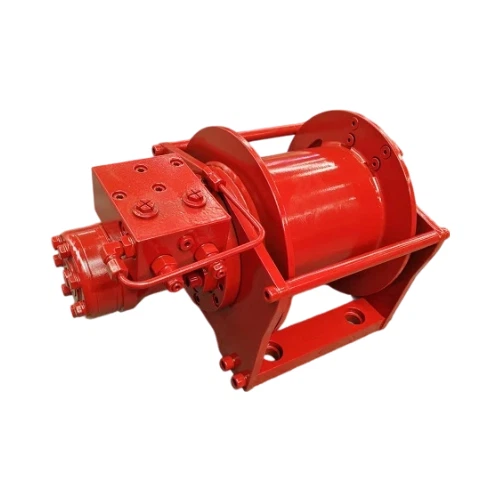

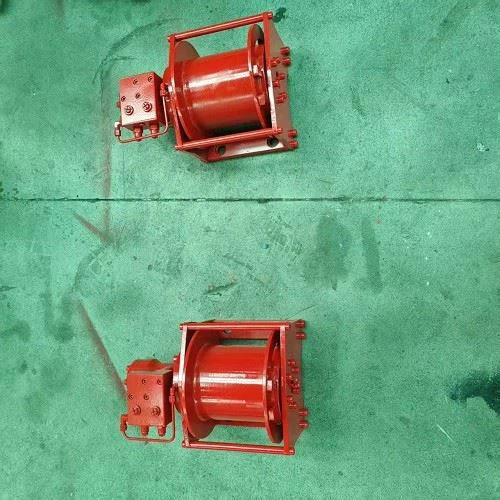

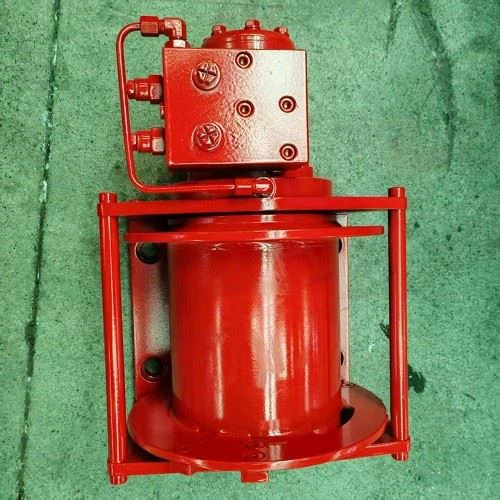

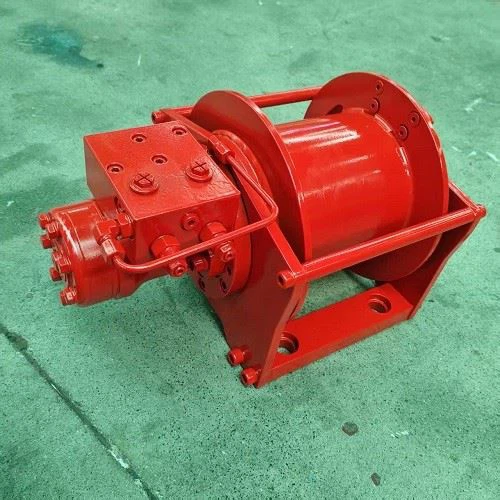

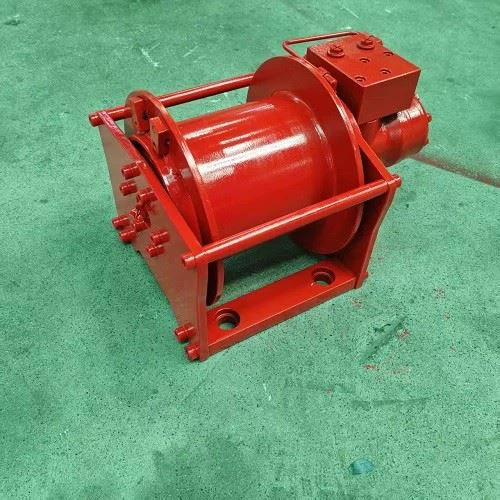

The 0.5 ton hydraulic winch is a compact winch solution for light-duty lifting, pulling and material handling applications. Its hydraulic drive configuration allows integration with equipment equipped with a suitable hydraulic power system.
With a rated first-layer rope pull of approximately 5 kN and a rope speed of 17.5 m/min, the winch is designed for lightweight pulling and lifting applications where compact installation and controlled wire-rope operation are required.
The 0.5 ton hydraulic winch is positioned for lightweight and compact equipment applications rather than high-capacity recovery or heavy-duty pulling operations.
Individual equipment operators: Suitable for light lifting and pulling tasks where a compact hydraulic winch is required.
Small construction and industrial teams: Can be integrated into compact machinery used for routine material handling and pulling operations.
Special-purpose equipment manufacturers: Suitable for OEM projects requiring a compact hydraulic winch configuration.
The design concept of the 0.5 ton hydraulic winch focuses on a practical layout, straightforward operation and suitability for light-duty applications.

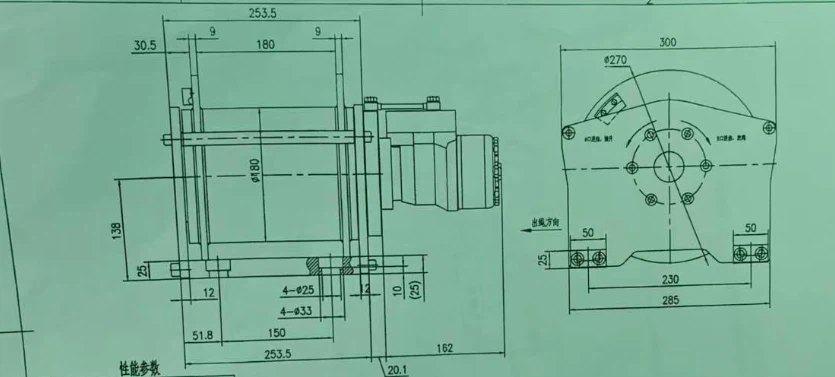

The compact winch configuration is intended for equipment where installation space is limited. Final dimensions and mounting arrangements should be confirmed according to the host machine.
Key transmission and load-bearing components are selected according to the required operating conditions and winch configuration. Material and heat-treatment specifications should be confirmed against the approved technical documentation for the selected model.
The winch uses hydraulic power to drive the winch mechanism. Hydraulic pressure and flow requirements should be matched with the host equipment's hydraulic system during selection.
| Model | First-Layer Performance | Total Displacement (mL/r) | Working Pressure Differential (MPa) | Rope Diameter (mm) | Wire Rope Capacity (m) | Ratio | |
|---|---|---|---|---|---|---|---|
| Rated Rope Pull (kN) | Rope Speed (m/min) | ||||||
| BG550-8-25-ZP | 5 | 17.5 | 476 | 12 | 8 | 25 | 4.76 |
Rated capacity: 0.5 ton (500 kg). The first-layer rated rope pull is specified as approximately 5 kN for this 0.5 ton configuration.
The 0.5 ton hydraulic winch is designed for light-duty pulling and lifting applications. Its rated capacity and first-layer rope pull should be considered together with the rope arrangement, hydraulic pressure, hydraulic flow and operating conditions.
The specified rope speed is 17.5 m/min under the listed technical configuration. Actual operating speed may vary according to hydraulic system conditions and load.
The compact configuration makes this type of hydraulic winch suitable for equipment where installation space and overall system size are important design considerations.
0.5 ton light-duty capacity: Suitable for compact lifting and pulling applications.
Hydraulic system integration: Can be matched to the hydraulic power unit of the host machine.
Compact installation: Suitable for machinery where available installation space is limited.
OEM configuration: Final mounting and hydraulic specifications can be evaluated according to the equipment design.
A 0.5 ton hydraulic winch is a compact hydraulic winch designed for lifting and pulling applications with a nominal capacity of 500 kg. The actual permissible load depends on the approved winch configuration, wire rope arrangement and operating conditions.
It is generally suitable for lightweight lifting, pulling and material-handling applications where a compact hydraulic drive is required.
Selection should consider required line pull, rope diameter, rope capacity, rope speed, hydraulic pressure, hydraulic flow, mounting dimensions and the intended application.
OEM configuration can be discussed according to the host machine, installation space, hydraulic system and operating requirements. Mounting and interface details should be confirmed before production.
Hydraulic winches can be integrated directly with hydraulic systems used by mobile and industrial equipment. Their operating characteristics can be controlled through the hydraulic circuit, subject to system design and component selection.
Kemer supports OEM hydraulic winch projects by evaluating the required capacity, line pull, rope capacity, operating speed, hydraulic pressure, hydraulic flow and mounting interface.
For the 0.5 ton hydraulic winch configuration, customers can provide the host equipment details and application requirements so that the technical specifications can be confirmed before quotation and production.
Contact Kemer for 0.5 ton hydraulic winch specifications, OEM configuration and technical support.
