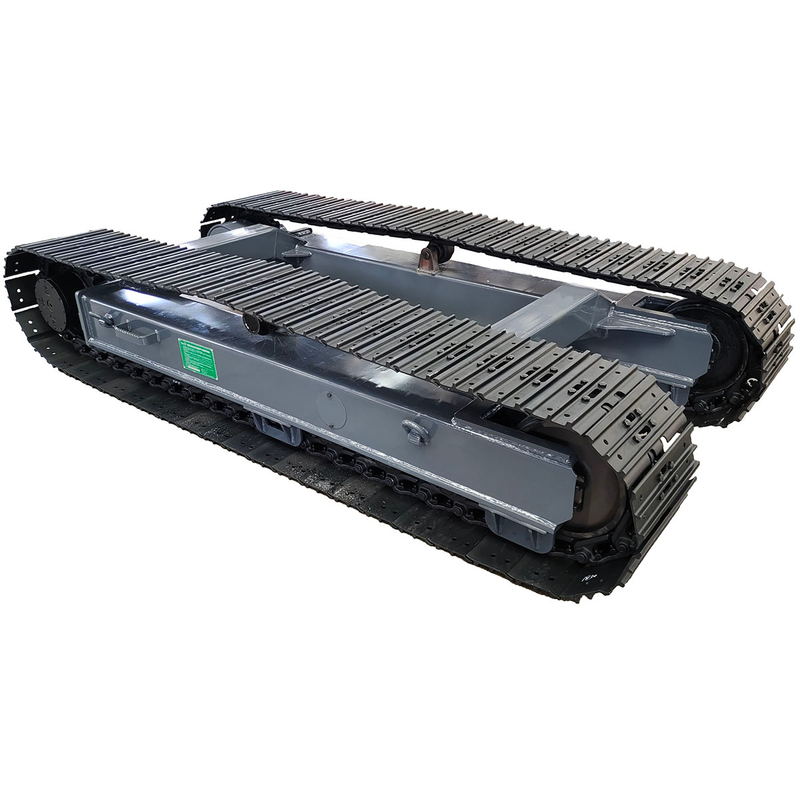

The KST10000 is a steel track undercarriage with hydraulic drive, designed for tracked machinery requiring a listed load capacity of 10,000 kg. Its supplied specifications include 116 kN traction force, 2–3 km/h travel speed and 51 kPa ground pressure.
For customers evaluating a Track One undercarriage replacement, the KST10000 can be assessed against the original unit's mounting dimensions, load requirements, hydraulic system, travel performance and operating conditions. Compatibility should be confirmed before ordering.
The following table summarizes the supplied technical specifications for the KST10000. Confirm the load definition, operating limits and final configuration against the approved product datasheet.
| Parameter | Specification |
|---|---|
| Model | KST10000 |
| Undercarriage Type | Steel track undercarriage |
| Drive Method | Hydraulic drive |
| Listed Load Capacity | 10,000 kg / 10 tons |
| Unit Weight | 2,000 kg |
| Motor Displacement | 62 / 39 mL/rev |
| Working Pressure | 25 MPa |
| Traction Force | 116 kN |
| Travel Speed | 2 / 3 km/h |
| Ground Pressure | 51 kPa |
| Maximum Gradeability | 30° (as supplied; confirm the unit) |

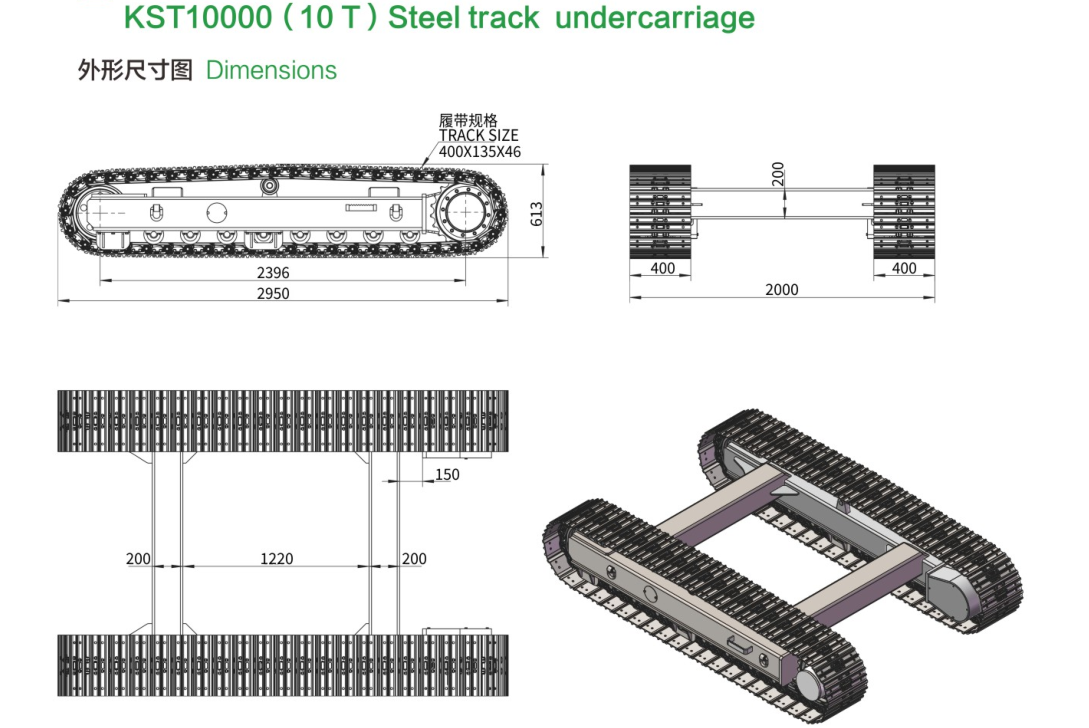

| Listed Pallet Dimensions | 2,980 × 2,200 × 720 mm |
| Warranty | 12 months, subject to agreed warranty terms |
The KST10000 uses a hydraulic drive configuration, with the supplied motor displacement listed as 62 / 39 mL/rev. Confirm the exact motor model, hydraulic flow, pressure and connection interfaces for the intended machine.
The supplied product information lists a load capacity of 10,000 kg. Confirm how this rating is defined and check the complete machine weight, payload, load distribution and operating conditions before selecting the undercarriage.
The listed traction force is 116 kN. Actual travel and traction performance depends on machine configuration, ground conditions, hydraulic supply and operating requirements.

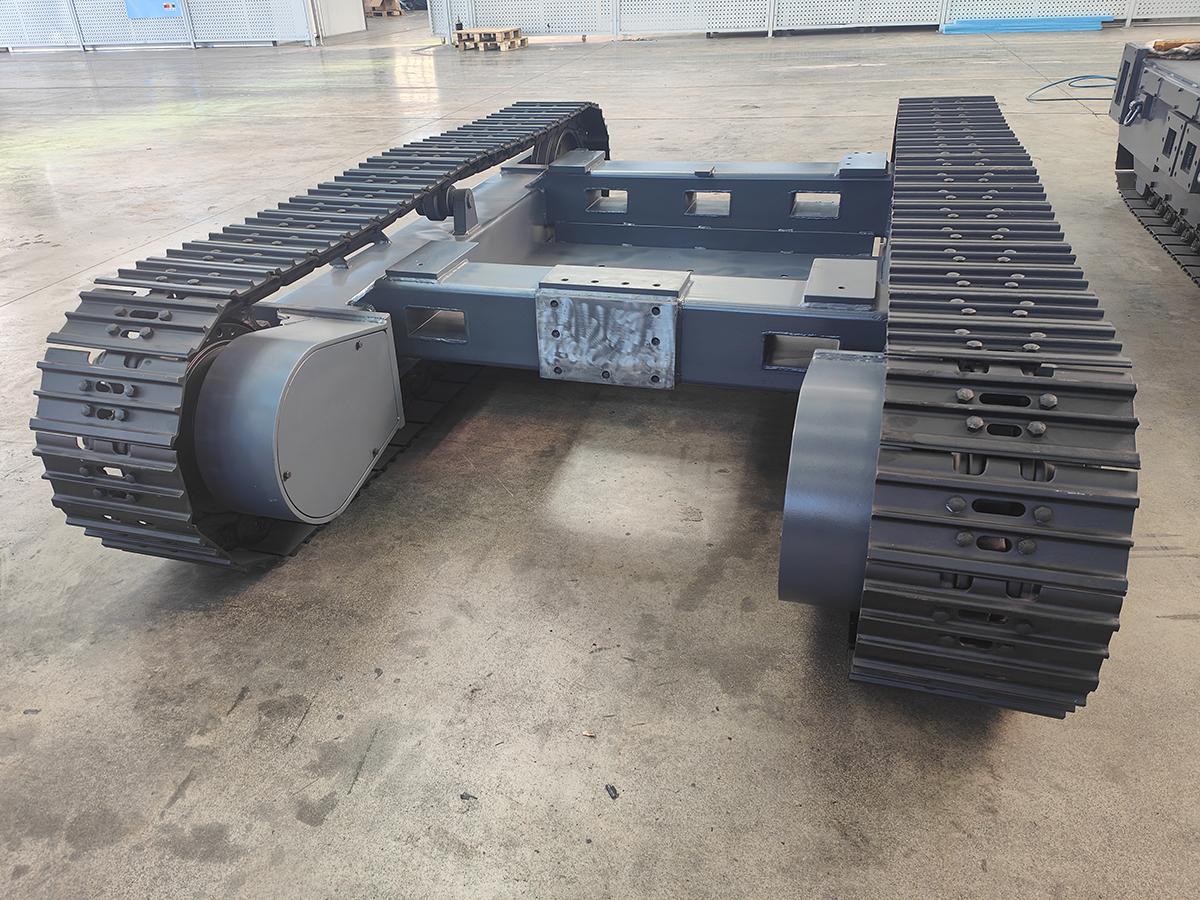

The KST10000 is specified as a steel track undercarriage. Confirm the track dimensions, mounting interface, ground clearance and surface requirements when matching it to the host machine.

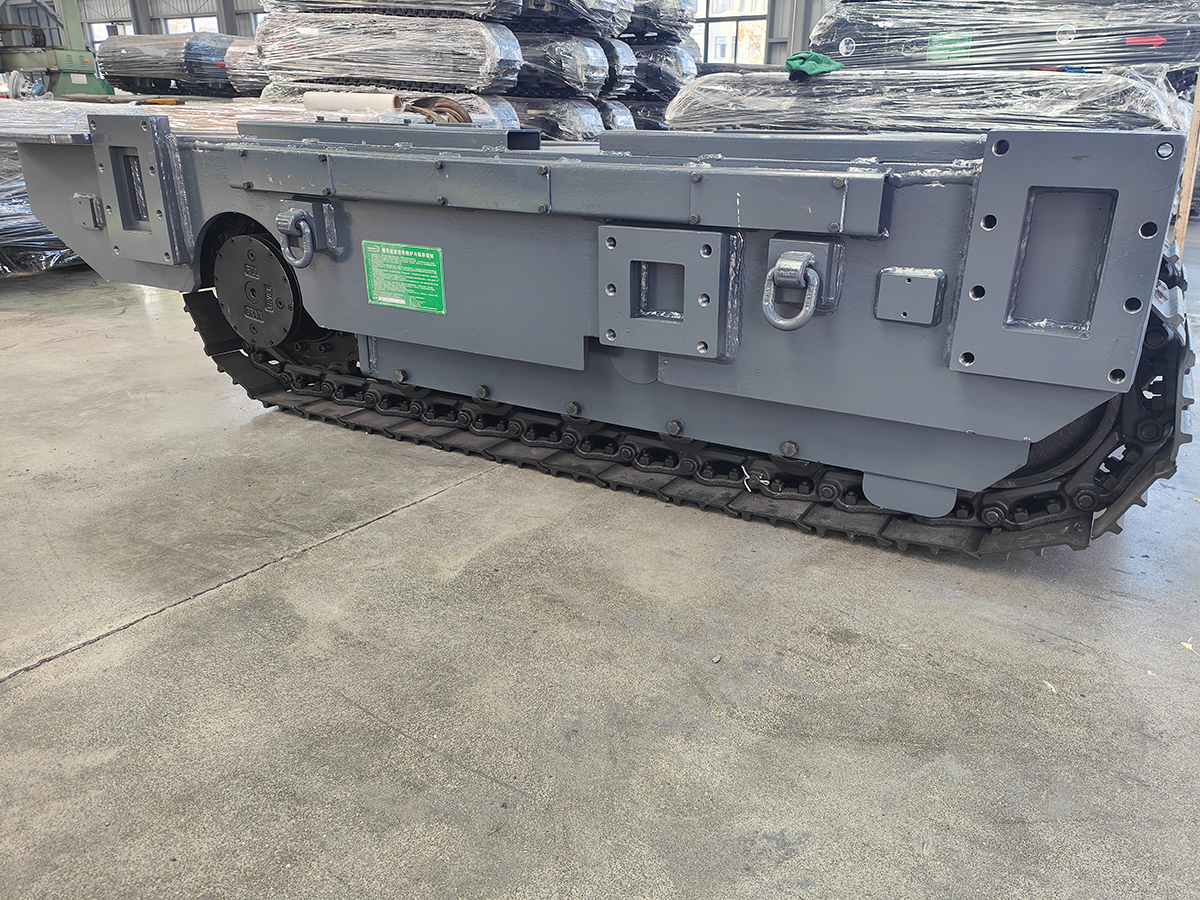

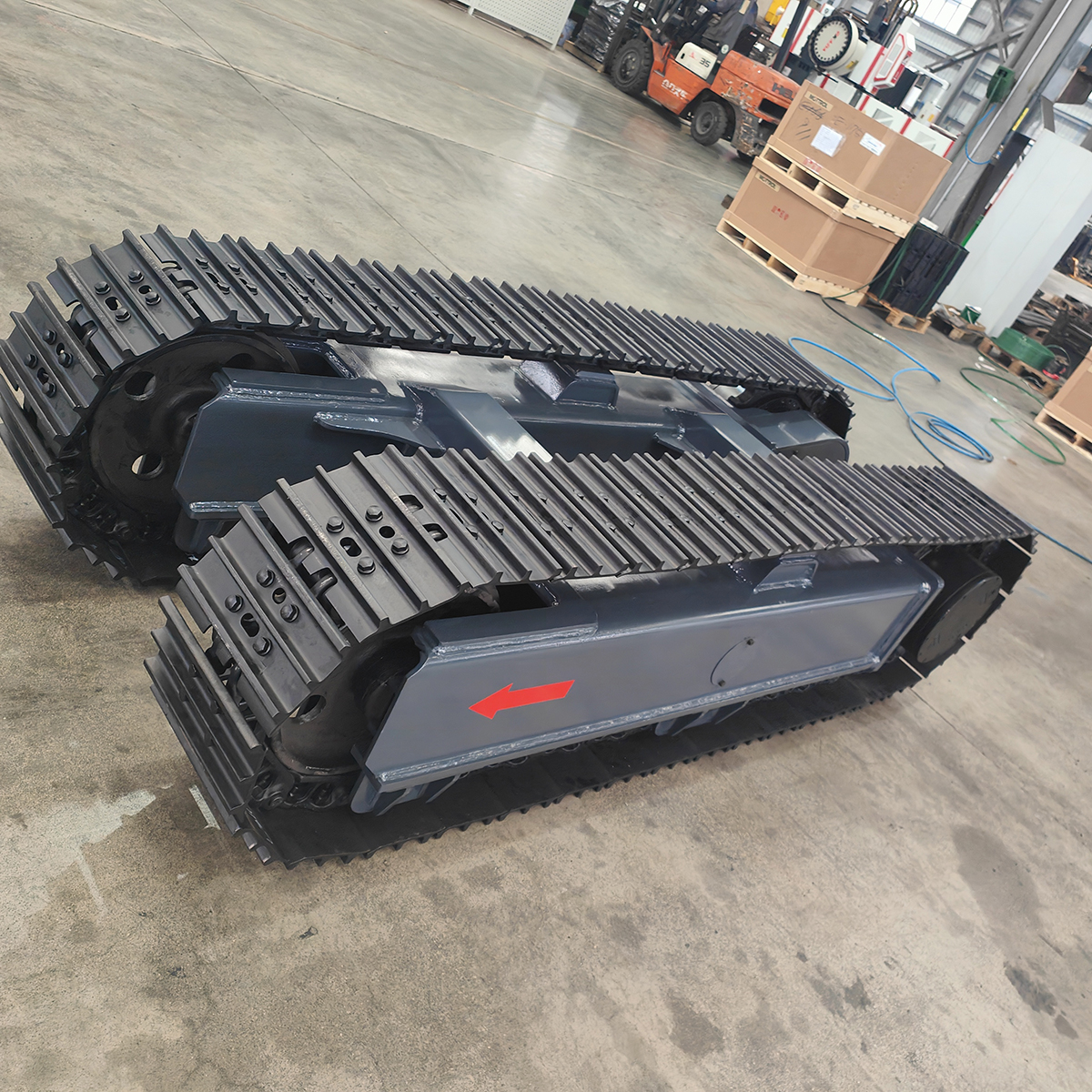

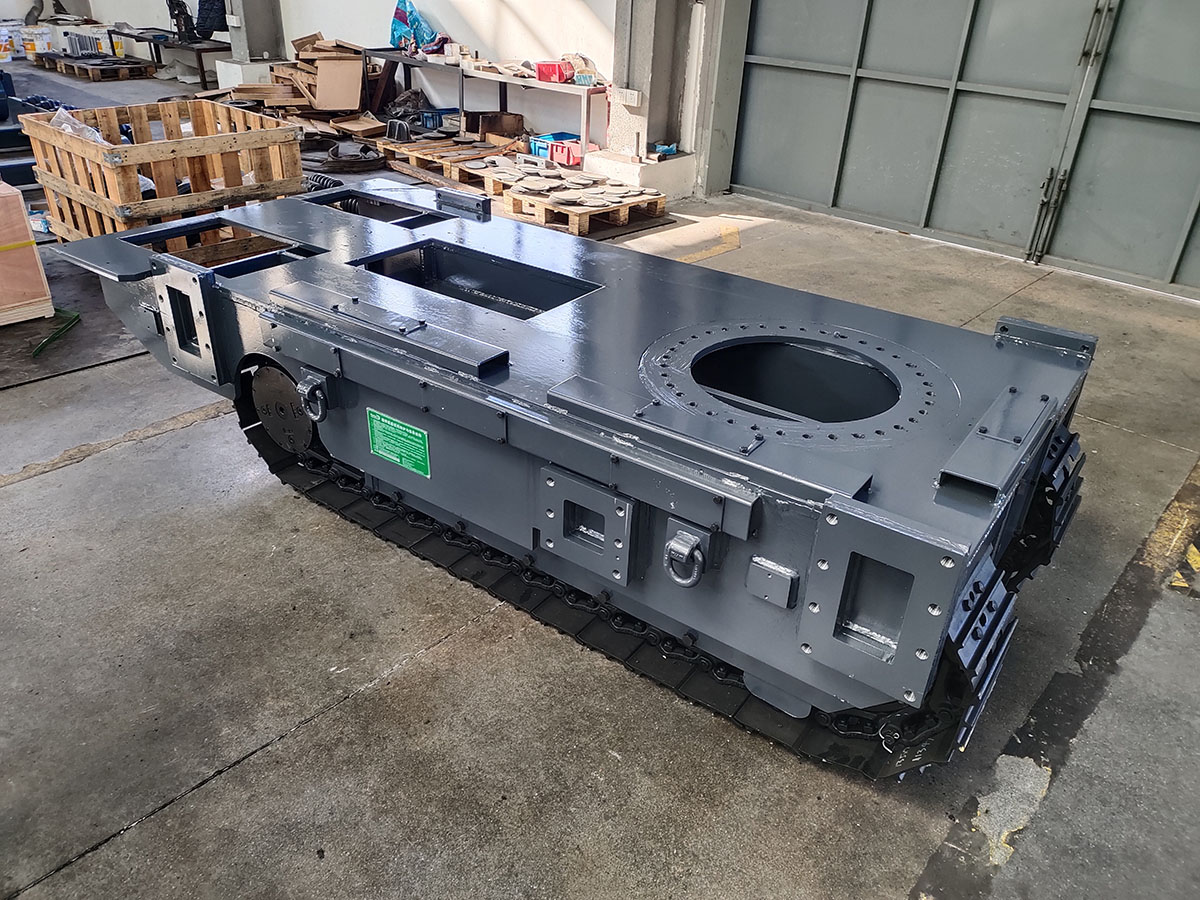

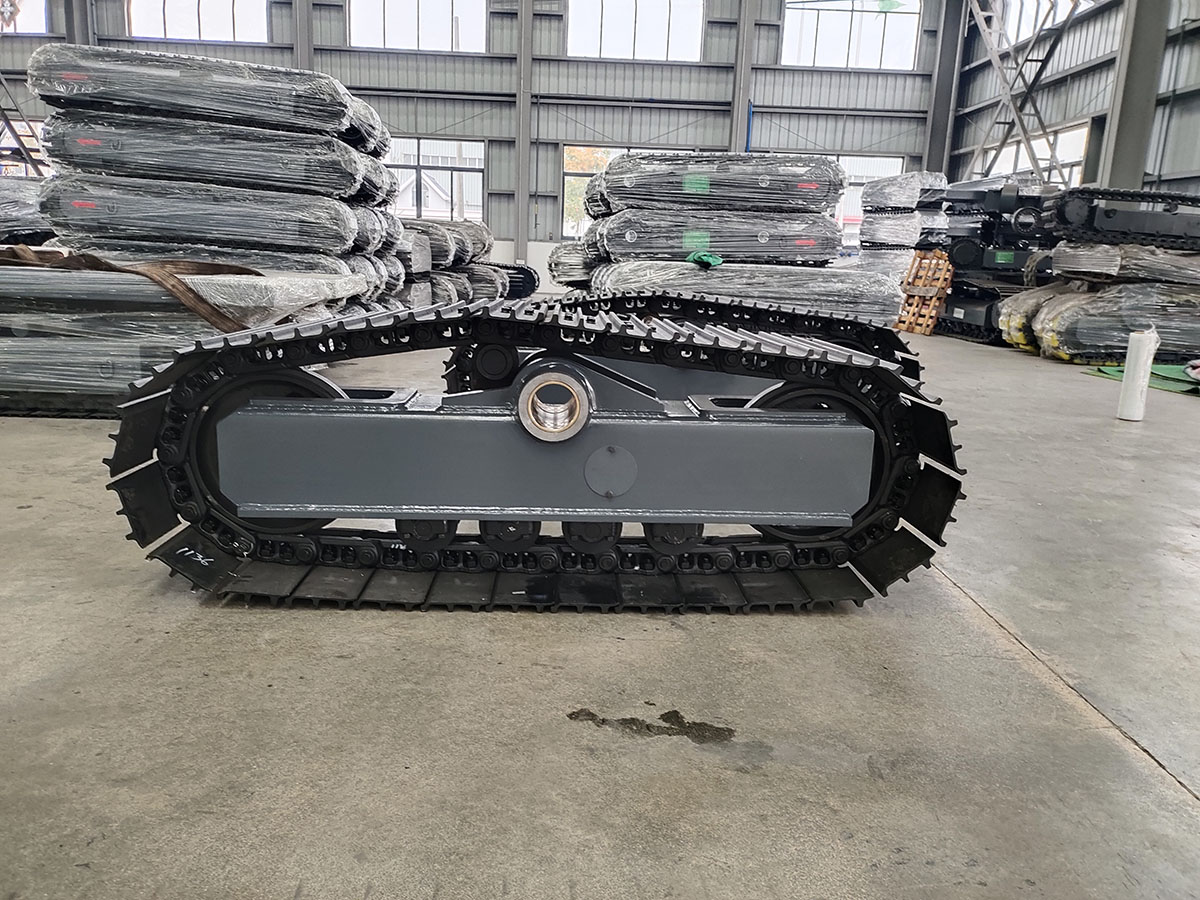

The KST10000 can be evaluated as a potential replacement solution for equipment using a Track One undercarriage. A model name or similar load rating alone does not establish direct interchangeability.
Before confirming compatibility, compare the original undercarriage's mounting dimensions, overall width, track frame length, connection points, hydraulic motor arrangement, travel speed and required operating capacity.
Mounting interface: Check bolt patterns, connection points, mounting height and installation clearances.
Load requirements: Confirm the machine operating weight, payload and load distribution.
Hydraulic system: Verify motor displacement, available oil flow, working pressure and hydraulic connections.
Travel performance: Compare required travel speed, traction force, gradeability and working conditions.
Track configuration: Confirm steel track dimensions, width and compatibility with the machine's operating surface.
Provide the original model number, nameplate information, photographs and technical drawings so that the replacement configuration can be reviewed before an order is placed.
Accurate measurements help determine whether a replacement undercarriage can fit the machine and meet its operating requirements. Record the following information before requesting a quotation.
Overall width: Measure the available machine width and required undercarriage width.
Track width: Record the width of the steel track on each side.
Track frame length: Confirm the required length and available installation space.
Mounting dimensions: Record the position, spacing and dimensions of mounting holes and connection interfaces.
Ground clearance: Confirm the required clearance for obstacles and site conditions.
Machine weight: Provide the operating weight and expected payload of the complete machine.
Travel speed: State the required travel speed and whether more than one speed is needed.
Gradeability: Identify the maximum slope and working conditions the machine must handle.
Hydraulic parameters: Specify available oil flow and working pressure for each travel motor.
Operating environment: Describe the terrain, ground conditions, working cycle and any special requirements.
Do not rely on track width alone when selecting a replacement. The complete mounting interface, hydraulic configuration and machine load requirements must also be checked.
Payment: The stated terms are a 30% deposit and 70% balance before shipment. T/T is generally used; confirm the final terms before order confirmation.
Lead time: The stated production lead time is 20–25 days after receipt of payment, subject to the final specifications and order quantity.
Technical support: Online support and overseas technical service arrangements should be confirmed according to the project and order scope.
Warranty: 12 months, subject to the agreed warranty coverage and terms.
The supplied pallet dimensions are 2,980 × 2,200 × 720 mm. Confirm the final packed dimensions, gross weight, packaging method and shipping arrangement before dispatch.
Kemer manufactures track undercarriages, crawler chassis and related machinery components. The supplied company information lists a manufacturing facility of more than 16,000 m² and approximately 100 workers.
For OEM and replacement projects, provide the application, dimensions, load requirements and hydraulic parameters so that the engineering team can review the required configuration.
The supplied product specification lists a load capacity of 10,000 kg. Confirm the rating definition and application suitability for the complete machine before ordering.
The supplied technical table lists travel speeds of 2 km/h and 3 km/h. Confirm the applicable speed settings and operating conditions for the selected configuration.
Yes. The supplied specifications identify the drive method as hydraulic. Confirm the motor arrangement, oil flow, pressure and hydraulic connection requirements before installation.
The KST10000 can be evaluated as a potential replacement option. Direct compatibility depends on the original unit's mounting dimensions, load rating, hydraulic system, track configuration and required travel performance.
Provide the original undercarriage model, machine operating weight, required capacity, overall dimensions, mounting drawings, travel speed, gradeability, hydraulic oil flow, working pressure, track type, application and order quantity.
The supplied information states a lead time of 20–25 days after receipt of payment. Confirm the production schedule once the final configuration and order quantity are agreed.
For a KST10000 steel track undercarriage or a potential Track One replacement, provide your existing model, machine weight, required dimensions, hydraulic parameters and application details. These details help assess compatibility and identify a suitable configuration.
