Applications
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
|
Advantages of 6 Ton Winch
1. High Efficiency
Optimal Performance: Plunger motors are designed to convert energy into mechanical output with minimal losses. This means they can deliver higher torque and speed while consuming less energy compared to traditional motor designs.
2. Low Energy Consumption
Cost-Effective Operation: Because of their high efficiency, piston motors lead to lower overall energy consumption. This is especially beneficial for businesses.
3. Low Noise
Quieter Operation: The design and operation of plunger motors minimize vibrations and noise during use. This makes them ideal for applications in sensitive environments, such as residential areas or indoor facilities, where noise may be a concern.
Comfortable Working Conditions: Reduced noise levels contribute to a safer and more pleasant working environment for operators. This is especially important in construction or industrial settings.
4. Beautiful Appearance
Durable Coating: Many models feature weather-resistant coatings that not only enhance their visual appeal but also protect against the elements, ensuring longevity.
| What Are The Advantages of The Structural Design of The Gw Series Winch?
The structural design of the GW 6 ton winches has significant advantages. Its compact design takes up little space and is easy to install and use in limited work areas. It is suitable for various working environments, especially in situations where space is limited. This series of winches adopts an efficient gear transmission system with high transmission efficiency, which can quickly transmit power and improve work efficiency. The optimized transmission design also reduces energy loss and improves overall performance. The equipped reliable braking system can brake quickly and safely when stopping operation, ensuring that the load can be safely stopped at any position, providing additional operational safety.
The modular design makes installation, maintenance and component replacement more convenient. Each module can be disassembled and assembled independently, which facilitates on-site maintenance and inspection, reducing downtime and maintenance costs. Made of high-quality materials, it has a solid structure, strong wear resistance and impact resistance, and is suitable for use in harsh working environments, extending the service life of the equipment and improving overall reliability. A variety of specifications and configuration options are available, which can be customized according to specific work needs, including different rope lengths, rope diameters, lifting speeds and rated loads to meet diverse application needs.

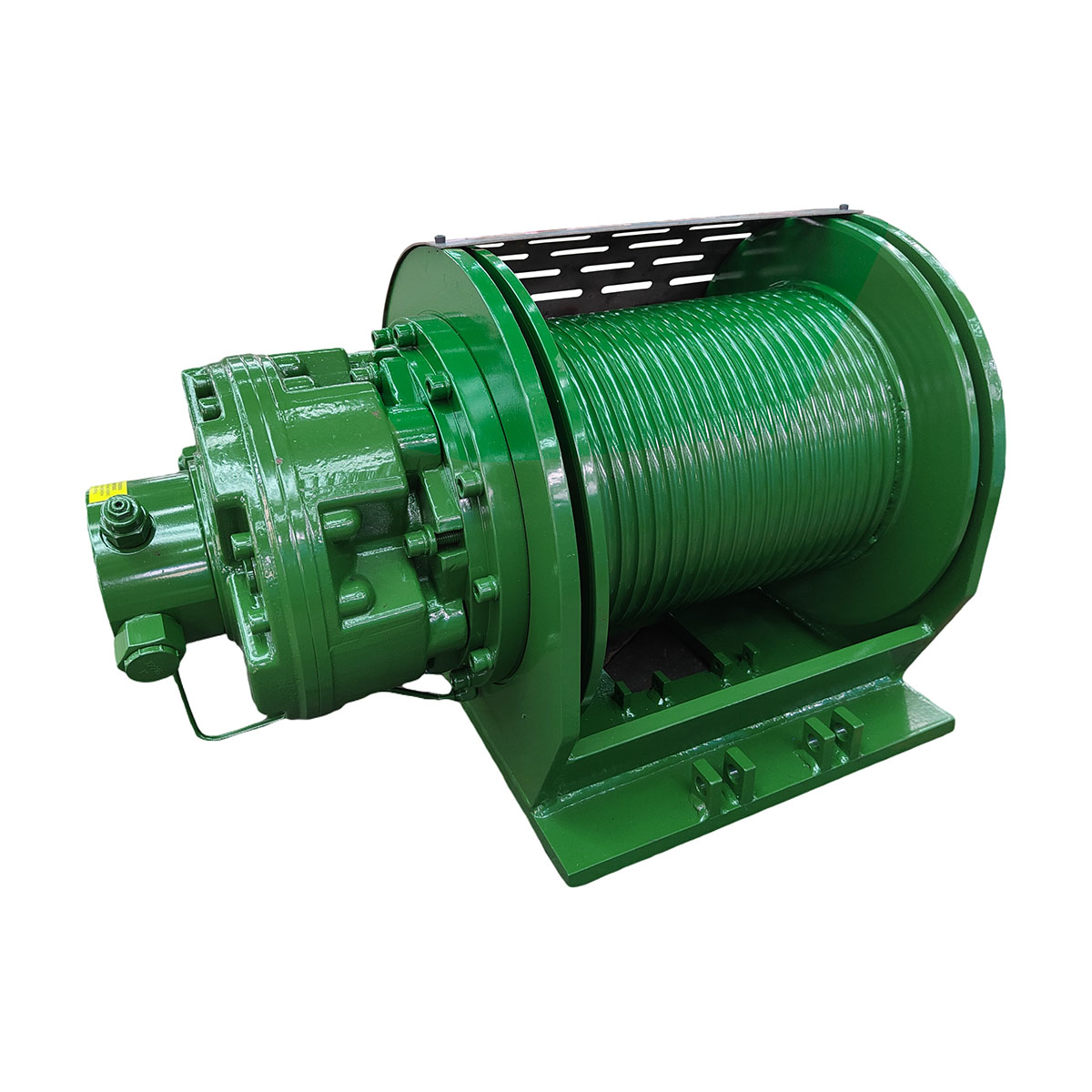

| 6 Ton Winch
Model | GW4 |
Load capacity | 5-6 ton |
Rope capacity | 20~150 m |
Working speed | 20~50 m/min |
Hydraulic motor | GN3 |
Warranty | 12 months free |
| Technical Parameters
Model | The 1st layer | Reel bottom diameter(mm) | Total displacement （ml/r） | Working pressure diff.(MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Hydraulic motor | Model of planetary reducer | |
Pull (kN) | Rope speed（m/min） | ||||||||
GW4-50-70-20-ZP | 50 | 0-40 | 380 | 4365 | 16.3 | 20 | 70 | GN3-900D240101 | C4-5 |
GW4-60-68-21.5-ZP | 60 | 0-40 | 380 | 5428.5 | 16 | 21.5 | 68 | GN3-1000D240101 | C4-5.5 |
|

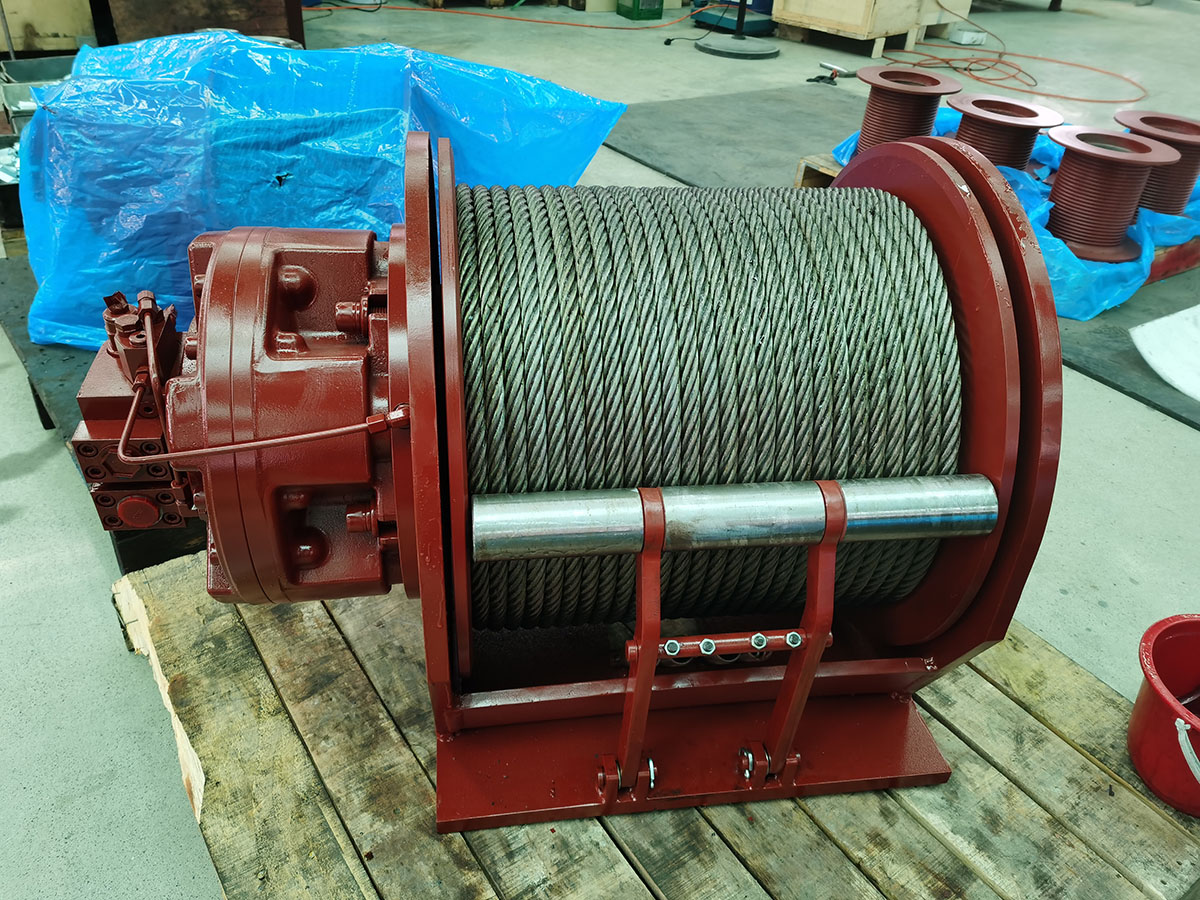

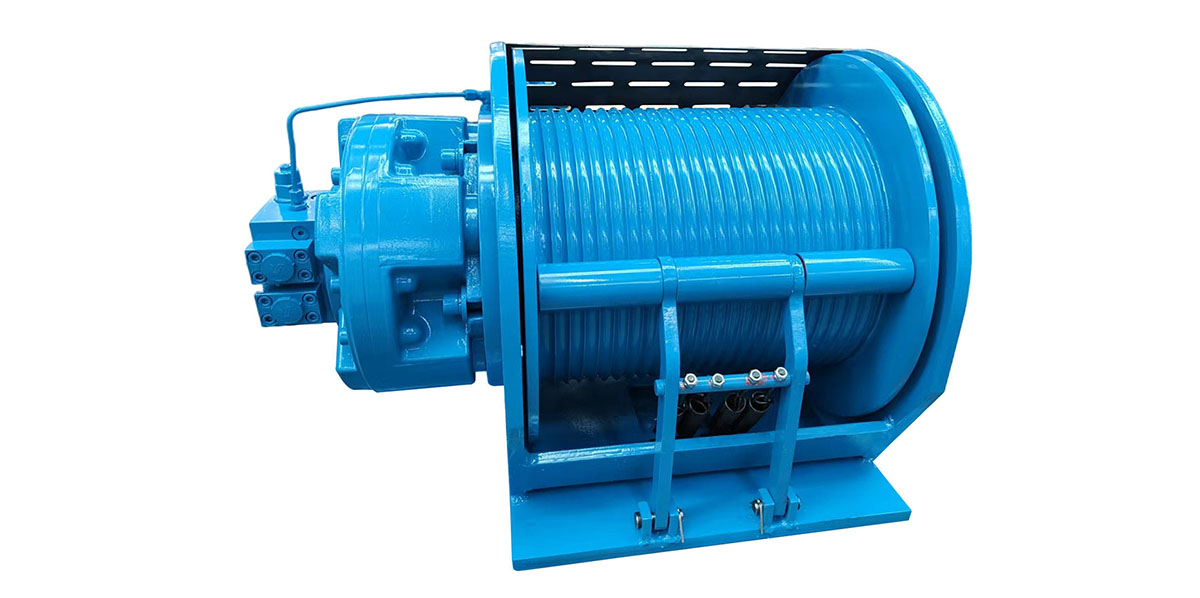

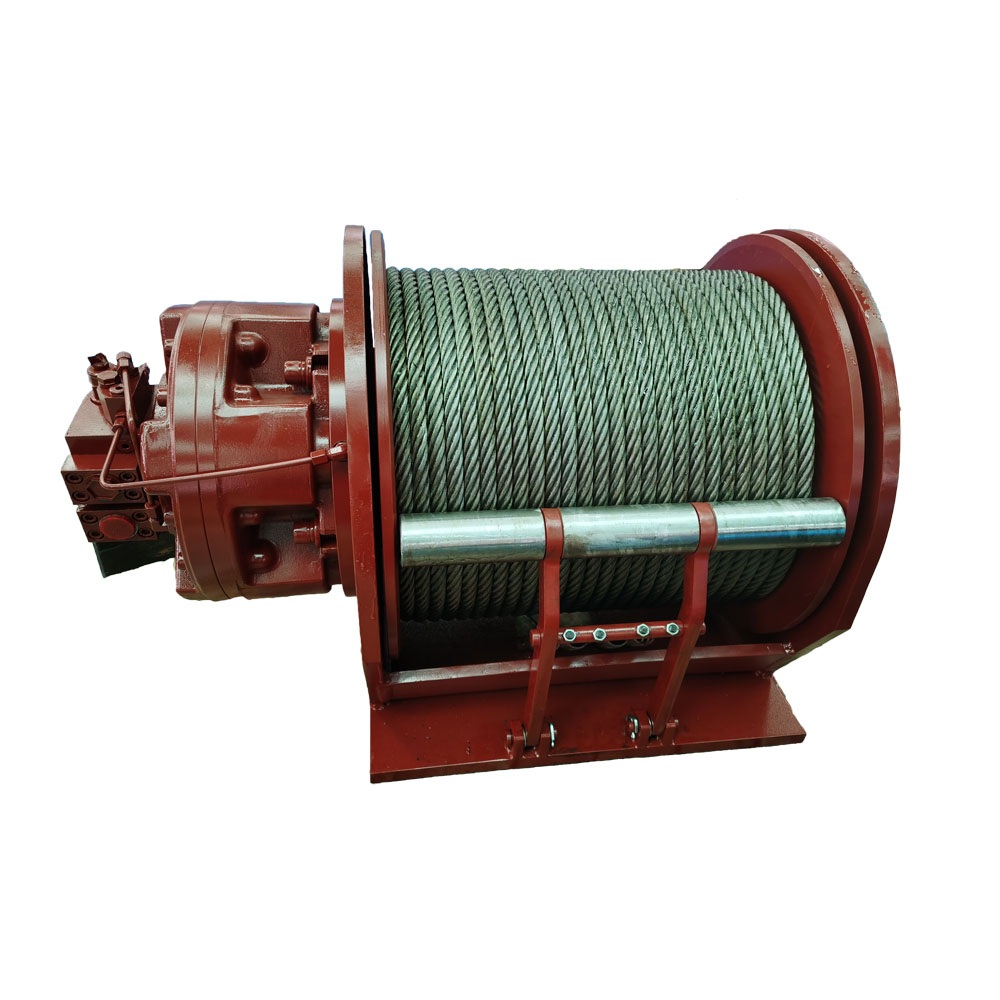

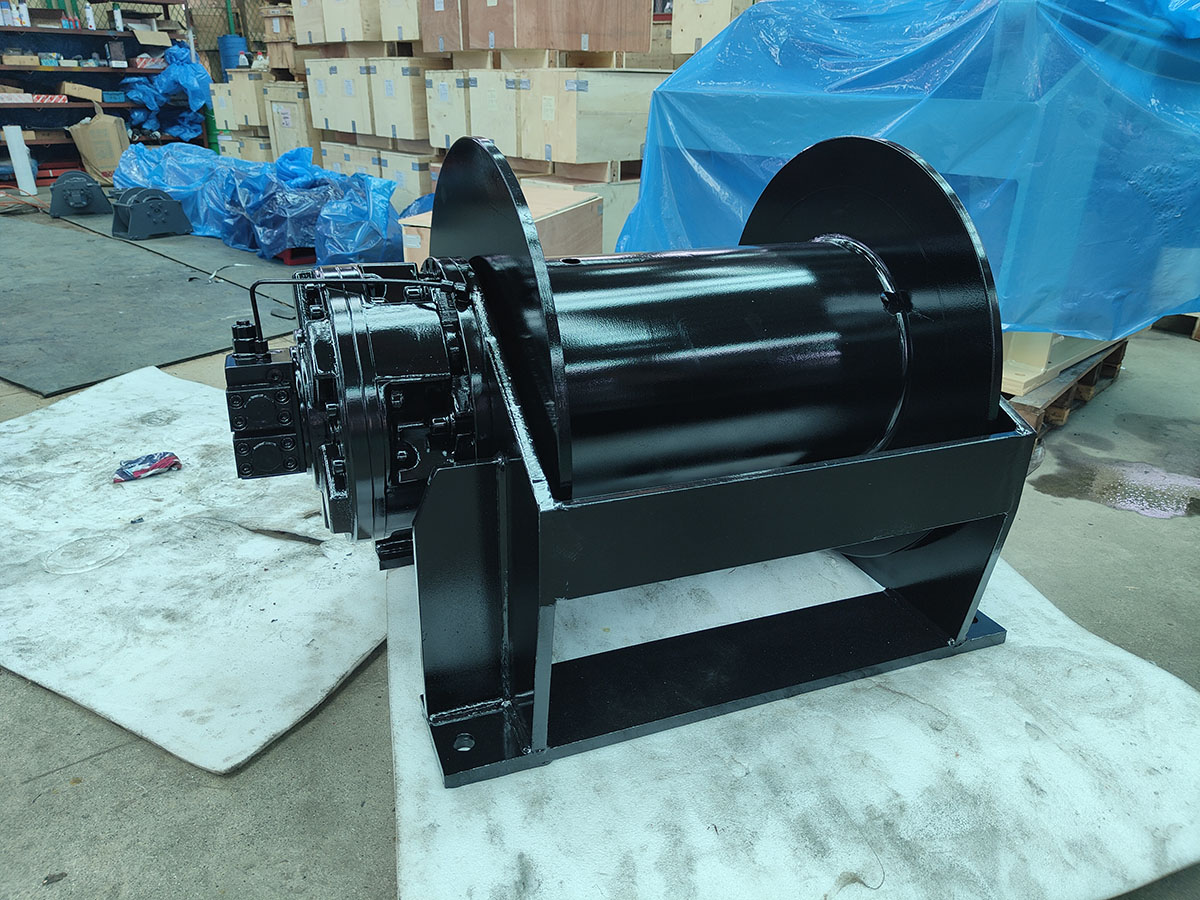

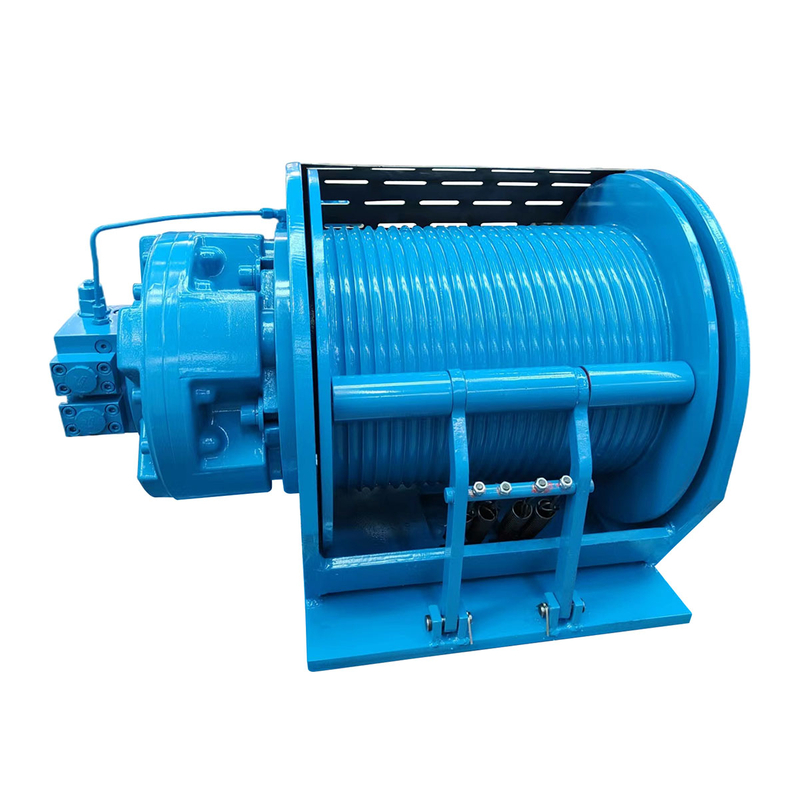

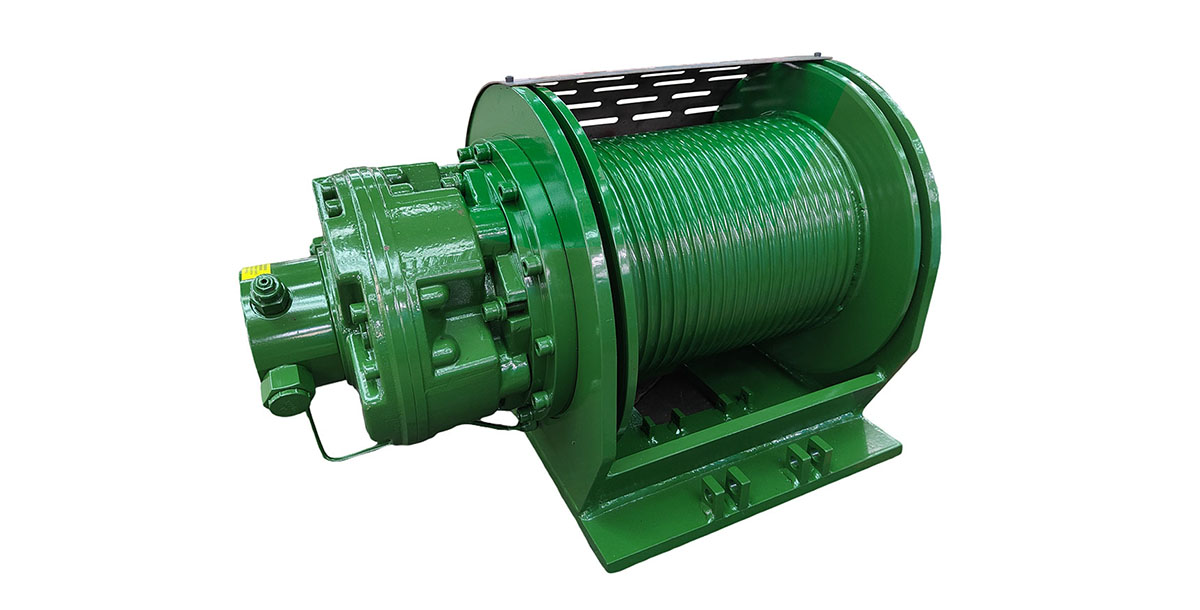

6 Ton Hydraulic Winch Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Can l visit your factory?
A:By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.
Q: Do you offer OEM service and can you produce as our drawings?
Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawing
Q: Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
Q: Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
Q: Are there any special requirements for OEM purchases?
A.Yes, we require proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q: What is your advantage compared with your competitors?
(1). Qualified Manufacturer
(2). Reliable Quality Control
(3). Competitive Price
(4). High Efficiency working (24*7hours)
(5). One-Stop Service
