Advantages of Drilling Rig Undercarriage
Mobility: The undercarriage determines how easily the drilling rig can move to different locations, especially in rough or remote terrains.
Stability: A strong and well-designed undercarriage helps maintain stability during drilling operations, which is essential for accuracy and safety.
Load Capacity: The undercarriage must support the rig and any additional equipment or load, necessitating robust construction and materials.
Durability: Considering the harsh environments where drilling rigs often operate, the undercarriage needs to be resistant to wear, corrosion, and other forms of damage.
|
What Is an Underground Drill Rig?
An underground drill rig is a specialized piece of equipment designed for drilling operations below the earth’s surface. These rigs are essential in various industries, primarily mining and construction, for tasks such as exploration, development, and production.
Key Features of Underground Drill Rigs
Design and Structure:
1.Compact Size: Underground drill rigs are typically smaller and more compact than surface drilling rigs to navigate the confined spaces of underground environments.
2.Robust Construction: They are built to withstand harsh conditions, including high humidity, dust, and potential impacts from surrounding rock.
Mobility:
Many underground drill rigs are equipped with tracks or wheels that allow them to maneuver through tunnels and narrow shafts. Some are also designed to be portable and easily transportable.
Drilling Mechanism:
1.Rotary Drilling: Most underground drill rigs use rotary drilling methods, where a drill bit rotates to penetrate the rock.
2.Percussion Drilling: Some rigs may employ percussion drilling techniques, where repeated blows are used to break rock.
Power Source:
Underground drill rigs can be powered by diesel engines, electric motors, or hydraulic systems, depending on their design and intended use.
Safety Features:
Given the hazardous environment, these rigs often include safety features like emergency stop systems, ventilation controls, and operator cabs to protect against rock falls and dust exposure.
| Skid Steer Track Loader Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 5800kgs
Pallet size: 4840*1400*890mm
Load capacity: 20tons
|
1.Technical parameters
Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KST20000 | 107/60 | 25 | 285 | 2.6/4.7 | 61 | 30 | 5800 | 20000 |
|

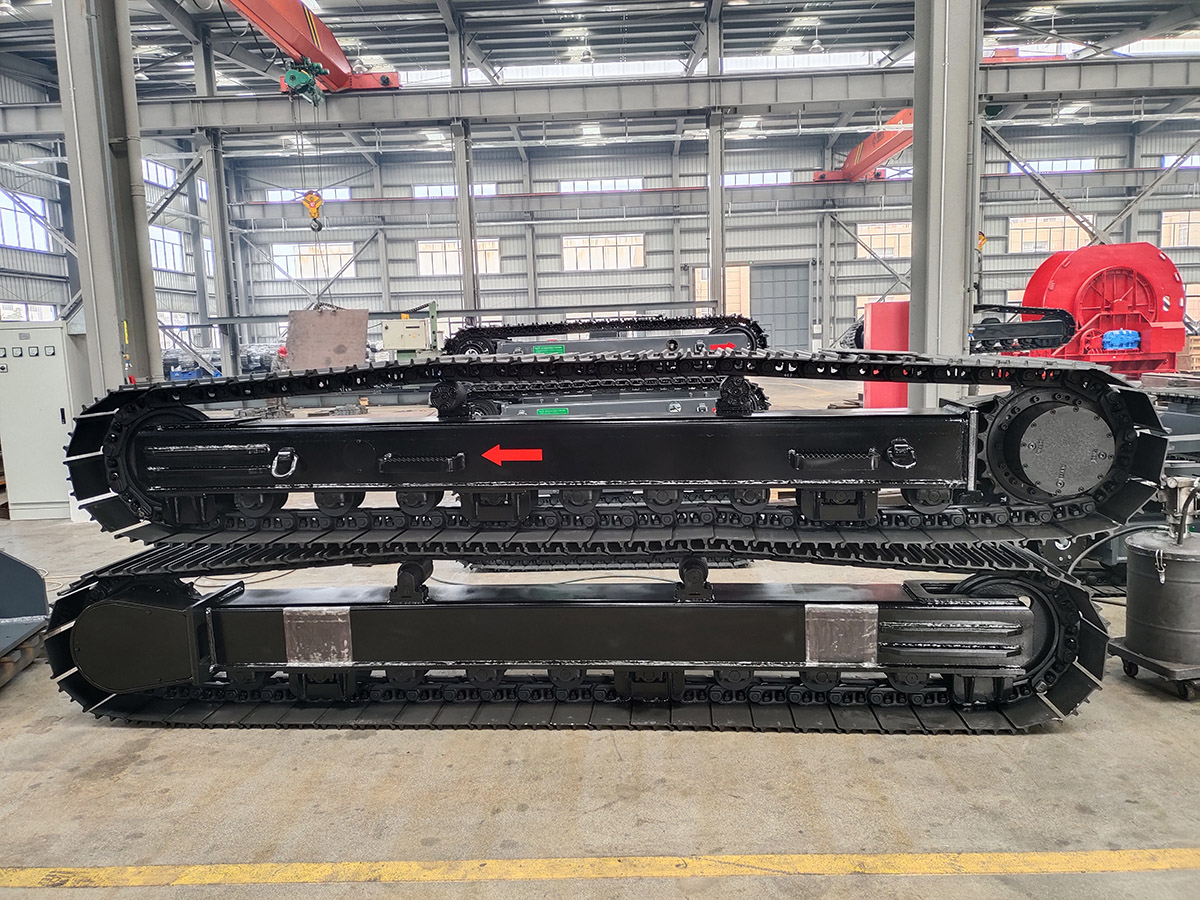

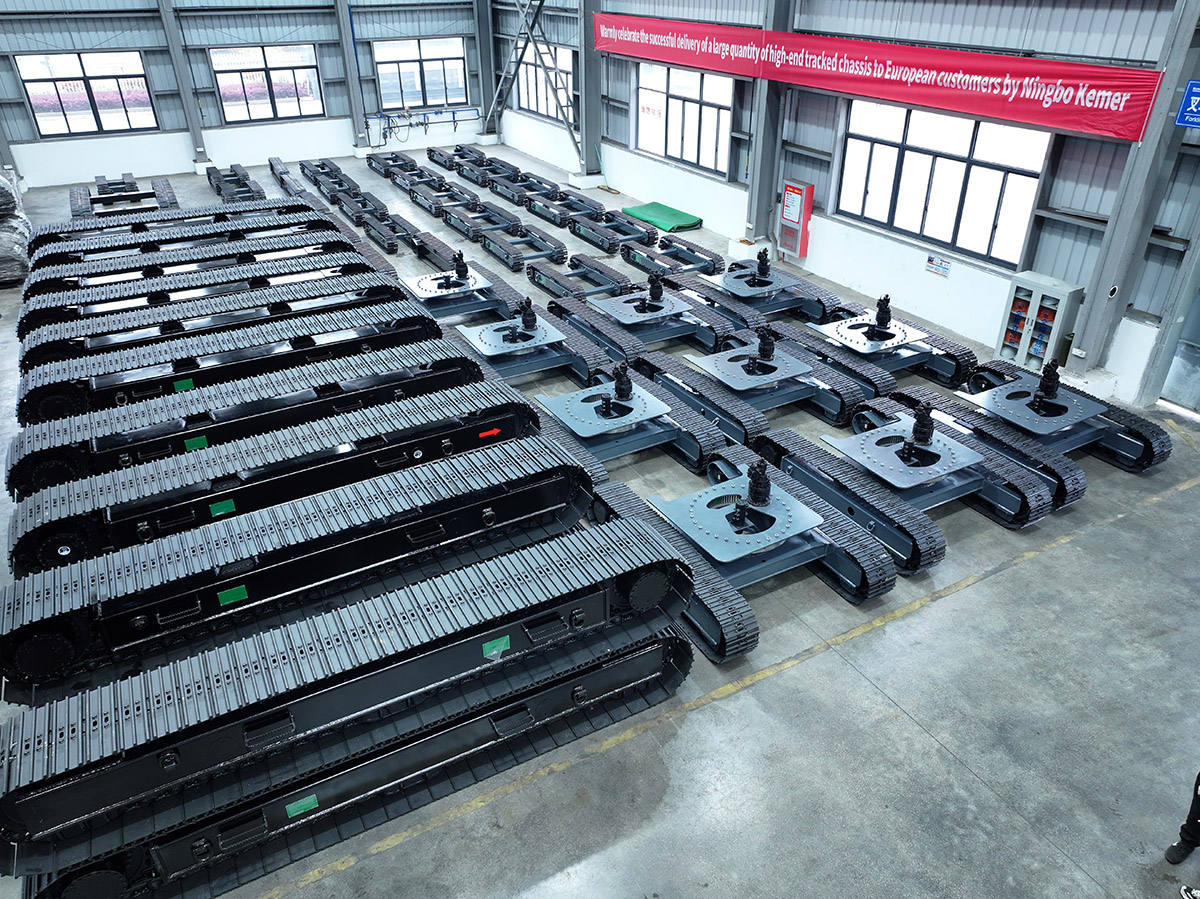

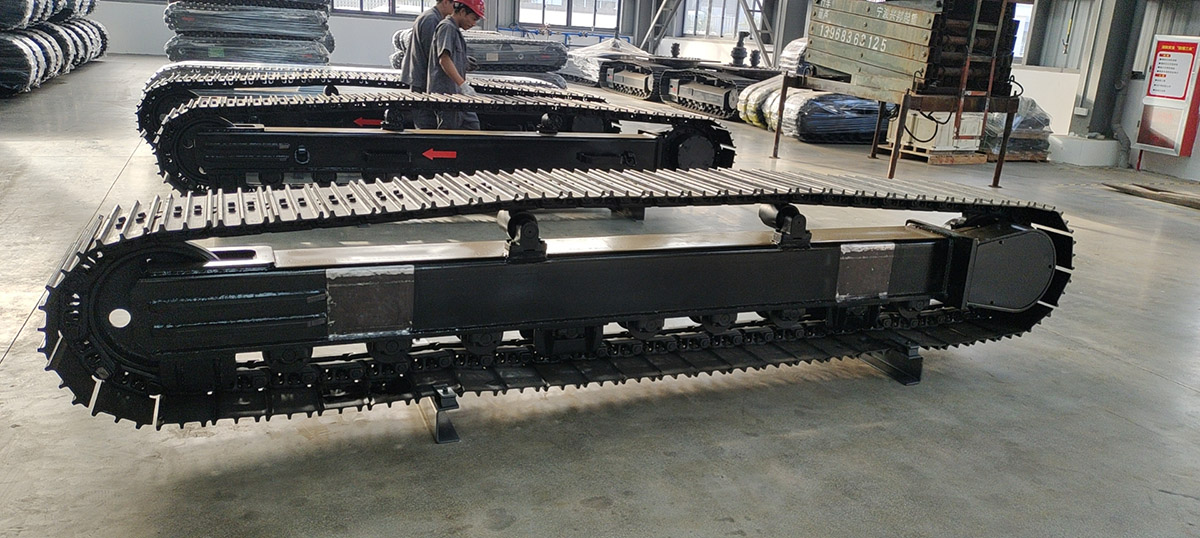

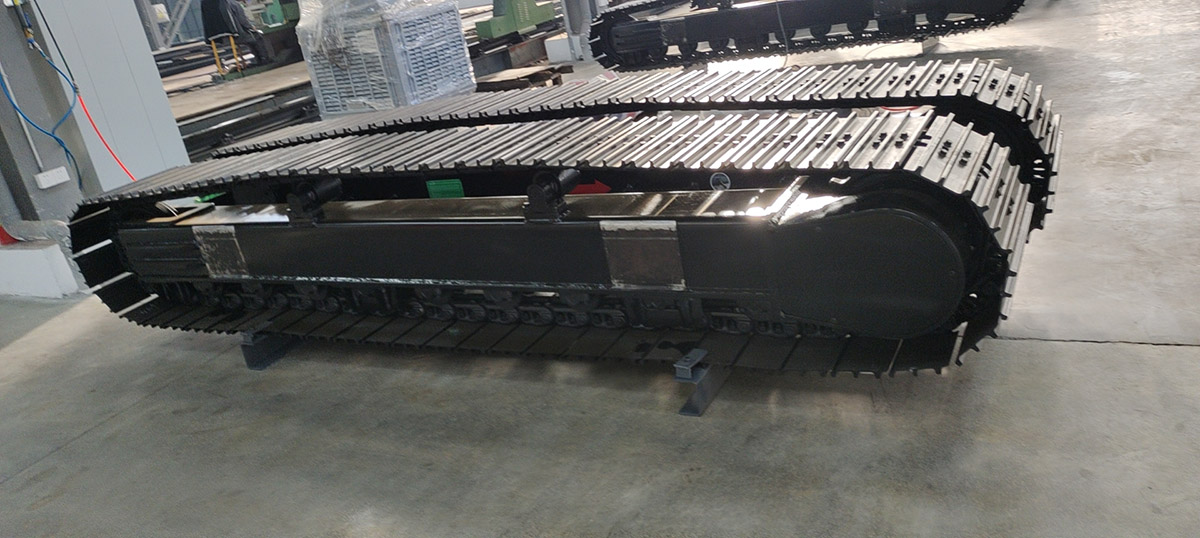

Undercarriage Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in track undercarriage. And we trade our products with our clients directly.
Q: Where is your factory located?
A: In Ningbo city,China.
Q: Where is your factory located?
A: In Ningbo city,China.
Q: When did your factory established?
A: Since 2012
Q: How many square meters of your factory?
A: More than 16000 square meter.
Q: How many workers in your factory?
A: 100 workers.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
