Rexroth GFB Series Gearbox
The Rexroth GFB series is a compact and efficient gearbox solution designed for various industrial applications. Known for its reliable performance and durable construction, the GFB series offers smooth power transmission and adaptability to different mechanical systems. Its modular design allows for flexible configurations, making it suitable for conveyor systems, material handling equipment, and light-duty automation. With a focus on energy efficiency and low maintenance, the GFB series ensures long-term operational stability in diverse industrial environments.
|
Product Overview for GFR 2.5 Series Planetary Gearbox
The GFR 2.5 series represents a range of high-efficiency gear reducers specifically engineered for small to medium industrial equipment. Suitable for diverse applications including automated production lines, material handling, packaging machinery, and food processing systems, these reducers embody a modular design philosophy that combines precise power transmission with compact dimensions and lightweight construction. The optimized internal gearing ensures smooth power delivery while maintaining reliable performance in standard industrial environments.
|

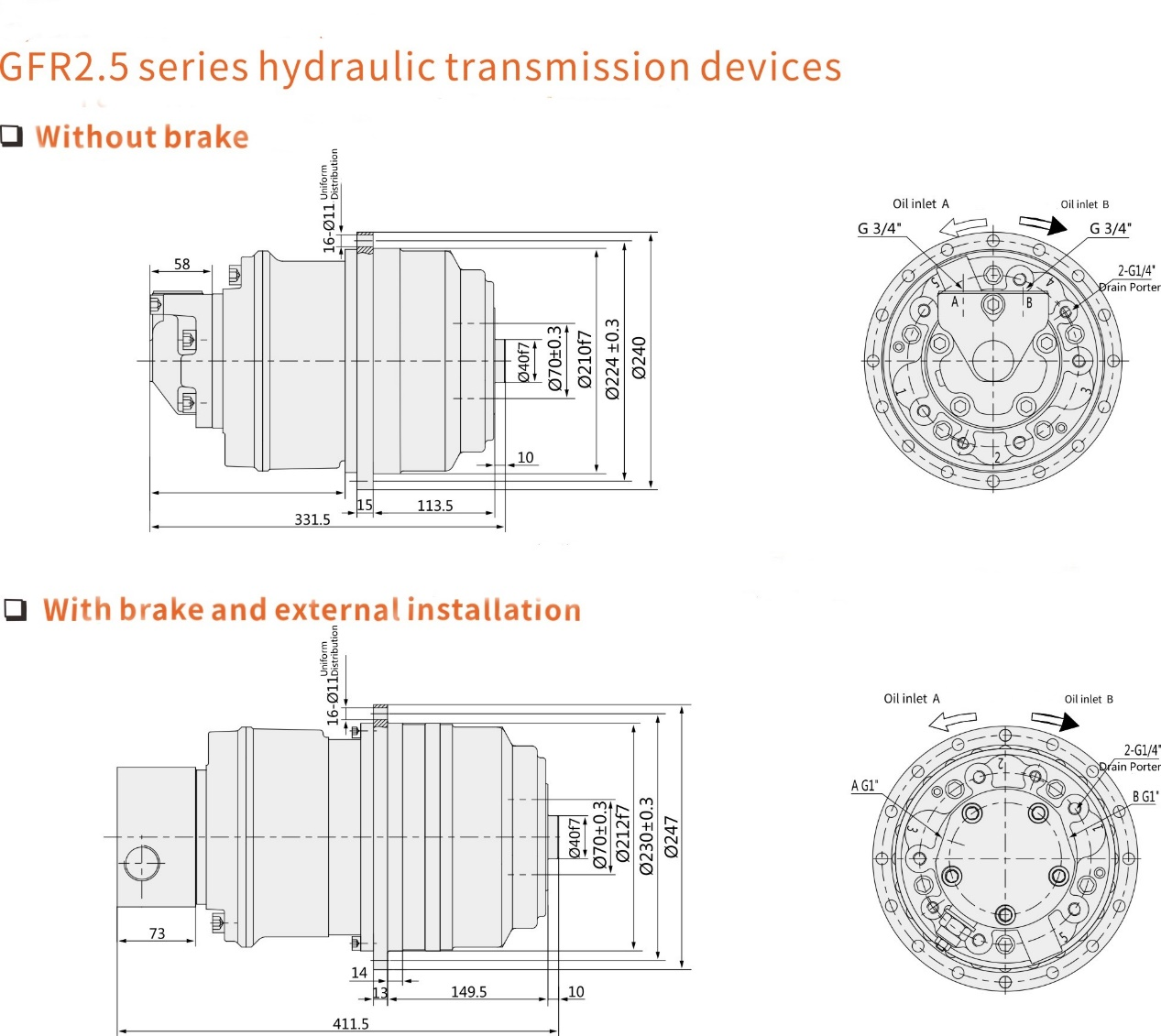

Technical Parameters
Model | Total displacement（ml/r） | Rated torque（N.m） | Speed（r/min） | Total efficency | Hydraulic motor | Planetarygearbox | Brake | |
16Mpa | 20Mpa | |||||||
GFR2.5-650 | 632.5 | 1400 | 1750 | 0~100 | 0.88~0.9 | GN05-110 | C2.5-5.5 | Z2.5 |
GFR2.5-710 | 709.5 | 1550 | 1980 | 0~100 | 0.88~0.9 | GN05-130 | C2.5-5.5 | Z2.5 |
GFR2.5-830 | 830.5 | 1850 | 2300 | 0~100 | 0.88~0.9 | GN05-150 | C2.5-5.5 | Z2.5 |
GFR2.5-920 | 913 | 2000 | 2500 | 0~100 | 0.88~0.9 | GN05-170 | C2.5-5.5 | Z2.5 |
GFR2.5-1050 | 1050.5 | 2350 | 2900 | 0~90 | 0.88~0.9 | GN05-200 | C2.5-5.5 | Z2.5 |
| GFB610
Samples
|
Product Positioning
The GFR 2.5 series is positioned as a cost-effective, mid-range gearbox solution for industries that demand compactness, efficiency, and long-term reliability. It bridges the gap between basic industrial gearboxes and high-end precision models, offering an optimal balance of performance and affordability.
|
Product Advantages
Space-Saving Design – The compact structure allows seamless integration into machinery with limited installation space.
Smooth & Quiet Operation – Precision-engineered components minimize vibration and noise, ensuring stable performance.
High Durability – Manufactured with high-quality materials, the gearbox withstands prolonged use in industrial environments.
Energy Efficiency – Optimized gear design reduces power loss, contributing to lower operational costs.
Easy Maintenance – Simplified construction ensures hassle-free inspection and servicing.
|
Core Strengths
Reliability in Continuous Operation – The GFR 2.5 series maintains consistent performance even under extended running conditions.
Versatile Adaptability – Compatible with various industrial applications, from light automation to medium-duty machinery.
Balanced Performance-to-Cost Ratio – Delivers dependable functionality without excessive investment.
|
Key Advantages
1. Compact Mechanical Design
Featuring a highly integrated structure that maximizes power transmission efficiency within minimal space. The scientifically engineered housing provides optimal strength-to-weight ratio, making it ideal for space-constrained modern equipment.
2. Superior Operational Performance
Precision-machined gear sets paired with high-quality bearings deliver exceptionally smooth operation with minimal vibration and noise. Advanced tooth profile optimization enhances meshing efficiency for maximum power transmission with reduced energy loss.
3. Versatile Configuration Options
Offers multiple mounting interfaces including flange and shaft-mounted variants to accommodate various drive system requirements. Flexible output shaft configurations (solid or hollow) provide enhanced integration possibilities.
4. Proven Reliability
Critical components utilize special alloy steels processed through rigorous heat treatment to enhance wear resistance and fatigue strength. Precision assembly ensures perfect component alignment for extended service life.
5. Maintenance-Friendly Features
The split-type housing design facilitates easy inspection and routine maintenance. Standardized components simplify servicing procedures without requiring specialized tools.
6. Broad Application Suitability
Various sealing solutions adapt to different industrial environments. Standard versions meet typical operating conditions, while special treatments are available for more demanding applications involving dust or moisture.
|
Product Value
The GFR 2.5 series provides manufacturers with a practical, long-lasting gearbox solution that enhances equipment performance while minimizing downtime. Its combination of durability, efficiency, and ease of use makes it a valuable component in modern industrial systems.
|
FAQ
Q: What industries are your gearboxes suitable for?
A: Our gearboxes are widely used in construction machinery, ship deck machinery, railway, petroleum, metallurgy, coal mine, agricultural machinery, port and lifting machinery.
Q: What is the service life of your gearboxes?
A: The service life depends on workload, maintenance and operating conditions. With normal operation and regular maintenance, our gearboxes can operate stably for a long time.
Q: Do you offer customized gearboxes?
A: Yes, we can provide customized solutions including mounting methods, speed ratio, interface dimensions and other adjustments to meet different equipment requirements.
Q: How to select the right gearbox?
A: Selection should consider load, speed, installation space, environmental conditions and other factors. Our technical team can assist in model selection for optimal matching.
Q: What are the features of your gearboxes?
A: Our gearboxes operate smoothly with low noise and long service life, suitable for various industrial equipment. They undergo rigorous testing for reliable quality and are relatively easy to maintain.
Q: How do you ensure product quality?
A: We have strict quality control procedures from raw material procurement to finished product delivery. Each gearbox undergoes basic performance testing to meet usage requirements.
