In order to recommend a suitable undercarriage to you, we need to know the below details in advance:

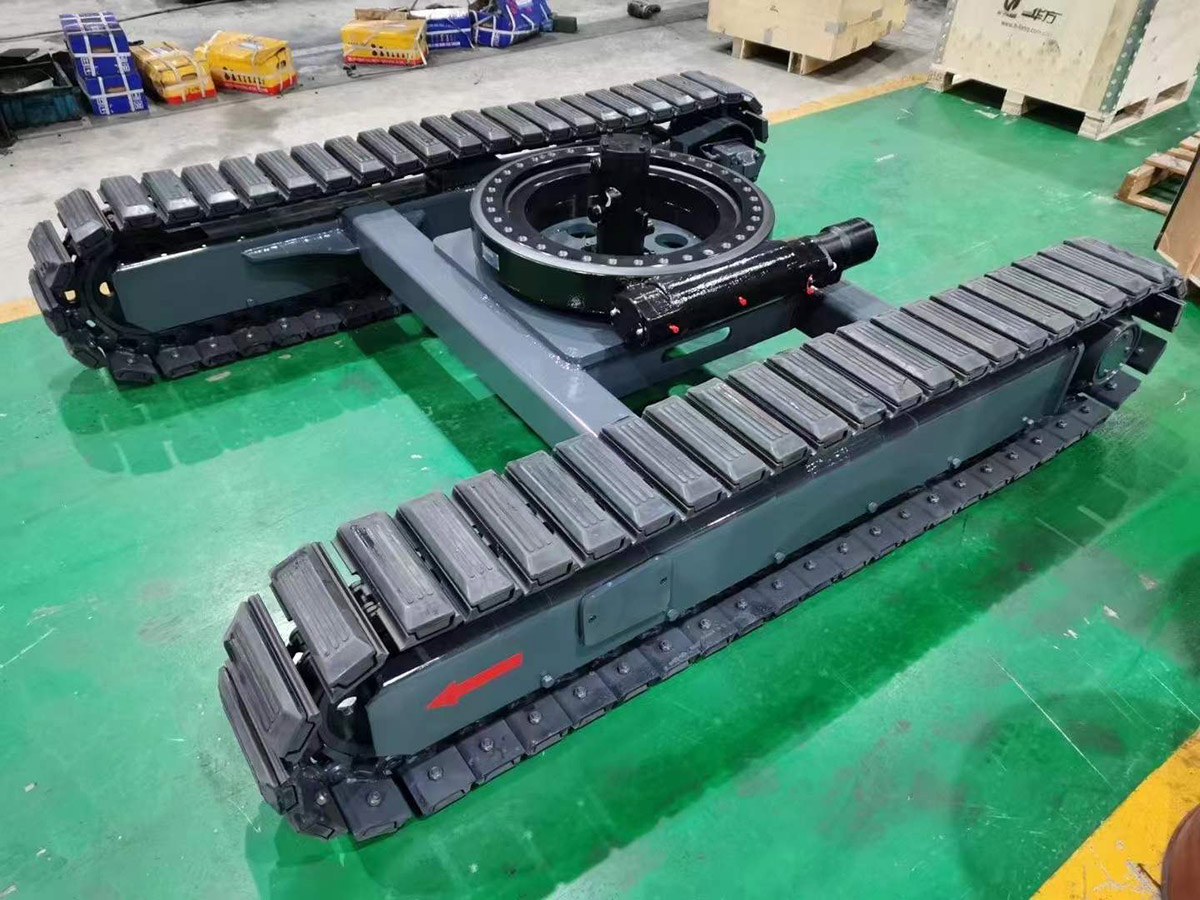

Rubber or steel track undercarriage
Loading capacity of the track undercarriage (The weight of the whole machine excluding the track undercarriage)

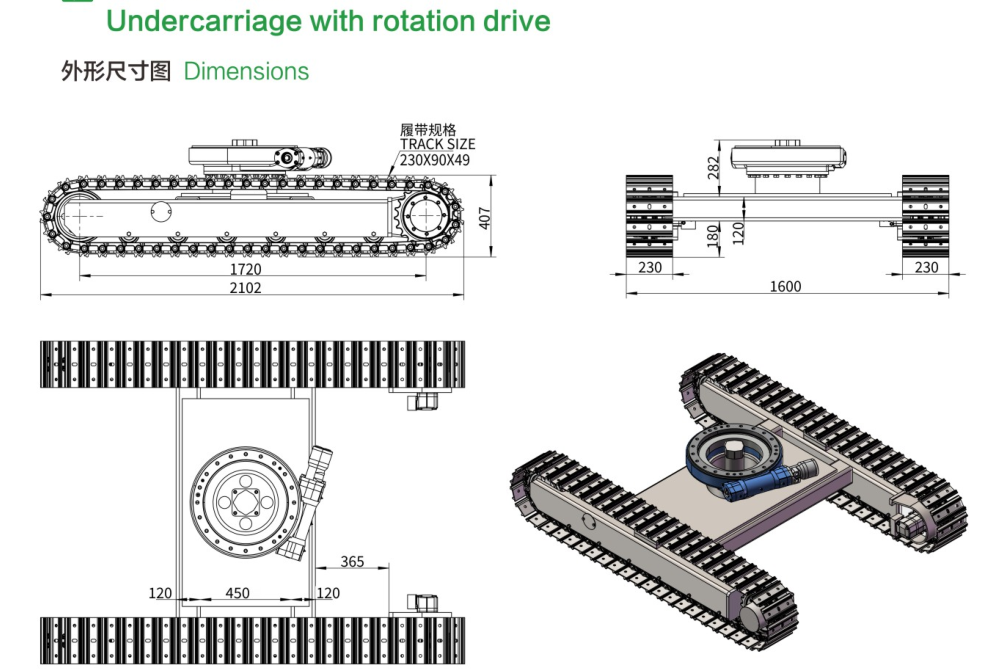

Length, Width, Height
Travel speed & Climbing capacity
System oil flow (each side of track undercarriage) & Working pressure
Order quantity & Used for which equipment / Road conditions
We use higher-quality materials and advanced manufacturing processes to ensure a longer lifespan, reducing replacement frequency and downtime.
• Traction: Superior grip in challenging terrains (mud, sand, slopes).
• Stability: Enhanced machine stability on uneven ground or during heavy loads.
• Ride Quality: Designed to reduce operator fatigue and increase comfort.
Equipped with sealed and lubricated track systems that minimize wear, extend component life, and streamline routine maintenance.
Tailored solutions for forestry, mining, construction, and specialized industrial environments.
Track Type: Steel tracks for heavy-duty/abrasive conditions; rubber tracks for sensitive surfaces.
Track Shoe Type: Single, double, triple-grouser, or flat pads based on terrain requirements.
Track Chain & Link Assembly: Link size, pin diameter, and sealing type (sealed/greased/lubricated).
Rollers & Idlers: Single-flange, double-flange rollers, and adjustable idlers for tensioning.
Sprockets & Geometry: Tooth count, material, track gauge, and track length on ground.
Drive Method: Hydraulic drive
Warranty: 12 months free
Dead Weight: 800 kgs
Pallet Size: 2100 × 1800 × 500 mm
Load Capacity: 3 tons
| Performance Parameter | Motor Displacement (ml/r) | Work Pressure (MPa) | Traction Force (KN) | Travel Speed (km/h) | Ground Pressure (kPa) | Max Gradeability (a°) | Dead Weight (kg) | Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|
| KST3000 | 200 | 14 | 34 | 3 | 37 | 30 | 800 | 3000 |
√ Payment: 30% deposit, 70% balance before shipment (Negotiable, generally via T/T).
√ Delivery: 20–25 days after receipt of your payment.
√ Service: 24 hours online service, overseas technical support available.
Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer specialized in track undercarriages, trading directly with our clients.
Q: Where is your factory located?
A: In Ningbo City, China.
Q: When was your factory established?
A: Since 2012.
Q: How large is your factory?
A: More than 16,000 square meters with over 100 workers.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. Material, color, and style can be customized upon discussion.
