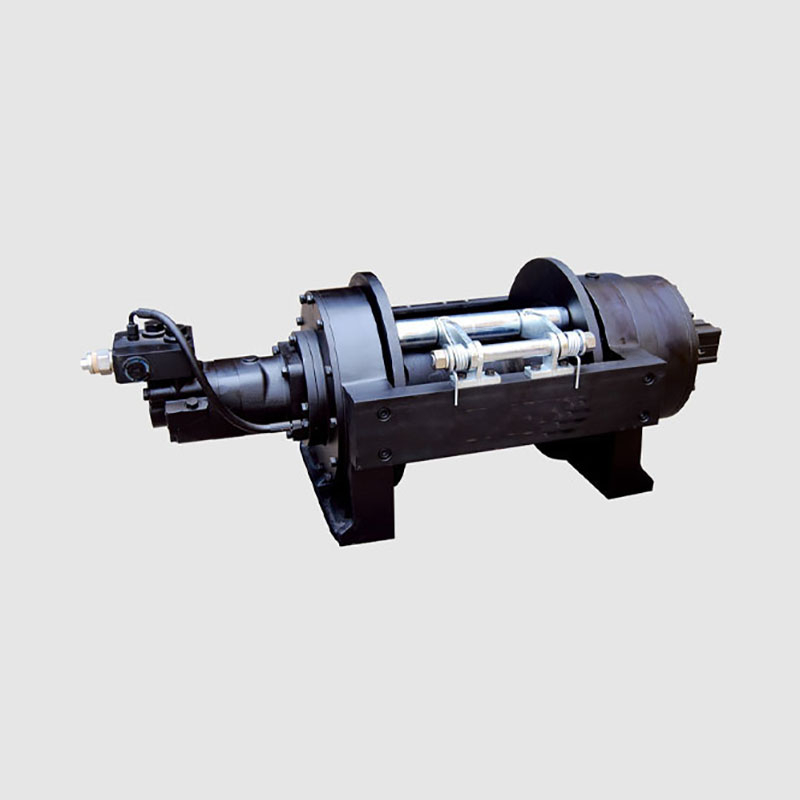

PYJP250 25-Ton Hydraulic Winch for Truck
Features of PYJP250 Hydraulic Winch
Full-Float Planetary Gear Reducer: Ensures smoother operation and a more rational, balanced mechanical structure.
Multi-Disc Normally-Closed Brake: Delivers higher braking torque, enhanced safety, and superior reliability.
Compact & Efficient: Features a small footprint, compact construction, and high transmission efficiency.
Free Spooling Function: Allows quick rope unwinding when needed.
High-Efficiency Hydraulic Motor: Built for high performance and extended service life.
Customized Installation Brackets: Mounting brackets can be custom-manufactured according to your truck chassis requirements.
Specialized Valves: Balance valves and shuffle valves can be custom-fitted specifically for this winch model.
Clutch Options: Available with manual or pneumatic clutch control.
Military Standard Compliance: Manufactured in strict accordance with GJB82-86 National Military Hydraulic Winch Standards.
Applications
Vehicle Recovery:
Essential for recovering heavy vehicles that are stuck, overturned, or navigating difficult terrains.
Towing Services:
Utilized by tow truck operators to safely move heavy vehicles such as trucks and buses during roadside emergencies.
Construction Sites:
Employed for lifting, pulling, and positioning heavy construction equipment and materials.
Off-Roading:
Valuable for off-road enthusiasts and rescue teams needing to recover heavy vehicles from mud, sand, or rocky terrain.
Industrial & Emergency Services:
Applied in industrial operations and emergency response scenarios requiring robust heavy lifting and towing capabilities.
Advantages of Hydraulic Winch for Truck
Power & Efficiency: Hydraulic systems provide exceptional power output to manage demanding recovery tasks.
Durability: Rugged heavy-duty construction ensures longevity under harsh operational environments.
Safety: Equipped with integrated closed braking systems and remote control compatibility to protect operators.
Key Points in Selecting a Hydraulic Winch for Truck
Weight & Size: Ensure your truck chassis and mounting structure can safely support the additional weight of a 25-ton winch system.
Installation: Proper professional mounting and hydraulic line connection are crucial for safe operation.
Maintenance: Regular inspection of hydraulic hoses, cables, and mechanical components ensures long-term reliability.
Investment Value: Heavy-duty winches represent a vital capital investment; match specifications to your primary operational budget and requirements.
Hydraulic Winch Specification Overview
| Model | PYJP250 |
|---|---|
| Load Capacity | 25 Tons (245 kN) |
| Rope Capacity | 20 – 100 m (Drum capacity: 55 m) |
| Working Speed | 0 – 50 m/min (1st layer rope speed: 5.5 m/min) |
| Warranty | 12 months free |
Technical Parameters
| Model | The 1st Layer | Brake Response Pressure (MPa) | Oil Pressure (MPa) | Oil Flow (L/min) | Drum Dimensions (Diameter × Bottom × Length) mm | Drum Capacity (m) | Suggested Wire Rope Dia. (mm) | Net Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated Pull (kN) | Rope Speed (m/min) | ||||||||
| PYJP250 | 245 | 5.5 | < 2.5 | 18 | 120 | 530 × 280 × 360 | 55 | φ30 | 560 |
Hydraulic Winch For Truck Samples
Payment Terms, Delivery and Service
Payment: 30% deposit, 70% before shipment via T/T (negotiable). Also accept L/C, Credit Card, PayPal, Western Union.
Delivery: 35–40 days after receipt of payment.
Service: 24 hours online service, technical overseas service.
Frequently Asked Questions
1. Who are we?
We are based in Ningbo, China, established in 2014, specializing in hydraulic winch manufacturing.
2. How can we guarantee quality?
We always provide pre-production samples before mass production and conduct rigorous final inspections before every shipment.
3. Why buy from us instead of other suppliers?
With 12 years of OEM and ODM service for famous domestic and international brands, we maintain independent design, quality control, and after-sales support teams.
4. What services and payment terms do we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, Express Delivery. Payment via T/T, L/C, Credit Card, PayPal, Western Union in USD or CNY.
