Advantage of Steel Undercarriage
High Load Capacity:
Specifically designed to support heavy machinery and withstand the stresses of high operational loads, ensuring reliability during heavy-duty tasks.
Enhanced Stability:
The broad footprint of tracks provides exceptional stability on uneven or soft ground, reducing the risk of tipping and enhancing operator safety.
Superior Traction:
Steel tracks offer excellent grip on various surfaces, improving the machine's ability to move and perform tasks in challenging conditions, such as mud or loose soil.
Durability and Longevity:
Constructed with high-quality materials, these undercarriages are built to withstand harsh conditions, abrasive materials, and heavy impacts, leading to reduced wear and extended service life.
Effective Performance on Slopes:
A robust undercarriage with a low center of gravity provides better performance when working on steep inclines, enhancing both safety and productivity.
|
What Is 100ton Undercarriage Heavy Equipment ？
A 20-100 ton steel crawler track refers to a type of large equipment designed for heavy-duty applications, typically used in construction, mining, and infrastructure projects. Here’s a breakdown of what this equipment entails:
Overview of 20-100 Ton Steel Crawler Track
Construction:
Made primarily from high-strength steel, making them robust enough to handle harsh working conditions. The steel tracks provide durability and resistance to wear, contributing to the machine's longevity.
Widely used in the following applications:
Drilling Rig: Anchoring drill, water well drilling rig,Core drilling rig,jet drilling rig,down-hole drill,crawler hydraulic drilling rig,For poling Rig,trenchless drill etc.
Mechanical Engineering: Excavator,small pile driver,aerial work platform,small size loader etc.
Coal mine: Slag removing machine,underground drilling rig,Full hydraulic drilling rig,Hydraulic drill carriage and rock loading machine etc.
Mine: movable crusher,heading machine,conveying equipment etc.
Agricultural equipment: cane harvester,lawn mower,Ditching machine,etc.
|

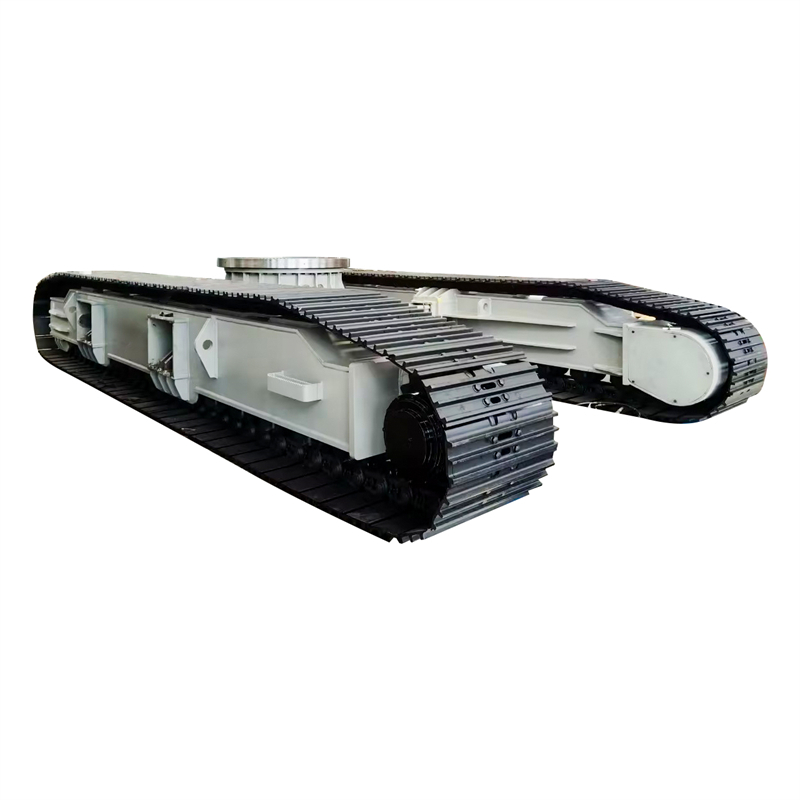

Track Undercarriage Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 17800gs
Pallet size: 7850*3200*1280mm
Load capacity: 100tons
|

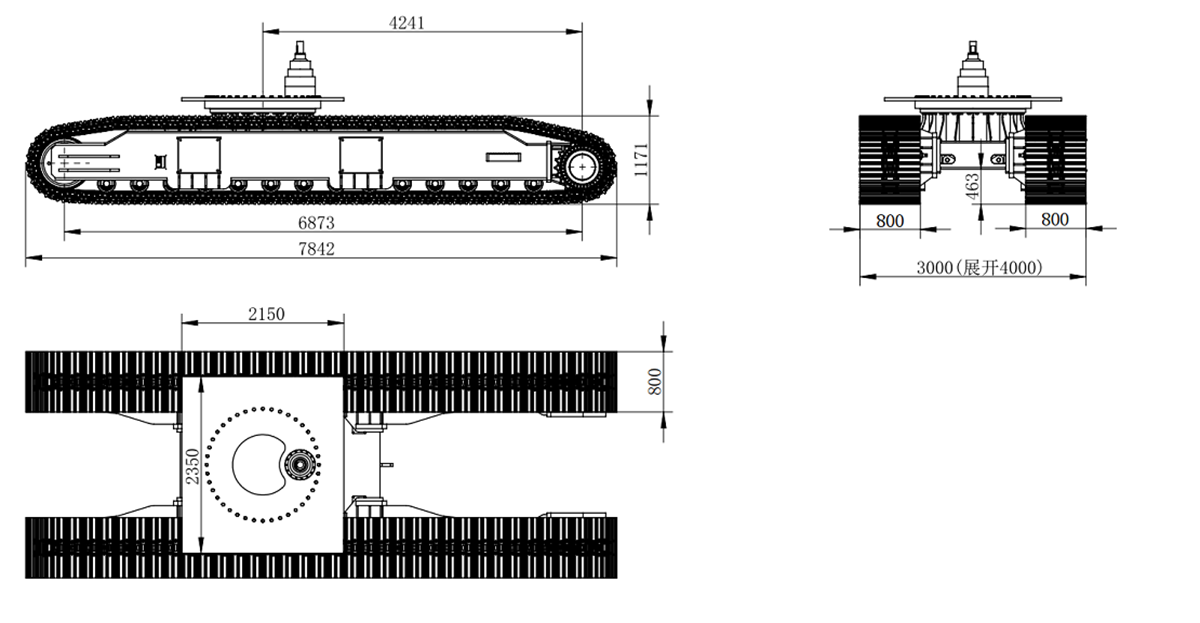

1.Technical parameters
Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KST100000 | 107 | 22 | 534 | 1.2 | 140 | 10 | 17800 | 100000 |
|

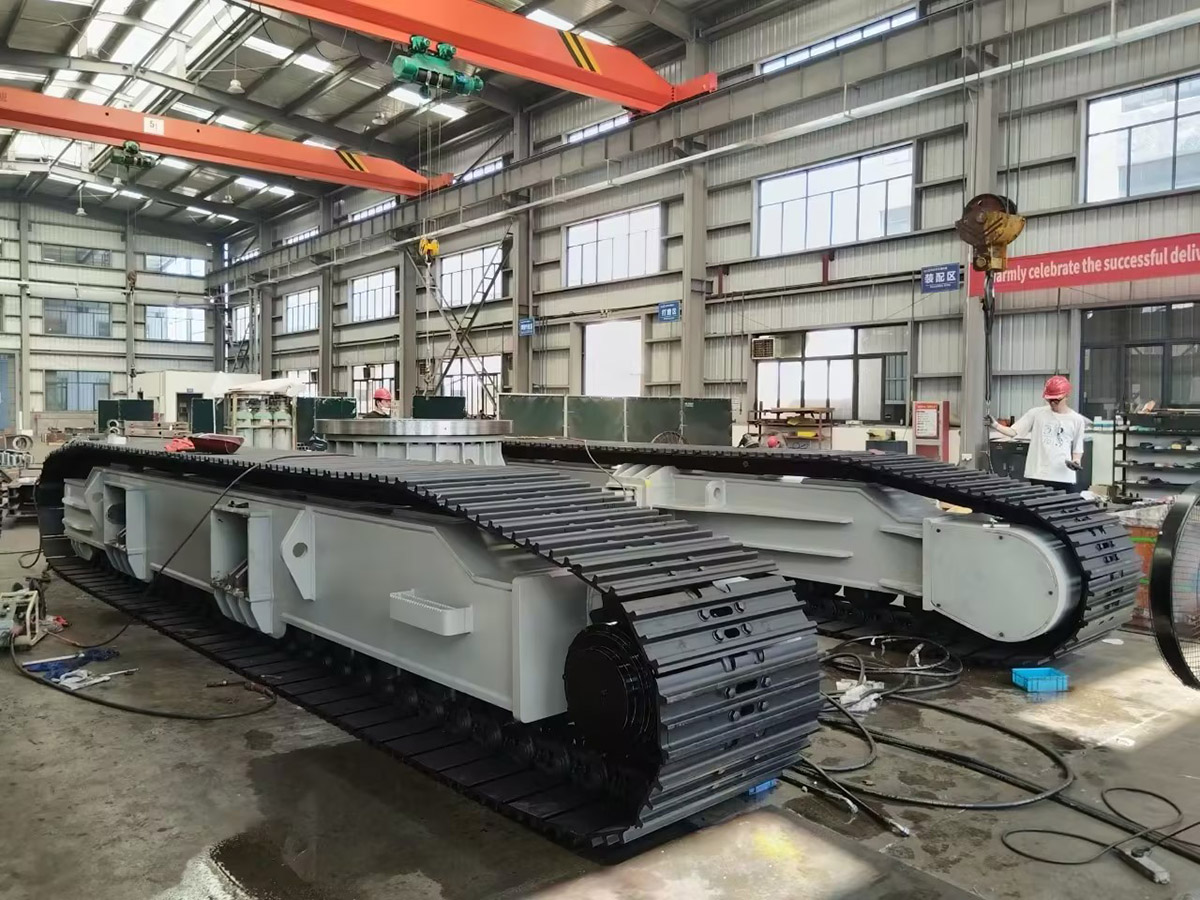

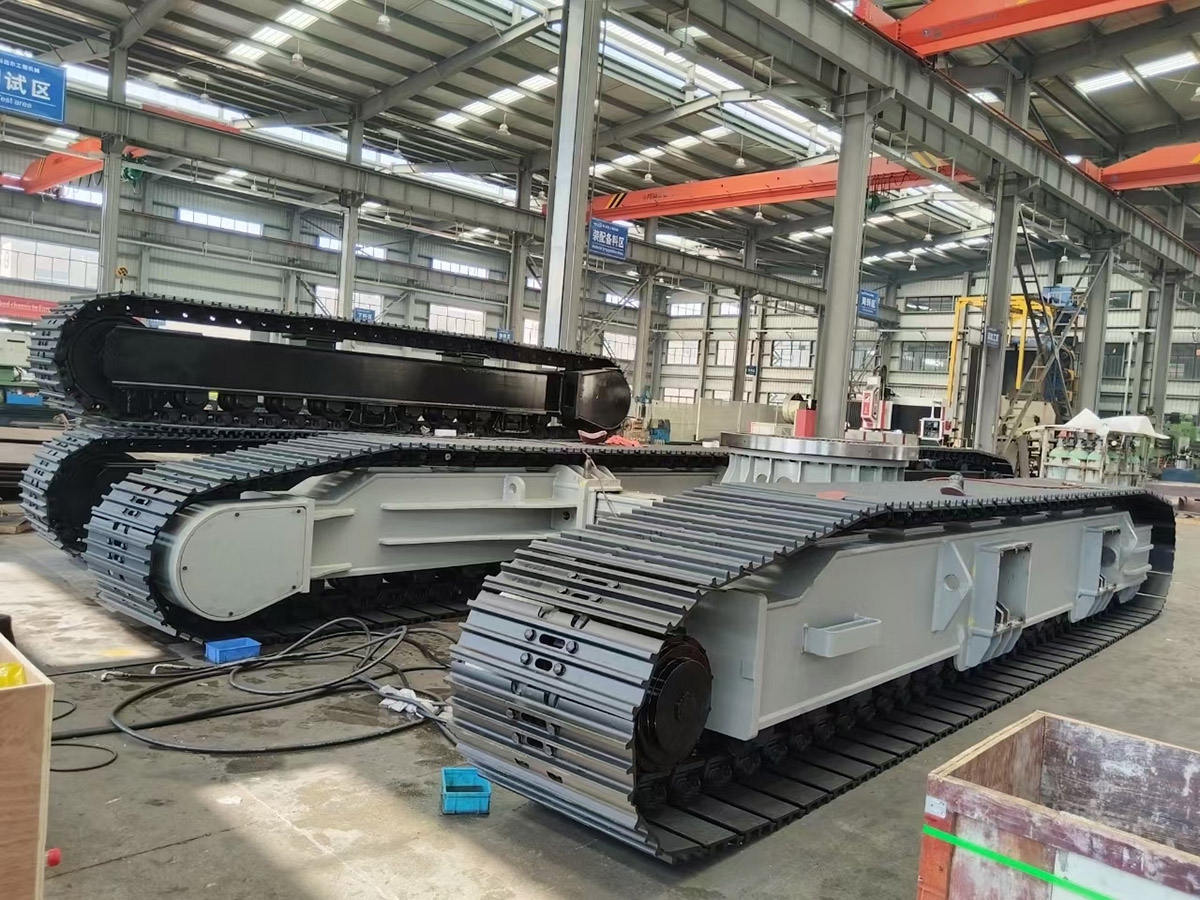

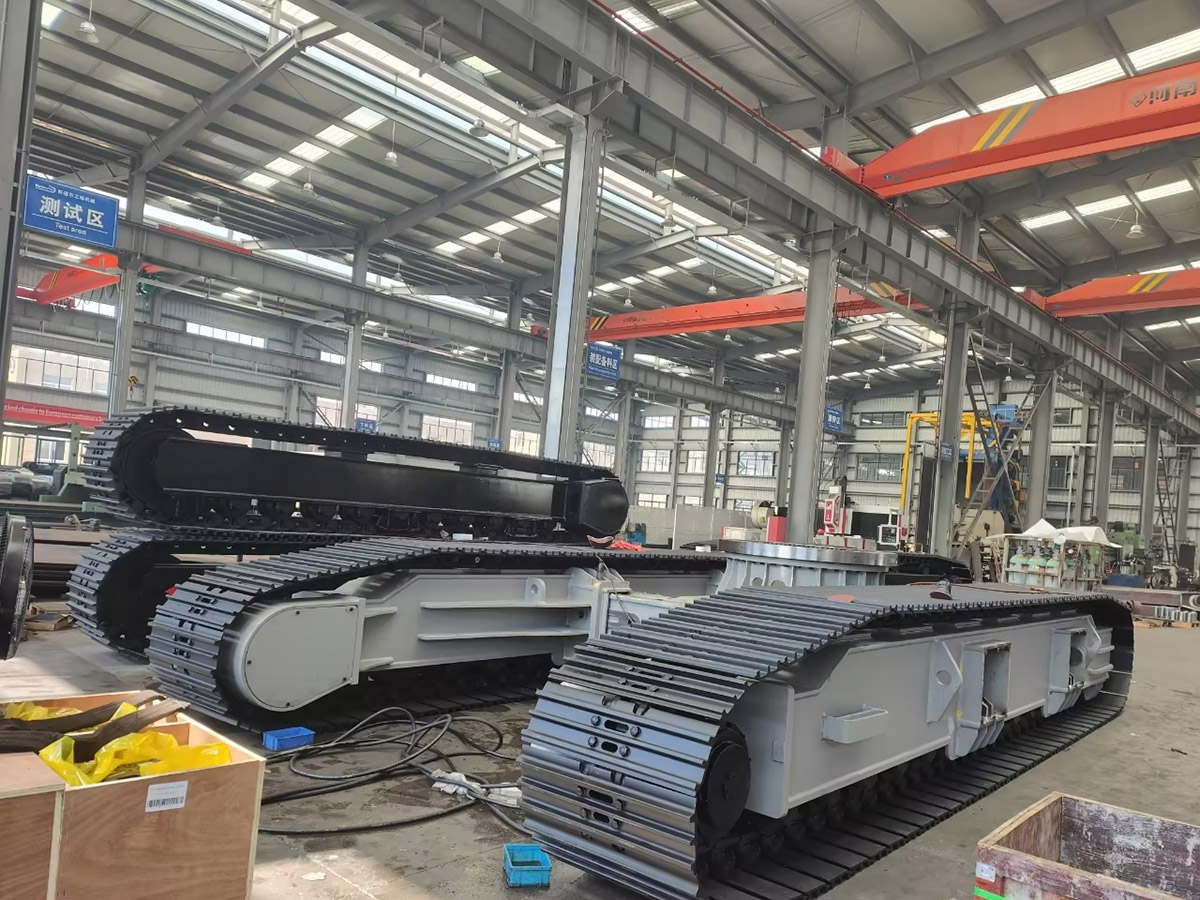

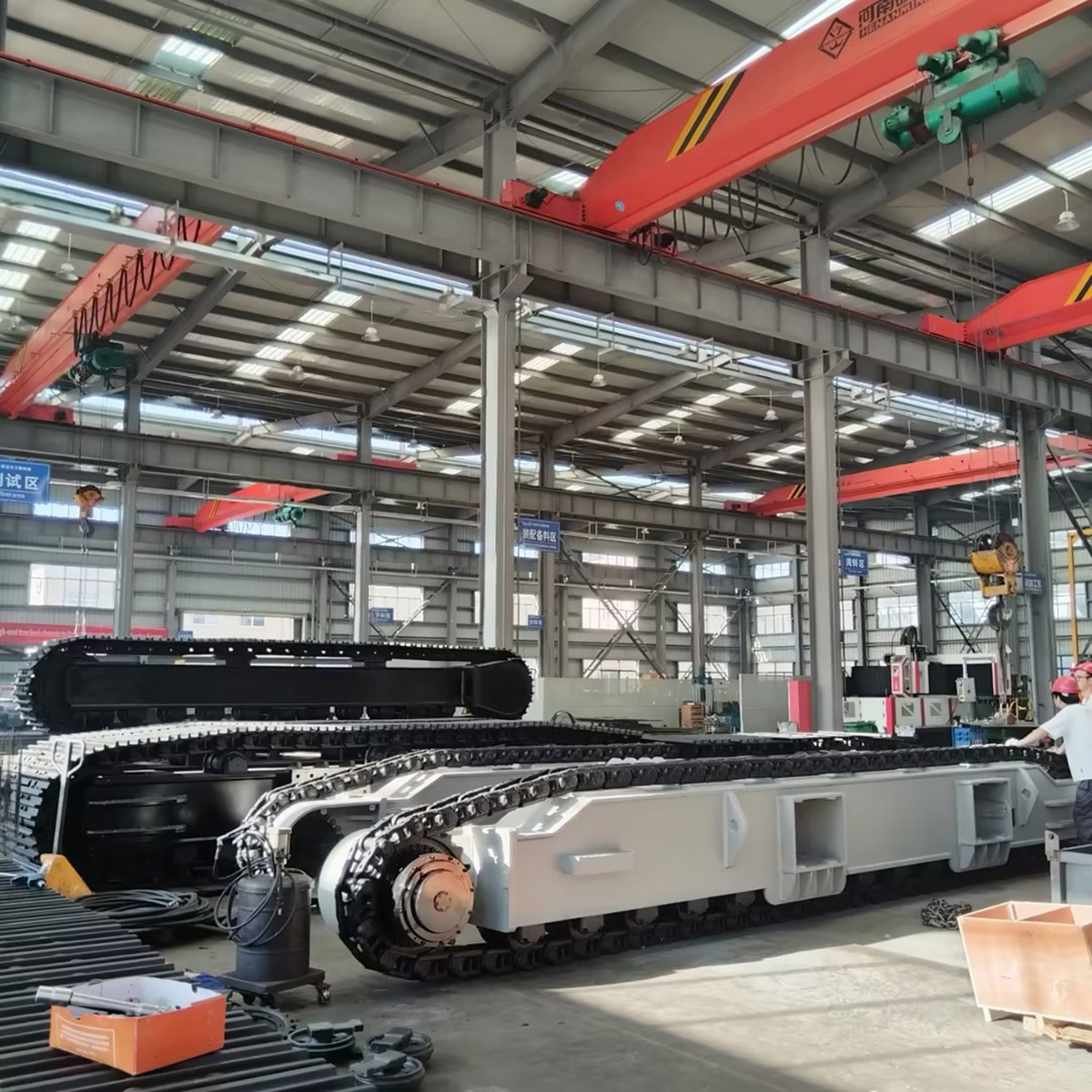

Track Undercarriage Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in track undercarriage products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: When did your factory established?
A: Since 2012
Q: How many square meters of your factory?
A: More than 16000 square meter.
Q: How many workers in your factory?
A: 100 workers.
Q: If l don't know what kind of the product I need, what should I do?
A: Just take it easy,you just need to provide us
1. Rubber or steel track undercarriage
2. Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3. Length
4. Width
5. Height
6. Travel speed
7. Climbing capacity
8. System oil flow (each side of track undercarriage)
9. Working pressure
10. Order quantity
11. Used for which equipment
12. Road conditions
