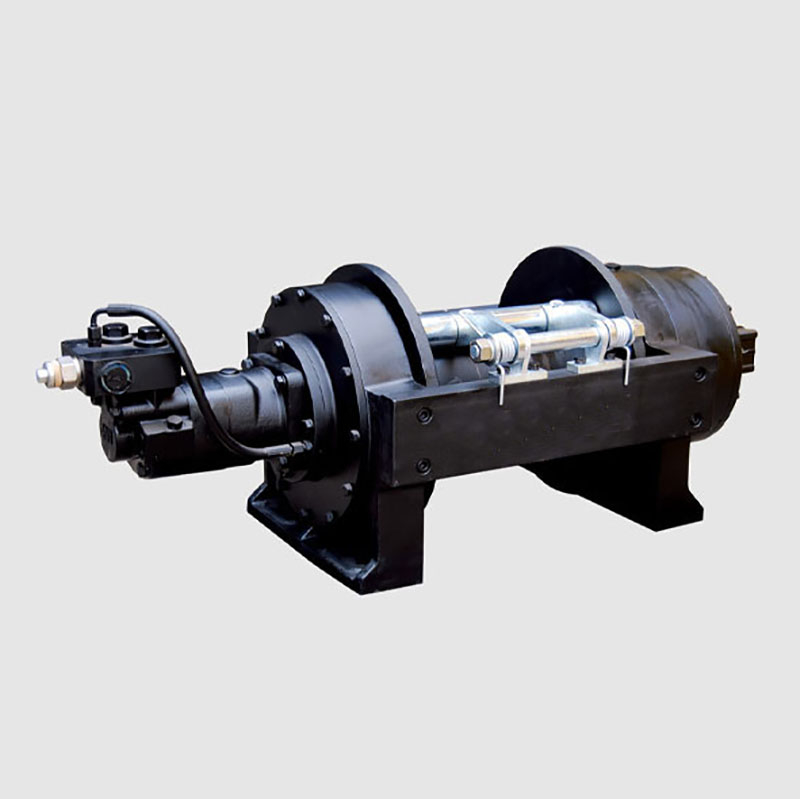

The PYJP300 tow truck hydraulic winch is designed for heavy-duty vehicle recovery and towing applications. It combines a planetary gear reducer, hydraulic motor, normally closed multi-disc brake, and optional manual or pneumatic clutch to provide controlled pulling performance for demanding recovery operations.
The winch can be configured according to installation requirements, including the mounting bracket, hydraulic control components, clutch configuration, and rope capacity.
A full-floating planetary gear reducer provides stable operation and a compact transmission structure.
A normally closed multi-disc friction brake provides high braking torque and reliable load control.
The compact design combines high transmission efficiency with space-saving installation.
Free-spooling function allows fast rope deployment when required.
A high-efficiency hydraulic motor is used for reliable operation and long service life.
The mounting bracket can be manufactured according to the customer's installation requirements.
Balance valves and shuttle valves can be configured according to application requirements.
Manual or pneumatic clutch options are available.
The winch can be manufactured in accordance with GJB 82-86 hydraulic winch requirements.
Suitable for recovering stuck, immobilized, or overturned vehicles in off-road, roadside, and recovery operations.
Used on recovery and towing vehicles for moving trucks, buses, construction equipment, and other heavy vehicles.
Hydraulic winches can be integrated into equipment used for pulling, positioning, and handling heavy loads in industrial and construction environments.
Used by recovery and emergency service vehicles where controlled pulling force and reliable braking are required.
High pulling performance: Hydraulic drive systems can provide high torque for demanding recovery and towing applications.
Durable construction: The winch is designed for heavy-duty operation and demanding working environments.
Controlled operation: The integrated brake and hydraulic system support controlled pulling and load handling.
Configurable installation: Mounting brackets and selected hydraulic components can be adapted to the customer's equipment.
The hydraulic motor converts hydraulic power into mechanical torque to drive the winch under heavy pulling loads.
The planetary transmission provides torque multiplication in a compact arrangement and supports stable winch operation.
The drum stores the wire rope and is designed for controlled winding and unwinding during recovery operations.
The normally closed multi-disc friction brake provides braking torque and helps control the load when the winch is stopped.
Manual or pneumatic clutch configurations are available, with hydraulic control components selected according to the application.
The installation bracket can be manufactured according to the customer's vehicle or equipment mounting requirements.
| Specification | PYJP300 |
|---|---|
| Rated load / pulling capacity | 30 ton |
| Rope capacity | 20–100 m, depending on configuration |
| Working speed | 0–50 m/min |
| Warranty | 12 months |
The following specifications are for the PYJP300 hydraulic winch configuration.

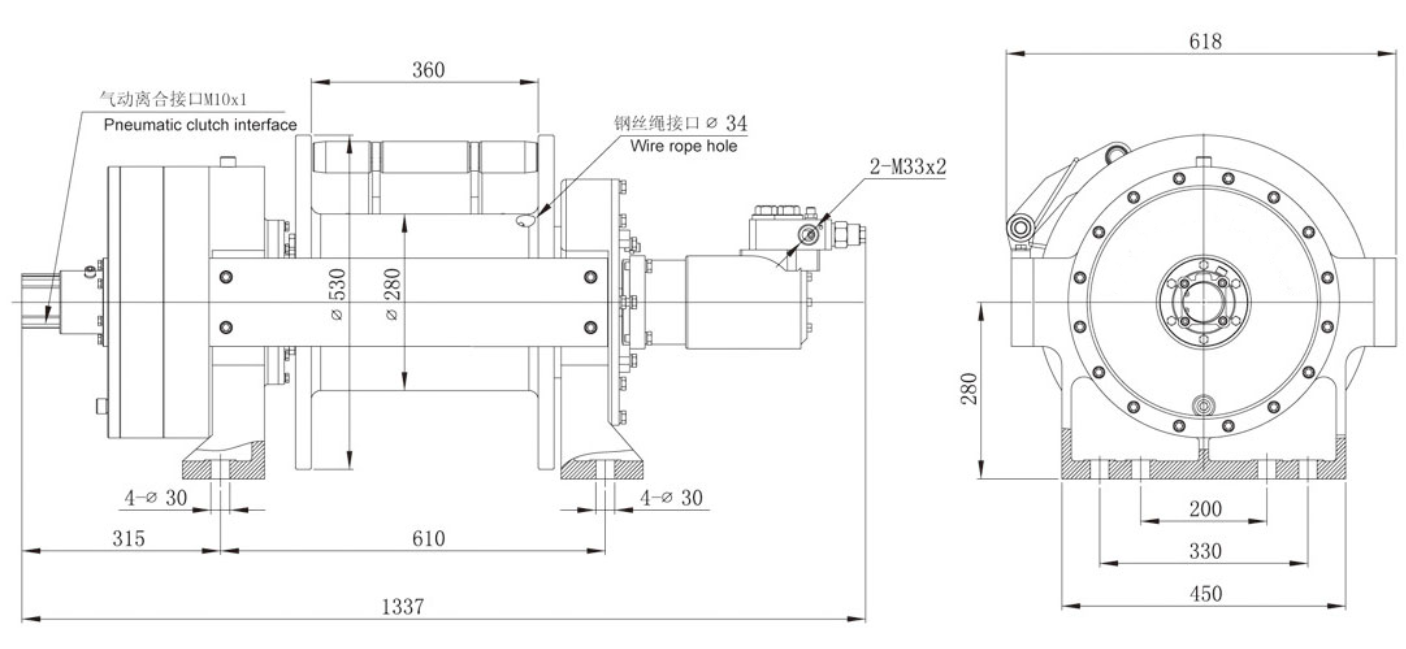

| Model | 1st Layer | Brake Response Pressure (MPa) | Oil Pressure (MPa) | Oil Flow (L/min) | Drum Diameter × Bottom Diameter × Internal Length (mm) | Drum Capacity (m) | Recommended High-Strength Wire Rope Diameter (mm) | Net Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated Rope Pull (kN) | Rope Speed (m/min) | ||||||||
| PYJP300 | 294 | 5.5 | <2.5 | 17 | 120 | 530 × 280 × 360 | 54 | Ø32 | 570 |
Payment: 30% deposit and 70% before shipment. Payment terms are generally by T/T and can be negotiated according to the order.
Delivery: Approximately 35–40 days after receipt of payment, subject to the product configuration and order quantity.
Service: 24-hour online support and technical overseas service are available.
The hydraulic winch is packaged for export transportation to help protect the product during handling and shipment.
Each product is subject to quality inspection before shipment.
Yes. We can customize the mounting bracket and selected hydraulic components according to the customer's equipment and application requirements.
The installation can be configured according to the mounting dimensions and requirements of the customer's vehicle or equipment. Please provide the relevant installation dimensions for confirmation.
Yes. OEM customization is available according to the required configuration and application.
The minimum order quantity is 1 set. Payment can generally be made by T/T or L/C, with other methods subject to negotiation.
The standard delivery time is approximately 35–40 days after receipt of payment, depending on the product configuration and order quantity.
The product is packaged using standard export wooden cases suitable for international transportation.
