Advantage of Kemer Heavy Equipment Undercarriage
Durability
High-Quality Materials: Our undercarriage parts are made from robust materials designed to withstand heavy wear and tear in tough working conditions.
Long Lifespan: The durability leads to a longer service life compared to some OEM parts.
Cost-Effectiveness
Competitive Pricing: Undercarriage parts often provide significant savings on replacement costs compared to original equipment manufacturer (OEM) parts.
Reduced Downtime: Improved durability translates to less frequent replacements, saving time and money in the long run.
Compatibility
Wide Range of Equipment: Our undercarriage components are designed to fit various brands and models, offering versatility for operators with different machinery.
|
What Is The Purpose of The Undercarriage ?
The undercarriage of heavy equipment serves several important purposes:
1. Weight - bearing and Support
The undercarriage is designed to bear the weight of the heavy equipment itself. The undercarriage evenly distributes this weight over the ground or working surface. For example, in the case of a large - sized excavator that may weigh tens of tons, the undercarriage ensures that the pressure exerted on the ground is spread out, preventing the equipment from sinking into soft soil or tipping over during operation.
2. Mobility and Traction
In the case of a crawler - type undercarriage (common in many construction and earth - moving machines), the tracks provide excellent traction. The design of the tracks allows the equipment to move over rough, uneven, or slippery terrains. For wheel, the wheels are designed to provide efficient movement on more stable surfaces such as roads or hard.
3. Adaptation to Terrain
The undercarriage allows heavy equipment to operate in a wide variety of terrains. Crawler undercarriages are particularly well - suited for off - road and difficult - to - access areas. They can handle muddy, rocky, or hilly terrains with ease. The flexibility of the tracks and the supporting structure of the undercarriage enable the equipment to conform to the shape of the ground. In contrast, wheel - based undercarriages with appropriate tire designs and suspension systems can also adapt to different ground conditions to some extent, such as those with all - terrain tires used in some mobile cranes.
4. Stability during Operation
When heavy equipment is performing its intended functions, such as digging, lifting, or pushing, stability is crucial. The undercarriage provides a stable base that minimizes vibrations and movements.
|

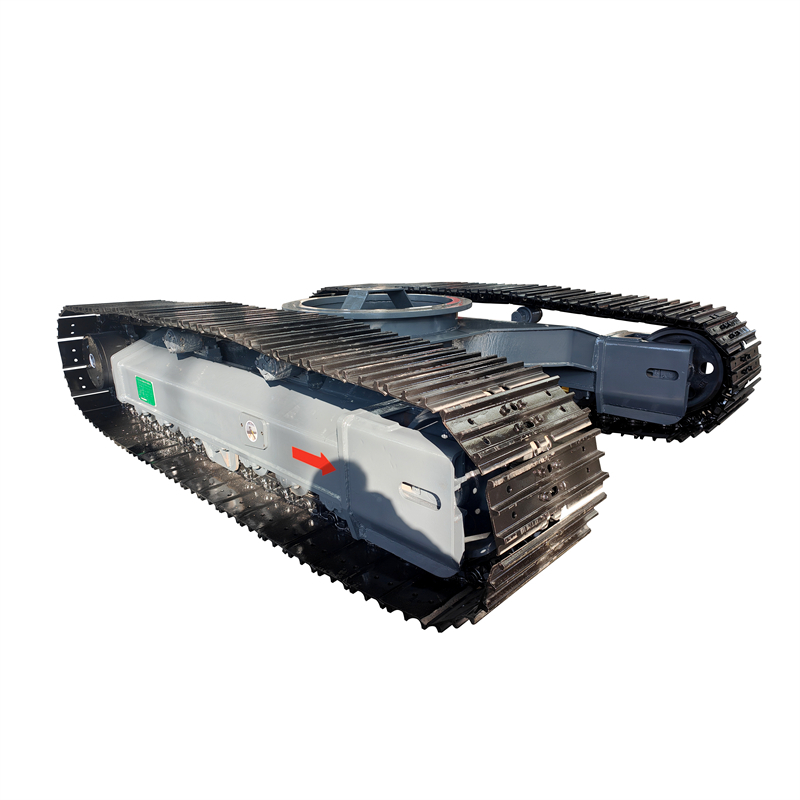

Track Undercarriage Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 2800kgs
Pallet size: 3520*2400*750mm
Load capacity: 15tons
|

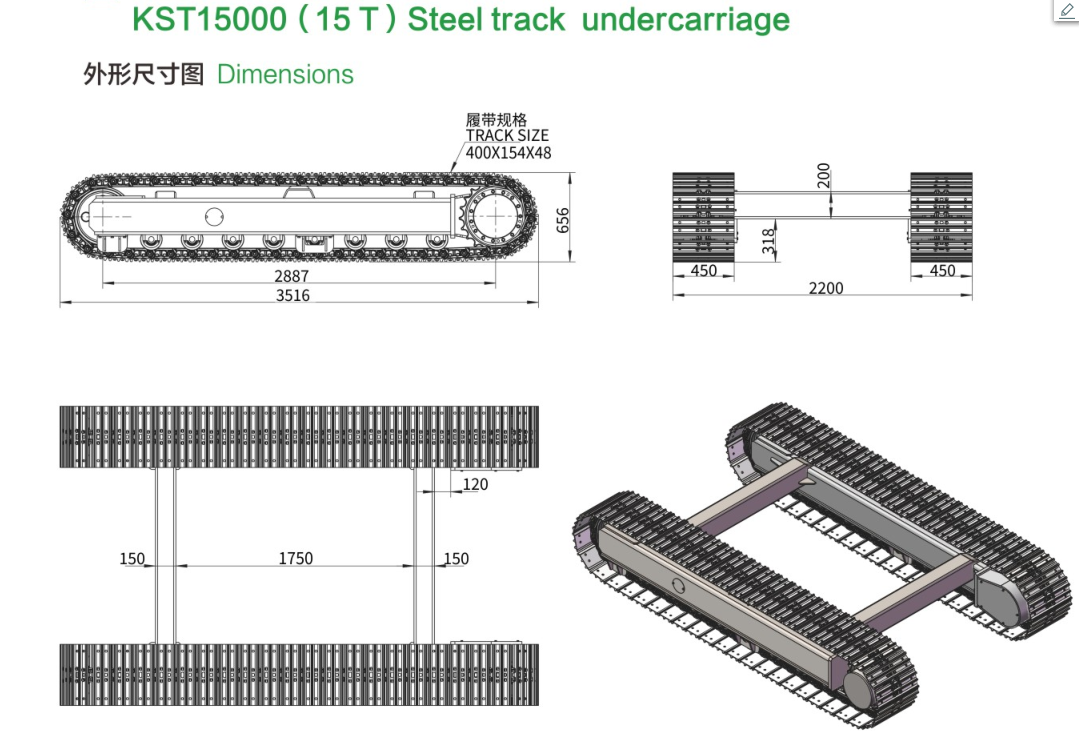

1.Technical parameters
Performance Paramete | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg | |
KST15000 | 81/48 | 25 | 132 | 2.8/4.7 | 57 | 30 | 2800 | 15000 | |
|

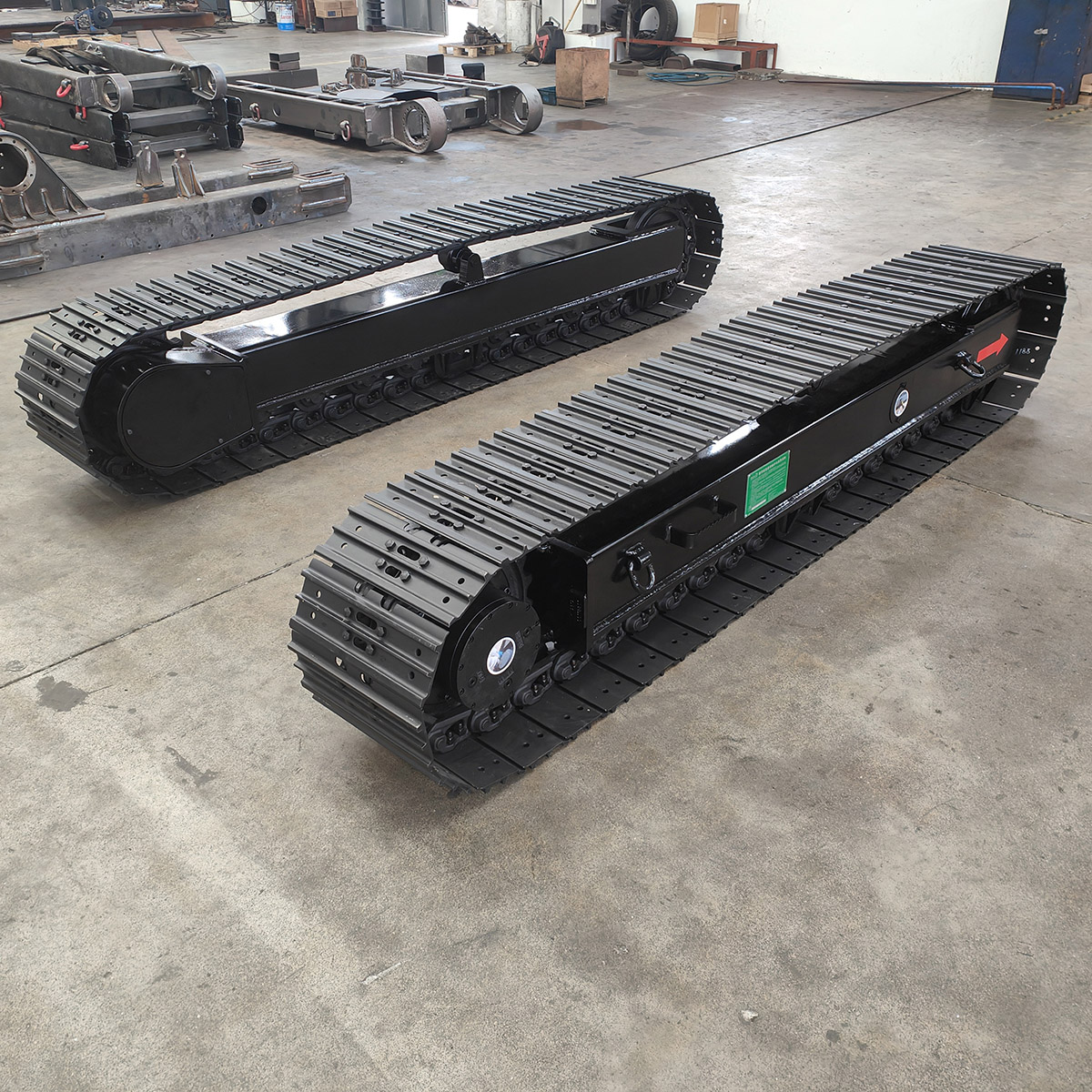

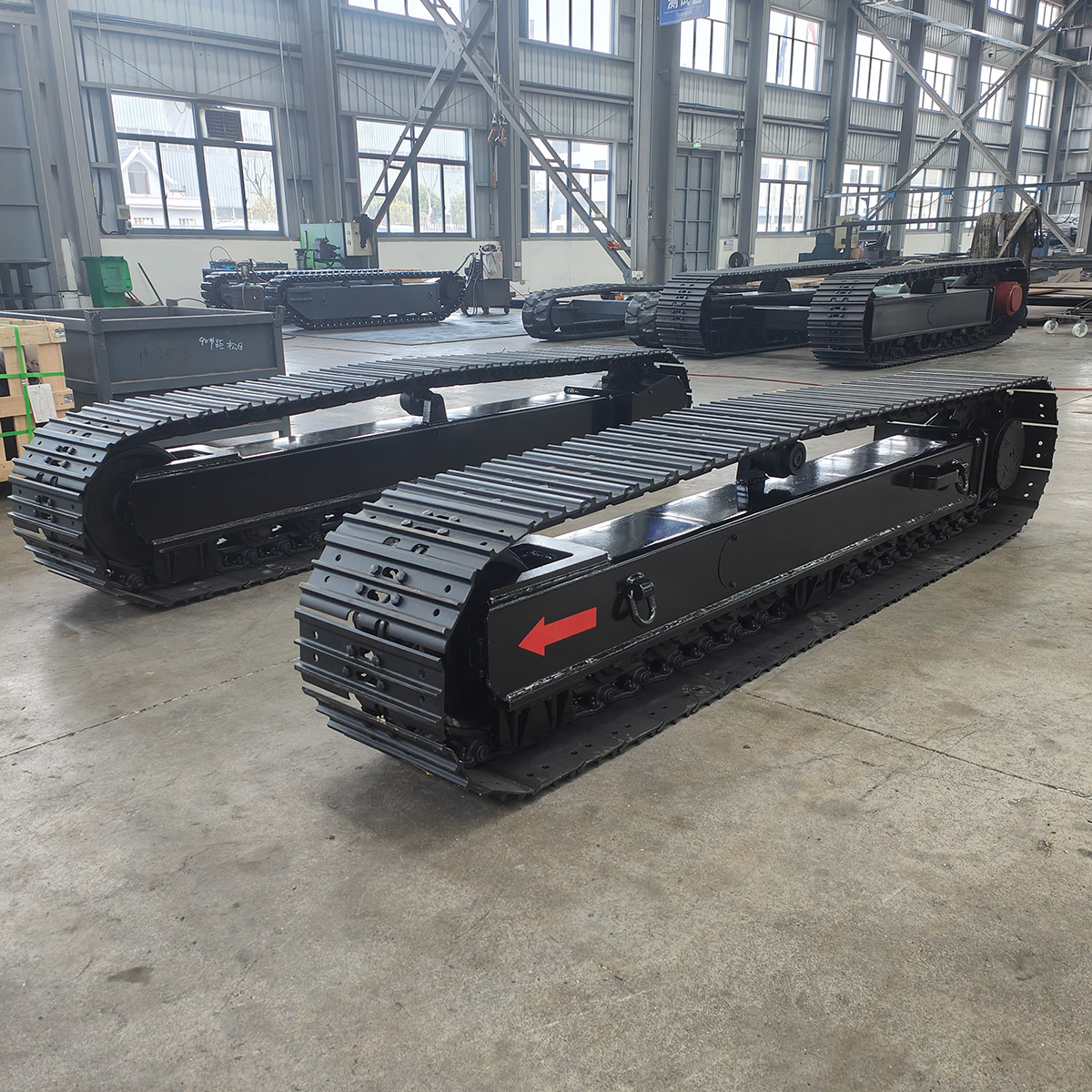

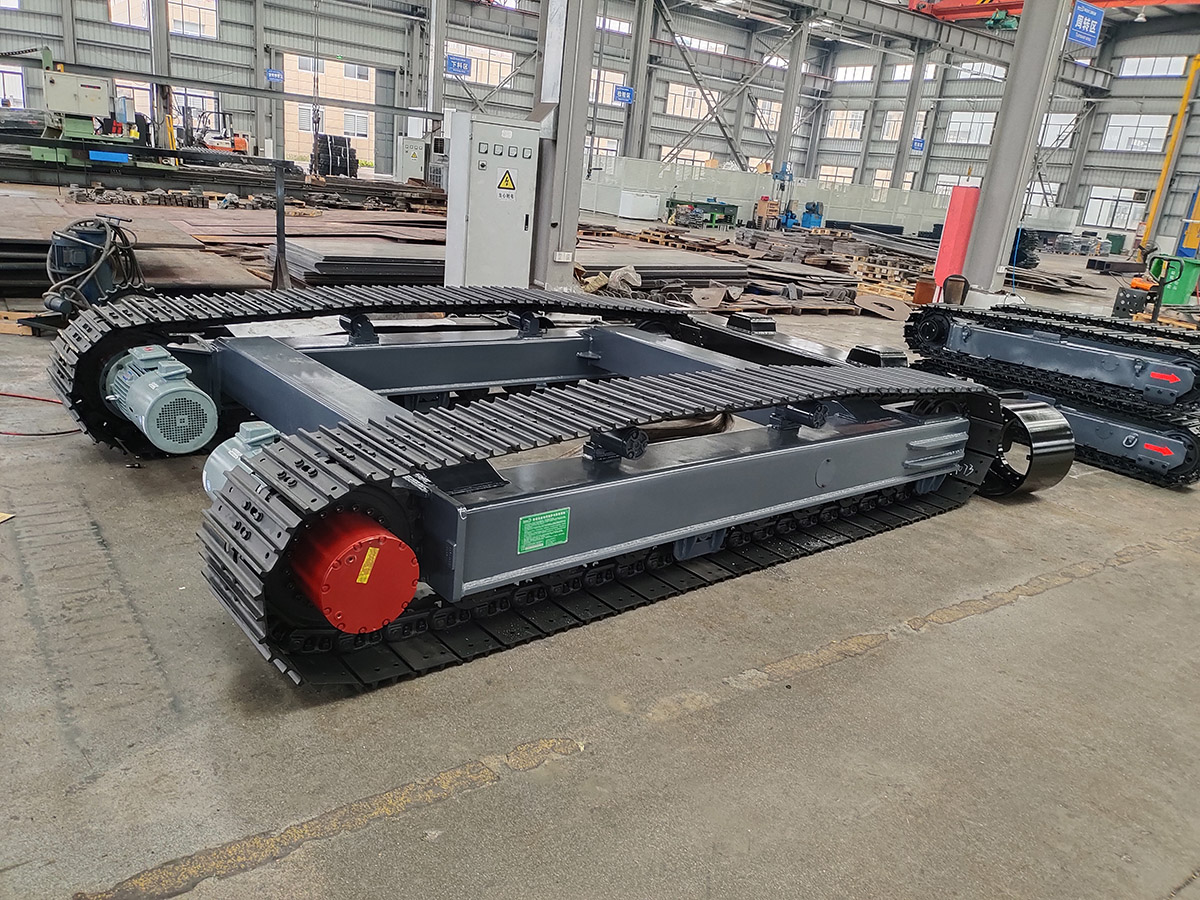

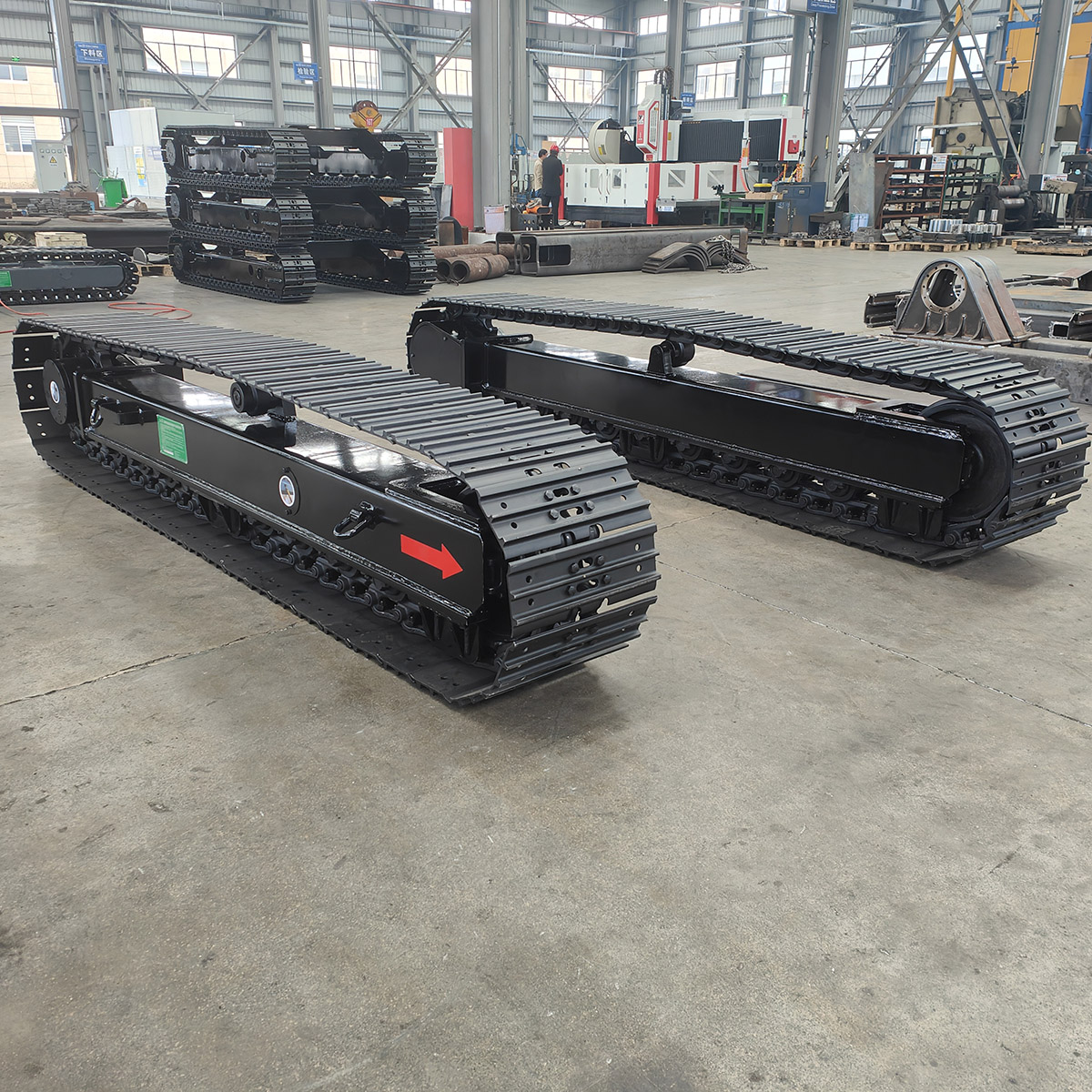

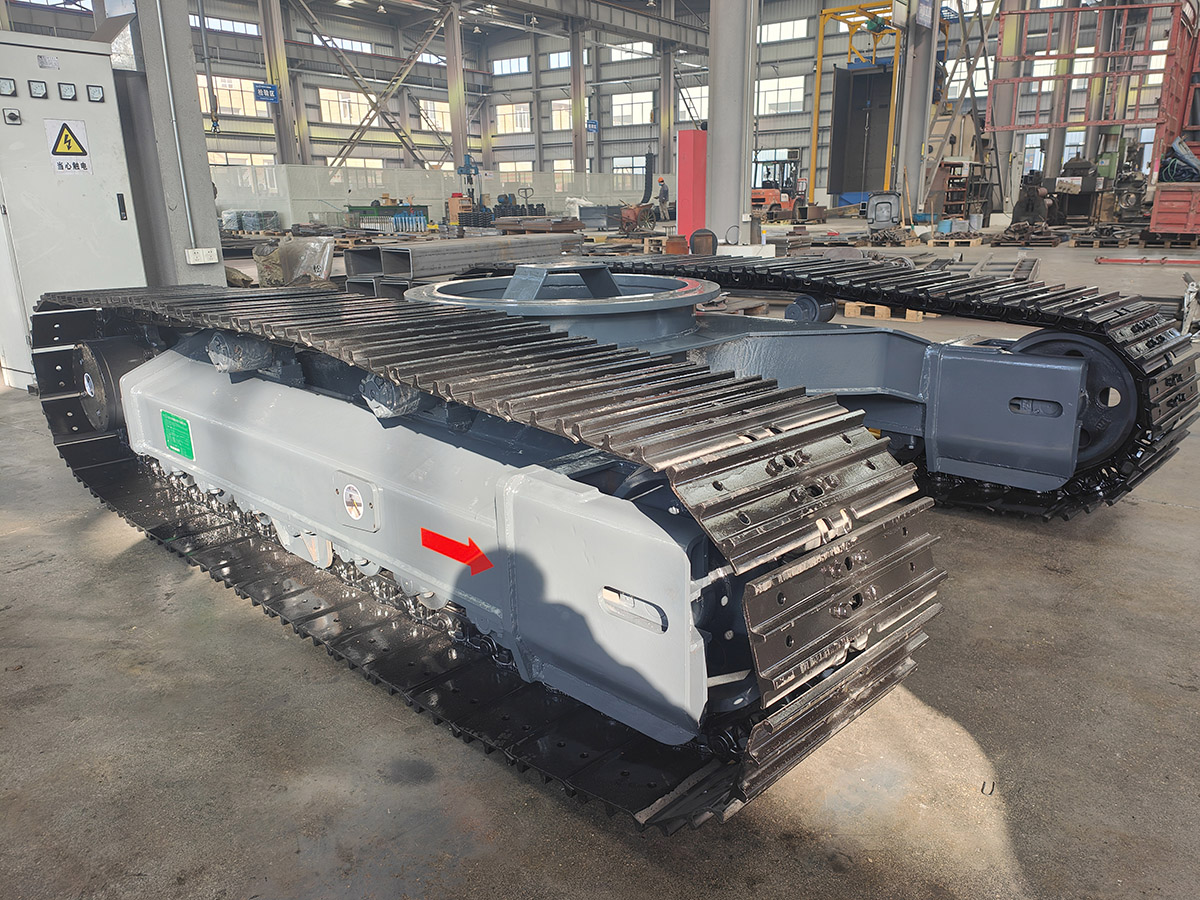

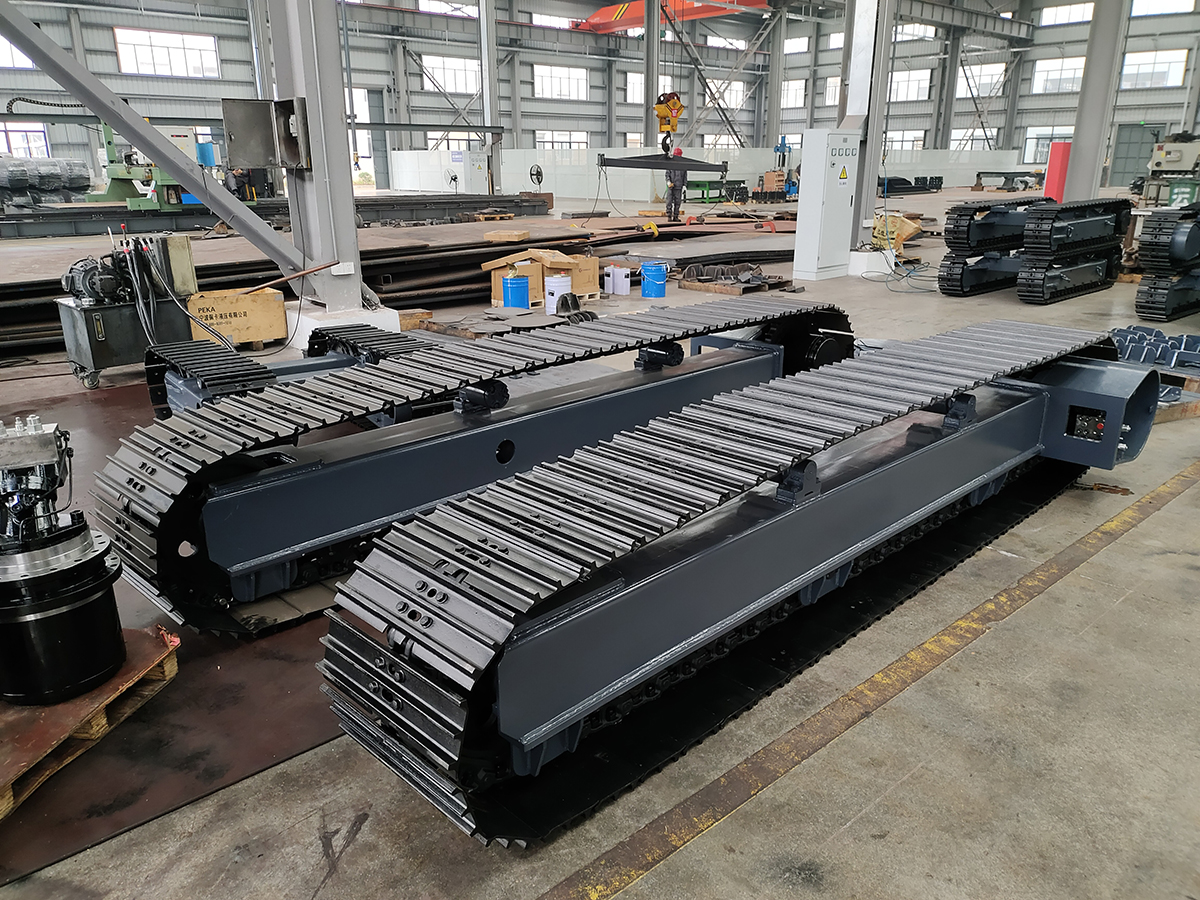

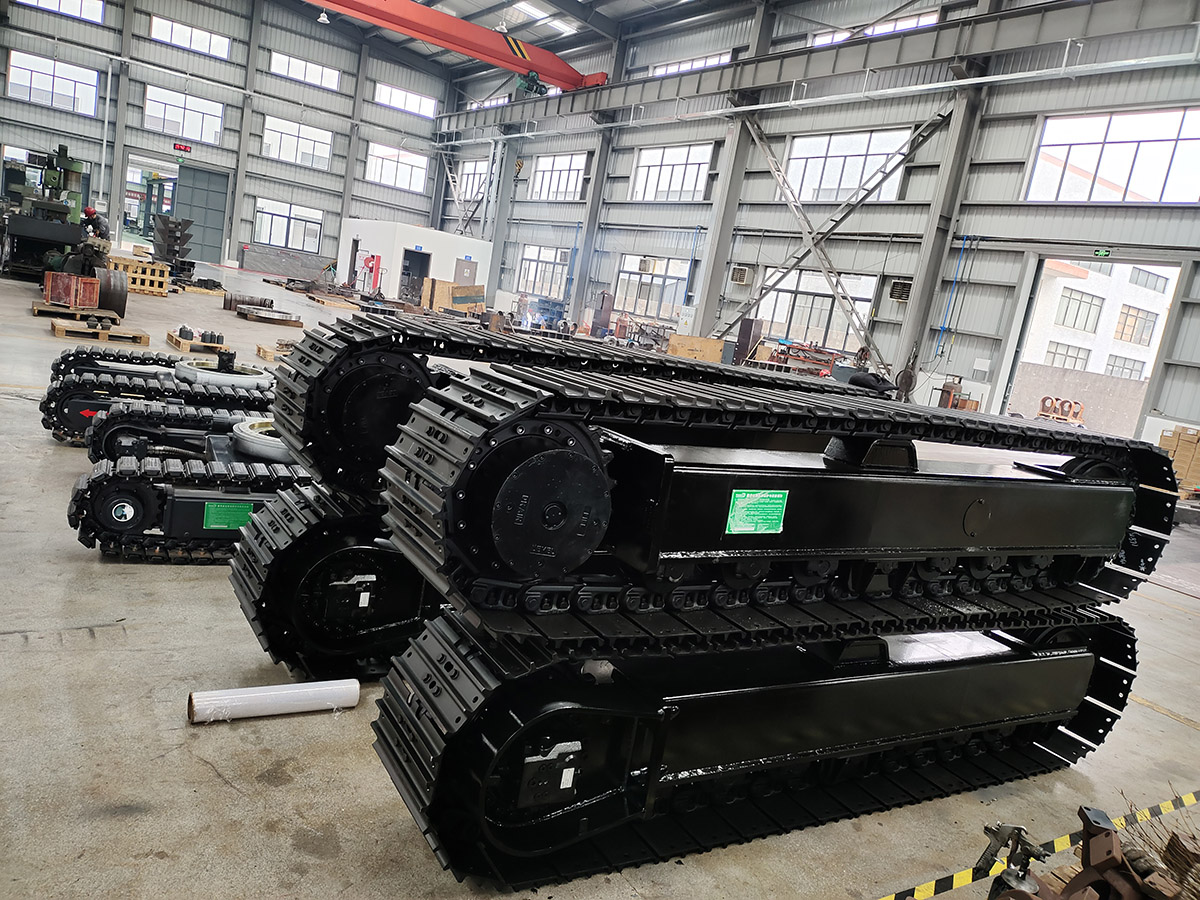

Track Undercarriage Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|

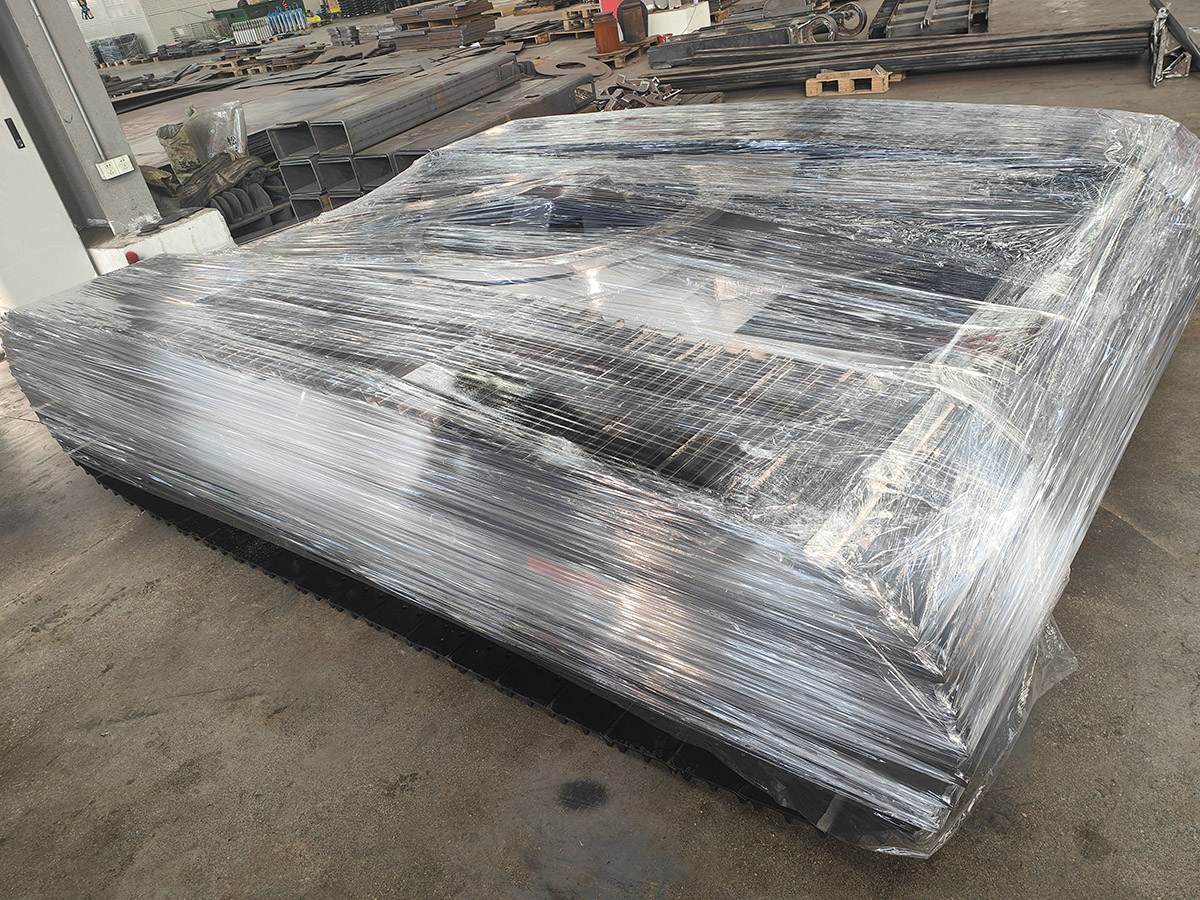

3.Packing and shipping
|
FAQ
Q: When did your factory established?
A:Since 2012
Q: How many square meters of your factory?
A:More than 16000 square meter.
Q: How many workers in your factory?
A:100 workers.
Q: Can you customize for clients?
A:Yes, we can customize as your need, we have R&D department, our designers can make design for you.
Q: Do you have after-sale service?
Yes, Good after-sale service, handling the customer complaint and solve problem for customers.
Q: Is there the products tested before shipping?
A:Yes, of course. All of our conveyor belt we all will has been 100%QC before shipping. We test every batch every day.
Q: Can we visit your factory before place the order?
A:Yes,Very welcome that must be nice to set up good relationship for business.
Q: Can we be your agent?
A:Yes, welcome to cooperation with this. We have big promotion in the market now. For the details please contact with our overseas manager.
