The KST2500 is a hydraulic-drive track undercarriage designed for compatible tracked machinery and special-purpose equipment. The supplied specifications list a load capacity of 2,500 kg, a traction force of 30 kN and a travel speed of 1 km/h. Final suitability depends on the equipment weight, load distribution, mounting dimensions, hydraulic system and operating conditions.
For OEM integration or replacement projects, provide the host machine specifications, required load capacity, installation dimensions and hydraulic parameters so that the appropriate undercarriage configuration can be evaluated.
Hydraulic drive: Hydraulic drive configuration for compatible tracked equipment.
Listed load capacity: 2,500 kg, subject to confirmation of the rated load definition and operating conditions.
Traction force: 30 kN according to the supplied technical data.
Travel speed: 1 km/h according to the supplied specifications.
Ground pressure: Listed at 34 kPa under the applicable rated conditions.
OEM support: Configuration requirements can be reviewed against the host machine's dimensions and hydraulic system.

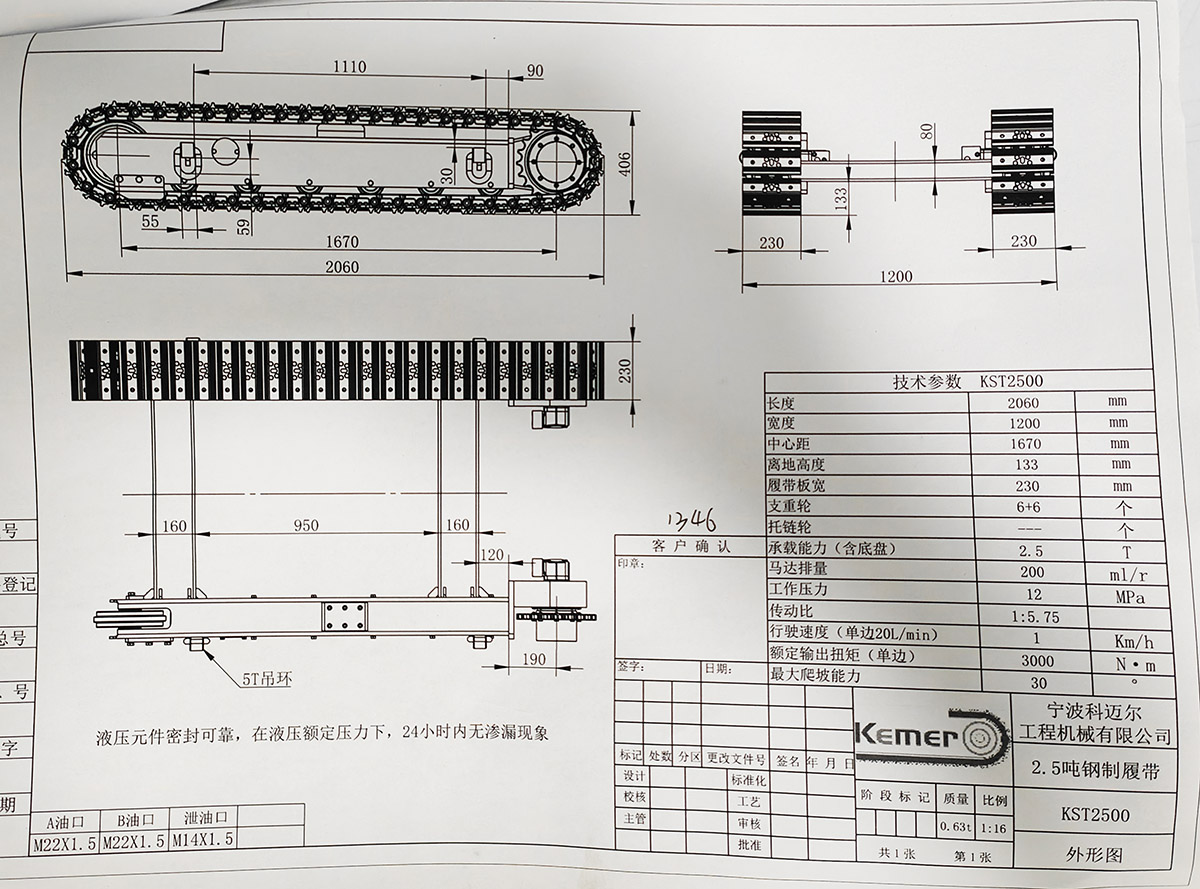

The following table consolidates the original KST2500 data. Confirm the final specifications and rated operating conditions against the approved technical drawing before ordering.
| Parameter | Specification |
|---|---|
| Model | KST2500 |
| Drive Type | Hydraulic drive |
| Hydraulic Motor Displacement | 200 mL/rev |
| Working Pressure | 12 MPa |
| Traction Force | 30 kN |
| Travel Speed | 1 km/h |
| Ground Pressure | 34 kPa |
| Maximum Gradeability | 30° as listed; confirm the applicable load and test conditions. |
| Undercarriage Weight | 630 kg |
| Listed Load Capacity | 2,500 kg |
| Pallet Dimensions | 2,060 × 1,400 × 510 mm |
| Warranty | 12 months, subject to the agreed warranty terms. |
Technical note: Load capacity, traction force, ground pressure and gradeability describe different performance characteristics. Confirm the definition of rated load, hydraulic motor configuration and gradeability test conditions before final equipment selection.
A track undercarriage is the supporting and travelling structure beneath a tracked machine. Depending on the design, it may include track frames, tracks, drive sprockets, idlers, rollers and hydraulic drive components. The undercarriage carries the supported load and provides the interface between the machine and the ground.
The suitability of a particular track configuration depends on the track design, machine weight, load distribution, required traction and operating surface. Confirm the actual KST2500 track arrangement and component configuration using the product drawing.
The KST2500 may be evaluated for compact tracked equipment and special-purpose machinery where the stated load, speed, traction and installation requirements are suitable.
Compact construction and engineering equipment.
Small tracked machinery used in industrial environments.
Special-purpose mobile equipment requiring a hydraulic track drive.
OEM machinery projects requiring a compact crawler chassis.
Replacement projects where the mounting interfaces and operating parameters can be verified.
Final application suitability should be assessed against the host machine's weight, centre of gravity, hydraulic supply, terrain and operating duty cycle.

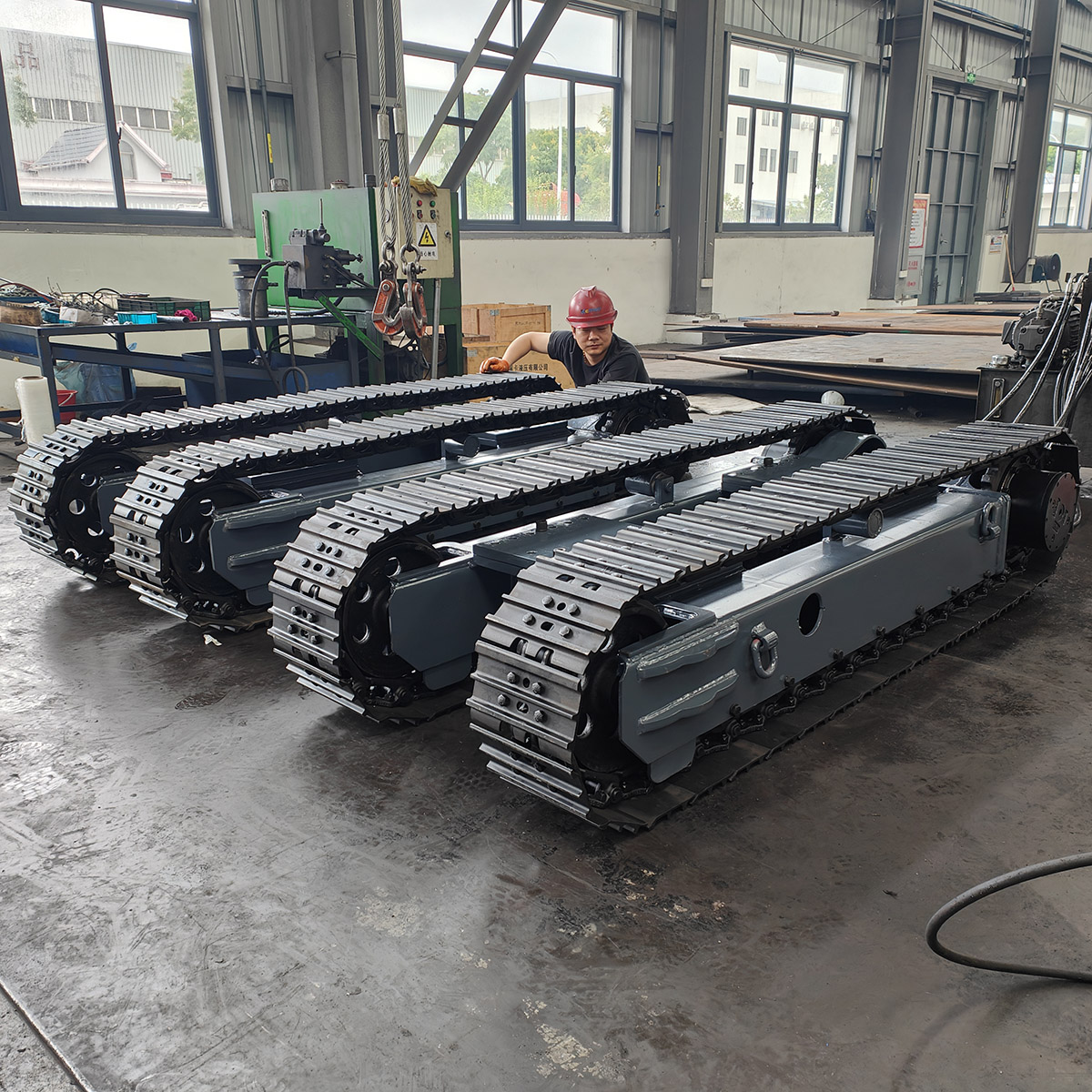

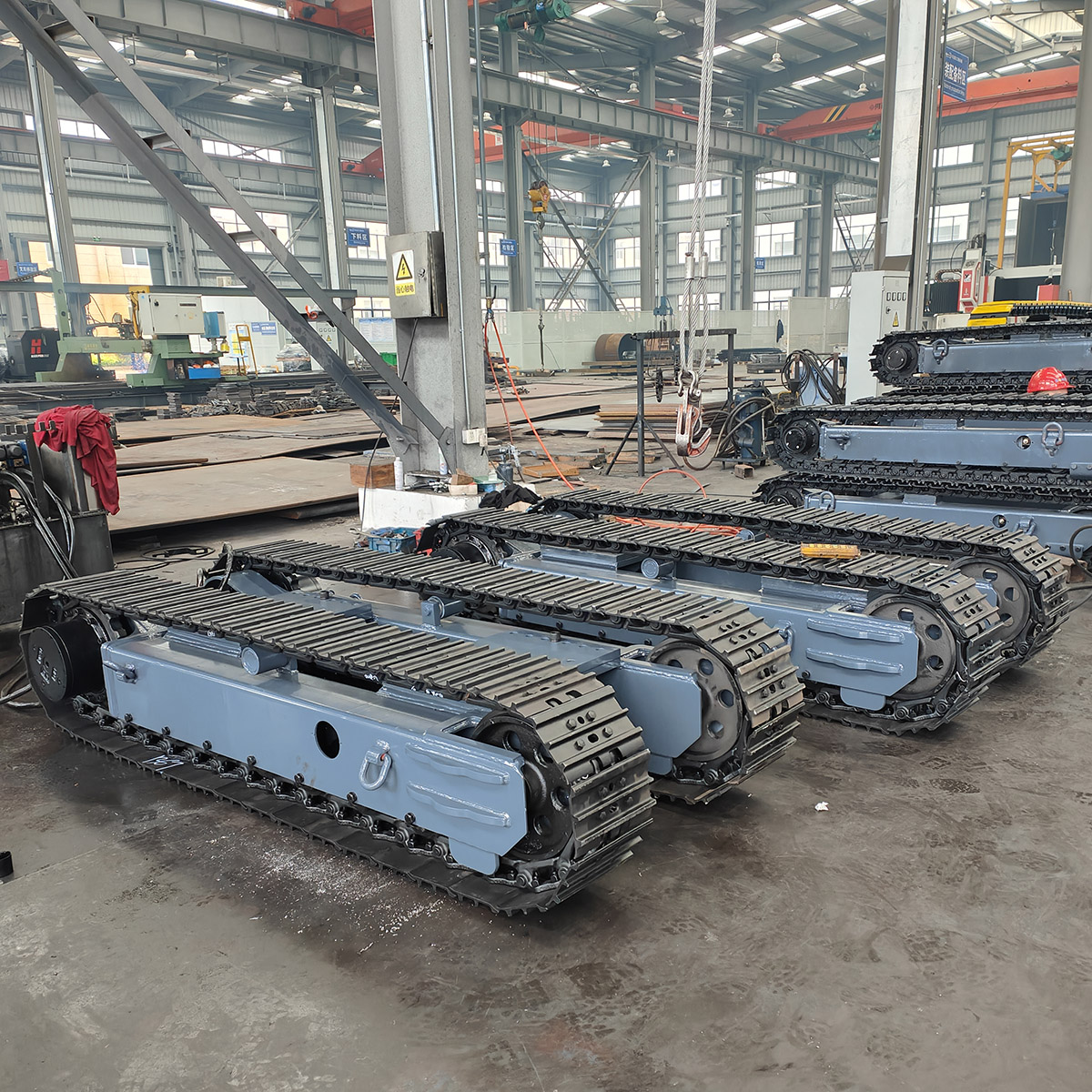

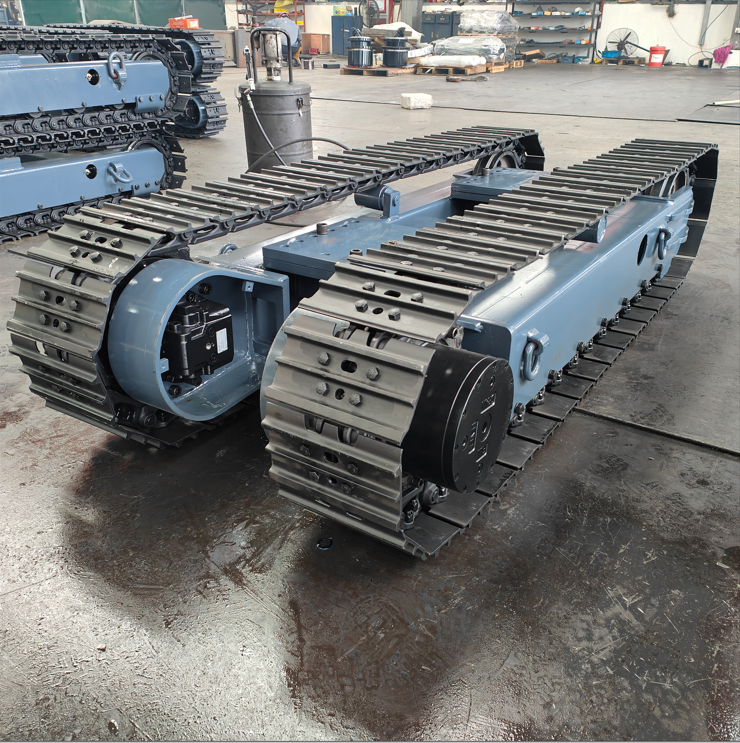

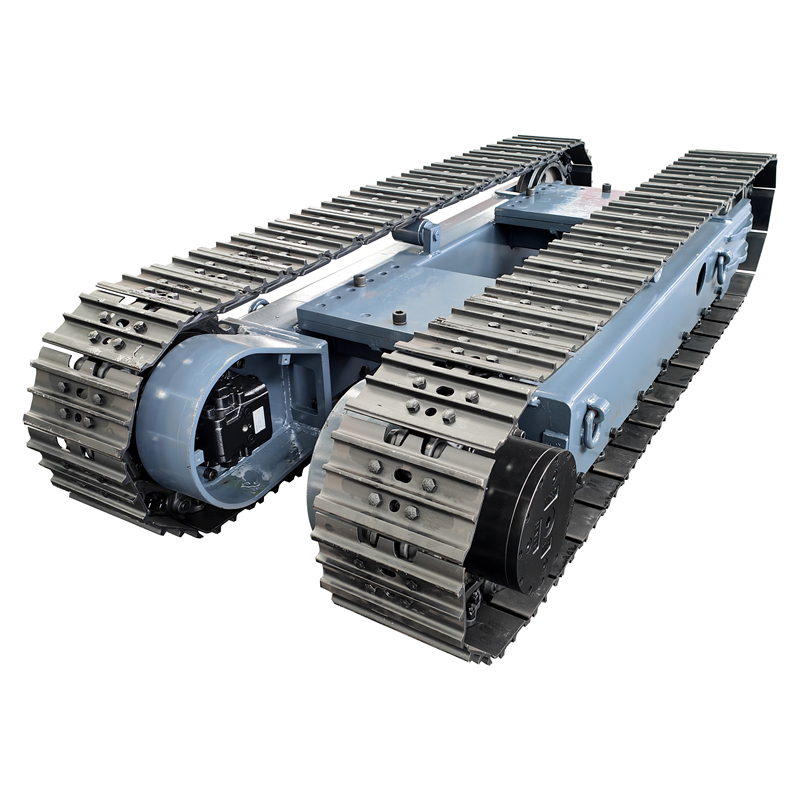

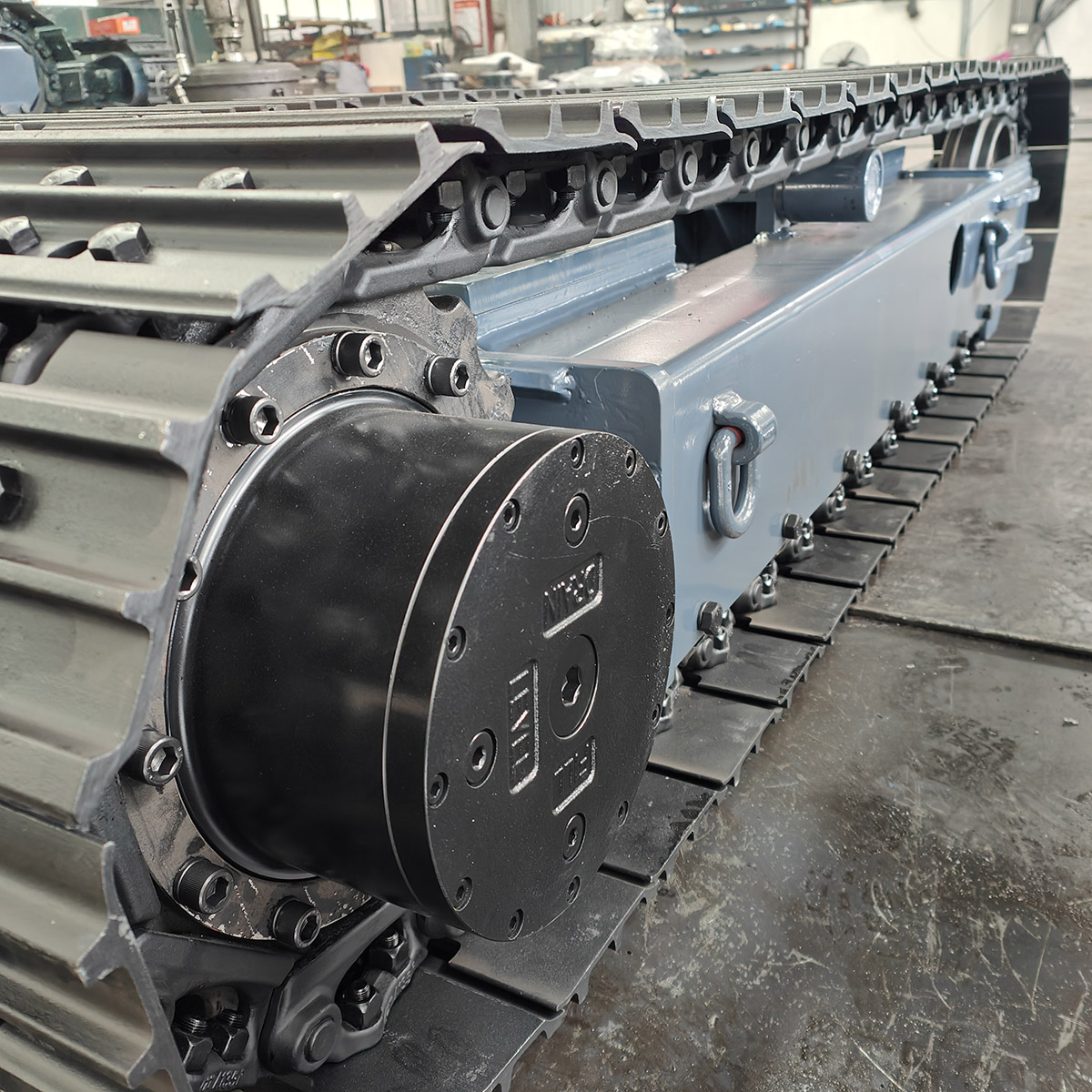

The following images are retained from the original product page as visual references. Confirm that each image corresponds to the KST2500 model and the configuration offered for your order.
For an OEM project or replacement requirement, the appropriate configuration should be evaluated using the host machine's technical requirements. Provide the following information when requesting a quotation.
Machine information: Equipment type, application and supported machine weight.
Load requirements: Required payload and load distribution, with clarification of whether the undercarriage weight is included.
Dimensions: Required overall length, width, height and mounting-interface dimensions.
Travel performance: Target travel speed, traction requirements and gradeability.
Hydraulic system: Available oil flow, working pressure and motor requirements.
Operating environment: Ground conditions, slopes, duty cycle and expected operating hours.
Order information: Required quantity and target delivery schedule.
Technical drawings or a 3D model of the host machine can help clarify installation space and connection requirements. Confirm the scope of customization and engineering documentation with the supplier before ordering.
Payment: The supplied terms are a 30% deposit and a 70% balance before shipment, generally by T/T. Confirm the final terms in the order agreement.
Lead time: The stated lead time is approximately 20–25 days after receipt of payment, subject to the confirmed configuration and production schedule.
Technical support: Online service and overseas technical support are listed as available. Confirm the scope of support required for your project.
Warranty: The supplied information states a 12-month warranty, subject to the agreed warranty terms.
The listed pallet dimensions are 2,060 × 1,400 × 510 mm. Confirm the final packing dimensions, gross weight, shipping method and loading arrangements with the supplier before dispatch.
The supplied specifications list a load capacity of 2,500 kg. Confirm whether this refers to the payload supported by the undercarriage or the total supported weight, including the undercarriage itself.
The supplied data lists a travel speed of 1 km/h. Confirm the applicable hydraulic conditions and rated load with the supplier.
The supplied specifications list a working pressure of 12 MPa and traction force of 30 kN. Confirm how these values apply to the selected configuration and operating conditions.
Customization can be discussed based on the host machine's dimensions, load requirements, hydraulic supply, mounting interfaces and working environment.
Please provide the machine type, required load capacity, overall dimensions, target travel speed, gradeability, hydraulic flow, working pressure and intended operating surface.
The original product information states a minimum order quantity of one set. Confirm current availability and final order terms with the supplier.
The supplied information states approximately 20–25 days after receipt of payment. Confirm the final production and delivery schedule for the required configuration.
The original product information states a 12-month warranty. Confirm the coverage and conditions in the order agreement.
