Our products are widely used in the following applications
Drilling Rig: Anchoring drill, water well drilling rig,Core drilling rig,jet drilling rig,down-hole drill,crawler hydraulic drilling rig,For poling Rig,trenchless drill etc.
Mechanical Engineering: Excavator,small pile driver,aerial work platform,small size loader etc.
Coal mine: Slag removing machine,underground drilling rig,Full hydraulic drilling rig,Hydraulic drill carriage and rock loading machine etc.
Mine: movable crusher,heading machine,conveying equipment etc.
Agricultural equipment: cane harvester,lawn mower,Ditching machine,etc.
|
Tracks and Undercarriage Parts Advantages
Ground Pressure: Ensure the track system distributes the machine's weight effectively to avoid sinking in soft terrain.
Durability: Choose high-quality materials and components to withstand heavy use.
Terrain-Specific Design: Select track shoes and components suited to the operating environment (e.g., rocky, muddy, or paved surfaces).
Maintenance: Regularly inspect and maintain the undercarriage to extend its lifespan and prevent costly repairs.
|
What Are The Tracks and Undercarriage Parts?
Track Components:
Track Shoes (or Track Pads): These are the individual segments that make up the continuous track. They provide the contact surface with the ground and are bolted to the track chain. Track shoes come in various designs (single, double, or triple grouser) depending on the application and terrain.
Track Chains (or Track Link Assemblies): These are the interconnected links that connect the track shoes. They are designed to be durable and withstand high tension and wear.
Track Pins and Bushings: These connect the individual links of the track chain together. They are critical for the track's flexibility and ability to articulate around the undercarriage components.
Undercarriage Components:
Rollers (Track Rollers): These support the weight of the machine and allow the tracks to move smoothly. There are two main types:
Carrier Rollers (or Top Rollers): These are located at the top of the track frame and support the upper portion of the track.
Track Rollers (or Bottom Rollers): These are located at the bottom of the track frame and support the lower portion of the track, bearing the machine's weight.
Idler: The idler is a large wheel located at the front of the undercarriage. It helps guide the track and maintain proper track tension. It also absorbs shocks.
Sprocket: The sprocket is a toothed wheel that drives the track. It is connected to the final drive motor and transmits power to the track chain, propelling the machine.
Track Frame (or Track Roller Frame): This is the main structural component of the undercarriage, housing the rollers, idler, and sometimes the final drive. It provides the mounting points for all the undercarriage components and connects the undercarriage to the machine's main body.
Recoil Spring/Tensioning System: This system maintains the correct track tension, allowing the track to flex and adjust to varying terrain conditions. It typically consists of a spring or hydraulic cylinder that adjusts the position of the idler.
Final Drive: The final drive is a gear reduction system that transmits power from the engine to the sprocket. It multiplies torque, providing the necessary force to drive the tracks.
These components work together to provide mobility, stability, and traction for heavy machinery in a variety of demanding applications.
|

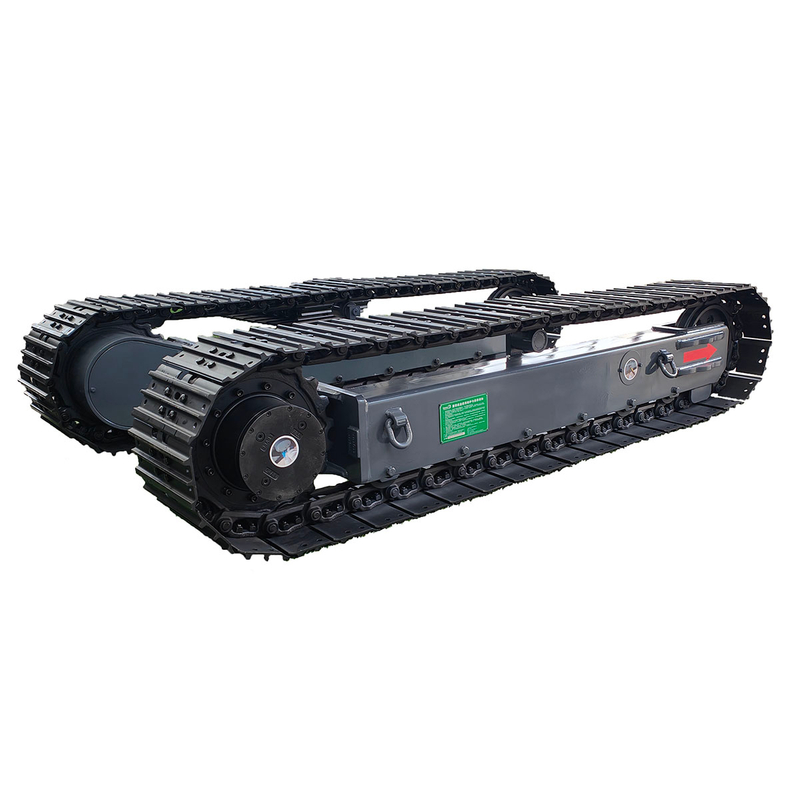

Track System Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 1200kgs
Pallet size: 2610*900*660mm
Load capacity: 8tons
|

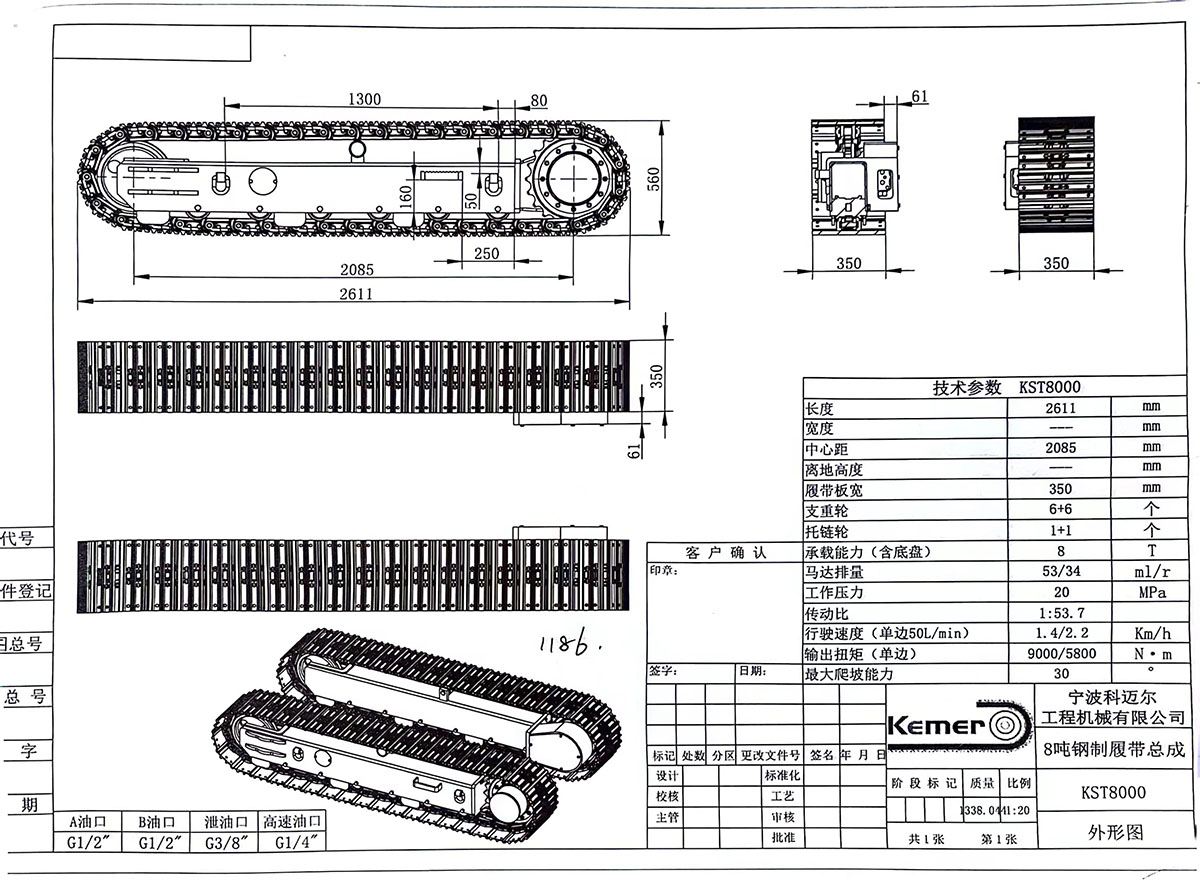

1.Technical parameters
Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KST8000 | 53/34 | 20 | 99 | 1.4/2.2 | 44 | 30 | 1400 | 8000 |
|

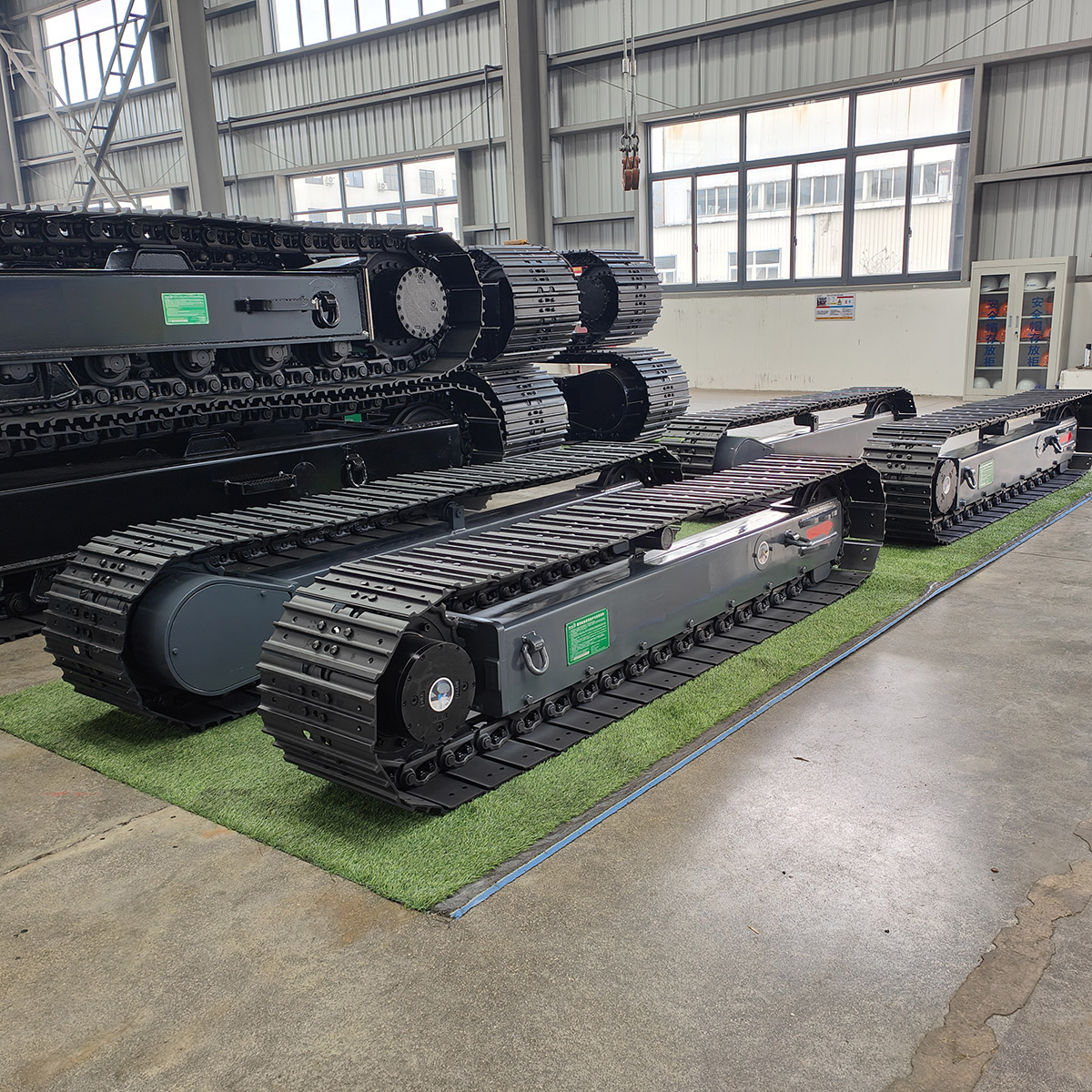

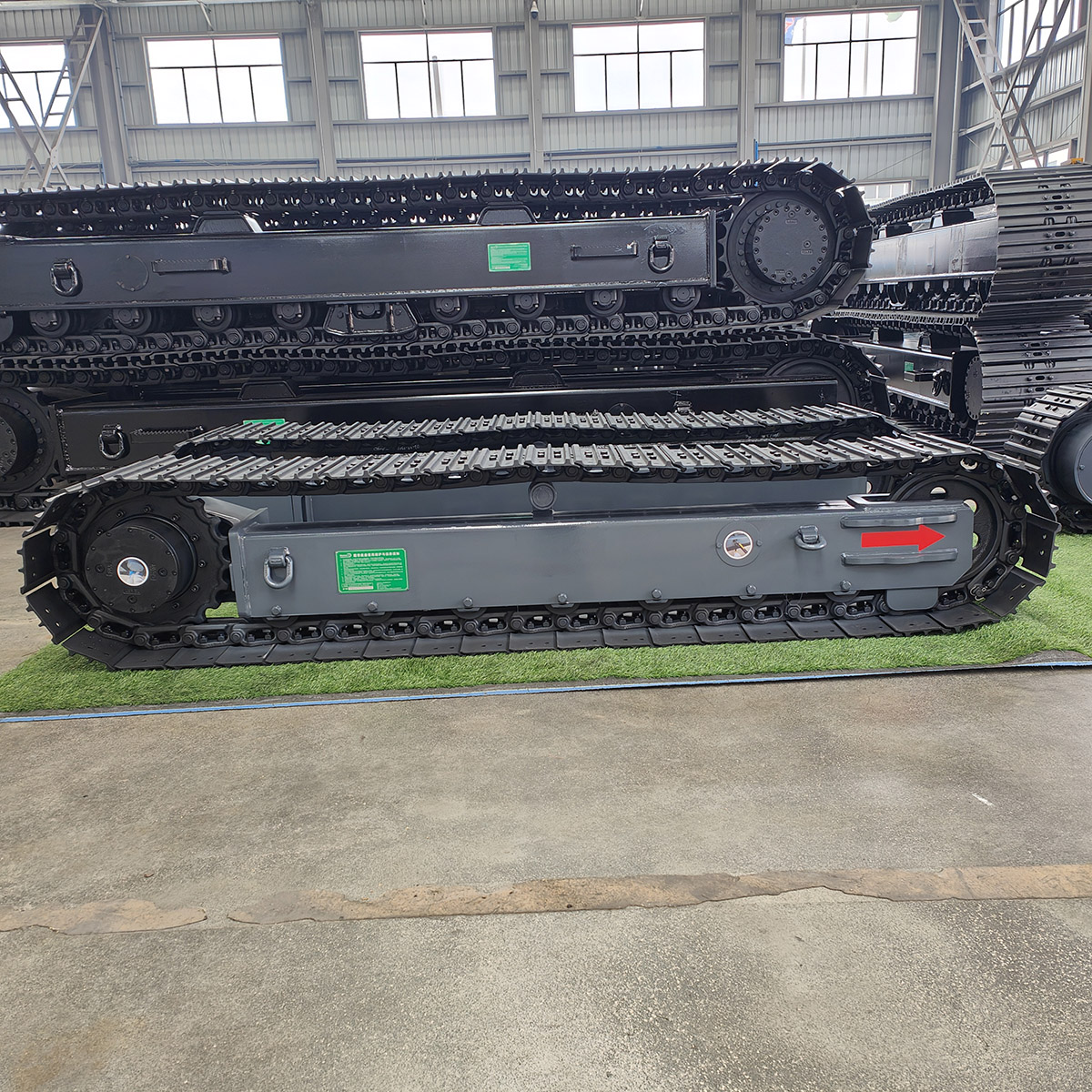

Track System Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in undercarriage. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable.
Q: Can we use our own logo?
A: Yes, we can use your private logo according to your request.
Q: How can I get a sample to check your quality?
A: After price confirmation, you can purchase one set to check our quality.
Q: Can you do the design for us?
A: Yes. We have a professional team having rich experience in design and manufacturing.
Q: How to place order?
A: In order to recommend a suitable drawing and quotation to you,we need to know:
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
