| Availability: | |
|---|---|
| Quantity: | |
|
Applications
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
|
Advantages of Hydraulic Hoisting Winch
A hydraulic winch is likely to last for a long time as it is durable. With proper care and maintenance, such as replacing worn-out parts, a hydraulic winch will serve you for an exceptionally long time.
Capacity to operate very heavy loads, especially for those where an electric winch does not have the capacity.
Hydraulic winches will work continuously as long as the engine is running.
| How Do Hydraulic Hoisting Winch Work?
A standard hydraulic winch uses fluid, typically oil, to perform properly. It utilizes fluid power using a hydraulic system and a motor pump between the generator and the machine. The power steering pump creates a pressure that transmits the power through the pressure inside the oil. Sometimes, a motor is not enough to perform a heavy job, so you can complete the winch with a gearbox. Gearboxes connect the winch and the cables that carry the load. Usually, a winch’s motor does not have any speed options. Because you cannot change the speed, the gearbox allows you to use custom speeds for your job.

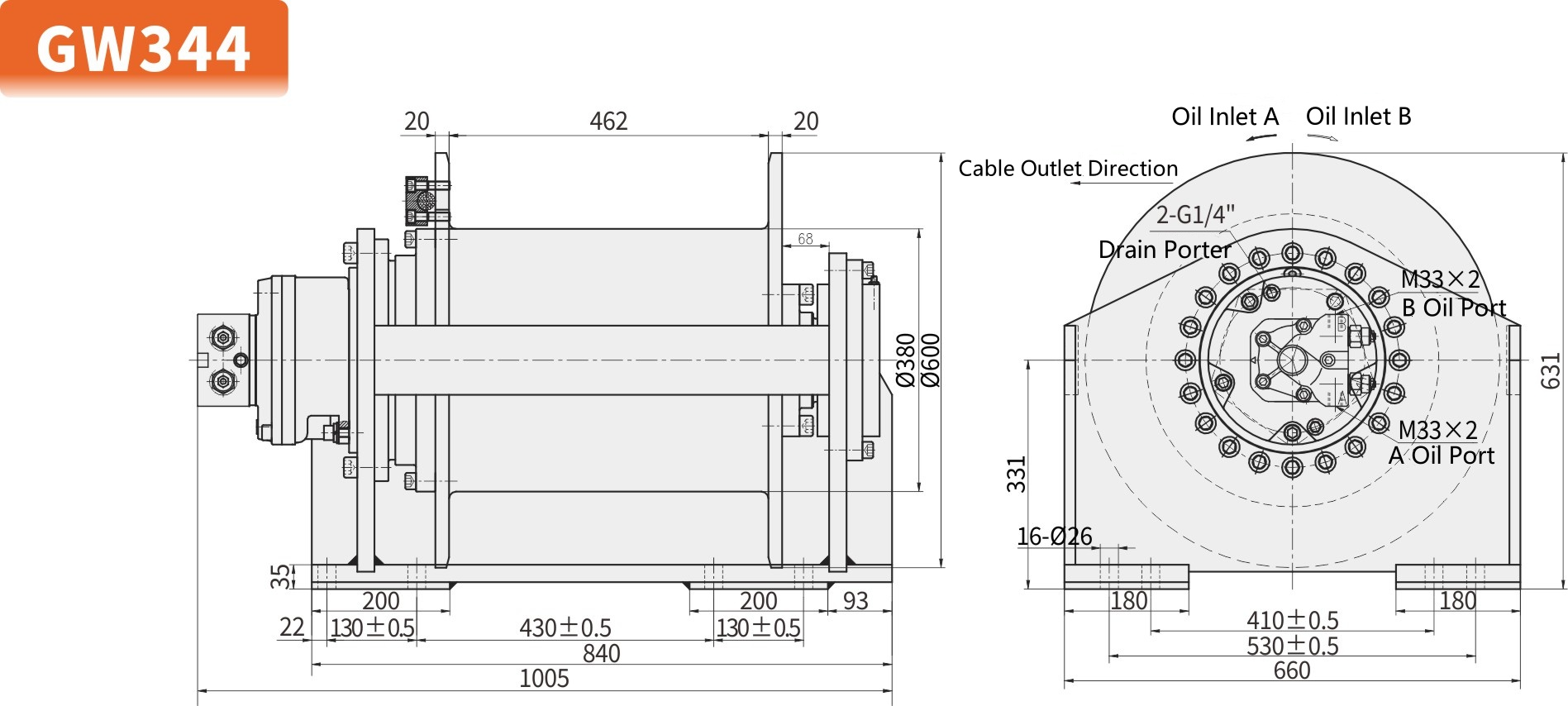

| Hydraulic Hoisting Winch
Model | GW344 |
Load capacity | 10-14 ton |
Rope capacity | 20~150 m |
Working speed | 0~50 m/min |
Hydraulic motor | GN1 |
Warranty | 12 months free |
| Technical Parameters

Model | The 1st layer | Total displacement (ml/r) | Working pressure diff.(MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Hydraulic motor | Model of planetary reducer | |
Pull (kN) | Rope speed(m/min) | |||||||
GW344-100-90-22-ZP | 100 | 0-12 | 10452 | 16 | 20 | 95 | GN1-150 | GFT36W3 i=67.87 |
GW344-120-85-24-ZP | 120 | 0-10 | 13642 | 14 | 22 | 90 | GN1-200 | GFT36W3 i=67.87 |
GW344-140-85-24-ZP | 140 | 0-8 | 16492.4 | 14 | 24 | 85 | GN1-250 | GFT36W3 i=67.87 |
|

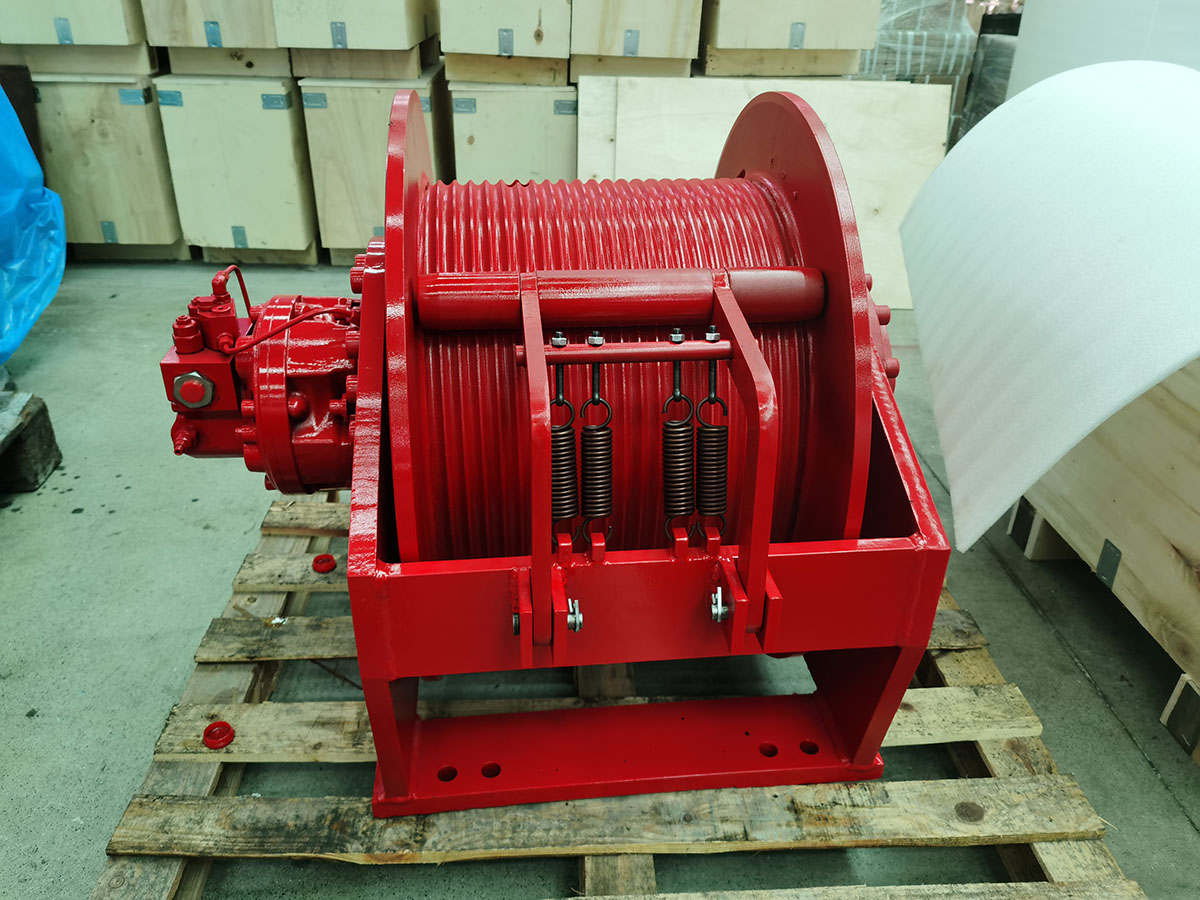

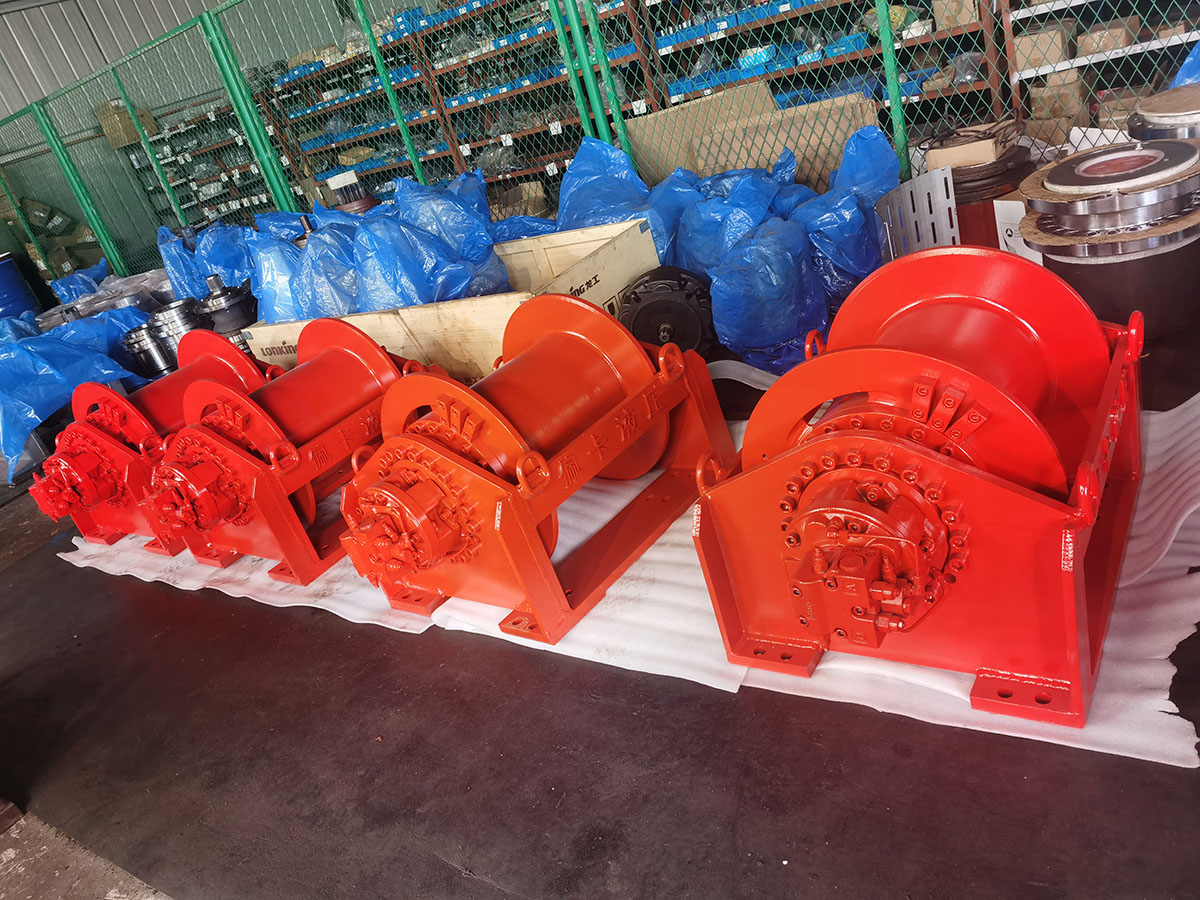

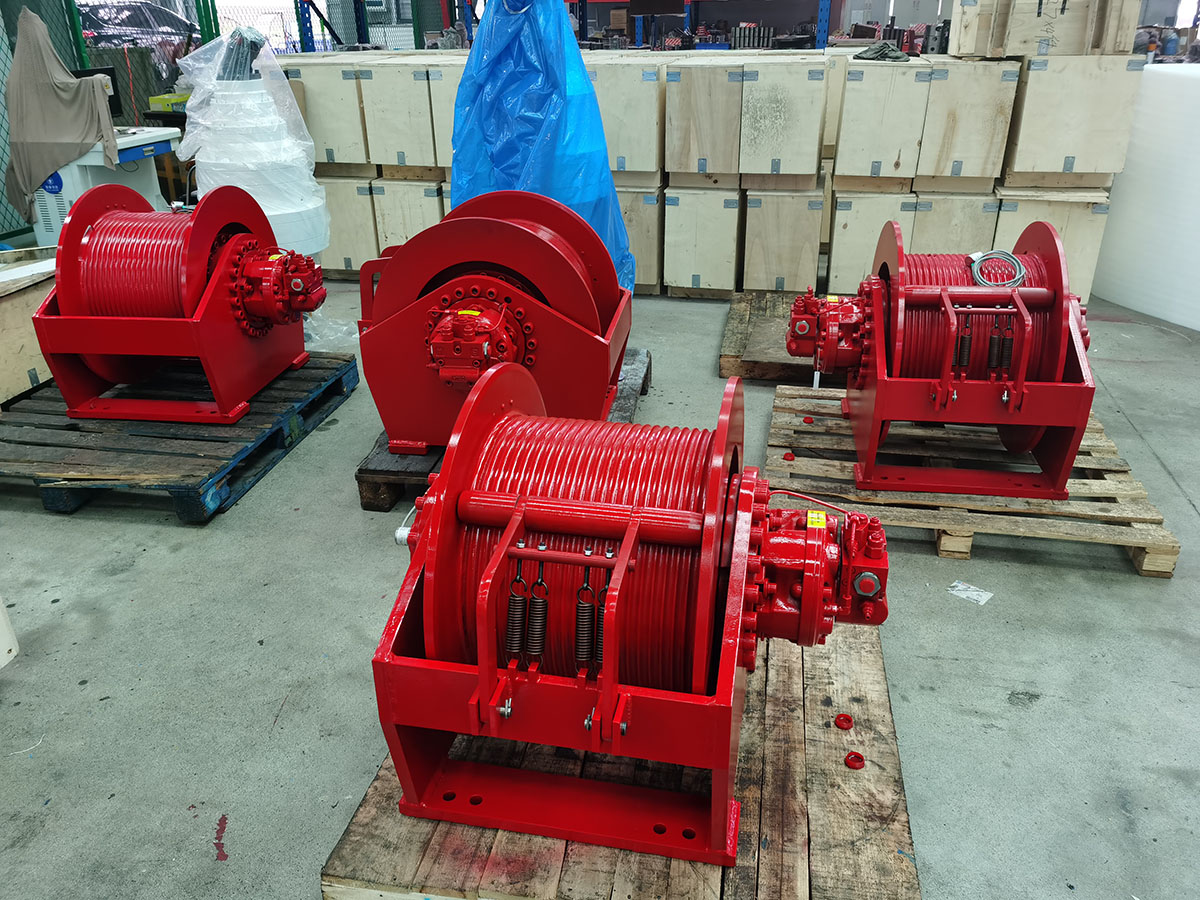

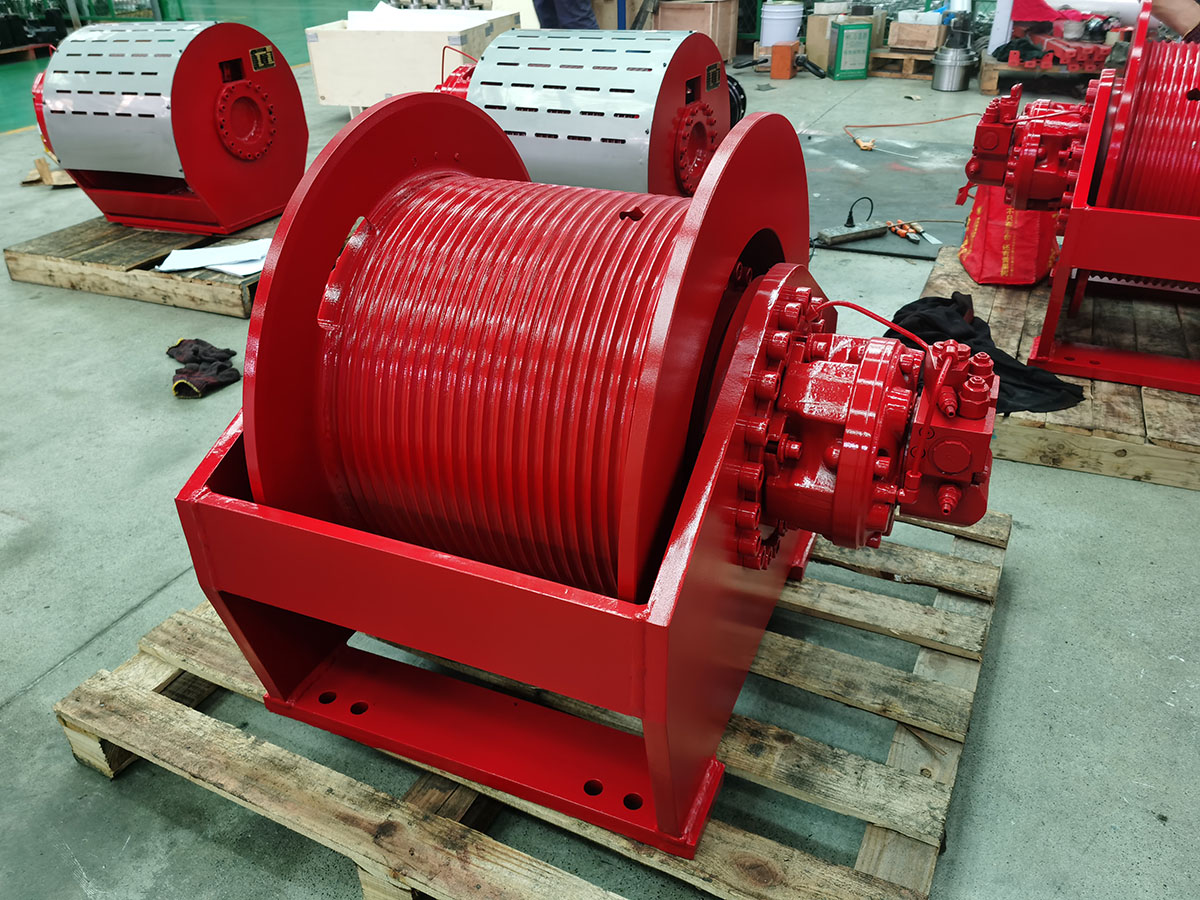

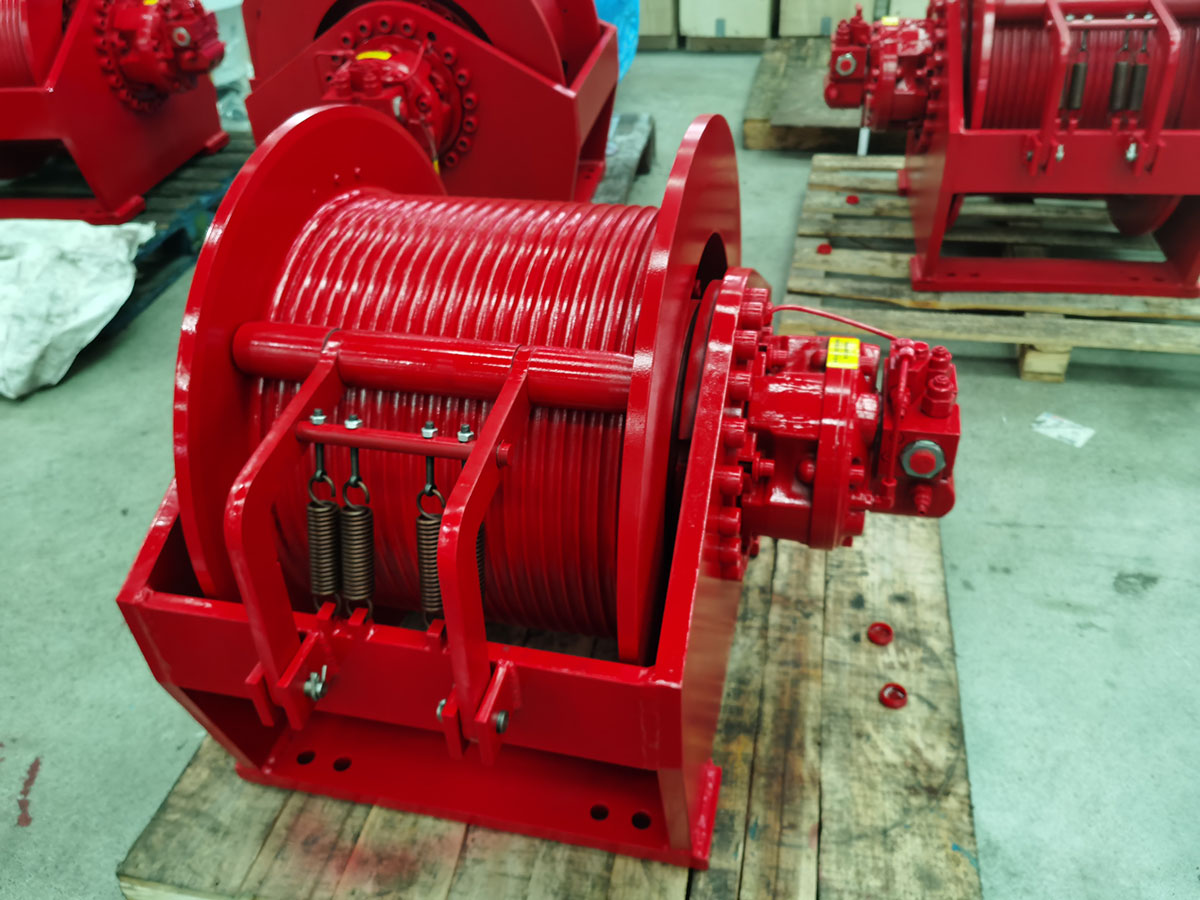

Hydraulic Lifting Winches Samples




|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping

|
FAQ
Q: Are you manufacturer?
A: We are a dedicated manufacturer specializing in hydraulic winch, and we engage in direct trade with our clients.
Q: What is the size of your factory?
A: Our factory covers an area of more than 16,000 square meters.
Q: How many employees work in your factory?
A: We currently employ 100 workers in our factory.
Q: What certifications do you hold?
A: We have obtained several certifications, including CE, ISO9001, ISO14001, and ISO45001.
Q: May I know what’s the nearest airport from your company?in case I visit your company.
A: First Ningbo Airport,,then Hangzhou or Shanghai airport,welcome to visit us.
Q: When can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.
