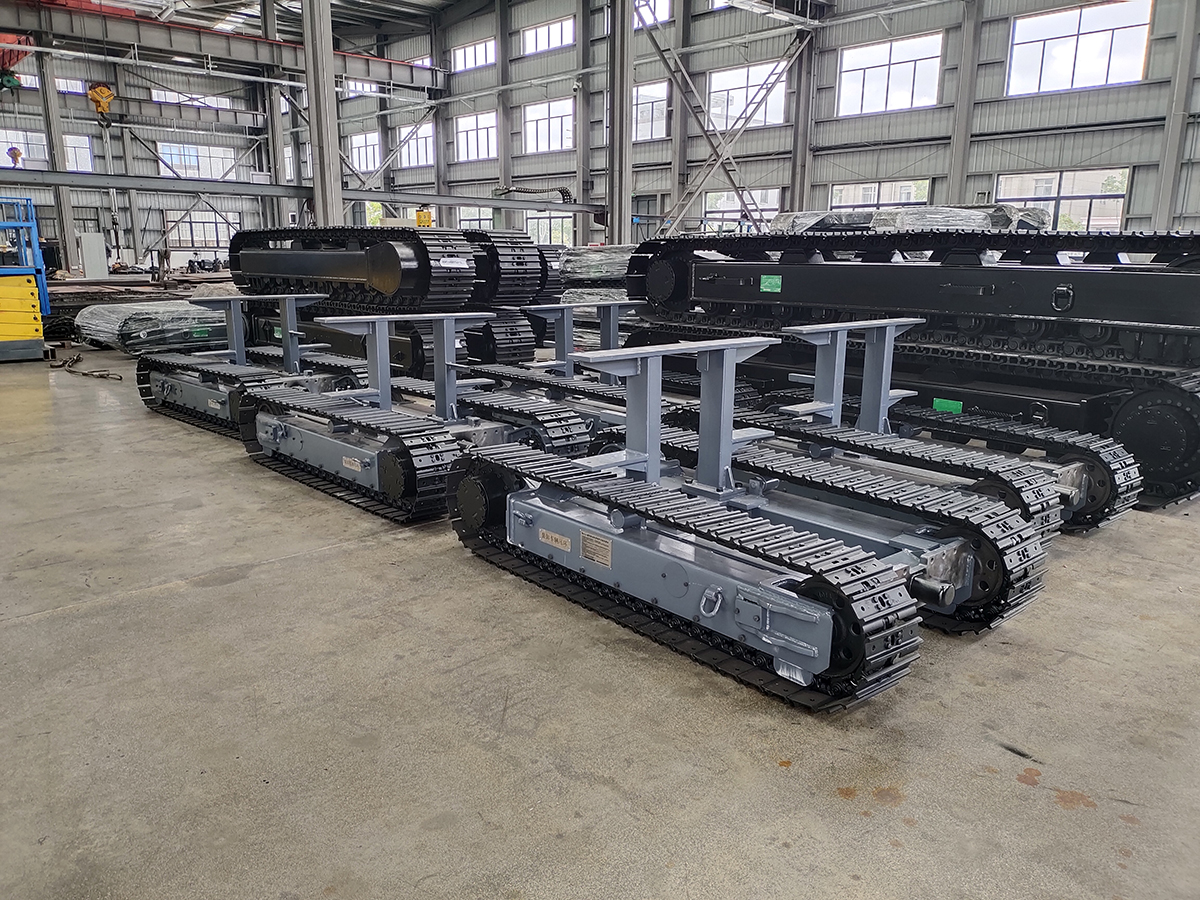

This replacement track undercarriage is designed for mobile tracked equipment and can be considered for Strickland DK29 replacement applications where the required dimensions, load rating, hydraulic system and mounting interfaces are matched.

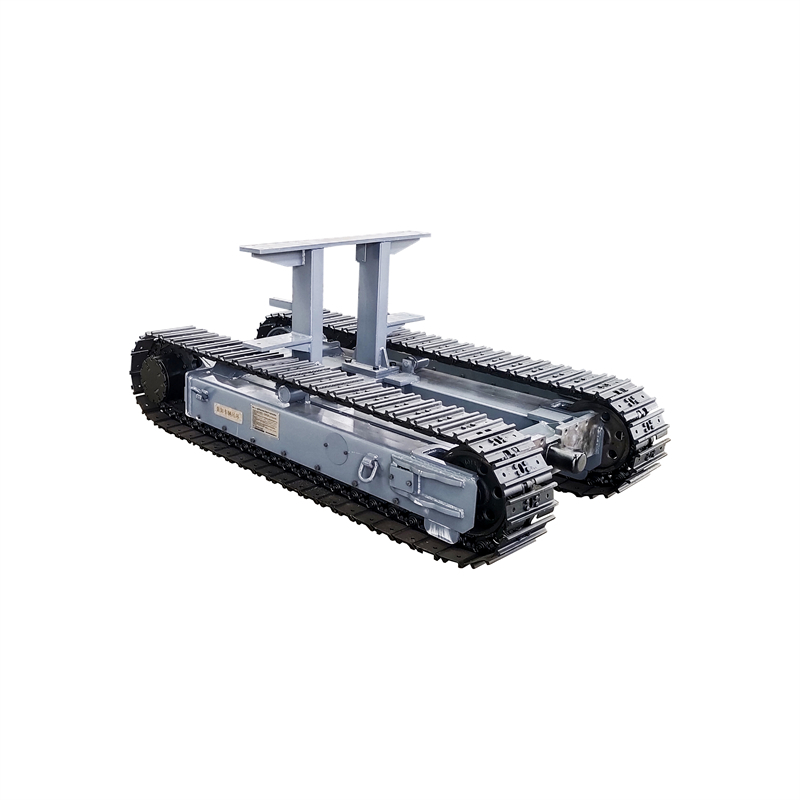

The featured KST8000 track undercarriage uses hydraulic drive and is specified with an 8,000 kg load capacity, a maximum travel speed of 3.6 km/h and a maximum gradeability of 30°. The configuration can be evaluated for OEM equipment, replacement projects and custom tracked machinery.
| Parameter | Specification |
|---|---|
| Drive Method | Hydraulic drive |
| Load Capacity | 8,000 kg |
| Dead Weight | 1,800 kg |
| Motor Displacement | 53 / 34 mL/r |
| Working Pressure | 25 MPa |
| Traction Force | 99 kN |
| Travel Speed | 2.3 / 3.6 km/h |
| Ground Pressure | 44 kPa |
| Maximum Gradeability | 30° |
| Warranty | 12 months |

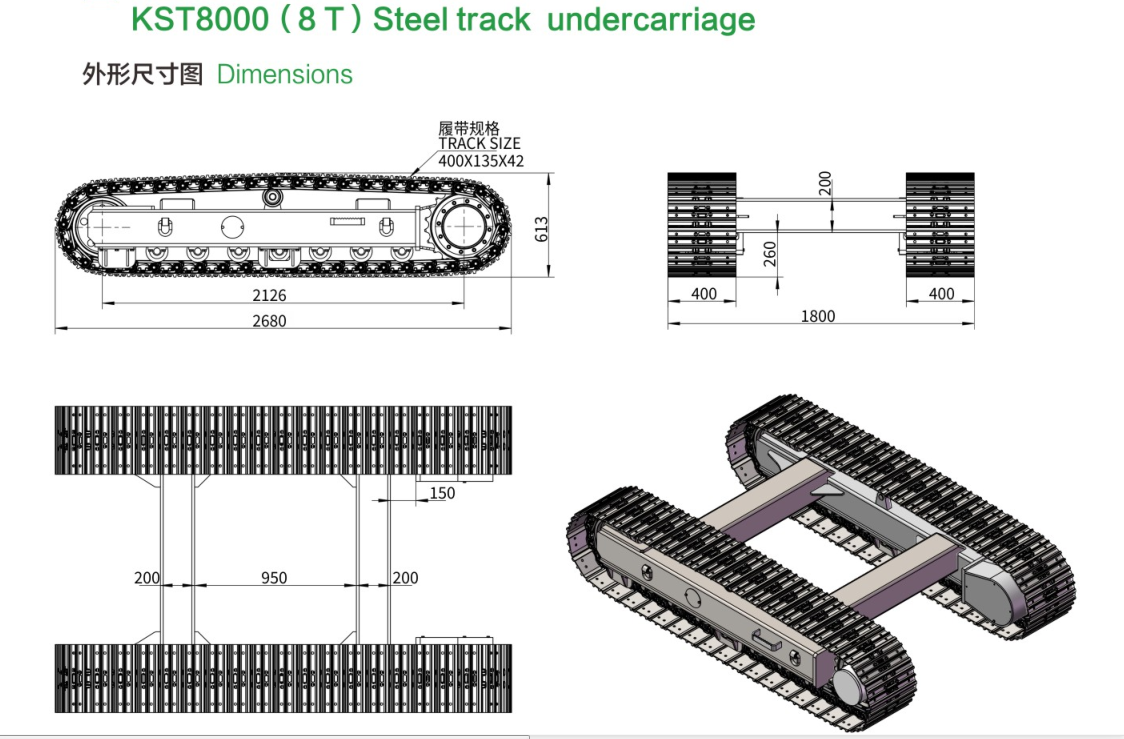

| Pallet Size | 2080 × 1600 × 620 mm |
The KST8000 uses hydraulic drive to transmit power to the track system. Hydraulic travel drive systems are commonly selected for tracked machinery requiring controlled movement and high traction.
The listed KST8000 configuration has a load capacity of 8,000 kg, making it suitable for mobile equipment with a total operating load within the specified design range.
A listed traction force of 99 kN supports tracked equipment operating on demanding terrain and inclines, subject to the machine configuration and actual working conditions.

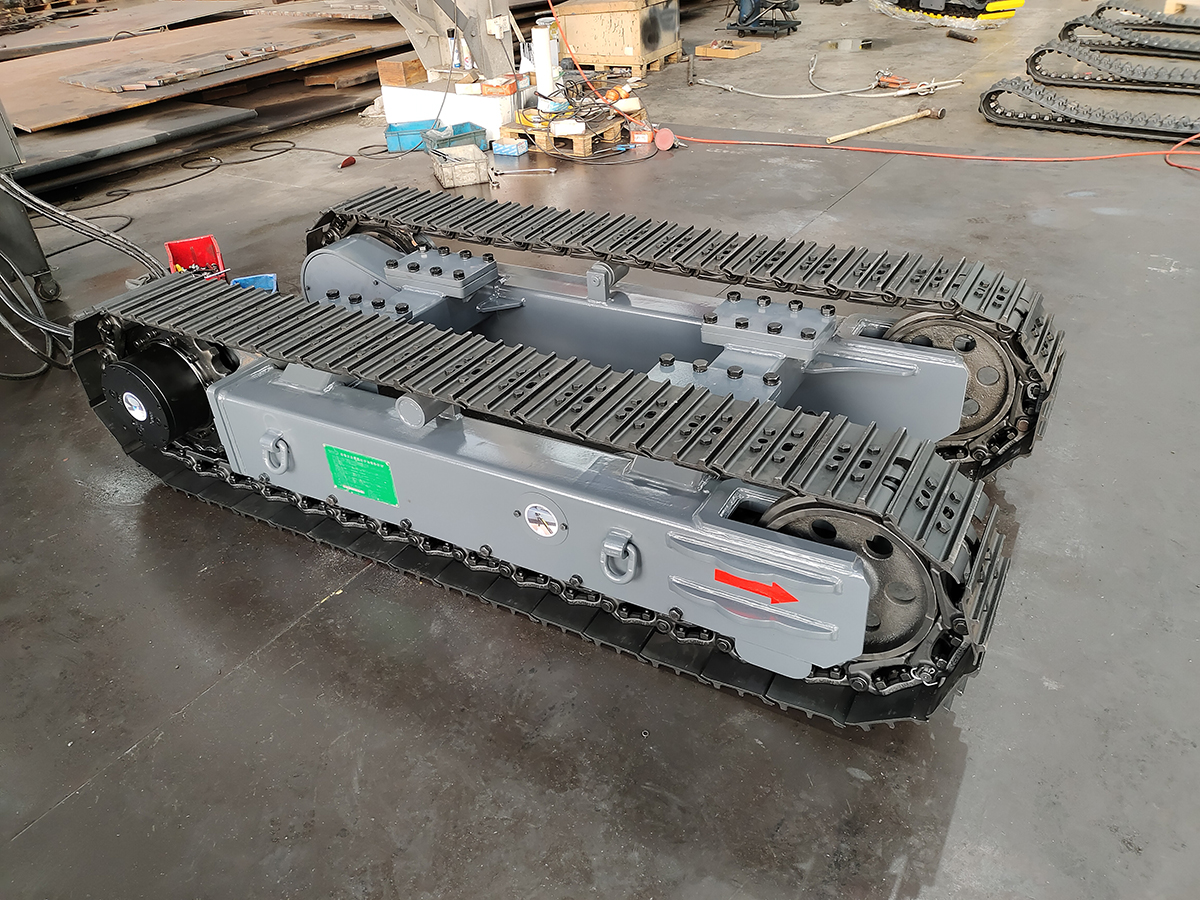

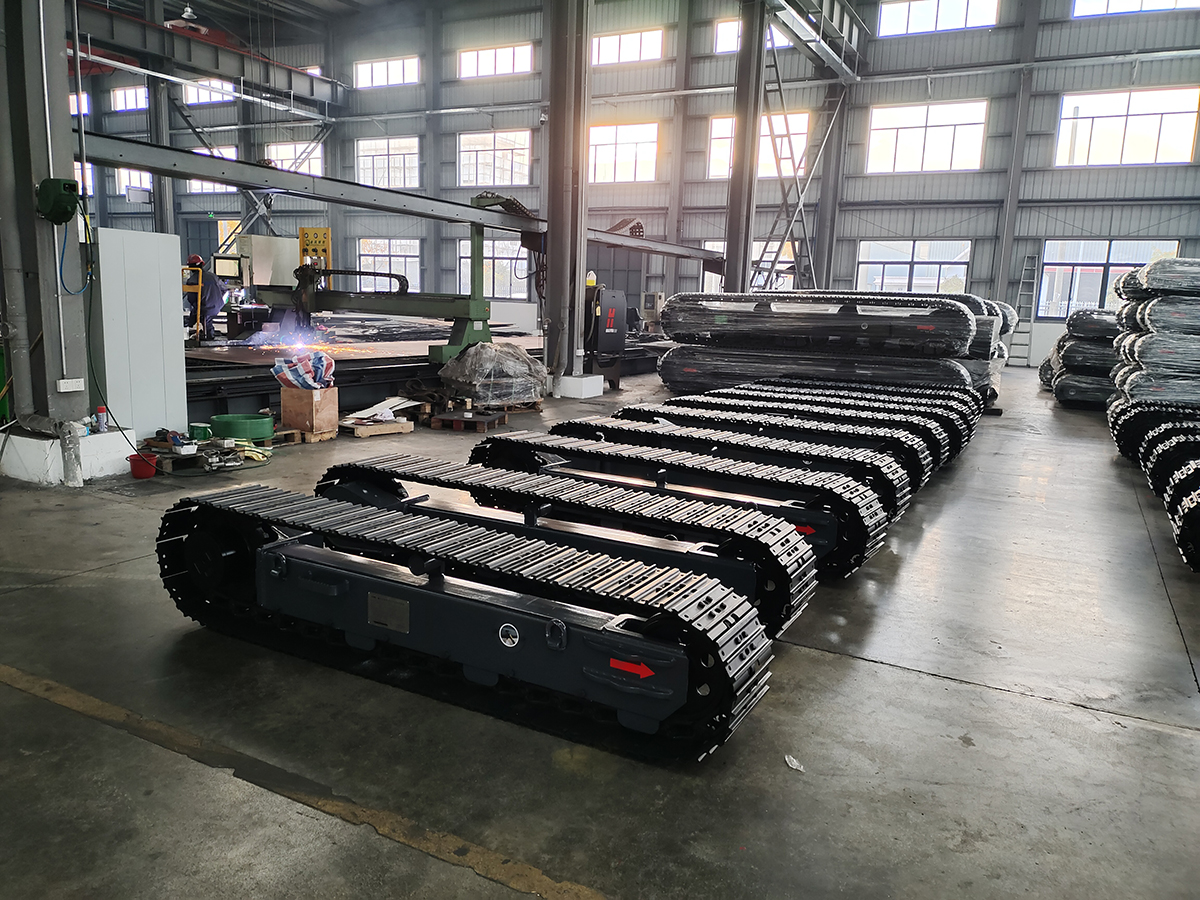

The KST8000 configuration combines the track frame, hydraulic travel system and running components into an integrated undercarriage assembly for mobile tracked equipment.
The undercarriage can be evaluated for replacement projects as well as new equipment development. Final compatibility should be confirmed using machine dimensions, mounting interfaces, hydraulic specifications and operating requirements.
Regular inspection of the track system can help identify wear or damage before it causes more serious equipment problems. Common areas to inspect include:
Track wear: Check rubber or steel tracks for cracks, uneven wear and visible damage.
Rollers and idlers: Inspect for excessive wear, cracks, abnormal movement or unusual noise.
Track tension: Incorrect track tension can contribute to premature wear and track misalignment.
Bushings and pins: Excessive wear can affect the connection and movement of the track chain.
Sprocket condition: Worn sprocket teeth may cause poor engagement or track slippage.
Track frame: Check the frame for bending, cracks or other structural damage.
Track alignment: Frequent track derailment or poor tracking can indicate an undercarriage issue.
Hydraulic system: Inspect hydraulic motors, hoses and connections for leaks or abnormal operation.
Maintenance intervals should be based on equipment operating conditions and the manufacturer's technical recommendations.
| Parameter | KST8000 |
|---|---|
| Motor Displacement | 53 / 34 mL/r |
| Working Pressure | 25 MPa |
| Traction Force | 99 kN |
| Travel Speed | 2.3 / 3.6 km/h |
| Ground Pressure | 44 kPa |
| Maximum Gradeability | 30° |
| Dead Weight | 1,800 kg |
| Load Capacity | 8,000 kg |
Kemer provides hydraulic track undercarriage solutions for OEM equipment manufacturers and replacement projects. Configurations can be evaluated according to the required load capacity, track type, dimensions, travel speed, hydraulic pressure, hydraulic flow and operating environment.
For replacement applications, the existing machine dimensions and interfaces should be checked before order confirmation. Technical drawings, photographs and equipment specifications can be used to evaluate the proposed undercarriage configuration.
Rubber or steel track
Required load capacity
Overall length, width and height
Required travel speed
Maximum climbing or gradeability requirement
Hydraulic oil flow on each track side
Working pressure
Equipment type and application
Operating road or ground conditions
Order quantity
Payment: 30% deposit and 70% before shipment. Payment terms can be negotiated, generally by T/T.
Delivery: 20–25 days after receipt of payment.
Service: 24-hour online service and overseas technical support.
Warranty: 12 months.

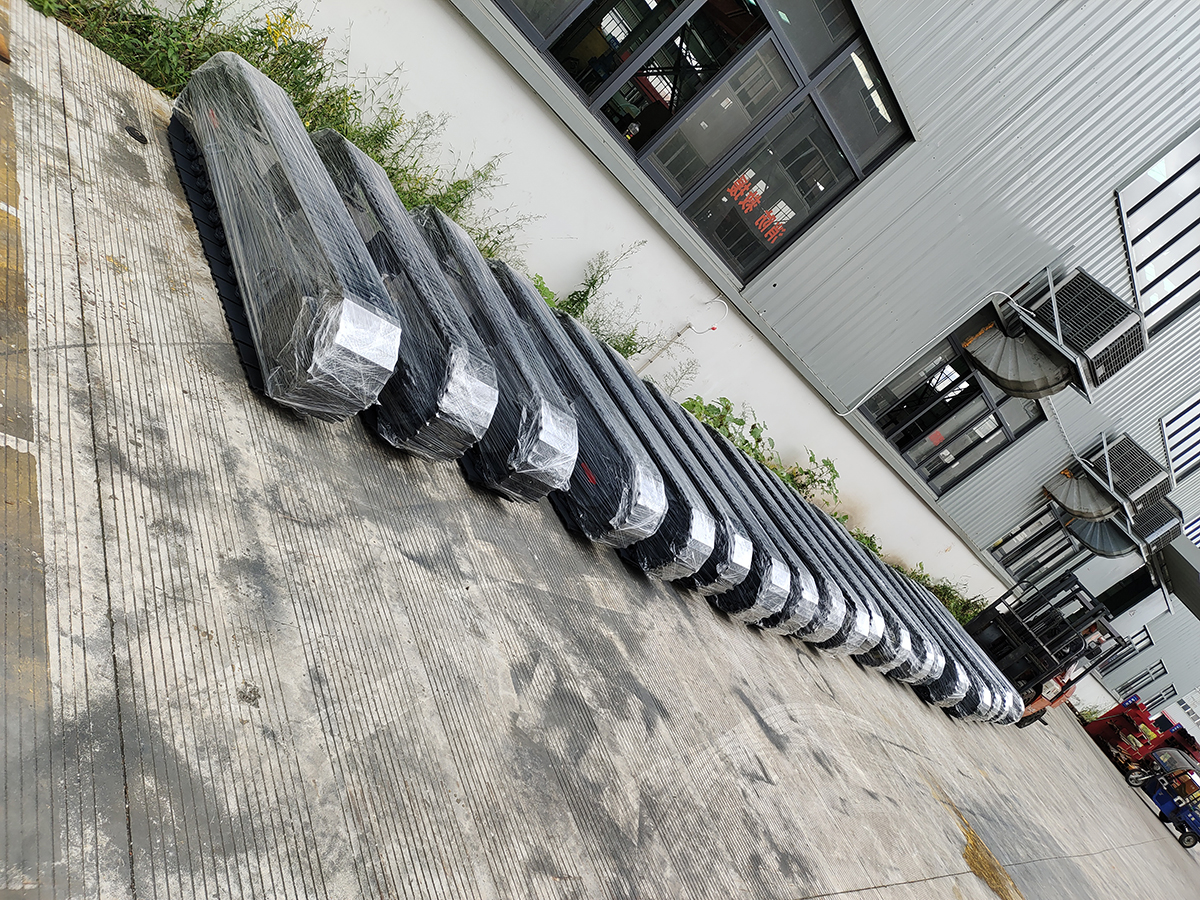

The track undercarriage is prepared for shipment according to its dimensions, weight and transportation requirements. The listed pallet size for the KST8000 configuration is 2080 × 1600 × 620 mm.
It can be evaluated for Strickland DK29 replacement applications. Before confirmation, mounting dimensions, track configuration, hydraulic connections, load requirements and other machine interfaces should be checked to verify suitability.
The listed KST8000 configuration has a load capacity of 8,000 kg.
The KST8000 uses a hydraulic drive system. The listed motor displacement is 53 / 34 mL/r and the working pressure is 25 MPa.
The listed travel speeds are 2.3 km/h and 3.6 km/h, depending on the selected operating configuration.
Yes. Custom track undercarriage configurations can be evaluated according to machine dimensions, load capacity, track type, hydraulic system, travel speed and operating environment.
Please provide the machine type, required load capacity, overall dimensions, track type, travel speed, climbing requirement, hydraulic pressure and flow, operating conditions and available drawings.
Kemer is located in Ningbo, China.
The factory has operated since 2012.
Kemer manufactures track undercarriages, hydraulic winches, planetary gearboxes and hydraulic travel drives for industrial and mobile equipment applications.
Send us the existing undercarriage dimensions, machine weight, required load capacity, hydraulic specifications, track type and installation drawings. Kemer can evaluate the replacement application and recommend a suitable track undercarriage configuration.
