Product Positioning: Exclusive Mobile Partner for Small Crushers
This innovative chassis is designed specifically for small crushing equipment, prioritizing "lightweight, high adaptability, and strong practicality" over the complex designs typically associated with larger tracks. It seamlessly supports both new small crushers and enhances the mobility of existing equipment, allowing for quick connections without the need for extensive modifications or commissioning. This ensures that every small crusher can achieve flexible mobility, freeing it from the constraints of fixed operations.
|

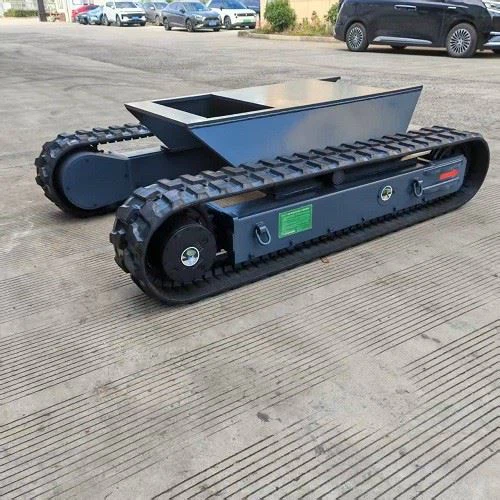

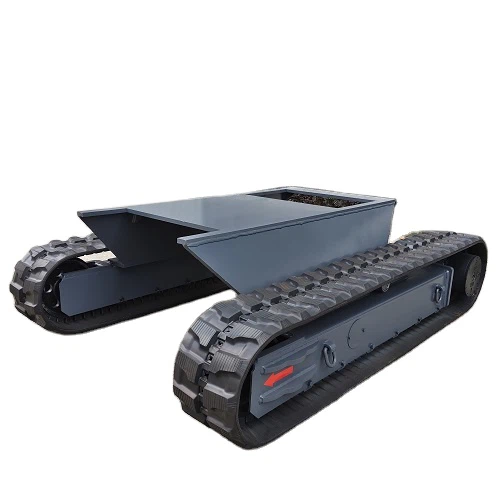

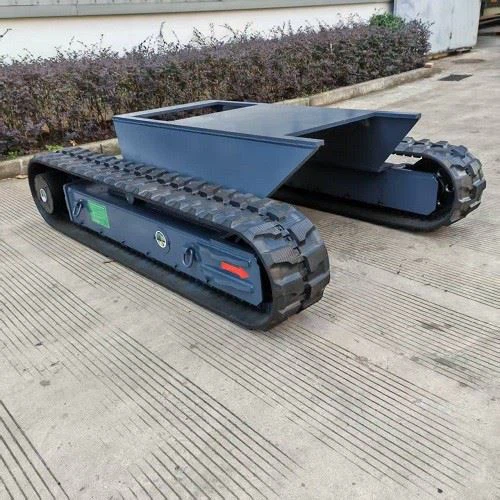

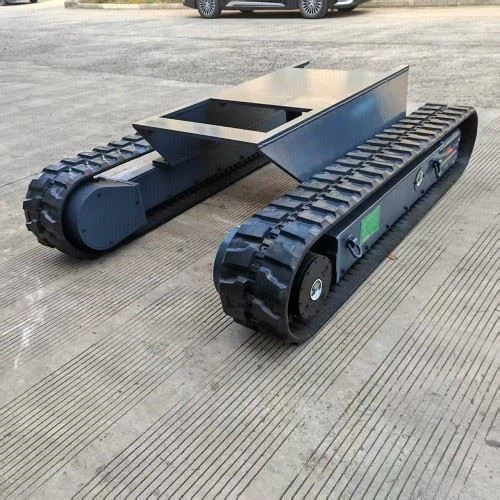

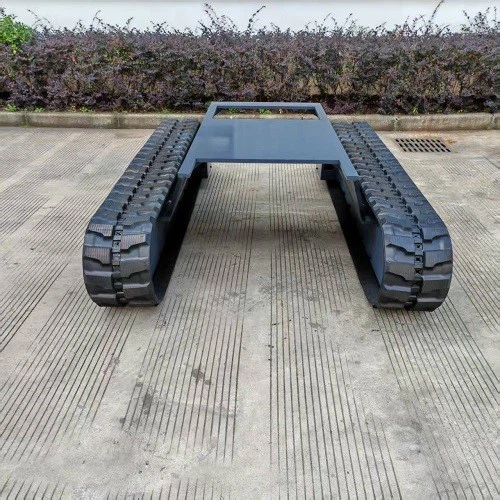

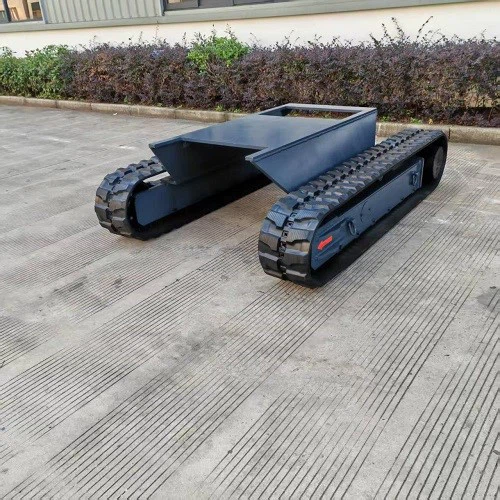

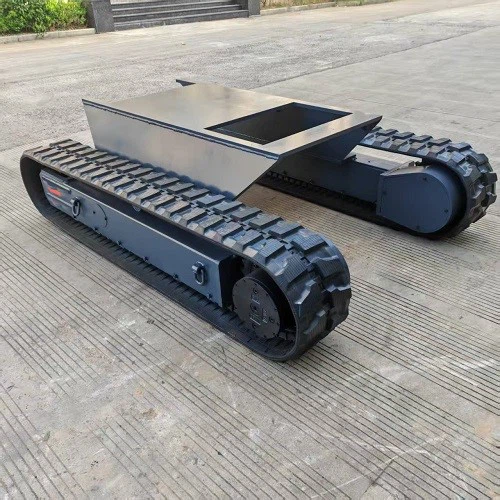

Steel track chassis introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 900kgs
Load capacity:6tons

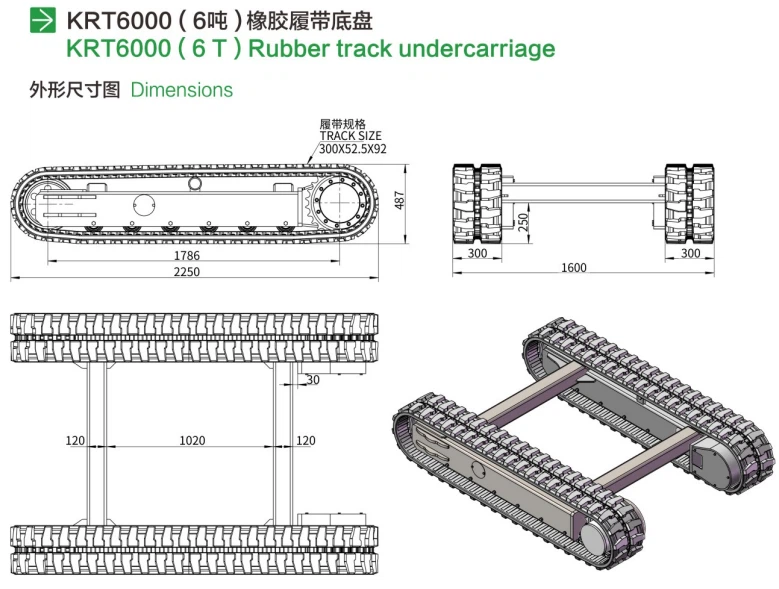

Technical Parameters
Performance parameter Type | Motor displacement ml/r | Work pressure Mpa | Traction force K/N | Travel speed(60L/min) km/h | Max grade ability a° | Dead weight kg | Load capacity kg |
KRT6000 | 44/22 | 20 | 143 | 1/2 | 30 | 900 | 6000 |
| Core Advantages: A Dual Assurance of Flexibility and Reliability
 |  |  |
Exceptional Ground Adaptability This chassis excels in navigating complex terrains. The specially designed rubber track pattern enhances friction, enabling smooth movement on uneven surfaces like mud, gravel, and gentle slopes. The soft rubber material minimizes pressure on the road, preventing damage to surfaces such as cement and asphalt, thus broadening its applicability. | Stable Load-Bearing for Secure Operations Tailored to the operational needs of small crushers, the chassis features a high-strength load-bearing structure capable of supporting 6 tons. It effectively disperses vibrations generated during operation, reducing wear on both the chassis and the crushing equipment, thereby enhancing operational stability. | Flexible Control for Convenient Steering Equipped with a nimble steering system and a small turning radius, this chassis allows for easy maneuvering in tight spaces. This flexibility significantly boosts operational efficiency for small crushers that require frequent repositioning, ultimately saving time during equipment movement. |
|
Structural Design: Focused on Practicality and Durability
The chassis structure adheres to the principles of "practicality, durability, and ease of maintenance." Key components are crafted from high-quality materials: the track features high-elasticity, wear-resistant rubber reinforced with steel cores, ensuring toughness and tear resistance for a longer lifespan. The chassis frame is constructed from robust welded steel, maintaining load-bearing performance while minimizing weight. The drive system is designed for simplicity and reliability, ensuring efficient power transmission and reducing failure risks. Additionally, the chassis includes clearly marked inspection windows and maintenance points, facilitating easy daily checks and lubrication, thus simplifying ongoing maintenance.
|
Adaptation Features: Effortless and Labor-Saving Docking Experience
To accommodate various small crusher models, this chassis employs a standardized connection interface for straightforward installation and docking. Whether integrating new equipment or retrofitting older models, installation can be completed swiftly without extensive modifications to the crusher. The chassis height and load-bearing balance point have been optimized to ensure a stable mechanical match with the small crusher, maintaining operational stability and mitigating potential safety risks.
|
FAQ
Q: What advantages does this have over steel track chassis?
A: The primary benefits include ground protection, reduced noise, and stable operation, making it ideal for environments with stringent requirements.
Q: What is the maximum weight it can support?
A: Our rubber chassis can bear between 1 to 10 tons, accommodating the needs of most small machinery.
Q: Can it be customized to fit my equipment size?
A: Absolutely! The track width and chassis dimensions can be adjusted to suit your specific equipment requirements.
Q: Is your factory specialized in this production?
A: Yes, we specialize in the R&D and manufacturing of both rubber and steel track chassis, backed by extensive production experience.
Q: Is the product quality assured?
A: Yes, each batch undergoes rigorous testing before leaving the factory to ensure reliable quality and stable operation.
Q: Can I visit the factory?
A: Certainly! You can arrange a visit to our factory by contacting us in advance.
