Rubber track undercarriage help your machines go where steel track undercarriage can’t. We can customize compact track loaders to your work and your terrain. Rigorously tested for fit and performance, they give your machines a softer touch on the ground while working as hard as you need them to on the job.
| Availability: | |
|---|---|
| Quantity: | |

|
Materials Needed
1.Rubber Tracks: Fit your design specifications.
2.Frame Materials: Steel to create the undercarriage frame.
3.Sprockets and Idlers: Depending on your design, you will need sprockets for the tracks to run on, as well as idlers to guide the tracks.
4.Drive Mechanism: Motors (electric or hydraulic) to drive the tracks.
5.Track roller
|
Diy Rubber Undercarriage Advantages
Customization and Adaptability
DIY designs allow for tailored solutions. For instance, modifying track width can enhance stability or maneuverability for specific terrains.
Industrial rubber undercarriages are designed for heavy machinery (1.5–120 tons) 7, but DIY versions can be scaled down for lightweight applications like robotics or model vehicles.
Environmental and Practical Benefits
Rubber tracks are quieter and cause less surface damage than steel tracks, a feature highlighted in industrial undercarriages. This advantage translates to DIY projects, especially for indoor or delicate environments.
Repurposing materials like plastic bottles reduces waste, aligning with sustainable practices
|
How to DIY Rubber Track Undercarriage?
Design the Undercarriage:
Plan your design considering the vehicle's intended use. This includes size, weight distribution, and track width.
Sketch the layout to visualize where each component will go.
Build the Chassis Frame:
Cut your frame materials to size based on your design.
Weld or bolt the pieces together to create a strong, stable frame.
Install Wheels:
Attach the idler wheels (which will face outward) at both the front and rear of the chassis.
Ensure that the drive wheels align centrally and that they fit securely to the chassis.
Mount Rubber Tracks:
Depending on your tracks, you may need to use brackets or rollers to keep them aligned properly.
Fit the tracks over the wheels, making sure they are tensioned correctly. Adjust as necessary to prevent slippage.
Install Drive System:
Attach your motor to either the front or the rear wheel, depending on your design.
Connect the motor to the wheels using sprockets and chains or belts, ensuring proper alignment for efficient power transfer.
Test and Adjust:
Once everything is assembled, conduct a careful test to see how well the undercarriage operates.
Check for proper tension in the tracks, alignment of wheels, and stability of the frame. Make adjustments as needed to optimize performance.
Finishing Touches:
Once the undercarriage is functioning well, you can paint or coat it to protect against wear and corrosion.
Consider adding features like guards for protection or improvements to aesthetics.

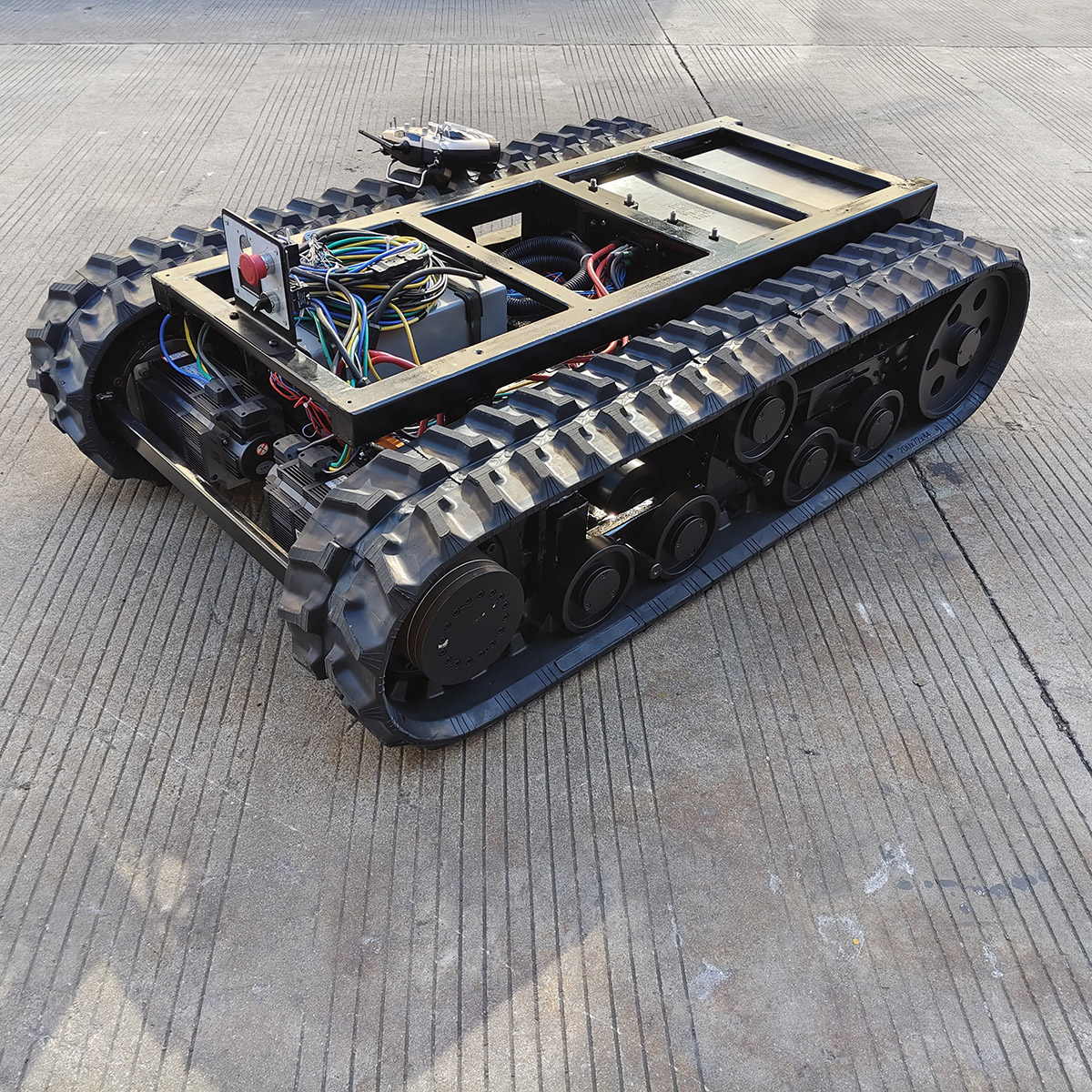

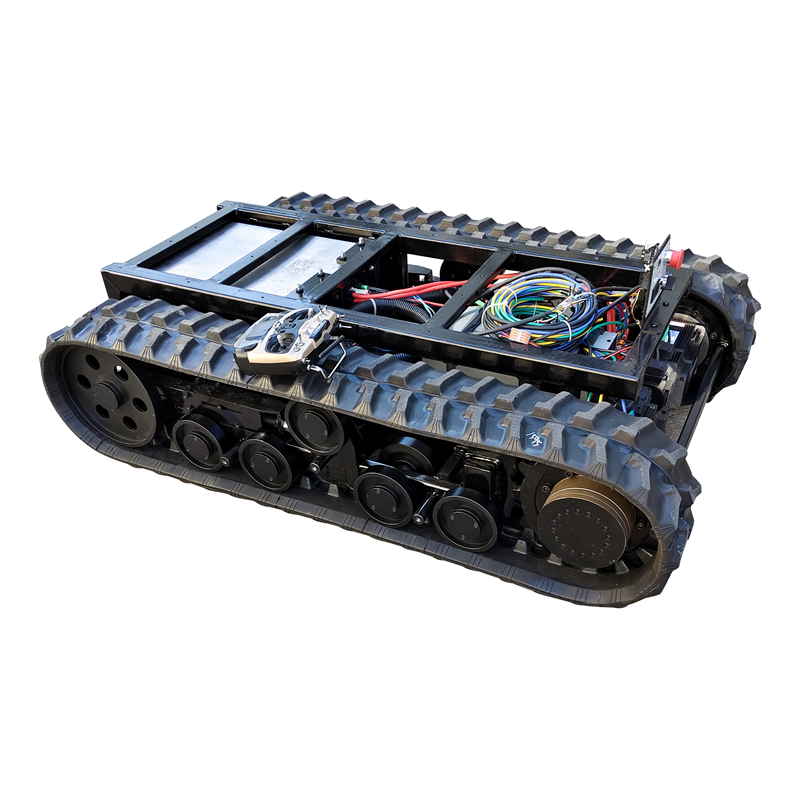

| DIY Rubber Track Undercarriage Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: kgs
Pallet size: 1470*1140*490mm
Load capacity: 1tons
|

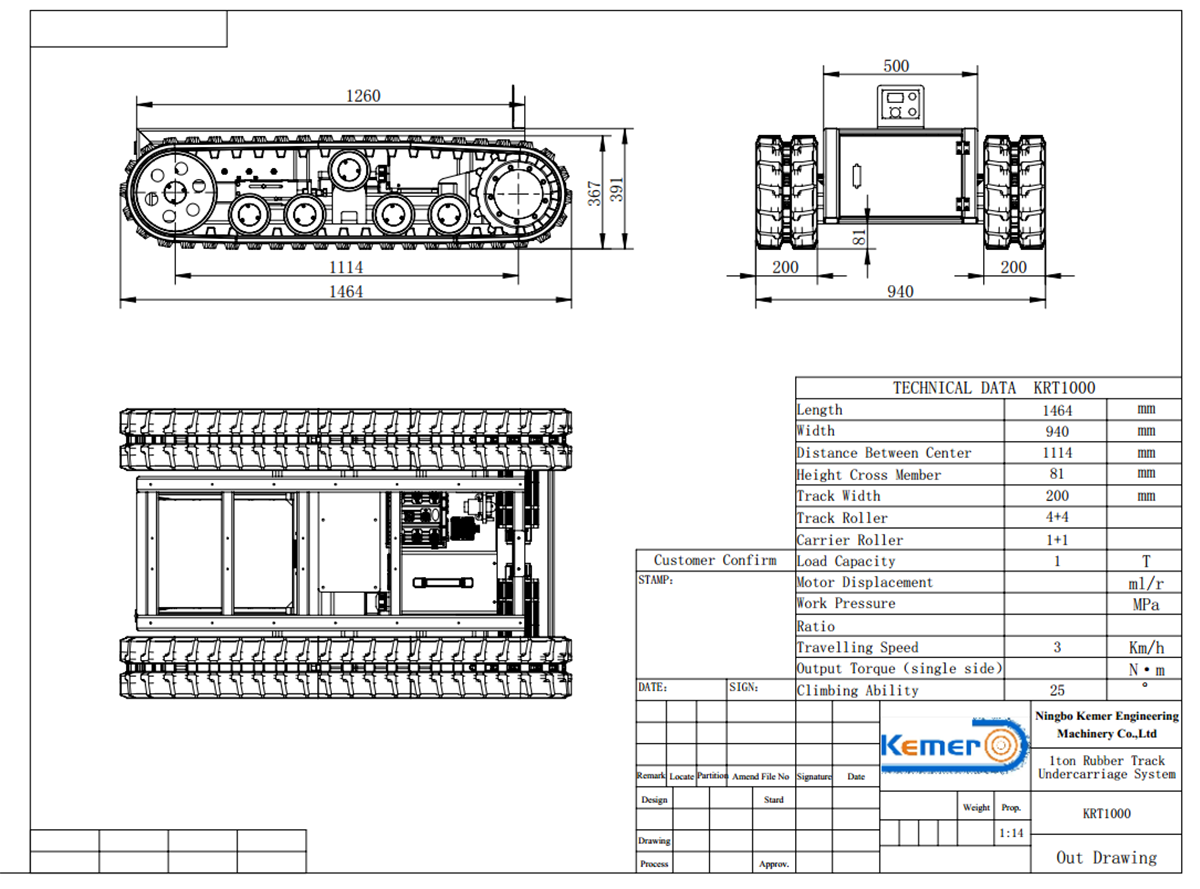

1.Technical parameters

Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KRT1000 | 3 | 25 | 1000 |
|

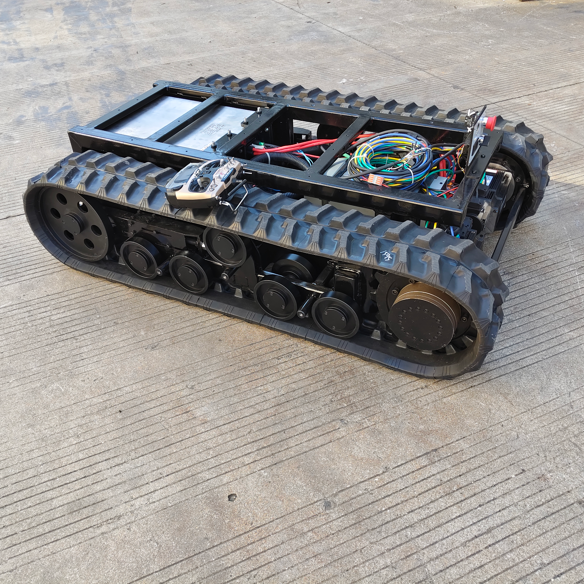

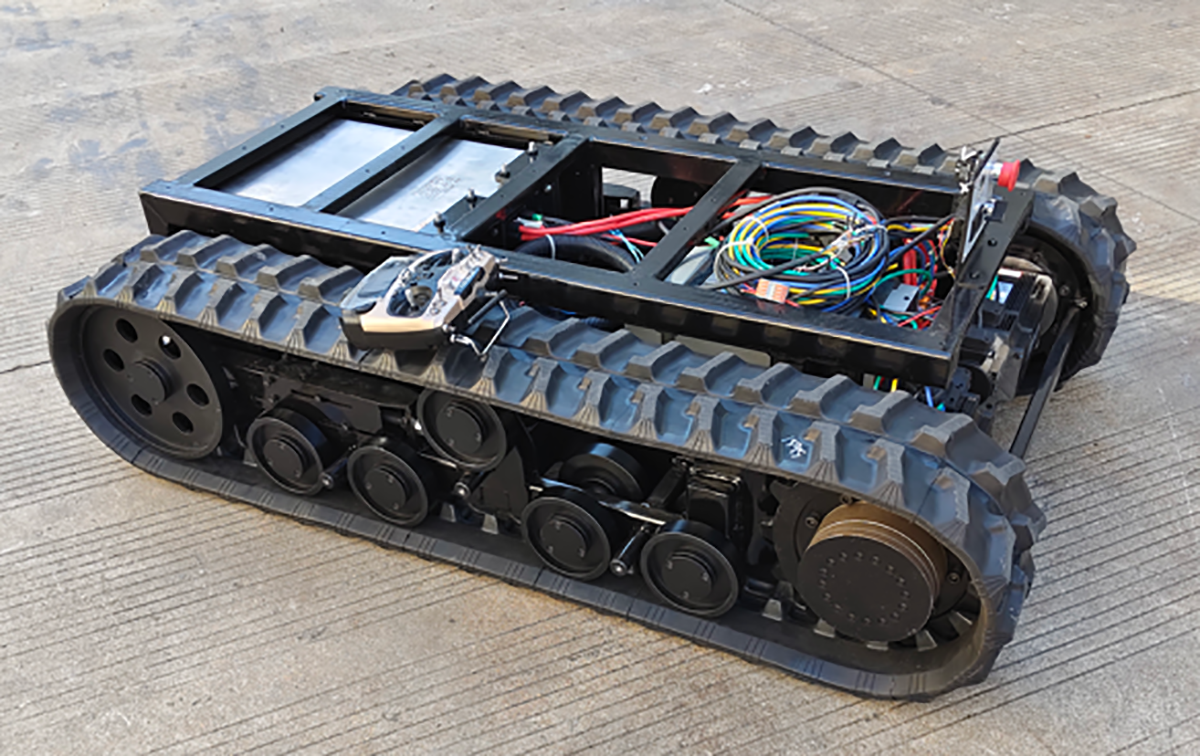

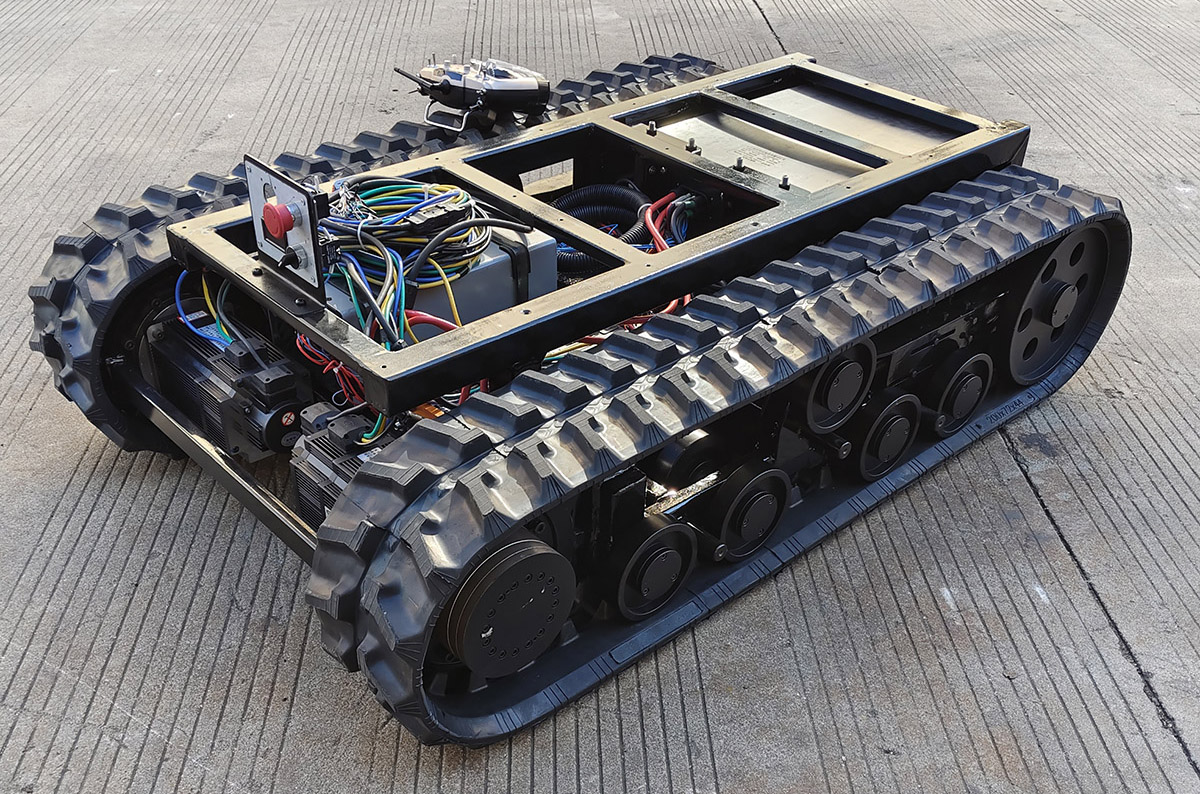

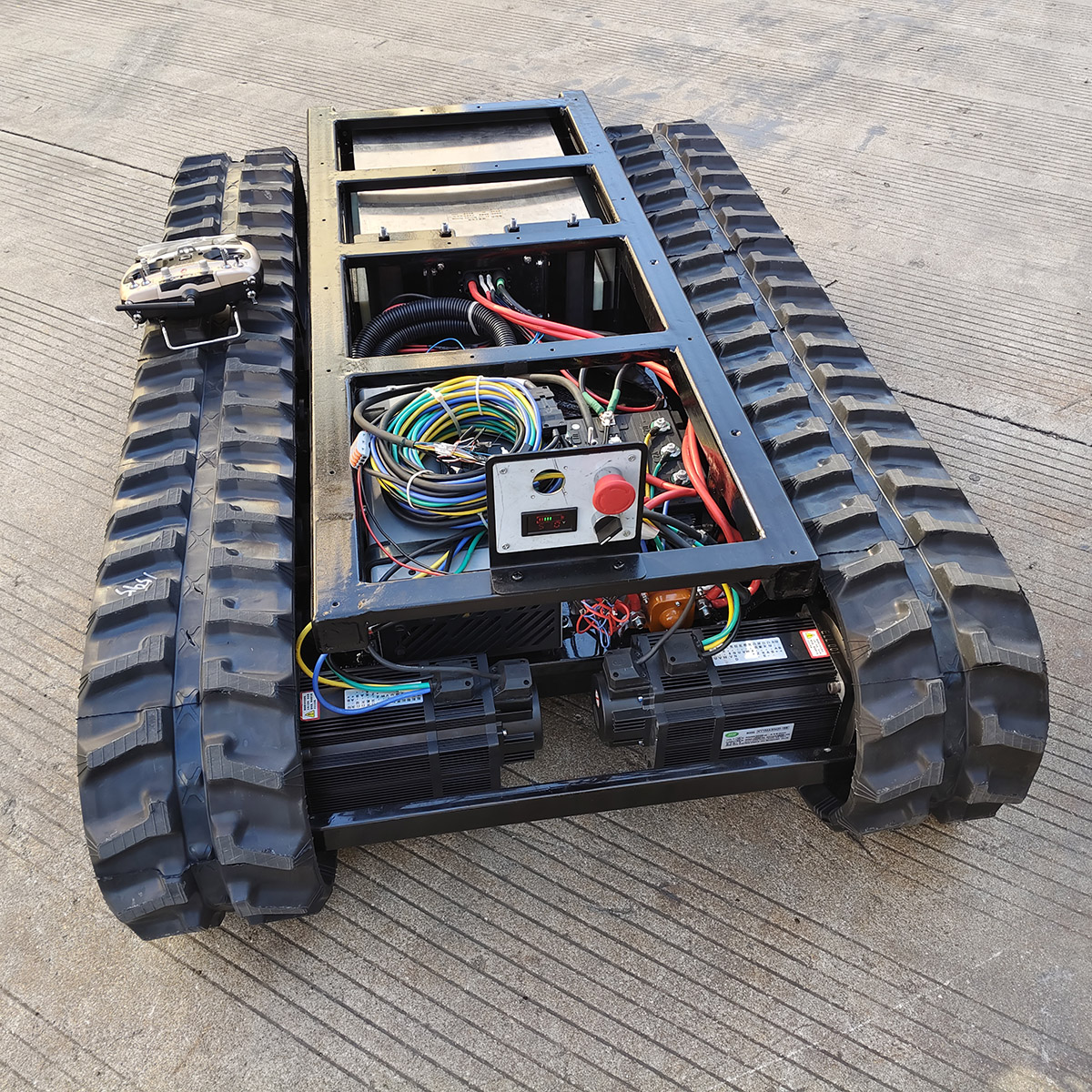

The DIY Rubber Track Undercarriage Samples



|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping

|
FAQ
Q: ls your company a trader or manufacturer?
A: We are the manufacturer,have more than 20years experience
Q: Can you supply customize service?
A: Yes,we can customize the chassis according to your demand and OEM is also available.
Q: How's your products?
A: We have professional engineers and experienced team,can supply 3D drawing.And with many years experience in this field,our product are widely welcomed by many customers.
Q: How's your warranty period?
A:We can give you one year after sales warranty
Q What's your MOQ?
A:1 set
Q:If l don't know what kind of the product I need, what should I do?
A: Just take it easy,you just need to provide us
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
