System Components
1. Power Unit
DC Motors (12V/24V): For mobile vehicle-mounted equipment
AC Motors (220V/380V): Industrial stationary applications
Servo Motors: Precision control applications
2. Transmission Mechanism
oPlanetary Gearbox (mainstream configuration, efficiency >90%)
Worm Gear (for self-locking requirements)
Spur Gear (economy solution)
3. Control System
PWM speed control module
Overload protection device
Remote control interface (CAN bus/Bluetooth)
Key Performance Parameters:
Parameter | Typical Range | Remarks |
Rated Power | 1-30kW | 3-8kW common for off-road winches |
Peak Torque | 500-5000Nm | Depends on reduction ratio design |
Line Speed | 5-30m/min | ≥15m/min recommended for recovery winches |
Protection Class | IP54-IP68 | Marine applications require ≥IP66 |
|
What are the advantages of Electric Winch Drive Systems?
1. Superior Energy Efficiency
High-efficiency motors (85-95% efficiency) reduce power consumption by 20-30% compared to hydraulic systems
Regenerative braking capability in advanced models recovers energy during lowering operations
2. Precise Speed Control
Stepless speed regulation (0-max speed) through PWM/vector control
±1% speed accuracy enables delicate positioning in lifting applications
Instant reverse capability for quick response operations
3. Compact & Lightweight Design
Integrated motor-gearbox units save 40% space compared to separate components
Aluminum alloy housings provide strength while reducing weight by 25-35%
4. Intelligent Operation Features
Load-sensing technology automatically adjusts power output
Smart protection against overload/overheat/phase loss
IoT connectivity for remote monitoring and diagnostics
5. Low Maintenance Requirements
Brushless motor options eliminate brush replacement needs
Sealed gearboxes with lifetime lubrication (5,000+ service hours)
Modular design enables quick component replacement
6. Environmental Adaptability
Wide temperature range (-30°C to +60°C) operation
Corrosion-resistant versions available for marine/offshore use
Explosion-proof certifications (ATEX/IECEx) for hazardous areas
7. Cost-Effective Operation
30% lower lifetime costs vs hydraulic systems (no fluid maintenance)
Standard power supply compatibility (no additional PTO required)
Energy savings of 15-25% compared to traditional designs
8. Safety Enhancements
Electromagnetic brakes hold loads securely without power
Emergency stop functions with <100ms response time
Automatic slack line detection prevents dangerous cable tangles
|

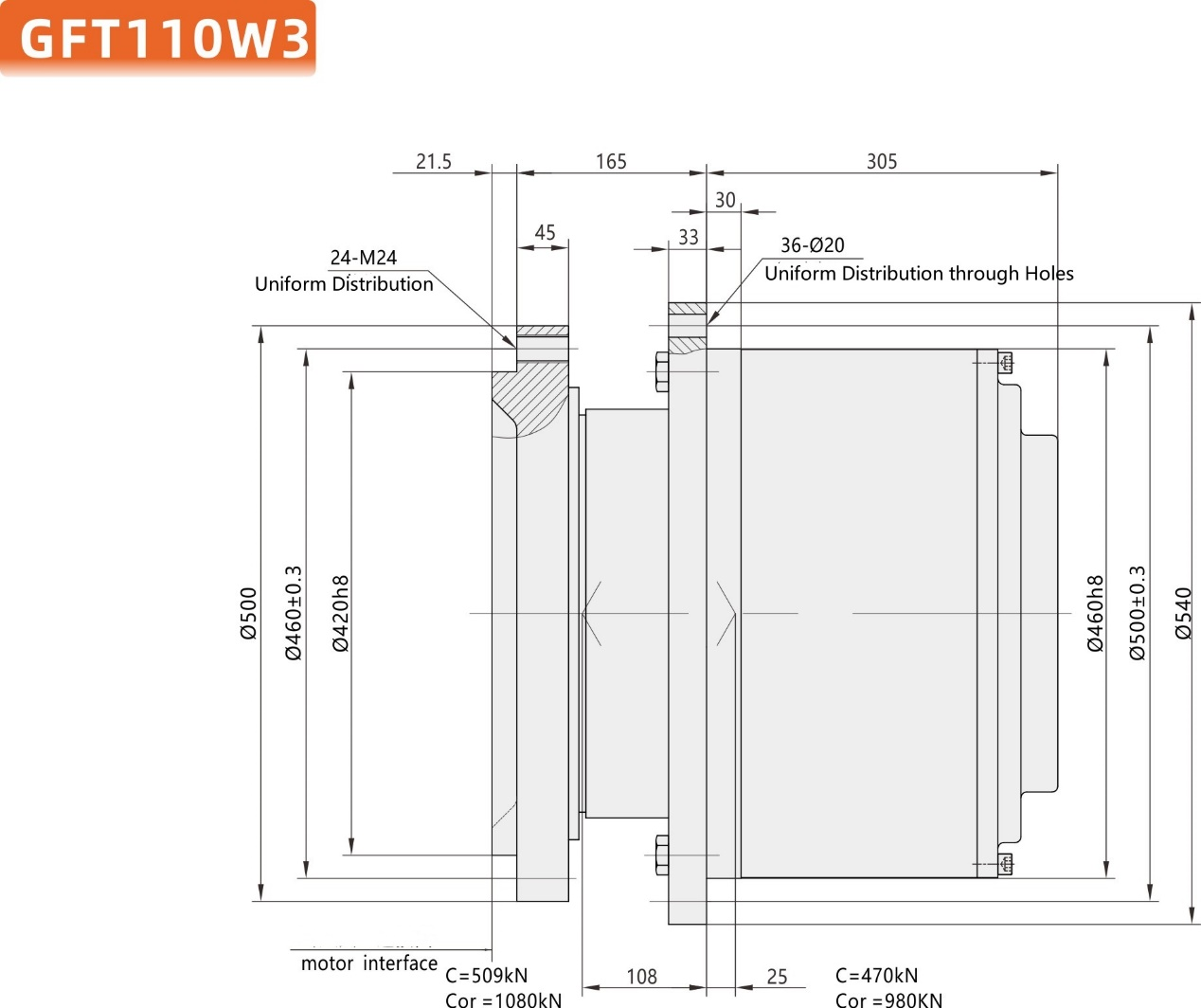

The Drawing and Technical Parameters

Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT110W3 | 100000 | 96 | A2FE107 A2FE125 A2FE160 A2FE180 | A6VE107 A6VE160 | 3500 | 1000 | 1.8-5 | 395 |
|
Industry Solutions
1. Off-Road Recovery
Configuration: 4.6kW series-wound motor + 3-stage planetary reduction
Features: Anti-vibration mount, quick-disconnect interface
2. Industrial Lifting
Configuration: 15kW variable-frequency motor + helical gearbox
Features: Dual braking system, absolute encoder
3. Marine Applications
Configuration: 7.5kW fully sealed motor + stainless steel gearbox
Features: Seawater cooling channel, electrolytic protection
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T .
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.

|
FAQ
Q: Is the GFT110W3 Winch Drive customizable?
A: Yes, the GFT110W3 Winch Drive can be customized to meet the specific needs of different equipment.
Q: How long is the lifespan of the GFT110W3 Winch Drive?
A: With normal use and regular maintenance, the GFT110W3 Winch Drive can last for several years, depending on the working environment and intensity of use.
Q: What are the technical specifications of the GFT110W3 Winch Drive?
A: Rated torque, Maximum speed, Weight, Suitable equipment weight range.
Q: Can gearboxes be repaired or must they be replaced?
A: Repairable if: Only seals/bearings are damaged;
Replace if: Gears are pitted/cracked (costs often exceed new unit).
Q: What's your MOQ?
A: 1 set.
