Our Products Are Widely Used in The Following Applications
Drilling Rig: Anchoring drill, water well drilling rig,Core drilling rig,jet drilling rig,down-hole drill,crawler hydraulic drilling rig,For poling Rig,trenchless drill etc.
Mechanical Engineering: Excavator,small pile driver,aerial work platform,small size loader etc.
Coal mine: Slag removing machine,underground drilling rig,Full hydraulic drilling rig,Hydraulic drill carriage and rock loading machine etc.
Mine: movable crusher,heading machine,conveying equipment etc.
Agricultural equipment: cane harvester,lawn mower,Ditching machine,etc.
|
Undercarriage Systems Advantages
Improved Load Distribution: Tracks help in distributing heavy loads, allowing for the transportation of heavier equipment or materials without damaging the terrain.
Low Maintenance Roads: Because tracks spread the weight of the vehicle, they can travel on less maintained roads without getting stuck, making them valuable in remote and rugged locations.
Durability and Longevity: Tracked systems are generally robust and can withstand harsh conditions and rough treatment, leading to longer service life compared to wheeled vehicles.
Enhanced Mobility: Tracked vehicles can often pivot in place (due to differential steering), making them highly maneuverable in tight spaces, which is especially beneficial in construction and military operations.
|
How Can I Find Reliable and Capable Undercarriage
Systems Manufacturers That Offer Better Cost Performance?
Research and Identify Potential Manufacturers:
Use online resources, B2B platforms (like Alibaba, Made-in-China), and industry directories to compile a list of undercarriage manufacturers.
Check Reviews and Ratings:
Look for customer reviews and ratings on platforms such as Google, social media, and industry forums. This will help you gauge the reputation of each manufacturer.
Evaluate Experience and Expertise:
Investigate the manufacturer's experience in the industry. Companies with a long history are often more reliable. Review their product portfolio to ensure they specialize in the type of chassis you need.
Request Samples and Specifications:
Reach out to potential manufacturers and request product samples or detailed specifications. This will help you assess the quality and suitability of their chassis for your needs.
Compare Prices and Offerings:
Solicit quotes from multiple manufacturers and compare their pricing, payment terms, and delivery schedules. Consider not only the price but also the quality and features of the products offered.
Ask for References:
Request references from previous clients. Contact these references to gain insights into their experience with the manufacturer regarding quality, reliability, and support.
Visit Facilities (if possible):
If feasible, visit the manufacturer's production facilities. This allows you to see their operations, quality control processes, and overall capabilities firsthand.
|

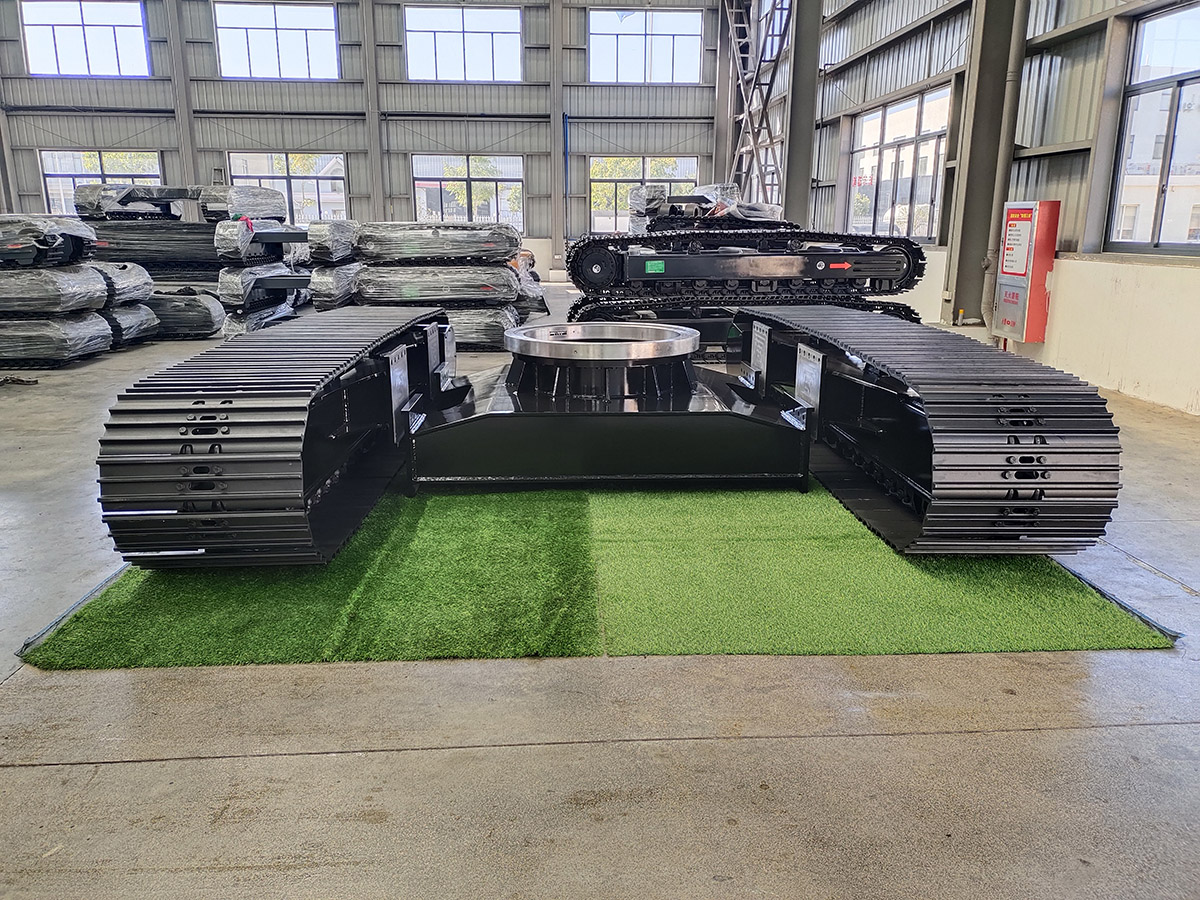

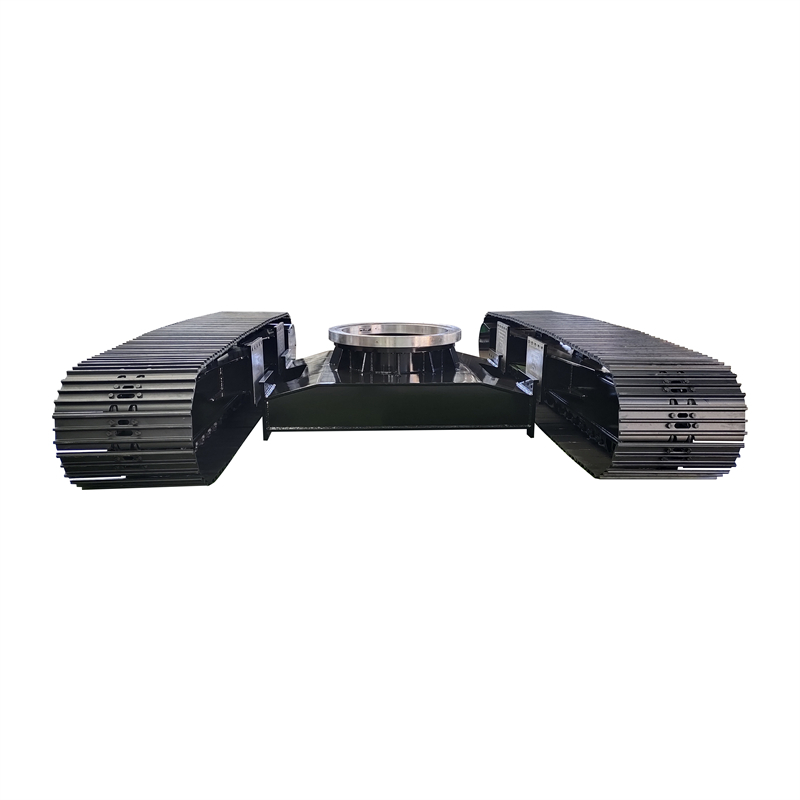

Udercarriage Systems Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 5115kgs
Pallet size: 4660*1000*880mm
Load capacity: 35tons
|

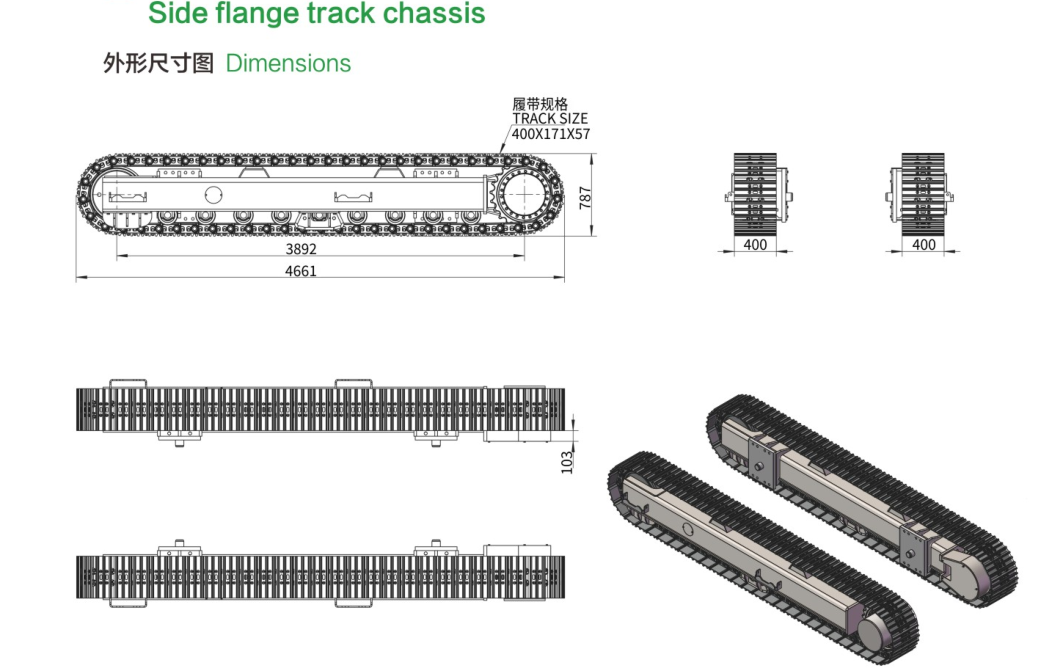

1.Technical parameters
Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KST35000 | 176/122 | 28 | 250 | 2.9/4.2 | 110 | 25 | 5115 | 35000 |
|

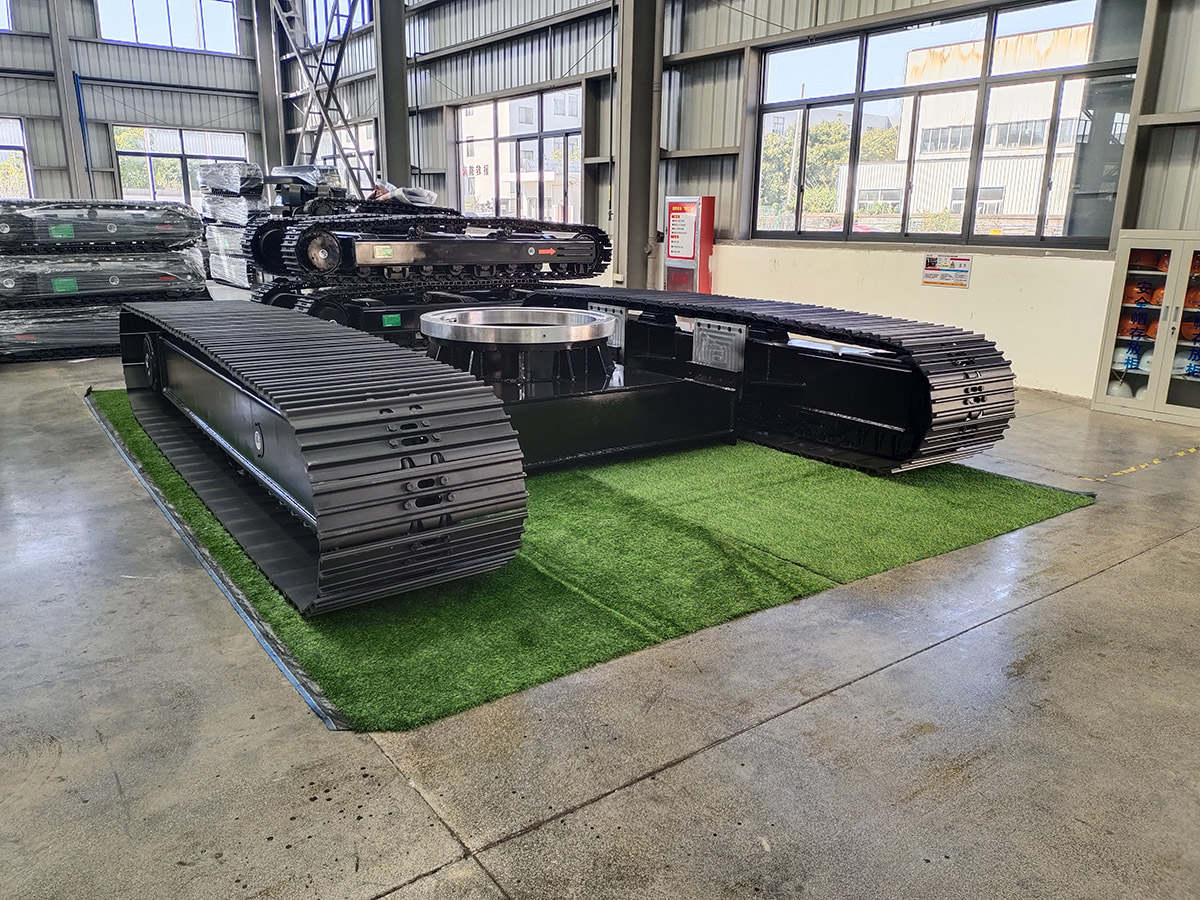

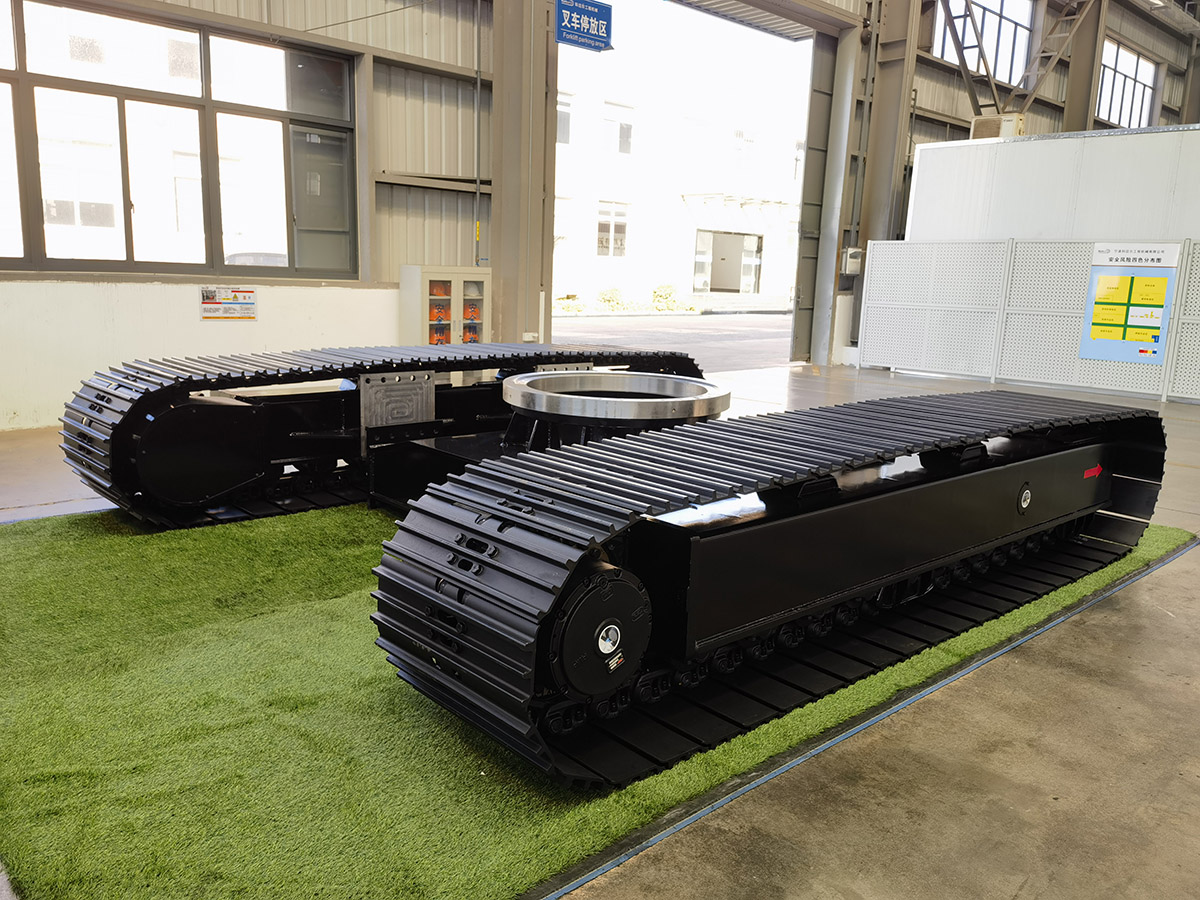

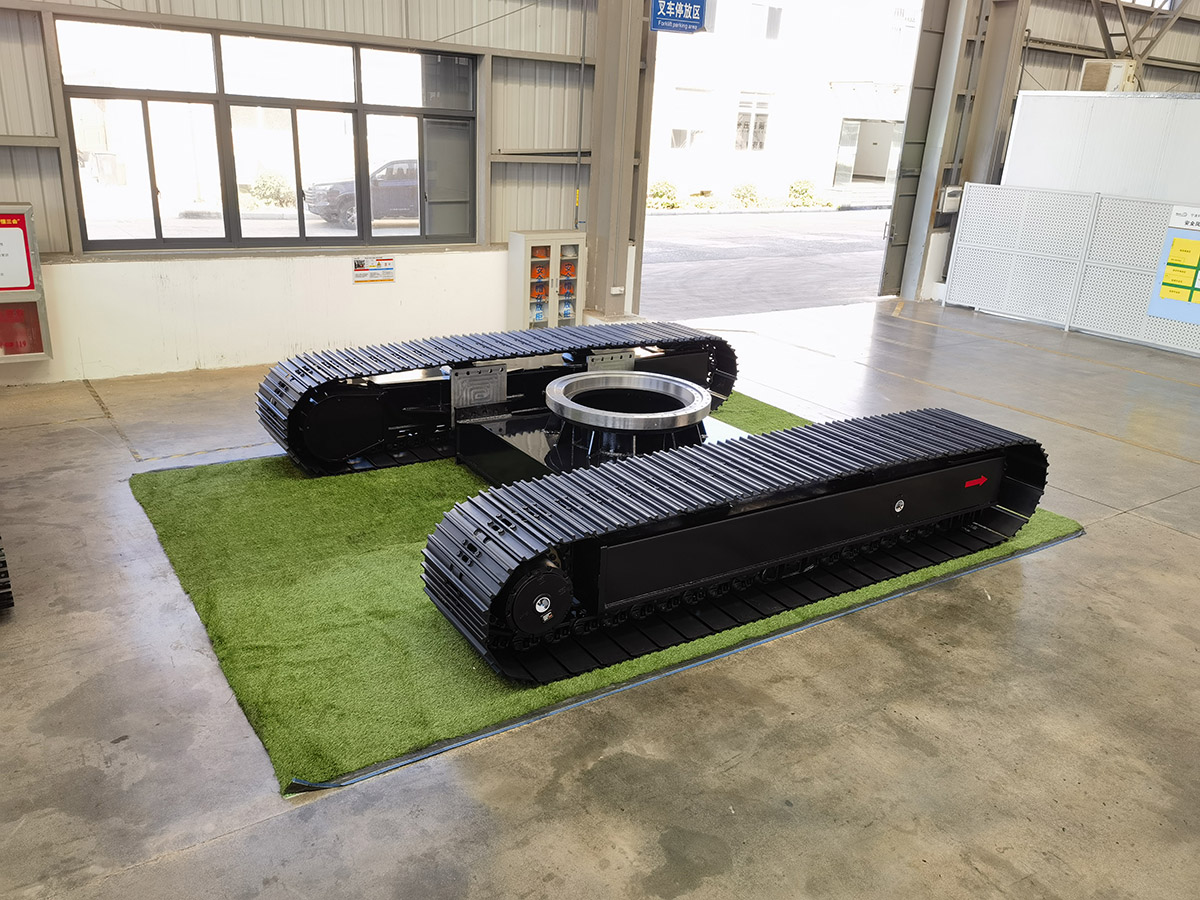

Undercarriage Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
A: In Ningbo city,China.
Q: When did your factory established?
A: Since 2012
Q: How many square meters of your factory?
A: More than 16000 square meter.
Q: How many workers in your factory?
A: 100 workers.
Q: How to place order?
A: In order to recommend a suitable drawing and quotation to you,we need to know:
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
