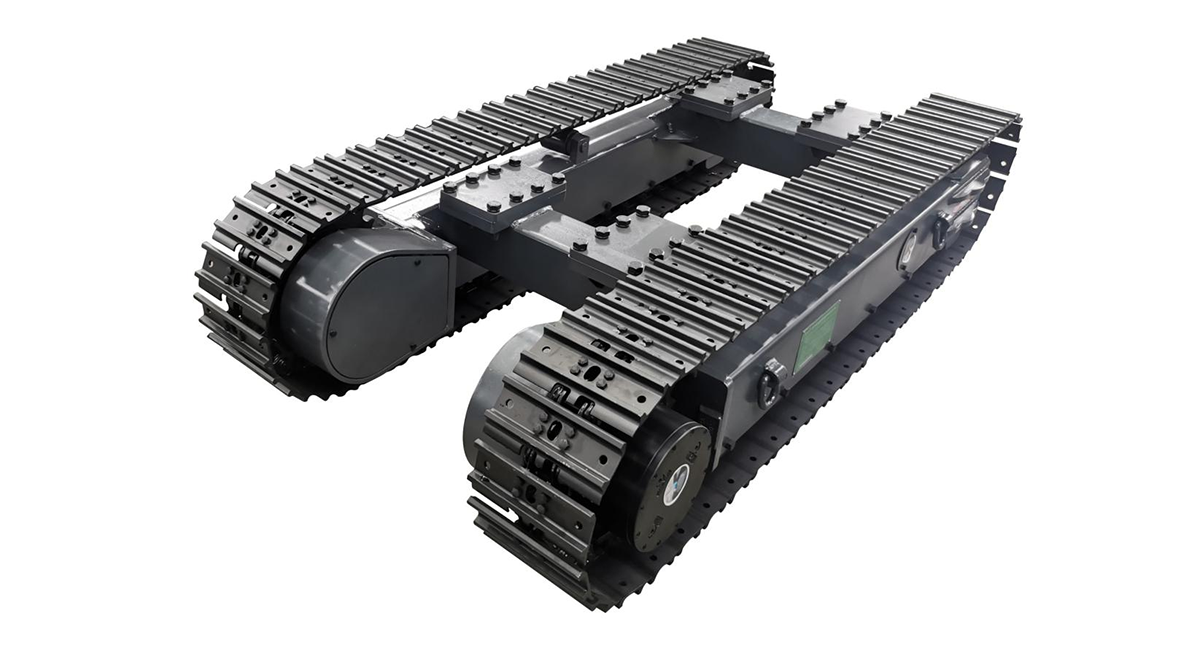

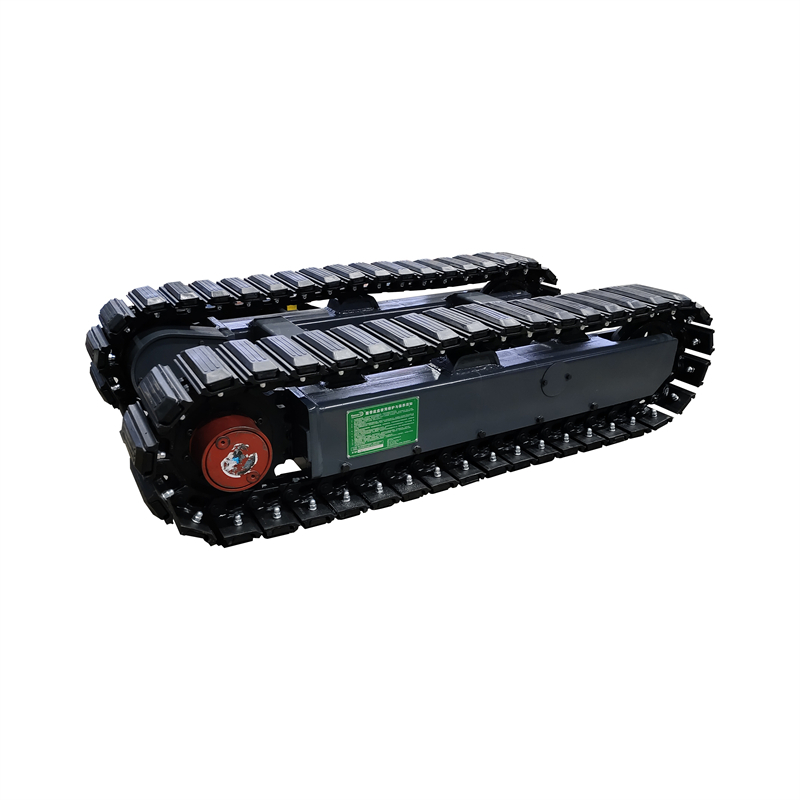

KST2000 2-Ton Steel Track Chassis
The Steel Track Chassis Advantages
Excellent Traction:
Enables vehicles to navigate complex terrains like rough, muddy, and slippery surfaces, reducing stuck risks and improving overall mobility.
Outstanding Durability:
Bears heavy loads and continuous operation with minimal wear, lowering maintenance frequency and long-term costs in industrial and construction fields.
High Stability:
Wide track contact area distributes weight evenly, enhancing vehicle balance and preventing overturns to ensure safe, precise operations.
Good Adaptability:
Easily customized according to different machinery types to fulfill specific industrial requirements across diverse work environments.
What to Look for When Purchasing a Track Chassis
When purchasing a track chassis for construction equipment, agricultural machinery, or specialized vehicles, consider the following key factors:
Load Capacity:
The maximum total weight the track chassis must support, including the main structure, attachments, and payload.
Terrain Suitability:
Soft, muddy, or uneven ground requires low ground pressure and enhanced traction, while rocky or hard surfaces call for rugged components.
Track Design & Material:
Wider track shoes improve stability and weight distribution. Steel tracks offer maximum durability in harsh environments compared to rubber alternatives.
Steel Track Chassis Overview
| Drive Method | Hydraulic drive |
|---|---|
| Load Capacity | 2 Tons (2,000 kg) |
| Dead Weight | 500 kg |
| Pallet Size | 1610 × 1200 × 500 mm |
| Warranty | 12 months free |
Technical Parameters
| Model | Motor Displacement (ml/r) | Work Pressure (MPa) | Traction Force (kN) | Travel Speed (km/h) | Ground Pressure (kPa) | Max Gradeability (°) | Dead Weight (kg) | Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|
| KST2000 | 200 | 14 | 34 | 3 | 35 | 30 | 500 | 2000 |

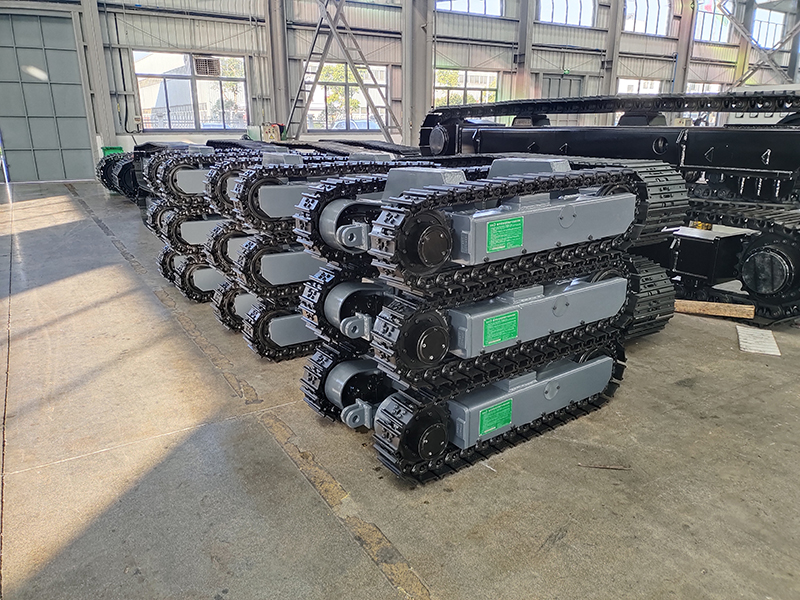

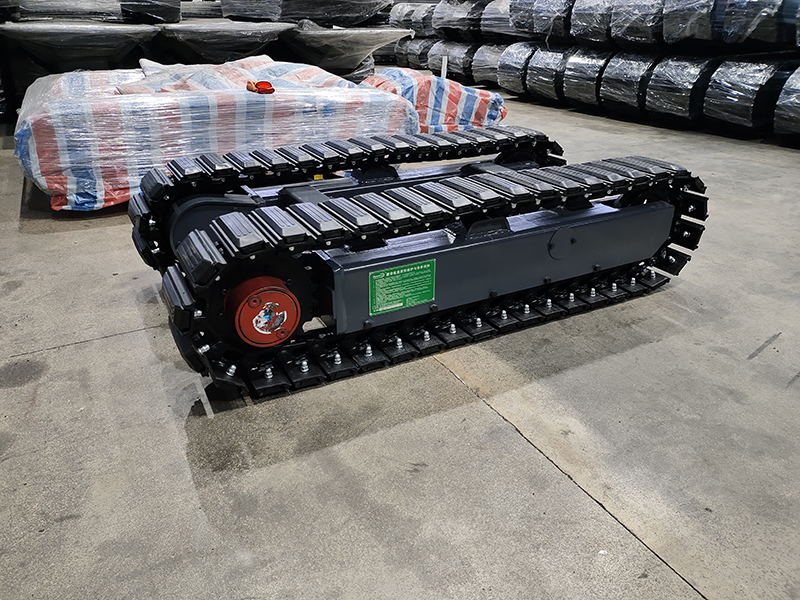

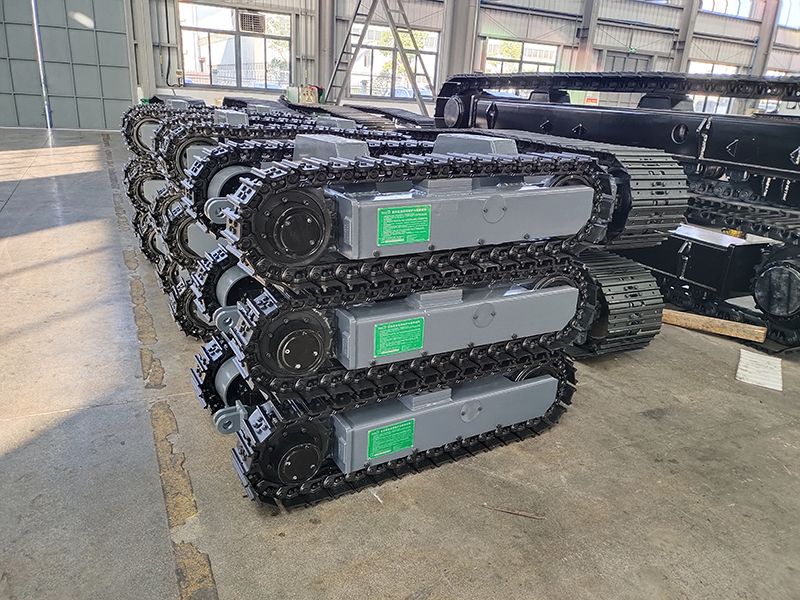

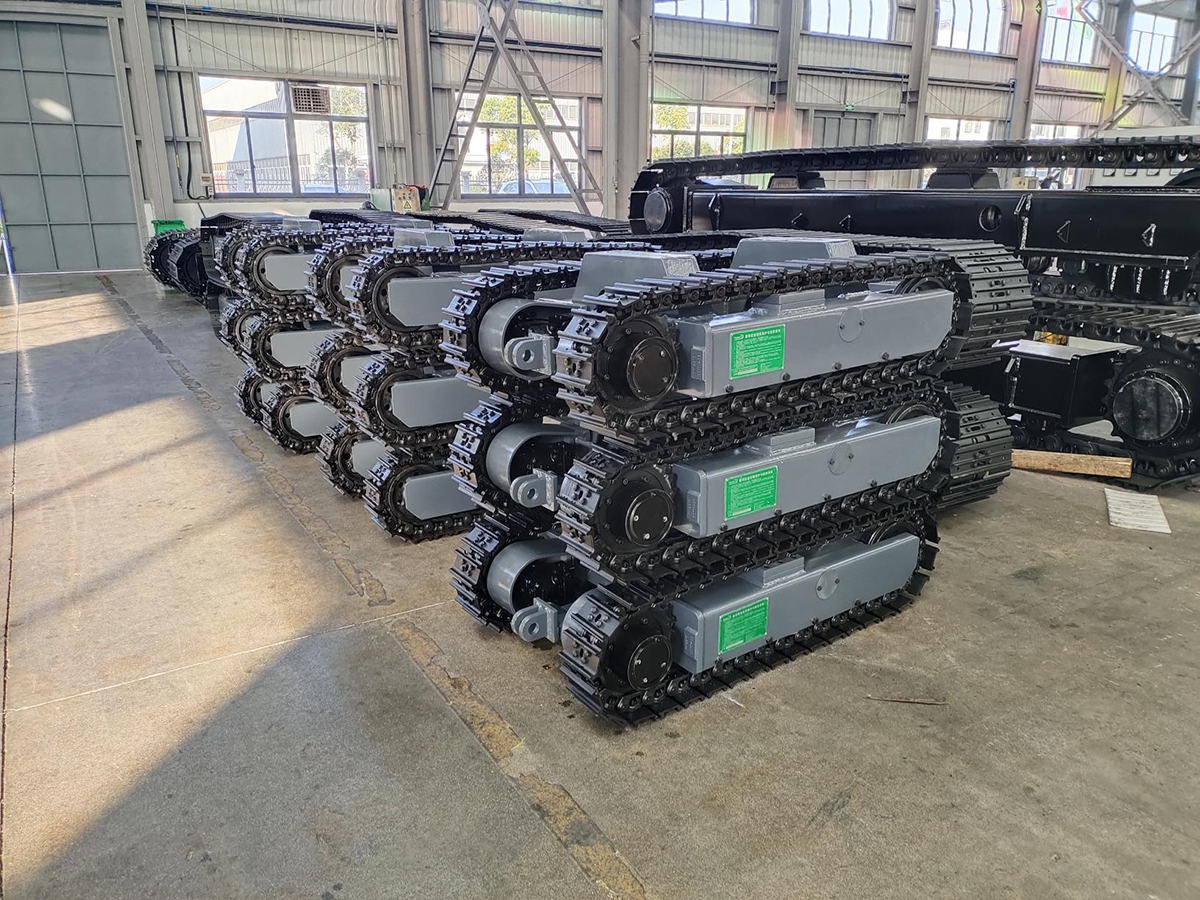

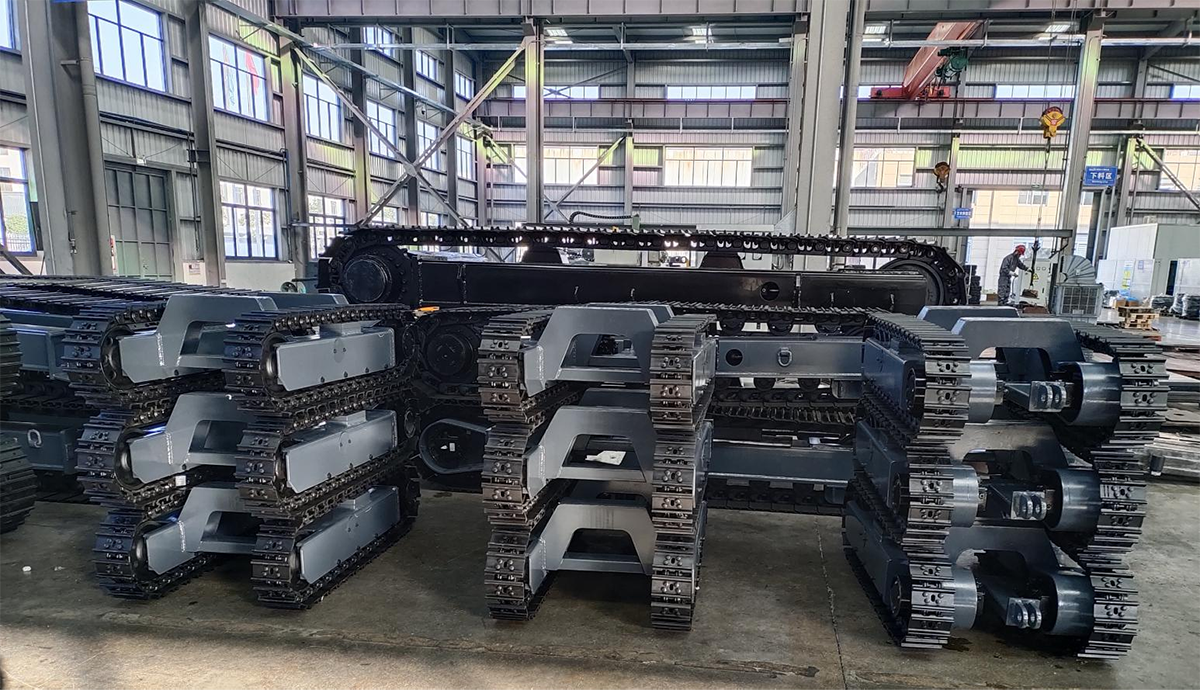

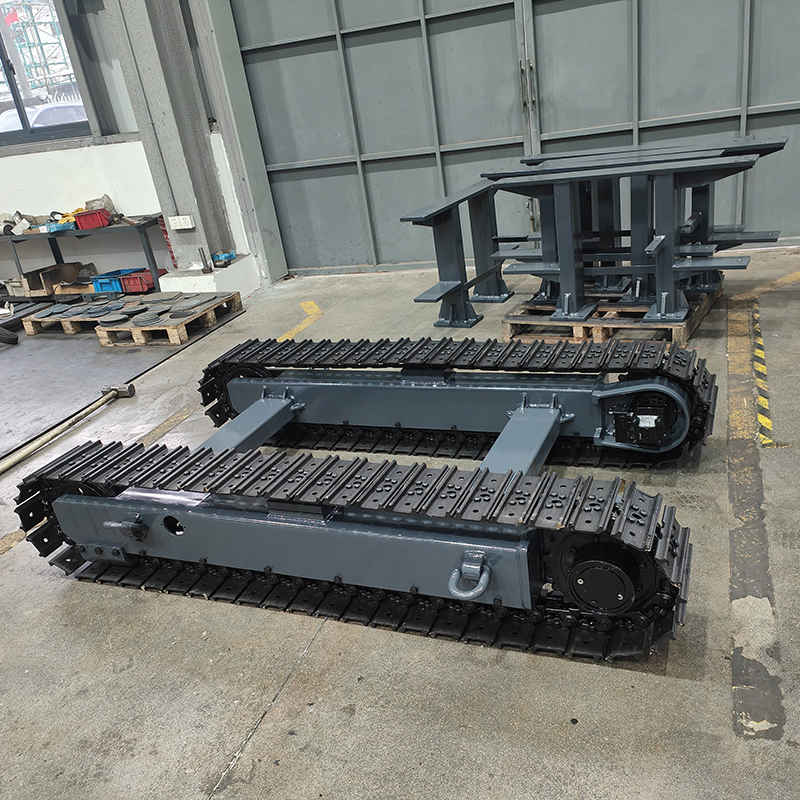

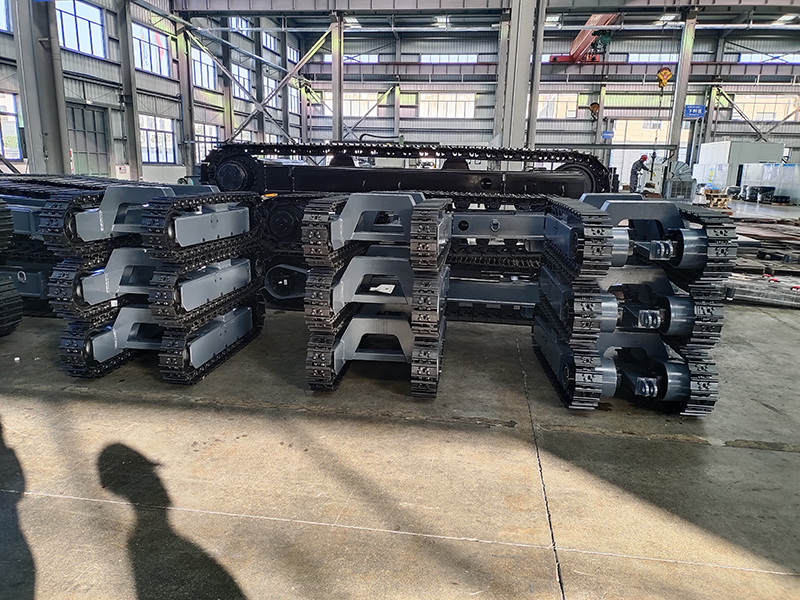

Steel Track Chassis Samples
Payment Terms, Delivery and Service
Payment: 30% deposit, 70% before shipment. Negotiable payment terms, generally via T/T.
Delivery: 20–25 days after receipt of payment.
Service: 24 hours online service, technical overseas service.
Frequently Asked Questions
Q: Is your company a trader or manufacturer?
A: We are a direct manufacturer with over 20 years of industry experience.
Q: Can you supply customized service?
A: Yes, we customize the chassis according to your demand, and OEM service is available.
Q: How do you ensure product quality and design accuracy?
A: We have professional engineers and an experienced team providing 3D CAD drawings prior to manufacturing.
Q: How long is your warranty period?
A: We provide a 1-year (12 months) comprehensive after-sales warranty.
Q: What is your Minimum Order Quantity (MOQ)?
A: Our MOQ is 1 set.
