1 Ton Hydraulic Hoist & PYJ22 Series Winch
Advantages of 1 Ton Hydraulic Hoist
-
High Lifting Capacity: Capable of lifting up to 1 ton (approximately 2,000 lbs.), making it suitable for many heavy-duty lifting applications.
-
Hydraulic Efficiency: Utilizes hydraulic power for lifting, providing greater efficiency and force with less manual effort compared to mechanical hoists.
-
Smooth Operation: Offers smooth and controlled lifting and lowering of loads, reducing the risk of sudden drops or jerks that can lead to accidents or equipment damage.
-
Compact Design: Designed to be compact and lightweight, making it easy to store, transport, and use in confined spaces.
-
Low Maintenance: Generally requires less maintenance due to fewer moving parts and less wear and tear. Routine checks and fluid replacements are usually sufficient.
-
Environmentally Friendly: Produces less noise and vibration compared to manual or gas-powered alternatives, making it ideal for noise-sensitive environments.
What to Consider When Choosing a 1-ton Hydraulic Hoist?
-
Type of Hoist: Decide whether you need a manual or powered hoist based on your specific needs.
-
Pull Force: Consider the maximum pulling force required for your application.
-
Power Source: For powered models, determine if you need electric or hydraulic based on your working environment.
-
Mobility: Choose a hoist that fits your space requirements and can be easily moved if necessary.
-
Safety and Compliance: Ensure the hoist meets relevant safety standards and is suitable for the intended use.

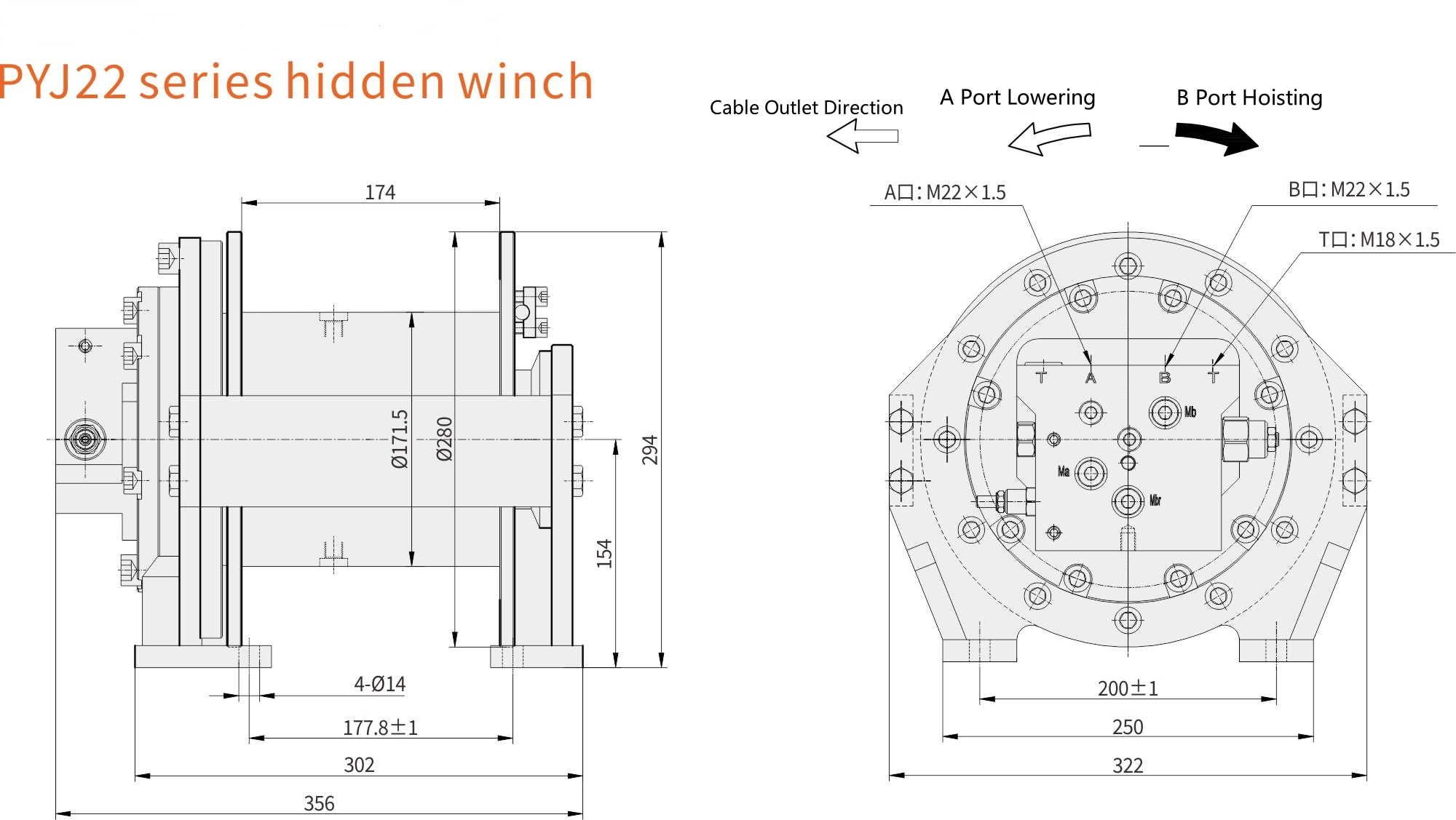

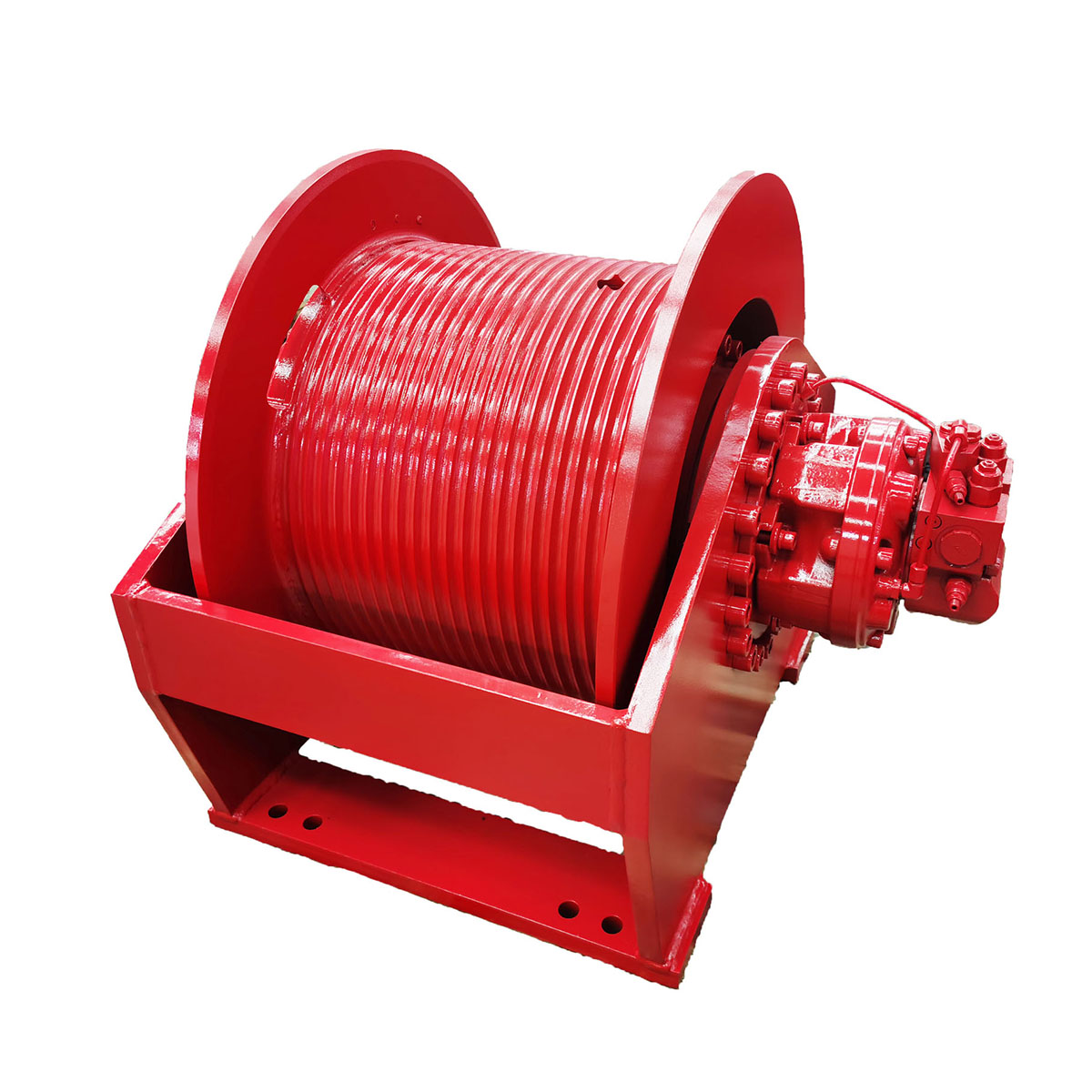

1 Ton Hydraulic Hoist Introduction
| Model | PYJ22 |
|---|---|
| Load capacity | 1-2.5 ton |
| Rope capacity | 20 - 100 m |
| Working speed | 10 - 40 m/min |
| Hydraulic motor | PM35 |
| Warranty | 12 months free |
Technical Parameters
| Model | The 1st layer | Total displacement (ml/r) | Working pressure diff. (MPa) | Oil flow supply (L/min) | Rope diameter (mm) | Layer | Wire rope Capacity (m) | Hydraulic motor | Gearbox model (Ratio) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Pull (kN) | Rope speed (m/min) | |||||||||
| PYJ22-10-86-8-ZPND | 10 | 40 | 480.9 | 16 | 36 | 8 | 6 | 86 | IM22 | KC22(i=21.8) |
| PYJ22-15-55-10-ZPND | 15 | 40 | 568.4 | 21 | 43 | 10 | 5 | 55 | IM26 | |
| PYJ22-20-55-10-ZPND | 20 | 40 | 644.9 | 24 | 49 | 10 | 5 | 55 | IM30 | |
| PYJ22-25-38-12-ZPND | 25 | 40 | 762.9 | 25 | 57 | 12 | 4 | 38 | IM35 | |

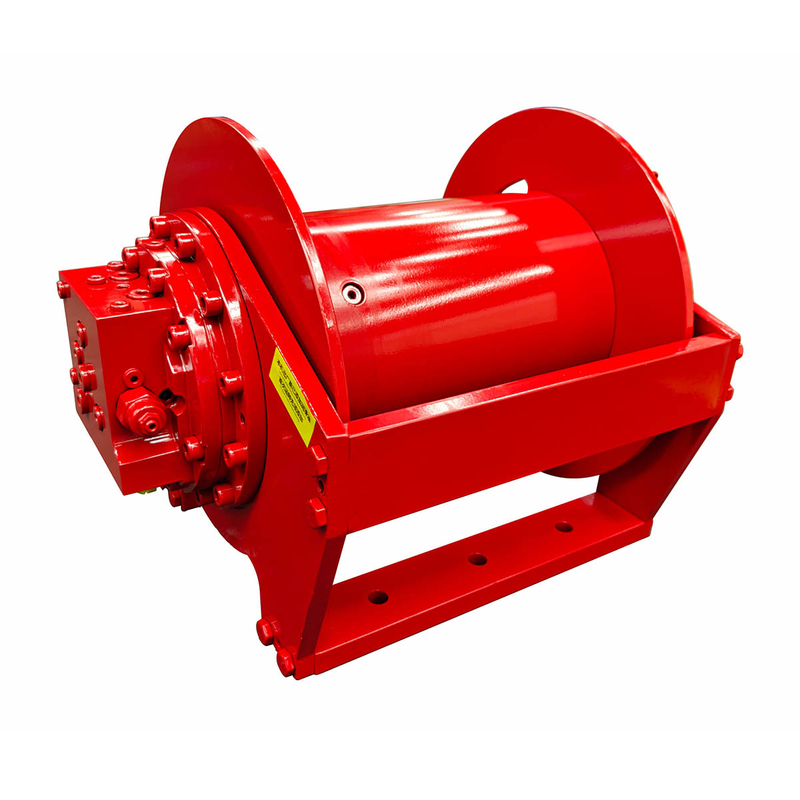

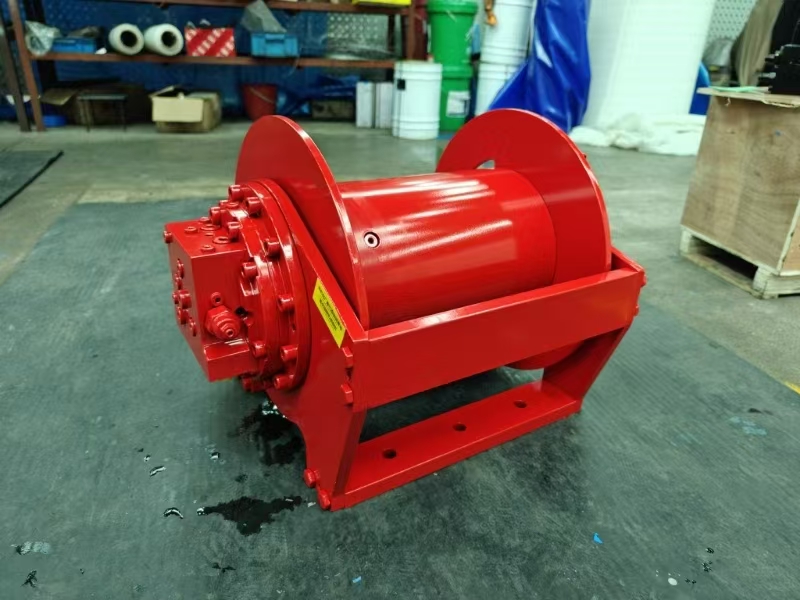

1 Ton Hydraulic Hoist Samples
Payment Terms, Delivery and Service
-
Payment: 30% deposit, 70% before shipment. All the payment can negotiate, generally by T/T.
-
Delivery: 35-40 days after receipt of your payment (Stock items take 5-7 days).
-
Service: 24 hours online service, technical overseas service.
FAQ
-
Q: Are you a trading company or manufacturer?
-
A: We are a professional manufacturer specialized in hydraulic winches and undercarriages, trading directly with our clients.
-
Q: How many square meters is your factory?
-
A: More than 16,000 square meters.
-
Q: How many workers are in your factory?
-
A: 100 workers.
-
Q: Can you do OEM and ODM?
-
A: Yes, OEM and ODM are both acceptable. Material, color, and style can be customized.
-
Q: What’s your MOQ?
-
A: Usually 1 set. For special types, we can discuss based on the exact situation.
-
Q: What certificates do you have?
-
A: CE, ISO9001, ISO14001, ISO45001.
-
Q: What should I supply to get a suitable model of hydraulic winch and quotation?
-
A: To recommend the most suitable model, we need to know:
-
Line pull (t)
-
Line Speed (m/min)
-
Drum capacity / Rope Length (m)
-
Rope Diameter (if available)
-
With brake or not
-
Which kind of machine does the hydraulic winch apply to?
-
Hydraulic system pressure and pump flow (if available)
-
Other special requirements
-
