Vtrack Tracked Undercarriage Parts & KST3500 Chassis
Vtrack Undercarriage Advantages
-
Cost Control:
In-house manufacturing enables superior cost control, eliminating middleman markups and outsourcing overheads.
-
Quality Assurance:
Dedicated production lines guarantee rigorous quality management and standardized testing protocols for all components.
-
Quick Response:
Agile production planning allows rapid adjustments to meet urgent customer orders and market shifts.
-
Technological Innovation:
In-house R&D drives continuous structural improvements and engineering innovation for tough operational conditions.
-
Supply Chain Efficiency:
Direct raw material procurement and optimized logistics streamline overall production speed and delivery timelines.
What Is a Track Undercarriage?

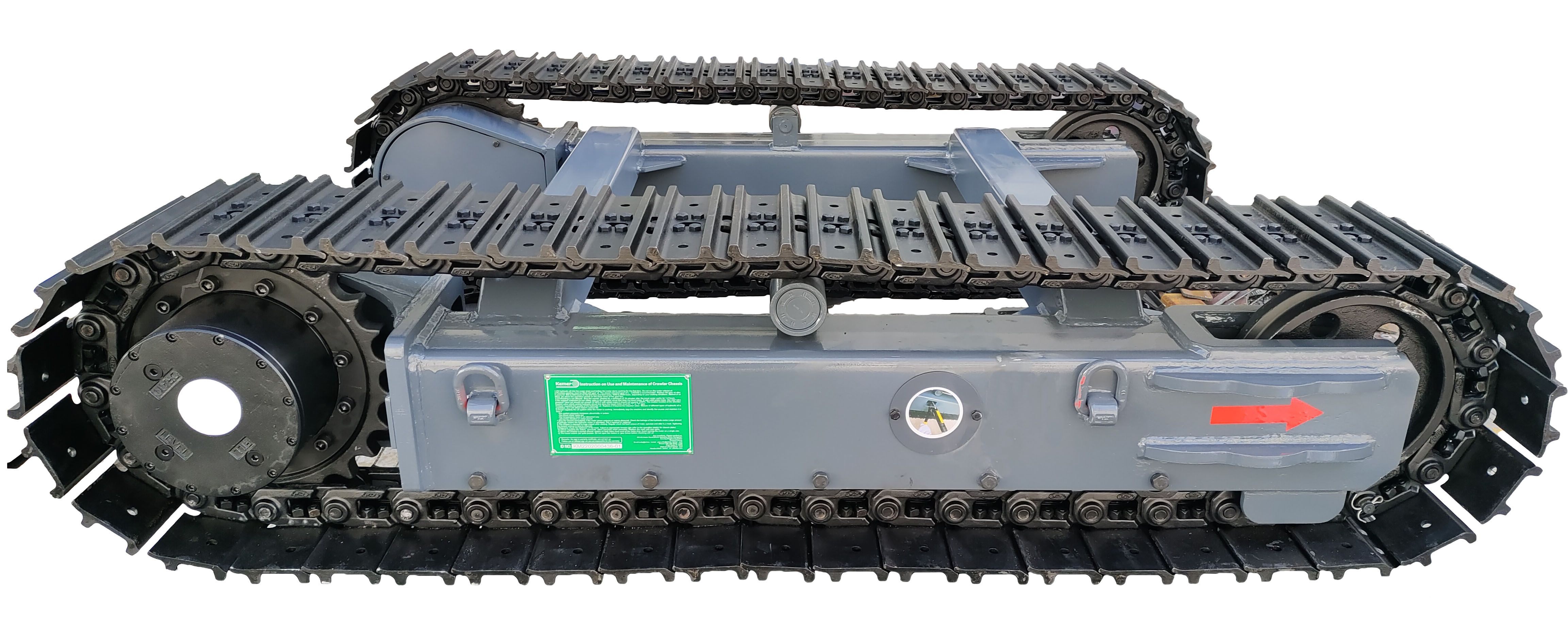

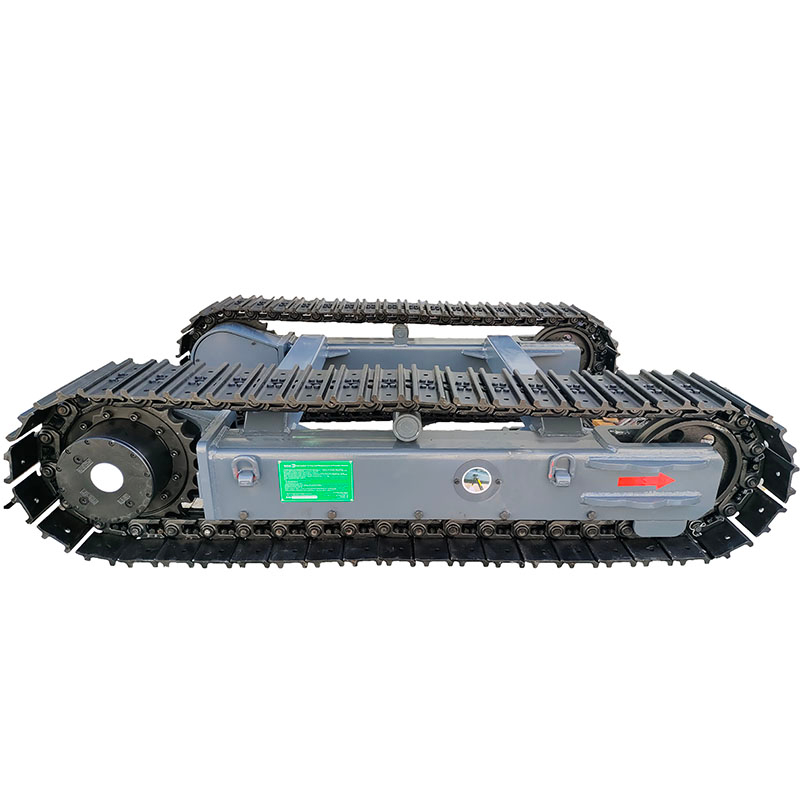

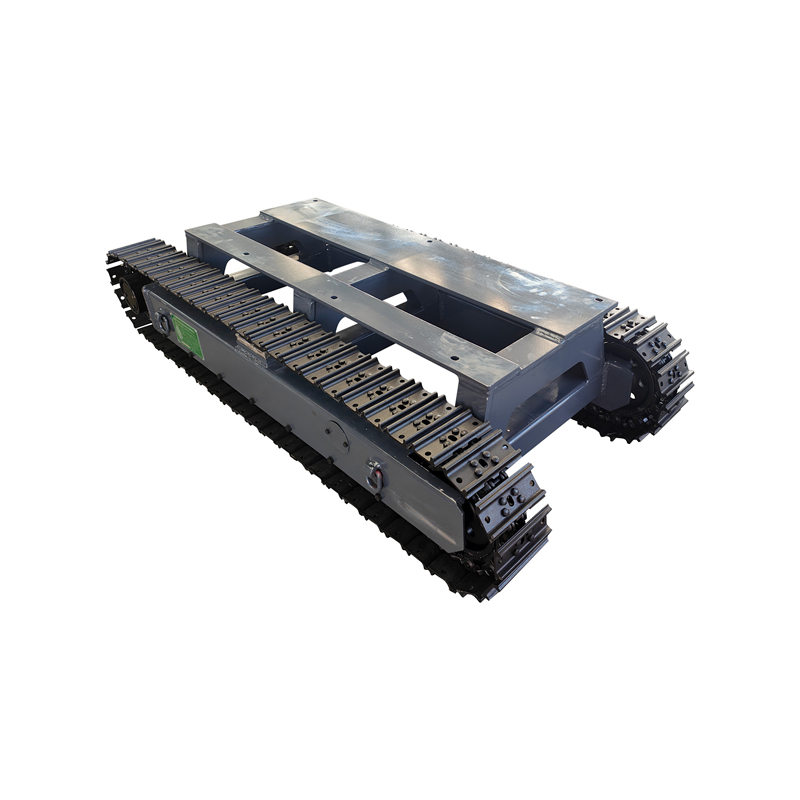

Vtrack undercarriages are heavy-duty structural assemblies that provide a stable, mobile base for vital machinery in all terrain conditions. Essential for construction, mining, and agricultural equipment, they distribute weight effectively over soft, uneven, or steep ground.

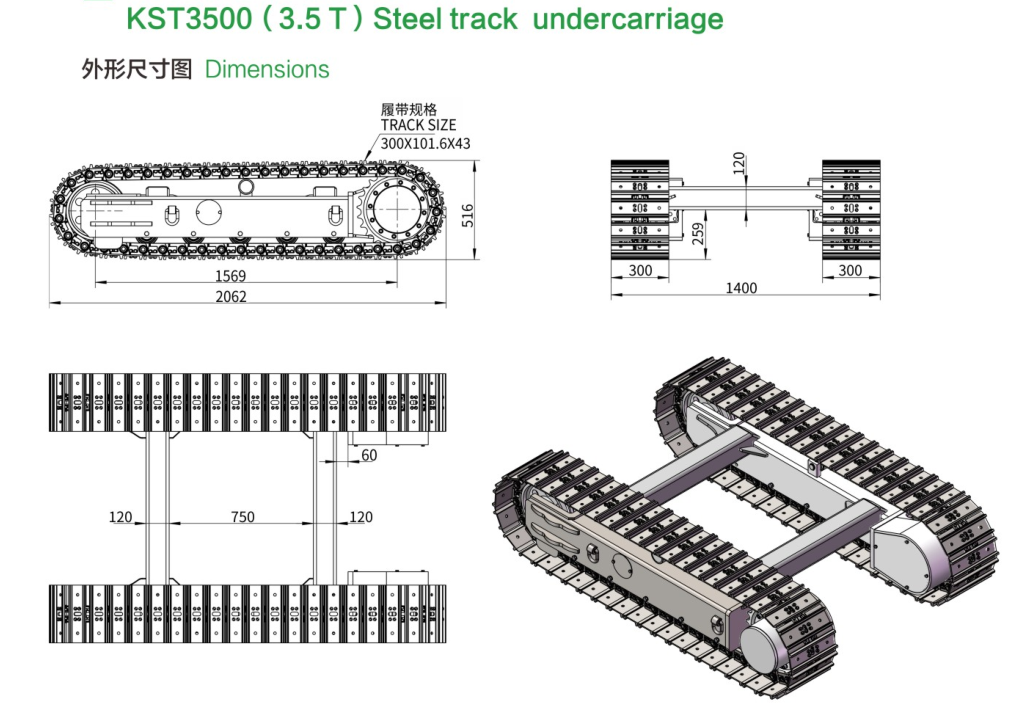

Track Undercarriage Specification Overview
| Drive Method | Hydraulic drive |
|---|---|
| Load Capacity | 3.5 Tons (3,500 kg) |
| Dead Weight | 1,100 kg |
| Pallet Size | 2080 × 1600 × 620 mm |
| Warranty | 12 months free |
Technical Parameters
| Model | Motor Displacement (ml/r) | Work Pressure (MPa) | Traction Force (kN) | Travel Speed (km/h) | Ground Pressure (kPa) | Max Gradeability (°) | Dead Weight (kg) | Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|
| KST3500 | 44 / 22 | 16 | 59 | 1.8 / 3.7 | 36 | 30 | 1100 | 3500 |

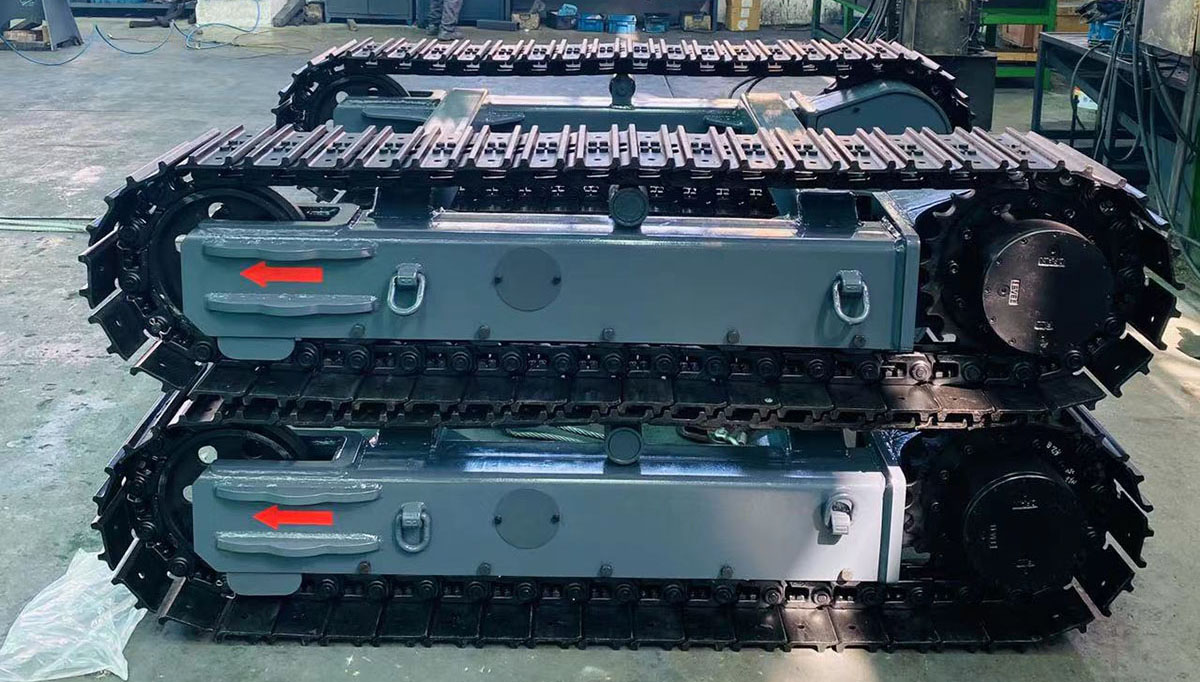

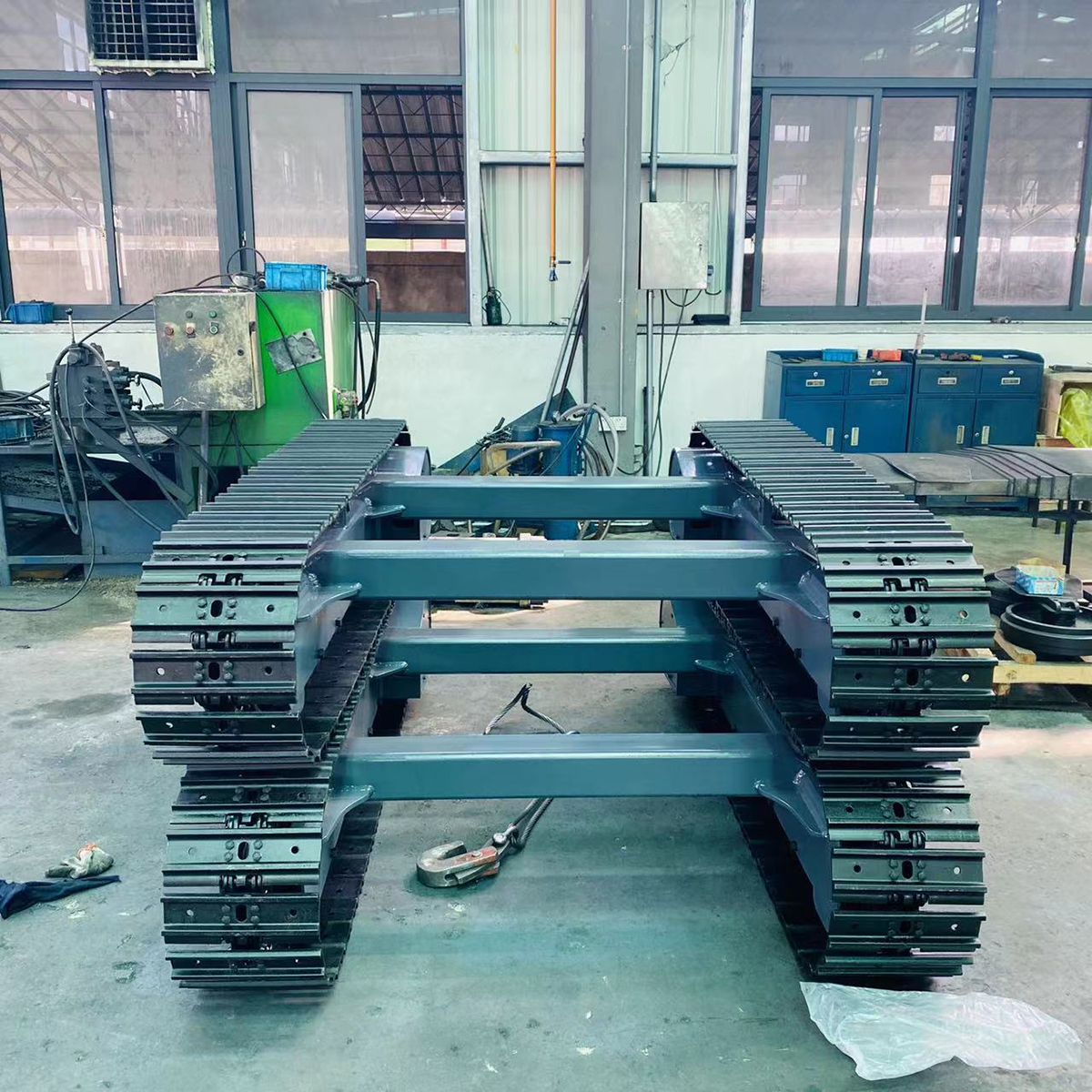

Steel Track Chassis Samples
Payment Terms, Delivery and Service
-
Payment: 30% deposit, 70% before shipment. Terms are negotiable, typically via T/T.
-
Delivery: 20–25 days after receipt of payment.
-
Service: 24/7 online technical support and overseas engineering services.
Frequently Asked Questions
-
Q: Are you a trading company or manufacturer?
-
A: We are a professional manufacturer specializing in undercarriages, trading directly with global clients.
-
Q: Can you do OEM and ODM?
-
A: Yes, OEM and ODM are both fully supported.
-
Q: Can we use our own logo?
-
A: Yes, we can incorporate your private branding and logos according to your requirements.
-
Q: How to place a custom order?
-
To provide an accurate drawing and quote, please specify:
-
Rubber or steel track type
-
Machine weight & required load capacity
-
Dimensions (length, width, height)
-
Desired travel speed and climbing gradient
-
System oil flow and working pressure
-
Target application and road/soil conditions
-
