The AF17-30-51 electric lifting winch is designed for industrial rope pulling and lifting-related applications. The supplied specifications list a first-layer pulling force of 30 kN, a rope speed of 0–40 m/min and a wire rope capacity of 20 m.
The listed configuration uses a 7.5 kW, 400 V electric motor and a GFT17W2 planetary reducer. Before ordering, confirm the required line pull, approved lifting capacity, duty cycle, electrical supply and installation dimensions for the intended application.
The following table summarizes the technical information supplied for the AF17-30-51 electric winch. Parameters marked as not specified should be confirmed with the manufacturer before final selection.
| Parameter | Specification |
|---|---|
| Model | AF17-30-51 |
| Winch Type | Electric lifting winch |
| First-Layer Pulling Force | 30 kN |
| Rope Speed | 0–40 m/min |
| Wire Rope Capacity | 20 m |
| Electric Motor Power | 7.5 kW |
| Supply Voltage | 400 V |
| Planetary Reducer | GFT17W2 |
| Brake / Clutch Opening Pressure | Not specified in supplied data |
| Total Displacement | Not specified in supplied data |
| Working Pressure Differential | Not specified in supplied data |
| Wire Rope Diameter | Not specified in supplied data |
The supplied specification identifies an electric motor and a planetary reducer. Confirm the electrical rating, reducer configuration and braking arrangement against the approved technical drawing before installation.
The supplied AF17-30-51 configuration specifies a 7.5 kW, 400 V electric motor. Confirm the required supply frequency, phase, current, starting method and control arrangement for the installation.
The winch has a listed wire rope capacity of 20 m. Confirm the compatible wire rope diameter, rope construction, drum dimensions and reeving arrangement before selecting the unit.
The listed transmission component is a GFT17W2 planetary reducer. Verify the reducer model, ratio, input interface and output connection against the requirements of the host equipment.
The supplied technical table does not confirm the specific brake type, holding capacity, control method or emergency stop arrangement. These details should be verified before the winch is used for lifting or other safety-critical operations.
The electric drive uses the specified motor and gearbox to provide the required rope movement. Confirm that the available electrical supply and motor rating match the operating requirements.
The supplied data lists a rope speed range of 0–40 m/min. Confirm the speed control method and applicable operating conditions, including the relationship between rope speed and load.
The AF17-30-51 can be evaluated for industrial equipment requiring electric rope pulling or lifting functions. Suitability depends on the installation arrangement, operating duty, load requirements and applicable safety standards.
Routine maintenance should follow the manufacturer's instructions. Inspection items may include wire rope condition, mounting fasteners, electrical connections, gearbox lubrication and installed braking components.

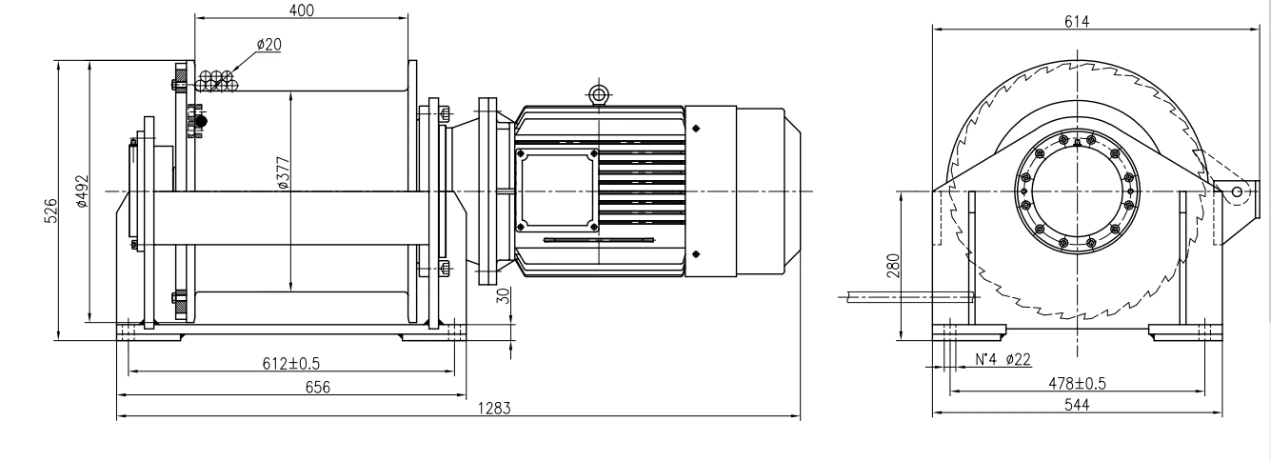

Use the product drawing to evaluate installation space, mounting interfaces, rope routing and access for maintenance. Confirm exact dimensions and connection details with the approved drawing for the selected configuration.
Before choosing an electric lifting winch, confirm the following requirements for your equipment:
Load rating: Confirm the required pulling force and the approved rated lifting capacity for the intended application.
Rope specifications: Check the required rope diameter, rope type, rope length and drum capacity.
Motor and power supply: Confirm motor power, voltage, frequency, phase, current and the available electrical supply.
Rope speed: Match the required operating speed to the winch specifications and load conditions.
Transmission: Verify the planetary reducer model, ratio and mounting interfaces.
Safety equipment: Confirm the brake, limit switches, overload protection and emergency stop requirements for the intended use.
Payment: The supplied terms are a 30% deposit and 70% balance before shipment. T/T is generally used; confirm the final payment terms before order confirmation.
Delivery: The stated lead time is 20–25 days after receipt of payment. Confirm the schedule based on the final configuration and production plan.
Technical Support: Contact the supplier to confirm product selection, installation requirements and available technical support arrangements.
Warranty: The supplied information states a one-year warranty. Confirm the coverage, exclusions and starting date in the final sales agreement.

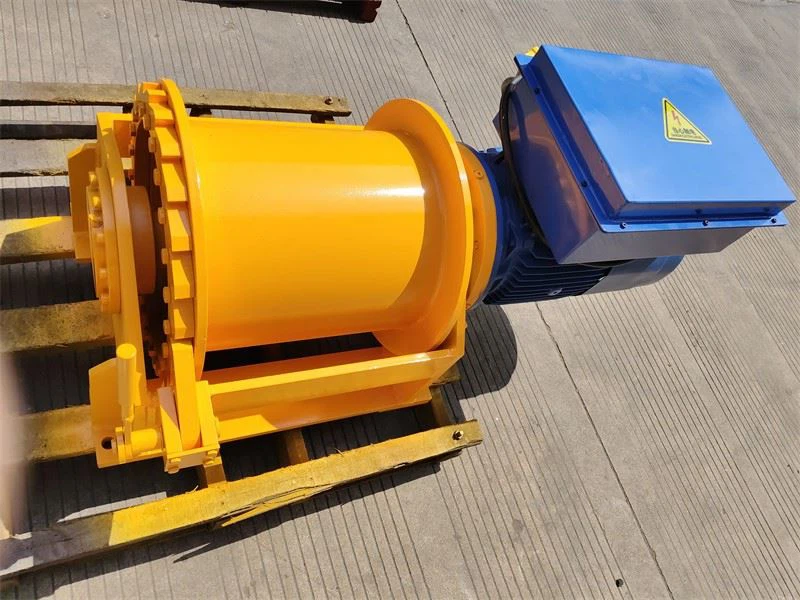

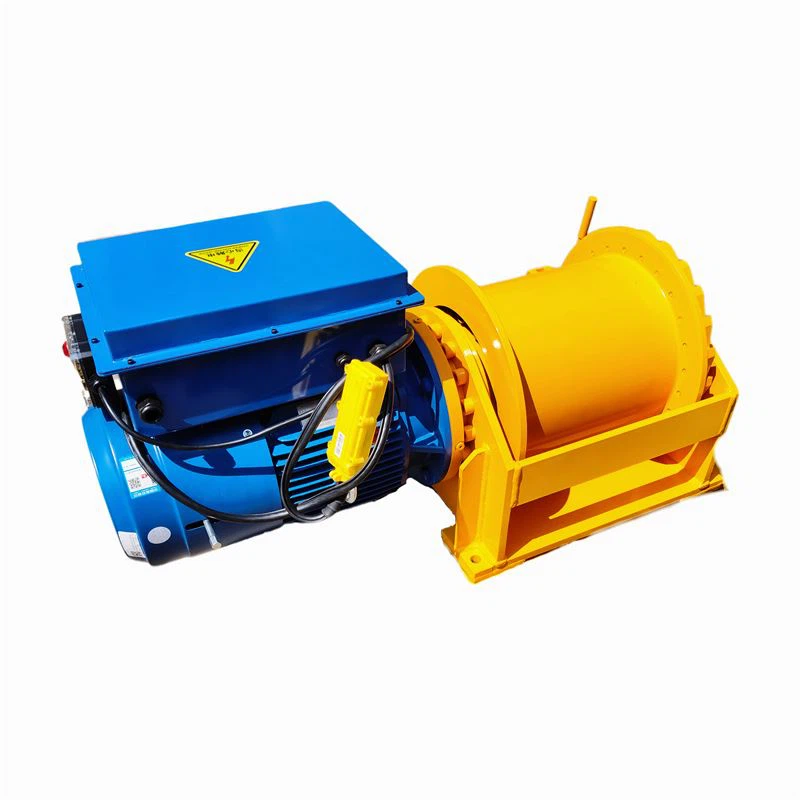

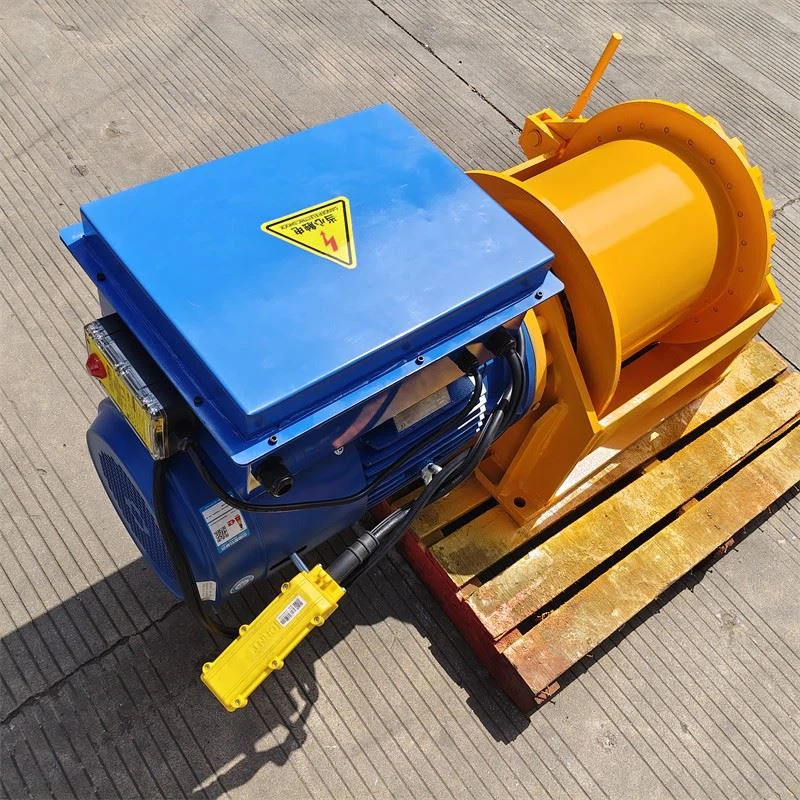

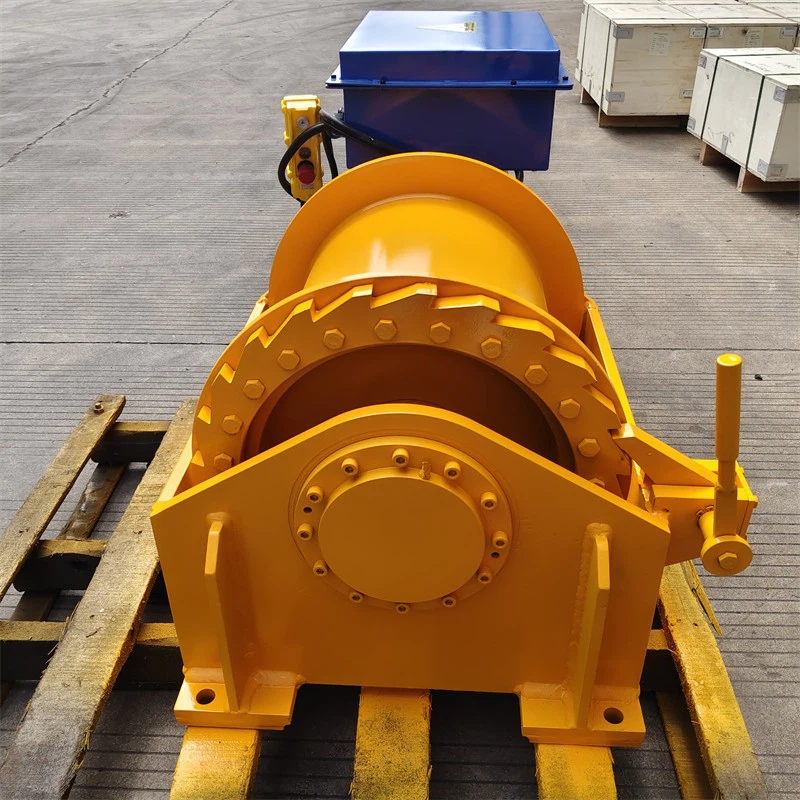

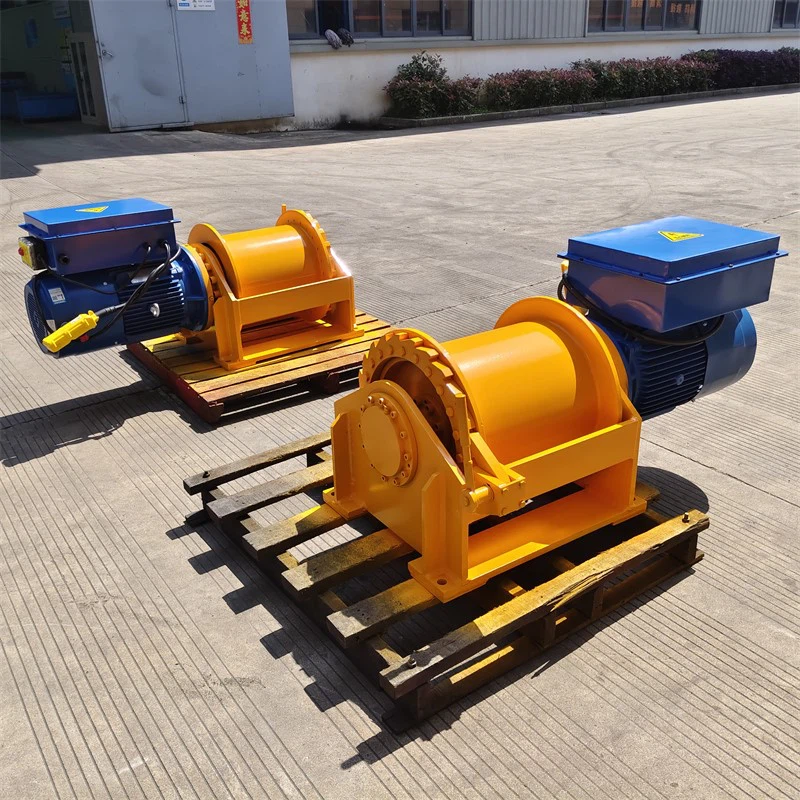

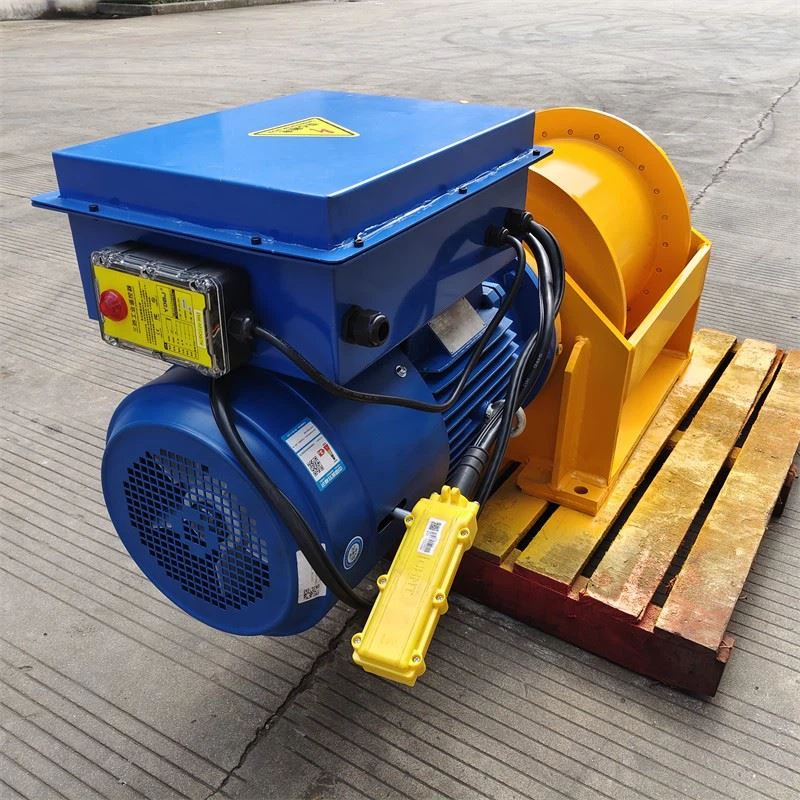

The following image is retained from the original product content. Confirm that it shows the AF17-30-51 configuration before using it as a model-specific product image.
The supplied model number is AF17-30-51.
The supplied technical data lists a first-layer pulling force of 30 kN. This value should not be treated as the approved rated lifting capacity without confirmation from the product documentation.
The supplied table specifies a 7.5 kW, 400 V electric motor. Confirm the frequency, phase, current and control requirements before ordering.
The listed rope speed is 0–40 m/min, and the wire rope capacity is 20 m. Confirm the compatible wire rope diameter and rated operating conditions with the manufacturer.
The supplied technical data lists the GFT17W2 planetary reducer. Confirm its exact configuration and interface dimensions against the approved technical drawing.
Discuss application-specific requirements such as rope capacity, mounting dimensions, motor configuration, control system and safety devices with the supplier before confirming the order.
The supplied information states a 30% deposit and 70% balance before shipment, with a stated delivery lead time of 20–25 days after receipt of payment. Confirm the final terms in the order agreement.
